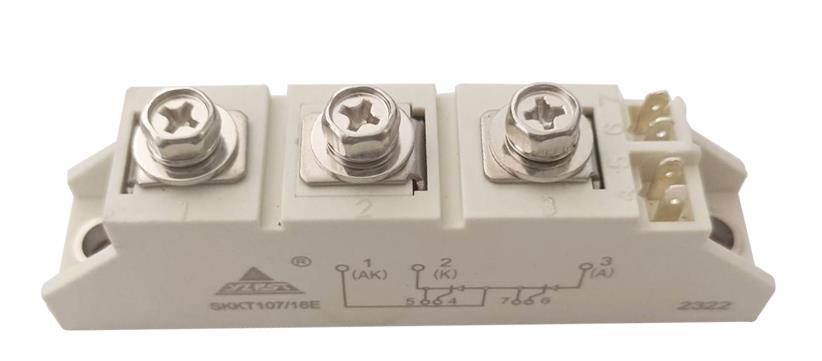

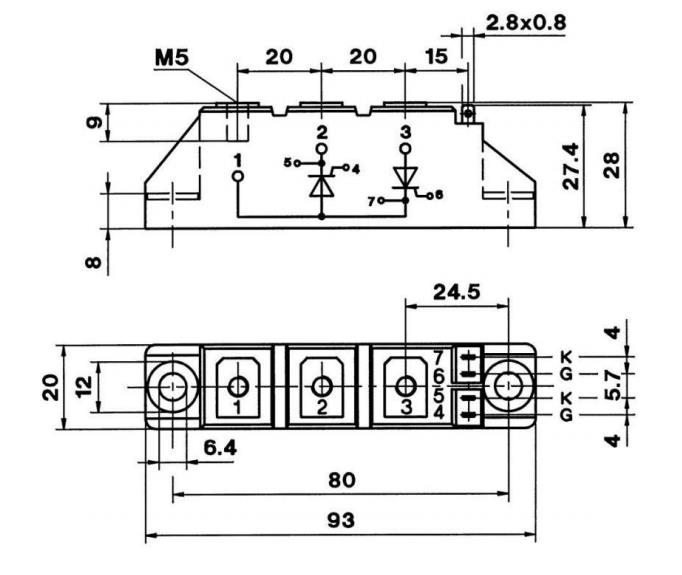

Thyristor Module SKKT107-16E
2 year ago
Thyristor Modules P/N:YZPST-SKKT107/16E
Thyristor with amplifying gate 1600V Thyristor Module 119A
Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate
Typical Applications
DC motor control
AC motor starters
Temperature control
Professional light dimming
|
VDRM |
VRRM |
VRSM |
|
1600V |
1600V |
1700V |
| Symbol | Conditions | Values | Units |
| IT(AV) | sin. 180; TC=85°C | 119 | A |
| IRMS | 190 | ||
| ITSM | Tvj=25°C; 10ms | 2250 | A |
| I2t | Tvj=25°C; 8.3…10ms | 25.3 | KA2s |
| VT | Tvj=25°C; IT=300A | max. 1.75 | V |
| IDD | Tvj=125°C; VRD=VRRM; VDD=VDRM | max. 20 | mA |
| IRD | |||
| tgd | Tvj=25°C; IG=1A; diG/dt=1A/μs; VD=2/3VDRM | 1 | μs |
| tgr | 2 | ||
| (di/dt)cr | Tvj=125°C | max. 140 | A/μs |
| (dv/dt)cr | Tvj=125°C | max. 1000 | V/μs |
| tq | Tvj=125°C | 200 | μs |
| IH | Tvj=25°C; typ. /max. | 250 | mA |
| IL | Tvj=25°C; RG=33Ω; typ. /max. | 600 | mA |
| VGT | Tvj=25°C; d.c. | min.1.0 | V |
| IGT | Tvj=25°C; d.c. | min. 35 | mA |
| VGD | Tvj=125°C; d.c. | max. 0.25 | V |
| IGD | Tvj=125°C; d.c. | max.4 | mA |
| Rth(j-c) | per thyristor /per module | 0.19 | K/W |
| Rth(c-s) | per thyristor /per module | 0.1 | K/W |
| Tvj | -40…+130 | °C | |
| Tstg | -40…+130 | °C | |
| Visol | a.c. 50Hz; r.m.s.; 1s/1min. | 3600/3000 | V |
