paper cup machine paper bag machine

2 year ago

18 0 

5 year

Product details

Performance and use：

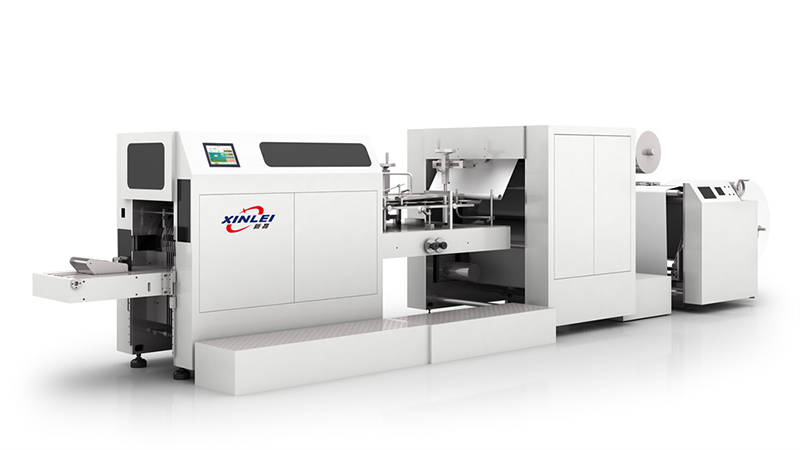

This machine is used for rolls of primary color paper or printing rolls such as kraftpaper, food paper and other paper rolls. This machine completes the paper bagprocess at one time. DThe window opening part is completed by unwinding,window opening, filming, edge glue, forming, cutting and indentation, bottomopening and bottom gluing, folding bottom forming, and finished bag finishing,The Paige bag part is completed by unwinding, patching, edge glue, forming,punching and cutting, bottom indentation and folding, bottom glue forming, andfinished bag finishing in one time. This machine is more convenient to operate, moreefficient, and more stable. It is an environmentally friendly paper bag machine equipment for producing various paper bags, snack food bags, bread bags, driedfruit bags, etc.

Main feature：

1.Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control 2.Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability 3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size 4.The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control. 5. The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.

Technical parameters：

Model	XL-FD330（W+D）
Cutting Length	270-530mm
Paper Bag Width	120-330mm
Holation width	50-120mm
Holation height	50-120mm
Bag bottom width	60-180mm
Pky bag width	190-330mm
Pky Bag Wrist hole	75/85mm
Paper thickness of the patch bag	80-150g/㎡
Pky bag film thickness	30-60um
Pky bag roll Widwidth	130mm
Piky Bag Paper Bag Speed	30-120pcs/min
Mechanical speed	30-200pcs/min
Paper bag speed	30-150pcs/min
Paper roll width	380-1050mm
Bar window Size	60-150mm
Paper Material Diameter	1200mm
Complete power	380v 3phase 4line 50.4kw
Operating Machine Weight	10000kg
Complete machine size	1550042002000mm

H783b2e7ec9664e73af6ec63963fb99081

Q:Are you factory or trading company?
A: We are factory and manufacture.
Q:The Lead time about one set？
A:about 30- 35 days
Q:How about production speed?
A:30-220 pcs/min according to different type of the paper bag
Q:How many workers need to operate the equipment?
A:need only 1 worker to operate
