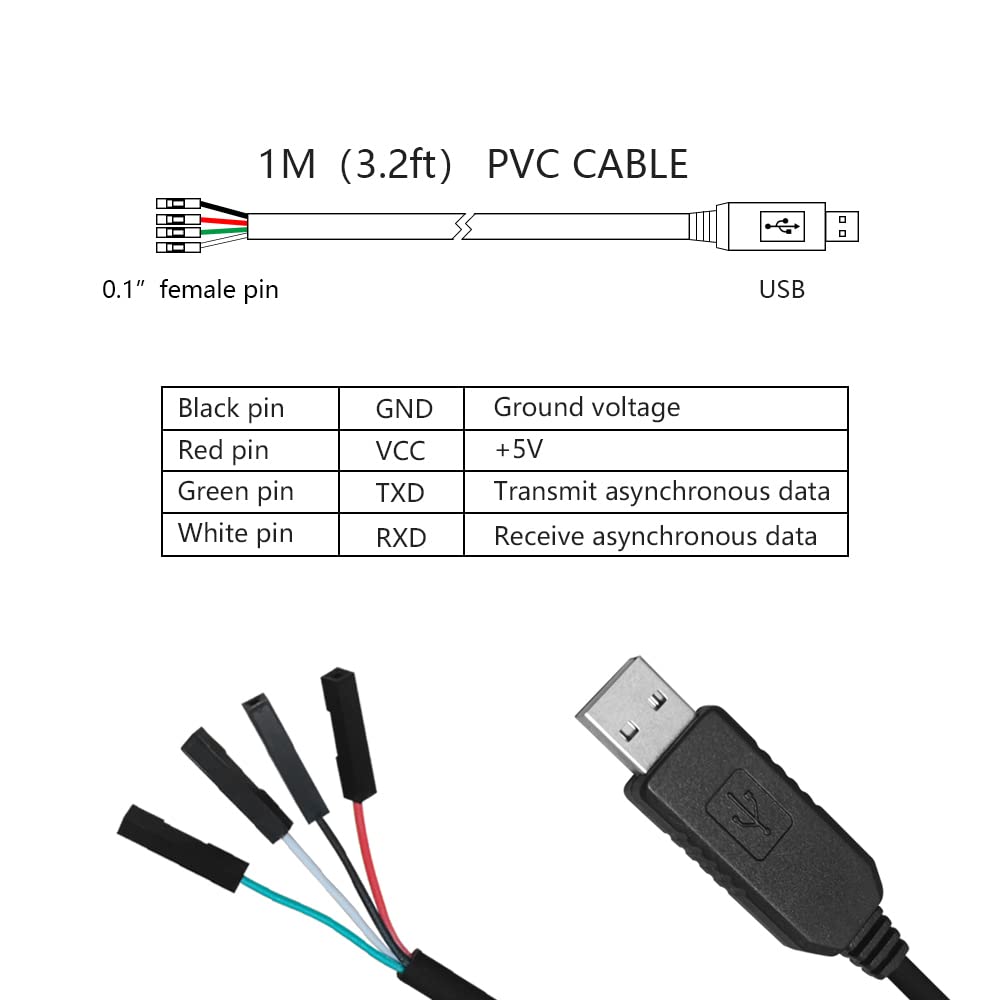

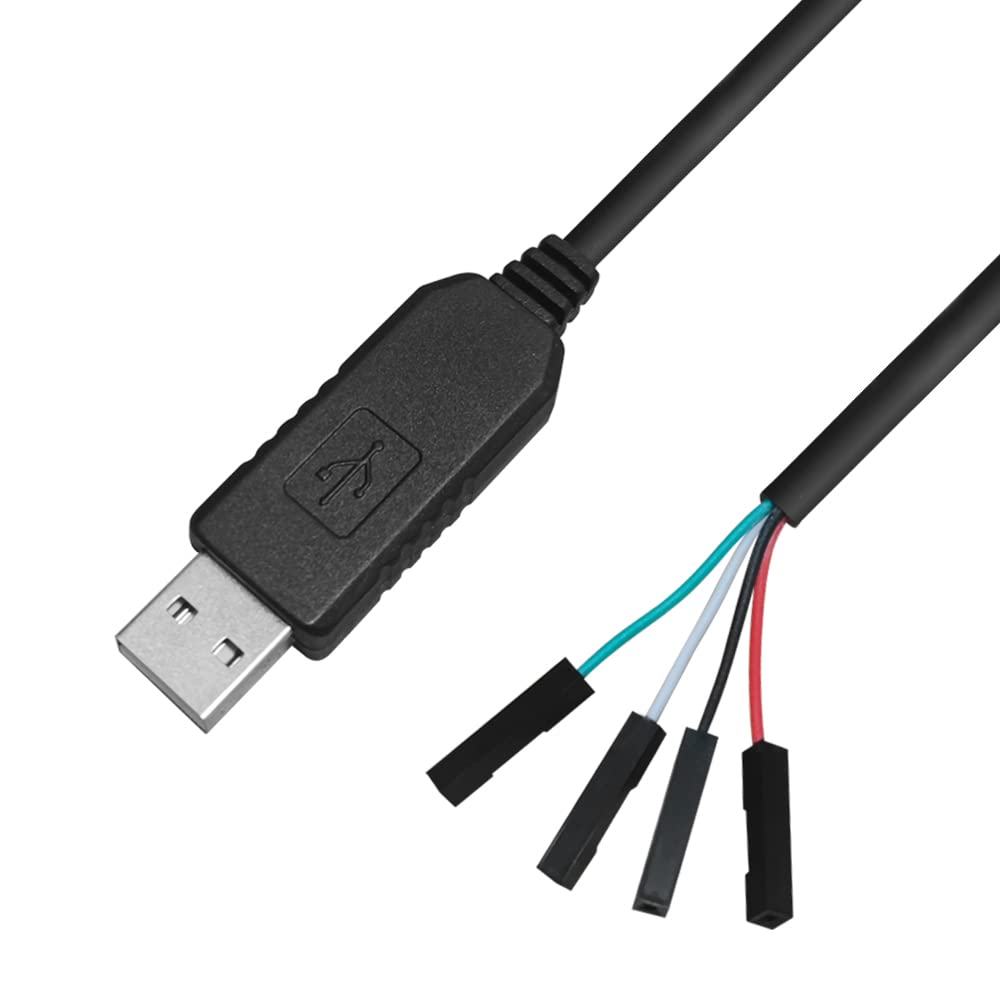

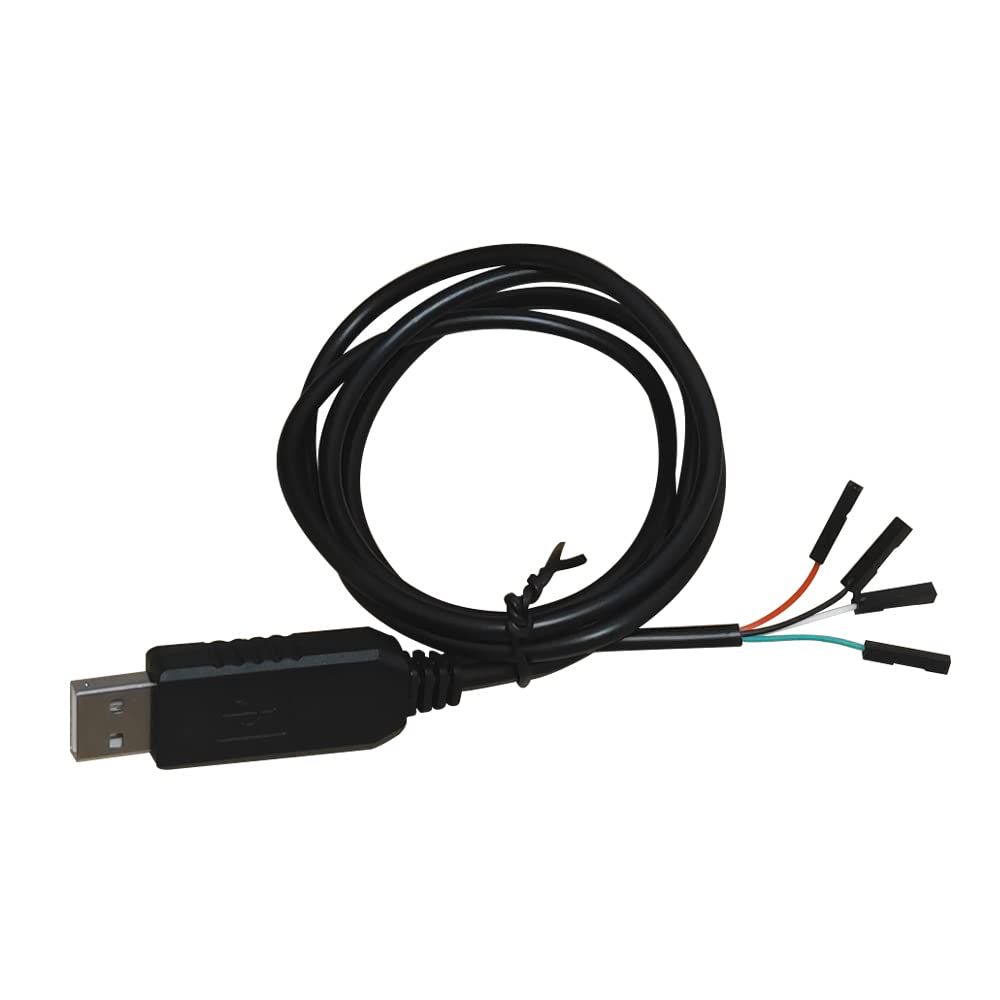

OME 1 Meter USB to TTL Serial Port Cable RS232 0.1 Inch 4 Pin Female 3.3V Converter1
2 year ago
uart to usb cable
Cheap Price Sale Chip PL232RL Uart To USB Cable
______________________________________________________________________________
-
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTDI’s
FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The
cables provide a fast, simple way to connect devices with a TTL level serial interface to USB. -
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is
encapsulated into the USB connector end of the cable. The FT232R datasheet, DS_FT232R, is available at
http://www.ftdichip.com. The other end of the cable comes with a selection of different connectors
supporting various applications -
Cables are FCC, CE, RoHS compliant and are available at TTL levels of +5V and +3.3V.
Cables are available with either a 6-way SIL,0.1” pitch connector, a 3.5mm Audio Jack, an 8 way, keyed
2mm pitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended
connections -
The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long
and supports a data transfer rate up to 3 Mbaud. Each cable supports the FTDIChip-ID™, with a unique
USB serial number programmed into the FT232R. This feature can be used to create a security or
password protected file transfer access using the cable. Further information and examples on this feature
are available at http://www.ftdichip.com under FTDIChip-ID Projects. -
The TTL-232R cables require USB drivers, available free from http://www.ftdichip.com, which are
used to make the FT232R in the cable appear as a virtual COM port (VCP). This then allows the user to
communicate with the USB interface via a standard PC serial emulation port (for example TTY). Another
FTDI USB driver, the D2XX driver, can also be used with application software to directly access the
FT232R on the cable though a DLL.
PCB Description:
| Package | |

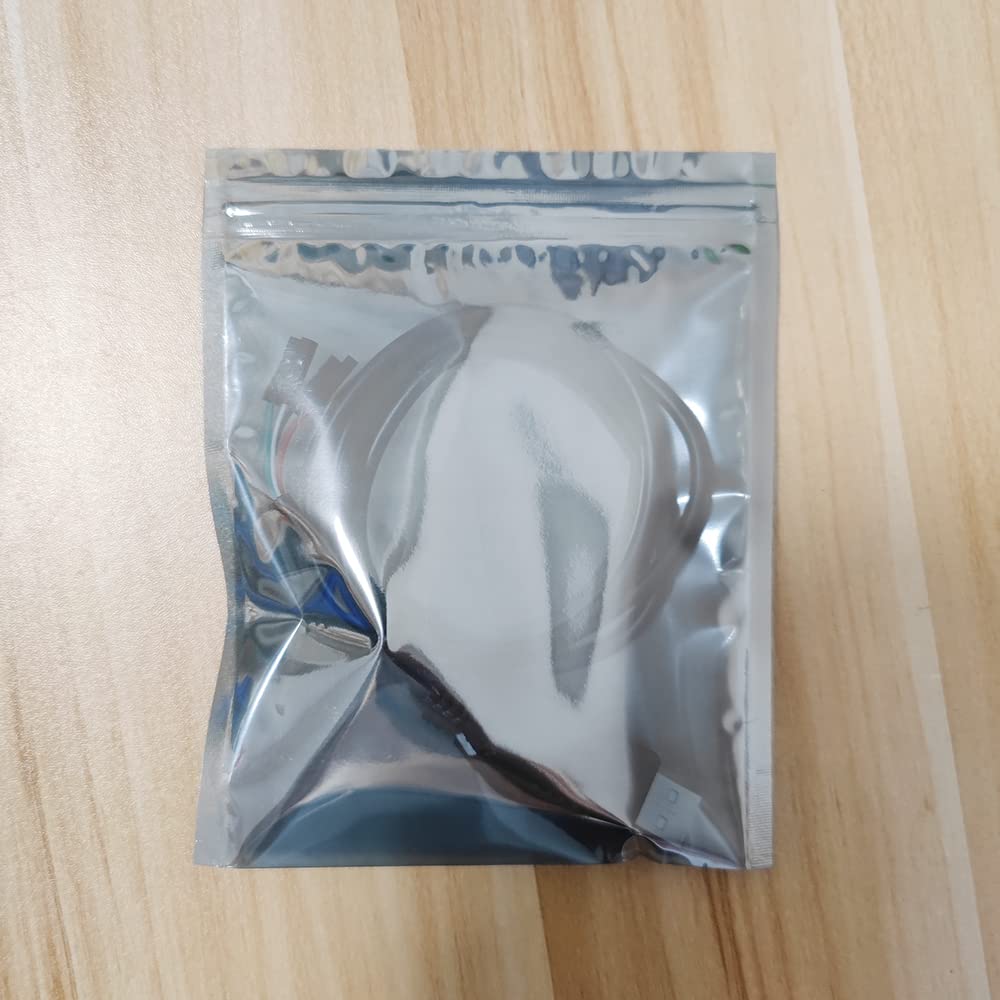

| inner package | PE bag |
| outer package | carton |
| Delivery | |
| DHL | 3~5days |
| FedEx/TNT/UPS | 5~7days |
| Air & Sea Freight | According to the shipping arrangement |
|
|
FAQ
Q1.How do you gurantee the quality?
A1: We have our own inspection team, if the defective rate is above 2%, we will take the responsibility for any quality problems caused by our side.
Q2. Do you offer after-sales warranty service?
A2:Yes, about fading, crystal fall off and other quality problems, we offer half to 1 years after-sales warranty service, but you need pay the shipping fee.
Q3. How many workes in the factory?
A3: We have more than 200 workers.
Q4. What's the monthly capacity?
A4: Our capacity is 1000000 pcs per week
Q5. What's the standard of the material quality?
A5: Our material can pass ROHS, SGS, CE.
Q6. Could I have a sample for quality check?
A6: Yes, sample order is welcome, but sample fee need to be paid. It will be deducted when you olace an order.
Q7. What is the minimum quantity for each order?
A7: Normally 100 pcs, but we also support a small quantity if you can accept a higher price.
Q8. What is the production time?
A8: Normally it is 10-35 days, depending on the order quantity and complexity of making.
Q09. What's the packaging of your jewelry items?
A09: Normally we use the OPP bag, bubble bag and paper box to pack the goods, if you have the sepecial requirement, it's no problem.
Q10. What is the payment term?
A10: Our payment term are Trade Assurance, T/T, Westernunion, Moneygram and L/C at sight.
