Thyristor Module PWA150-40

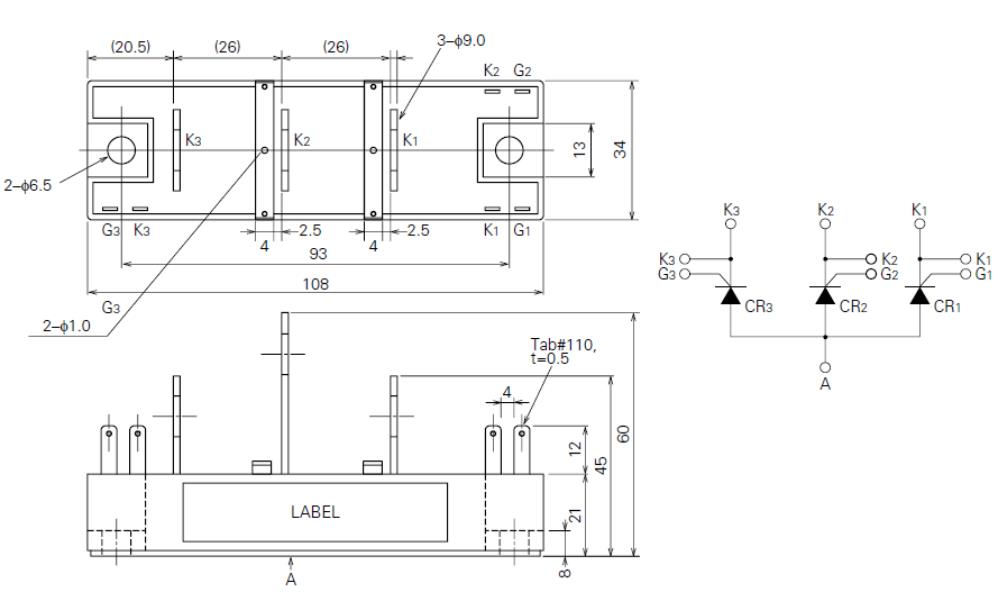

Symbol

Condition

Ratings

Unit

I_T(AV)

Single phase,half wave,180° conduction, T_C=116°C

150

A

I_TRMS

Single phase,half wave,180° conduction, T_C=116°C

230

A

I_TSM

T_j=150°C

3000

A

I²t

T_j=150°C

38

kA²S

V_DRM/V_RRM

40/40

V

di/dt

non-repetitive

100

A/us

V_iso

A.C.1minute

3000

V

T_j

-30  ~  + 150

°C

T_stg

-30  ~  + 125

°C

W

approximate

250

g

Symbol

Condition

Ratings

Unit

I_DRM /I_RRM

AtV_DRM,Single phase,half wave,T_j=150°C

40

mA

V_TM

On-State Current 450A,T_j=150°C

1.2

V

V_T(TO)

T_j=150°C

-

V

t_gd

T_j=25°C

-

us

t_q

T_j=150°C

-

us

I_GT/V_GT

T_j=25°C

100 / 3.0

mA/V

V_GD

V_D=67%V_DRM , T_j=150°C

0.25

V

DV/DT

V_D=67%V_DRM

200

V/us

I_H

T_j=25°C

-

mA

I_L

T_j=25°C

-

mA

R_th(j-c)

Per Module

0.15

°C/W
