800m Golf Laser Rangefinder Sensor

With Shielding Can, this PTF8003 model rangefinder laser sensor can be suitabable for more application scenarios.

Golf laser rangefinder sensor is to detect the laser beam and calculate the distance. With Serial(RX TX), you can connect the rangefinder laser sensor to your arduino, raspberry pi, MCU, PLC etc. controller. This golf laser range finder sensor have a maximum range of around 800 meters, which is sufficient for most golf courses. Also, we have some more product series, like High Frequency Lidar Module(HSLD01, PTFS-100...), High Accuracy Distance Sensor(U81x, M88B, BA6A etc.), welcome to contact us for more help.

UART Port Configuration/ Hardware Connections

1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 115200bps, default;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.

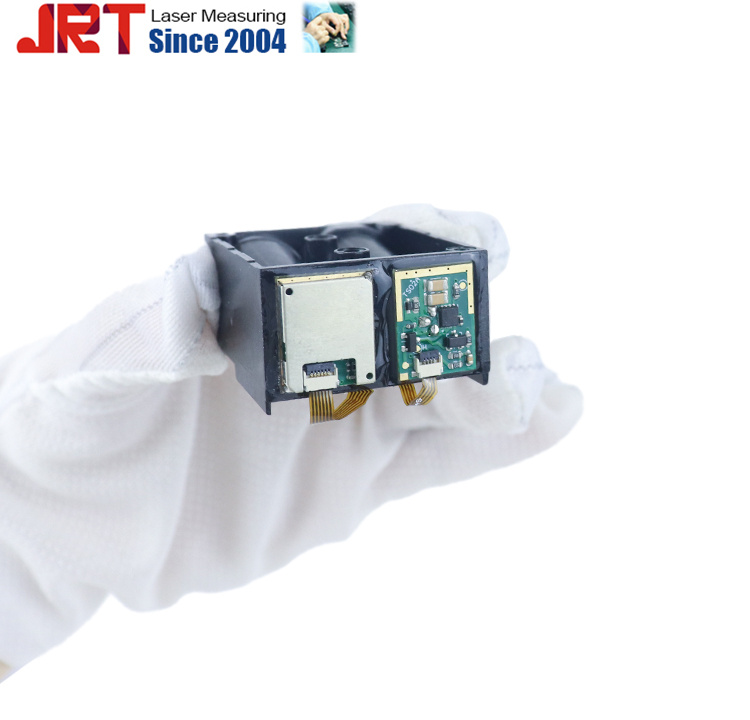

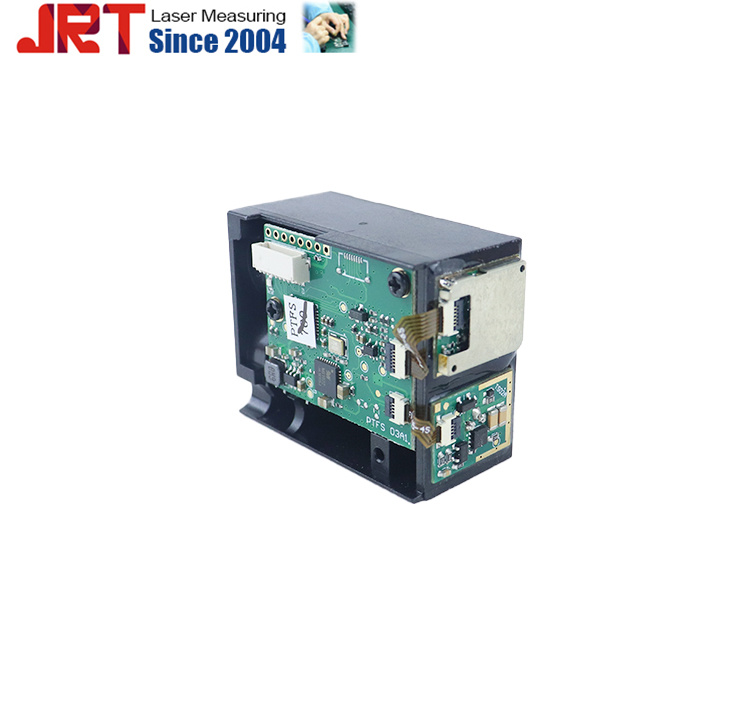

Detailed Pictures

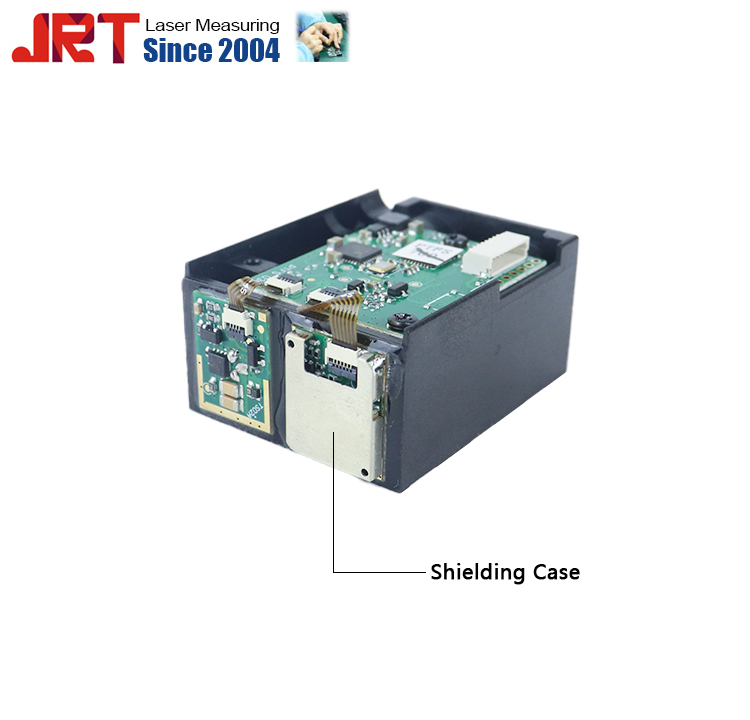

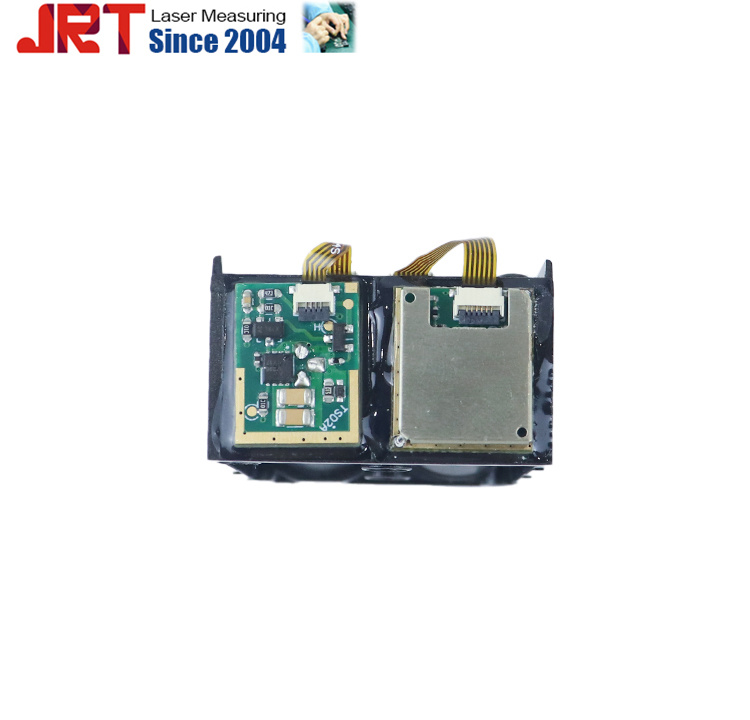

Laser Rangefinder Sensors with Shielding Can

Technical Parameters:
Model: PTF8002-b210603-700m
Range: 3-800m, at 70% Reflectivity
Maximum Single Measurement Time: 1s
Absolute Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
Light: 905nm laser, class 2
Operating Voltage: Typical value: DC +3.3V，
                   Operating range: +2.5V~+3.5V"
Current: 100mA
Power: 330mW, at 3.3V
Operating Temperature: 0~50℃
Communication Interface: UART，Baudrate 115200bps, default
Serial level: TTL 3.3V
Volume: 43*35*21mm
Weight: 20g / 0.65oz

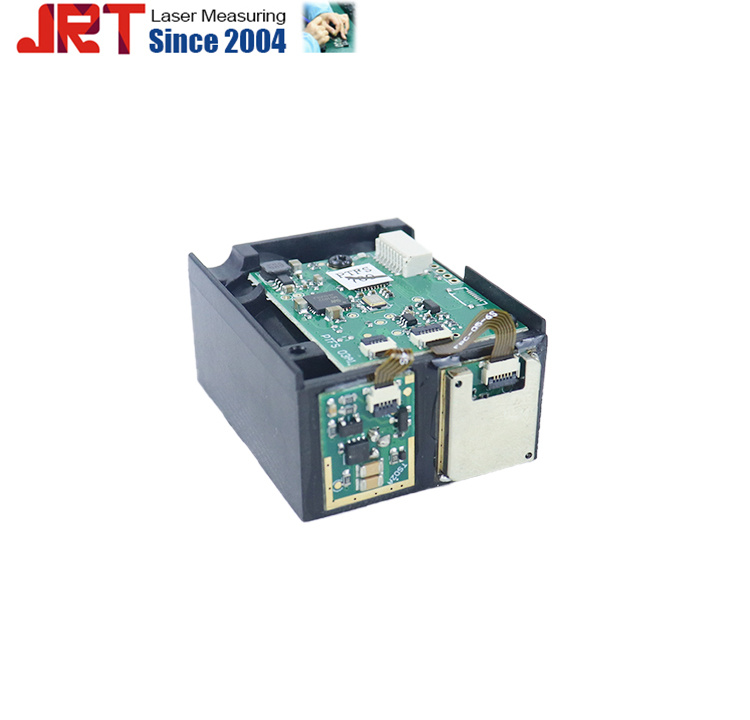

More Product picture

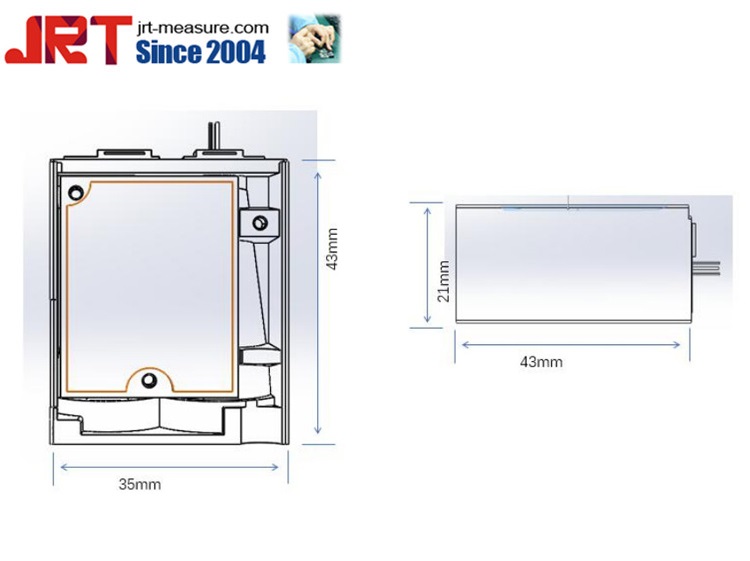

Mechanical Dimensions
