1200m Night Vision Binoculars Rangefinder Module

Over 17 years' experience in laser rangefinder modules, JRT try our best to give our customers' best rangefinder sensor solution. The 1200m laser rangefinder module is for best golf rangefinder 2021.
Customers also widely used in night vision rangefinder binoculars design. Warmly welcome to contact us for more, we also provide you OEM and ODM service.
JRT has been doing laser distance sensors since 2004.
We are having following new products, welcome to inquiry more:
1. IP65 laser distance sensor can be customized
2. World Smallest laser distance sensor: 41x17x7mm(can measure up to 20m)
3. 3000 Hz High Frequency LiDAR Sensors: 43*35*21mm(60m max)

Technical Parameters:
Model number: LRF1200mcjy(b211015)
Range: 5-1200m, at 70% Reflectivity
Maximum Single Measurement Time: 1s
Absolute Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
Light: 905nm laser, class 1
Operating Voltage: Typical value: DC +3.3V，
                   Operating range: +2.5V~+3.5V"
Current: 100mA
Power: 330mW, at 3.3V
Operating Temperature: 0~50℃
Communication Interface: UART，Baudrate 115200bps, default
Serial level: TTL 3.3V
Volume: 43*35*21mm
Weight: 30 g

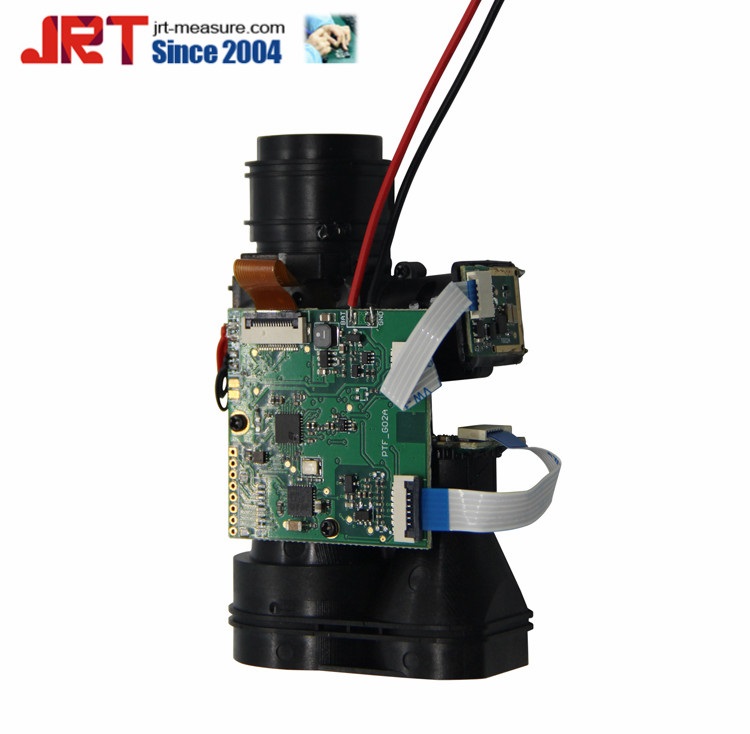

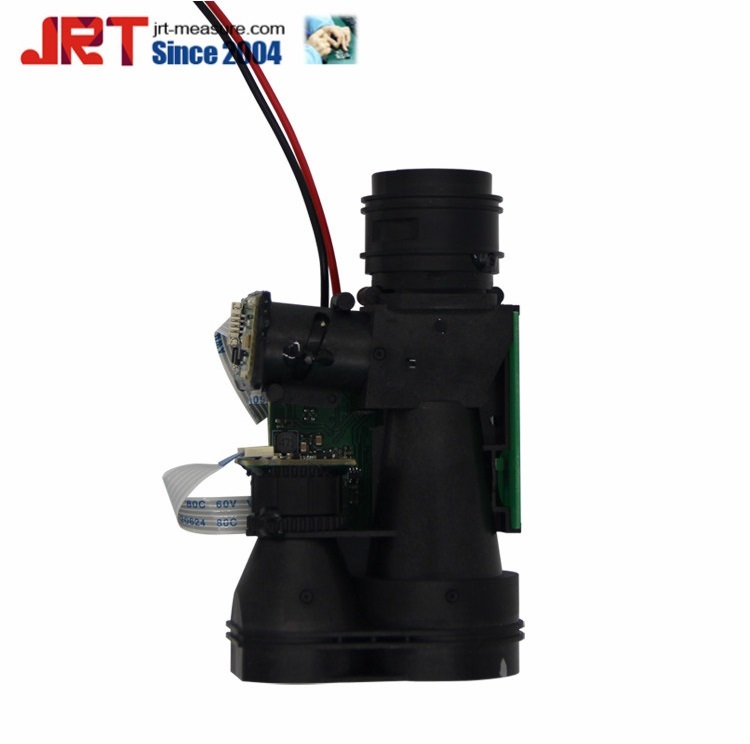

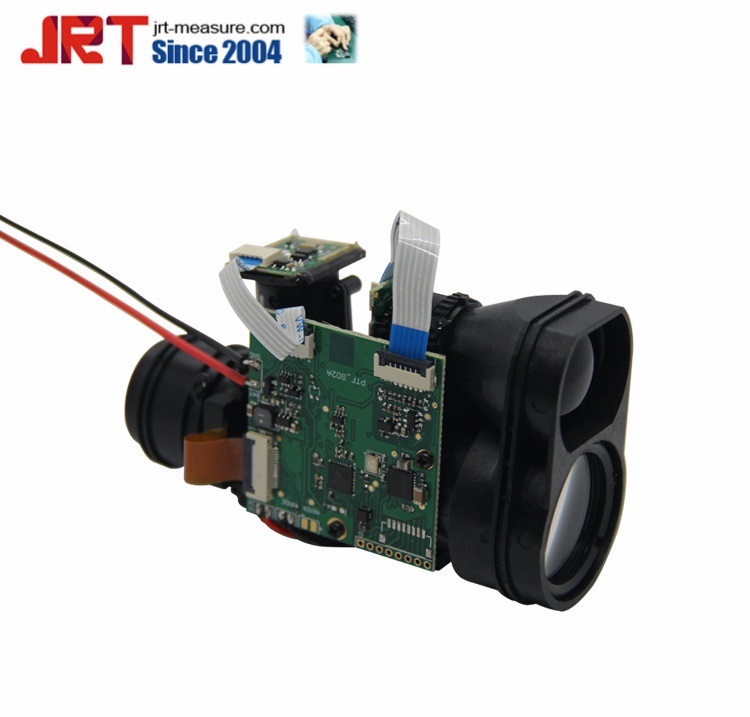

More Product picture

UART Port Configuration

Baudrate:     115200bps
Start bits:   1 bit
Data bits:    8 bits
Stop bits:    1 bit
Parity:       none
Flow control:  none
