Description

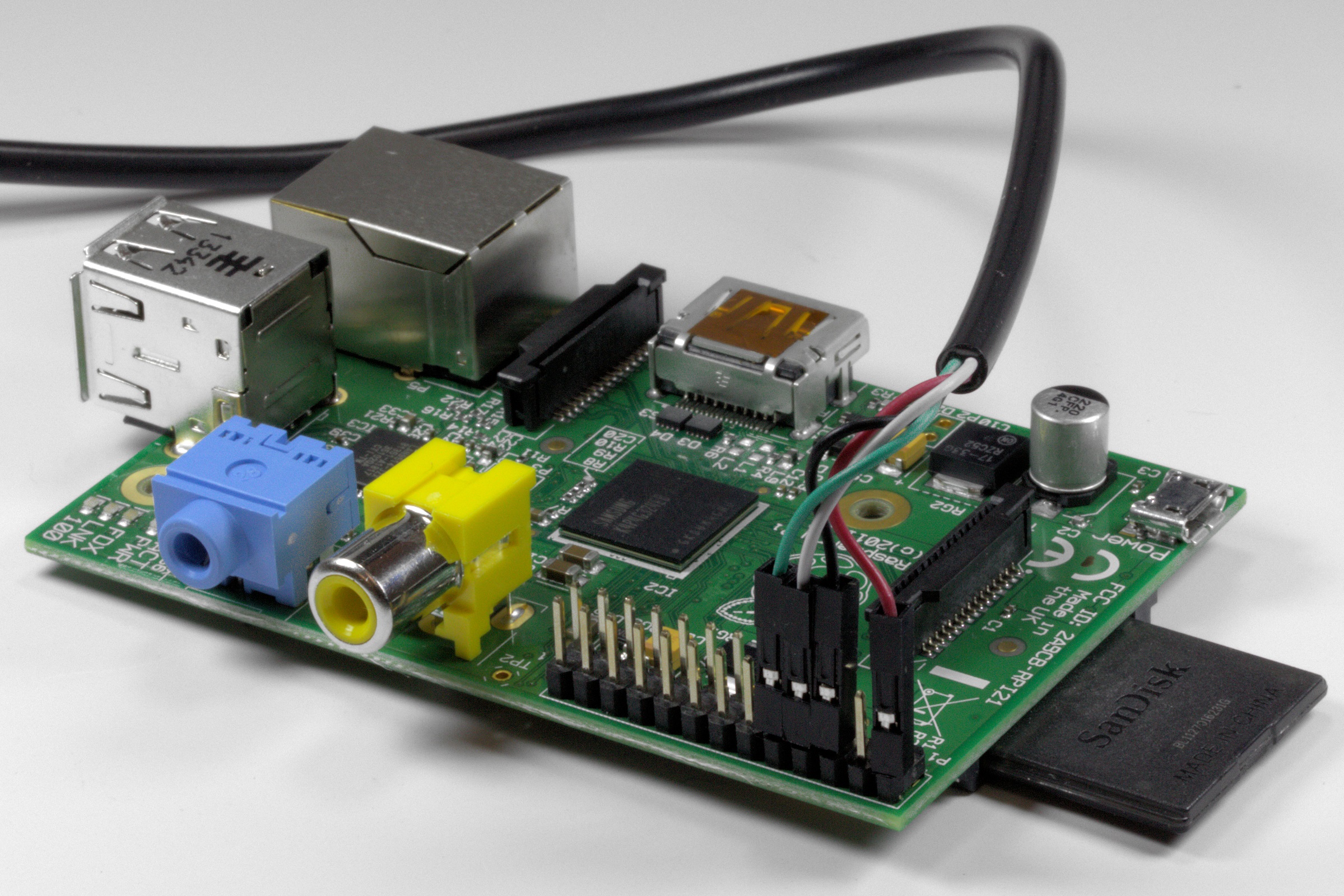

This USB 2.0 to TTL converter can be connected directly to GPIO  (General purpose input / output) connectors or UART (Universal Asynchronous Receiver / Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.

Specification

• Connectors:
  1 x USB 2.0 Type-A male >

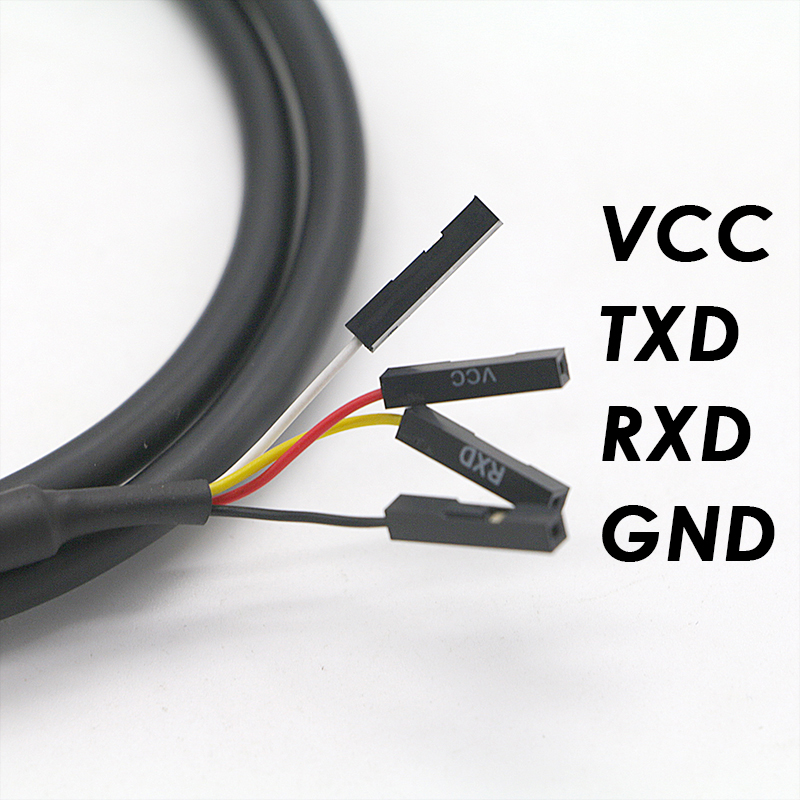

  1 x TTL 5 V 6 pin header female

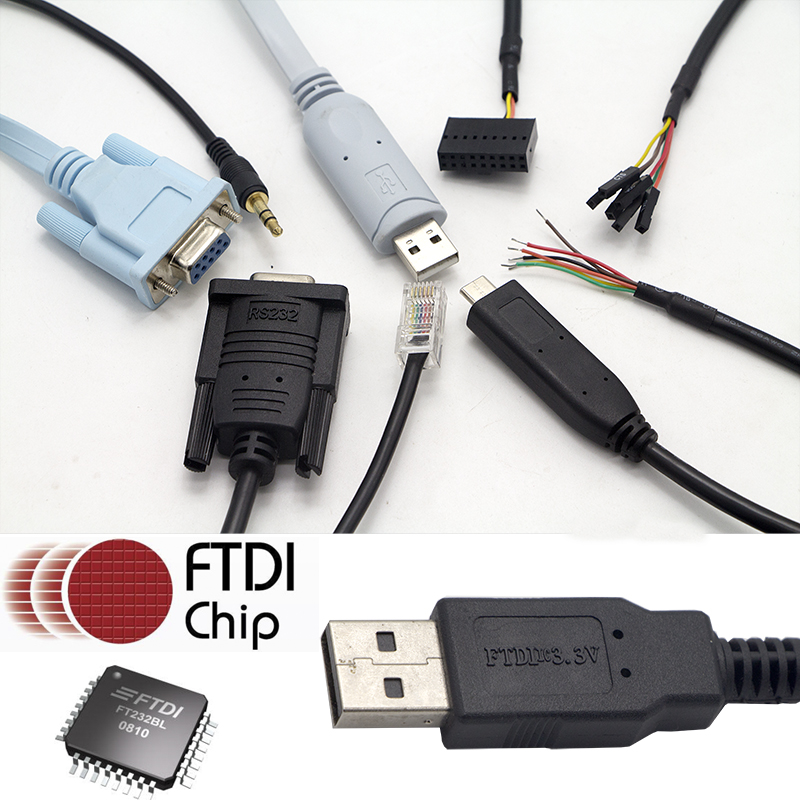

• Chipset: FTDI FT232RL
• Cable gauge: 26 AWG
• No-load current: 70 uA
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 1 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• FIFO:
  128 Byte - RX
  256 Byte - TX
• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C

System requirements

• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows CE 4.2/5.0/6.0
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

Q1. Can you provide the OEM manufacture

A1: Yes, we can offer the OEM service according to your cable solution as drawing and specification requires.

Q2. Do you offer after-sales warranty service?

A2:Yes, we have the professional sales for the customer service. And the warranty time is 1 year.

Q3. How many workers in the factory?

A3: We have more than 200 workers for the fast delivery and mass production.

Q4. What's the standard of the material quality?

A4: Our material can pass ROHS, SGS, CE.

Q5. Could I have a sample for quality check?

A5: Yes, the free sample can be offered if we have the stock.

Q8. What is the production time?

A8: Sample time around 3~5 days. And mass production is in 20days.

Q9. What is the payment term?

A9: Our payment term are Trade Assurance, T/T, Western union, Monogram and L/C at sight.
