Outdoor P3.91 500MM*1000MM Die-casting Aluminum Led Display

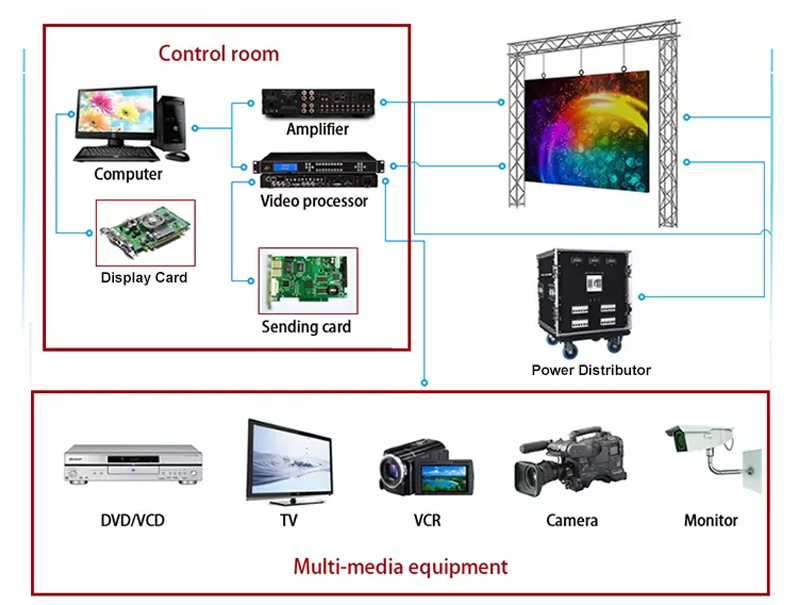

Outdoor Rental Led Screen P3.91 500mm*1000mm Die-casting Aluminum are widely used in stage events. Cabinets can make straight or curved design, led module can be magnetic. Back maintenance and front-service are available. Control system is Novastar as our usual practice with MRV208-1 receiving card and MSD300 sending card. Pantalla led video wall 500*1000mm Cabinet design has following advantages:

• Big size cabinet, save the labor and cost;
• Slim aluminum panel 500mm W*1000mm H, thin and light, only 13KG per panel;
• The screen could be hung up for different kinds of events;
• High definition, 65536 Pixels/sqm,can show extremely clear and vivid video, images and texts,looking very high end;
• LED screen size is flexible and adjusted freely with same cabinets

You have at your disposal professional manufacturer in stage lighting&led display screen production, with ＞5000sqm workshop space, more than 10 years bulk production experience, 8 years exporting business. Your requirements are our orders.We believe that our hard work and professionalism will lead to a win-win situation.

Sales Director Gina Deng.

Specification

Unit module

Model number: p3.91-16s
Model size: 250mm*250mm
Pixel pitch: 3.91mm
Refresh rate:1920hz-3840hz
Pixel density: 65536 dots/m2
Cabinet size: 500mm*1000mm
Pixel configuration: 1R1G1B
Package mode: SMD1921
Pixel resolution: 64 dots(W)*64 dots(H)
Drive type: constant drive
Scan mode: 1/16scan
Port type: HUB75
Max power consumption: 16w
Brightness of white balance: ≥6500cd/m2
Quantity of module: 18pcs
Power supply: 5V/40A*2PCS
Best viewing distance: 4~30m
Temperature: storage:-35-80℃
Working:-20-50℃
Operation humidity: 10%-95%
Thickness: 85mm
Visual angle: level 110 degree, vertical 45 degree

Power
Working voltage: AC220V±10%
Average power consumption: 450w/sqm

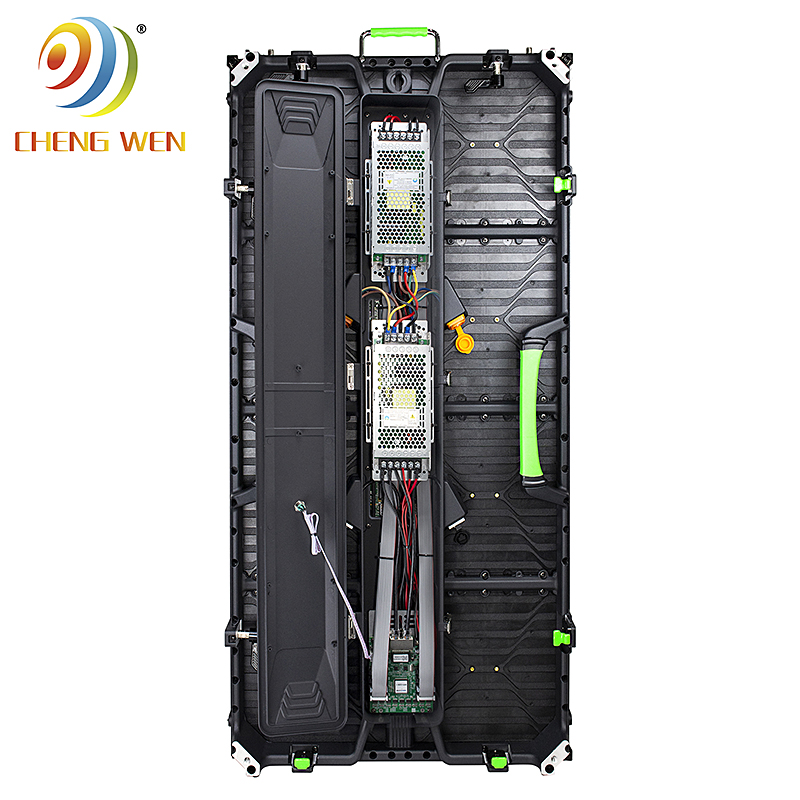

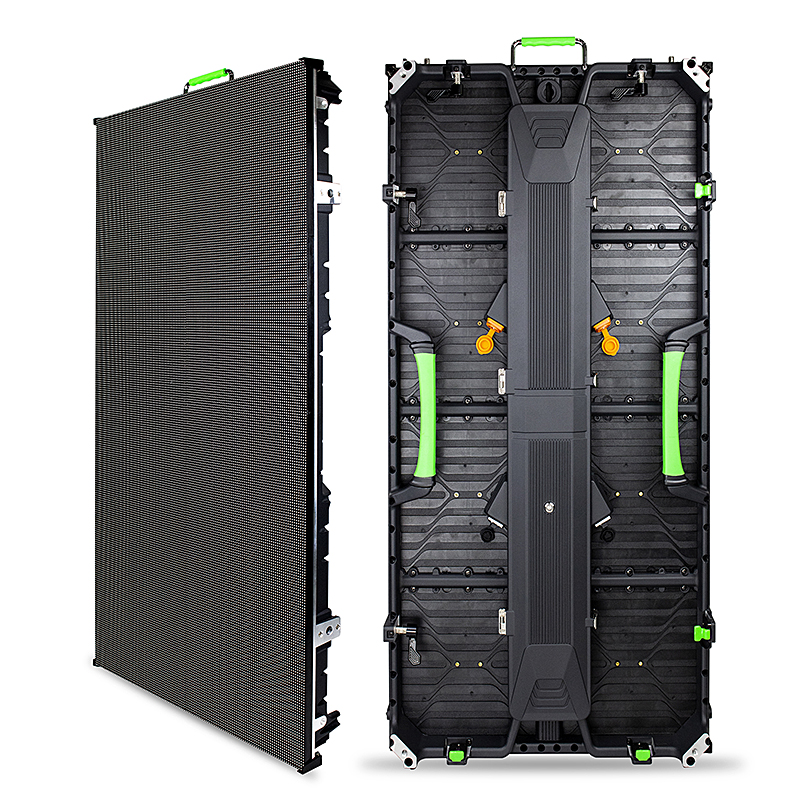

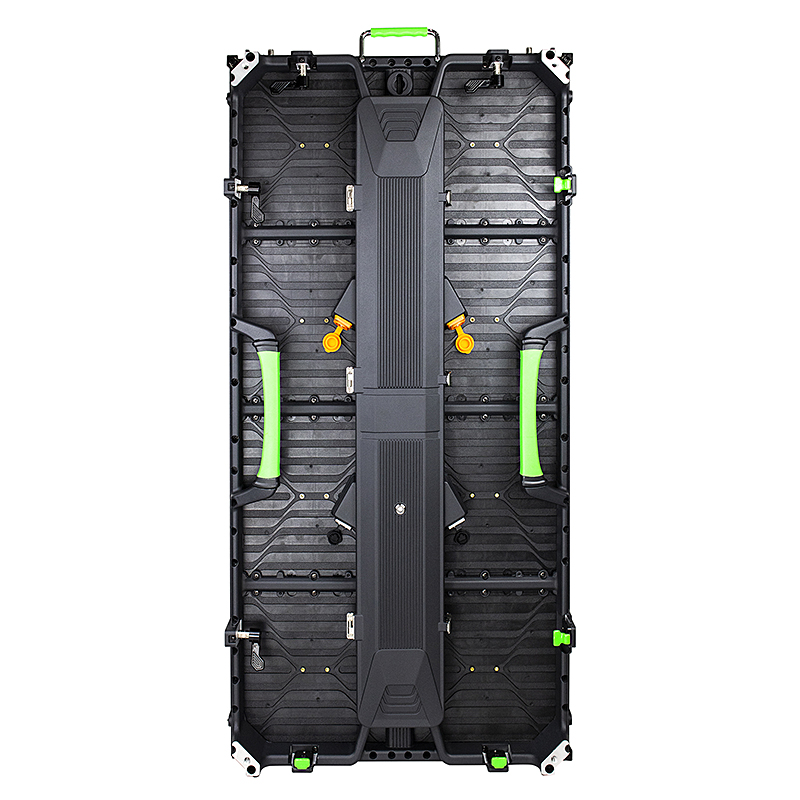

Product Show

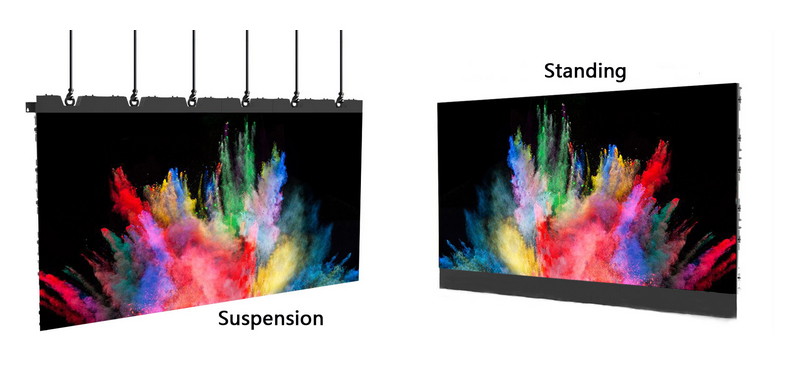

INSTALLATION
