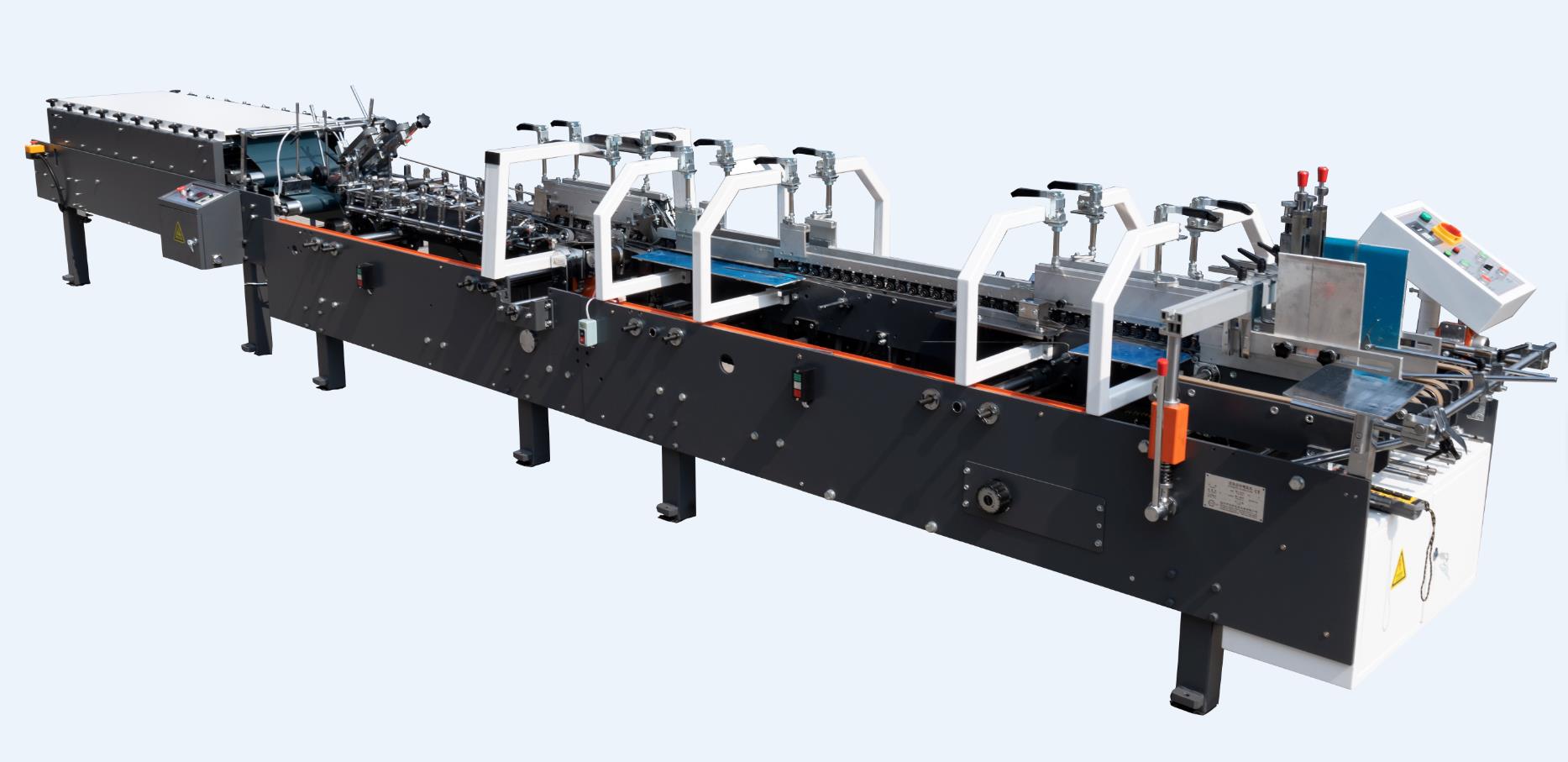

ZH-800A/880A/1000A pre-folding folding gluing machine


Product introduction:

1. Box forming: Either straight line or pre-folding, flexible conversion.
2. First line folds of 180°and third line folds of 135°by belt.
3. The pre-folding product is easier to open and form, suitable for automatic packaging line.
4. The conveyor has separate motor to control speed, it has auto trombone control function(only when the box coming, the pressing unit start working)
5. Wireless remote control.

Features:

Line speed	0-220m/min adjustable
Paperboard thickness	210-600gsm
Box forming	Single side gluing or both side gluing and pre-folding
Way of folding	First, second and fourth lines fold 180°,third line fold 135°
Paperboard feeding	Continuous automatic
Glue type	Cold glue
Power	ZH-800A 380V, 3KW		ZH-880A 380V, 3KW	ZH-1000A 380V, 4KW
Weight	1600KG		1700KG	1900KG
Machine Dimension	7.5*1.2*1.3M		7.5*1.35*1.3M	9.2*1.5*1.3M
Packin size	8cbm 1750kg		9cbm 1800kg	10cbm 2100kg

Main technical datas:

                                                     Unit: mm

Model	Box type	A	B	C min	D min
ZH-800A	Straight-line box(I)	110-600	60-500	50	10
	Pre-folding box(I)	170-600	60-500	80	10
ZH-880A	Straight-line box(I)	110-700	60-500	50	10
	Pre-folding box(I)	170-700	60-500	80	10
ZH-1000A	Straight-line box(I)	130-800	60-700	60	10
	Pre-folding box(I)	200-800	60-700	100	10
