antistatic PTFE

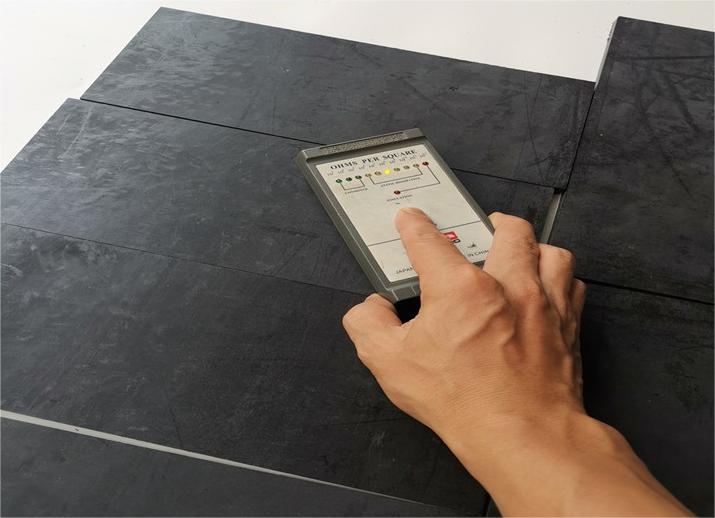

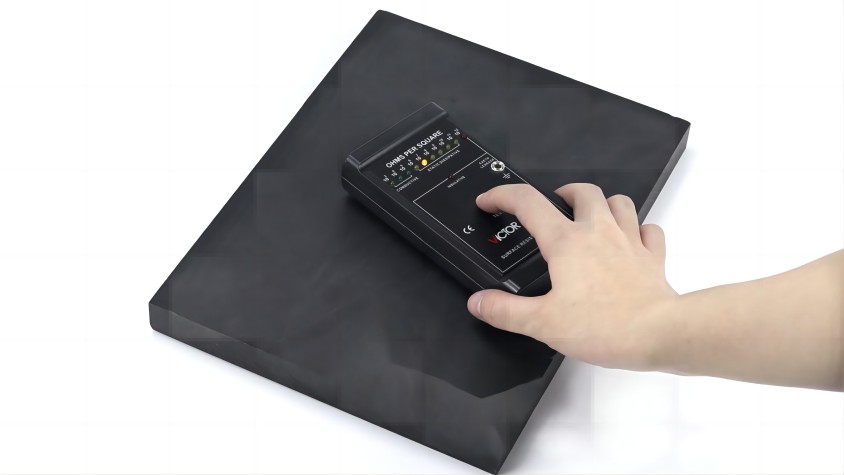

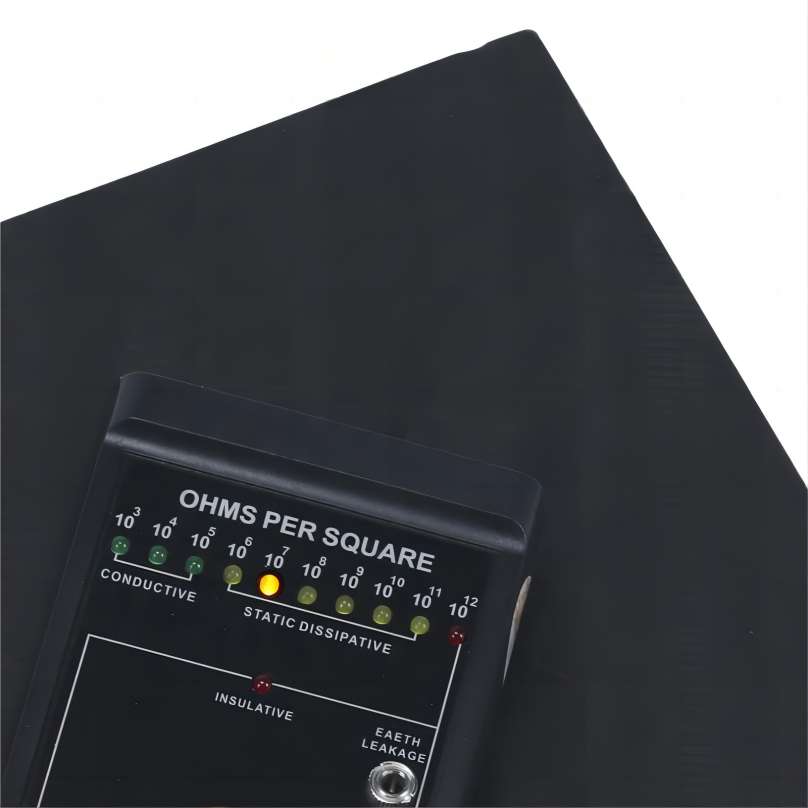

ESD PTFE sheet is manufactured by molding method/Skived with PTFE granular resin. In fluoro-plastics, PTFE got the most consumption and was used widely.It’s an important material in variety of fluoro-plastics. PTFE exhibits astonishing chemical resistance. (antistatic PTFE) solves the discharge problem of pure PTFE and retains the typical properties of PTFE,This self-lubricating material provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals.ESD PTFE sheet is a static dissipative PTFE (PolyTetraFluoroEthylene) that has the same general properties of unfilled PTFE but with additional static dissipative properties. It has a surface resistivity of 10^6 – 10^9. Because of its dissipative properties, ESD is ideal for use in applications that give off electrical discharge.

Characteristics:

♦ Superior endurance in corrosion

♦ Non-flammable,limited oxygen index is under 90.

♦ Low friction coefficient

♦ Non-viscous, Self-lubricating

♦ Superior endurance in high & low temperature, can be used -200~260℃

♦ High electrical insulation

♦ Atmospheric aging resistance

♦ Low permeability, good gas barrier property

♦ Good physiological compatibility and anti-thrombotic

Applications:

♦ Corrosion resistance: widely used in all chemical containers and parts which contacted with corrosive media, such as tanks, reactors, equipment lining, valves, pumps, fittings, filter materials, separation materials and pipe for corrosive fluids.

♦ Abrasion resistance: can be used as a self lubricating bearing, piston rings, seal rings, gaskets, valve seats, sliders and rails etc..

♦ Insulation materials: mainly used in the manufacture of various products with high temperature resistance, high-frequency resistance, electrical insulation and arc resistance, such as high-frequency cables, moisture-resistant cables, capacitor coils, insulating cover for wire, etc..

♦ Medical materials: such as artificial blood vessels, heart, esophagus, peritoneum, heart devices, a variety of intubation tubes and catheters.

♦ Non-stick materials: can be used for non-stick coating such as non-stick pan and non-stick roller for food processor.
