CNC pipe bending machine
1.Product Introduction:

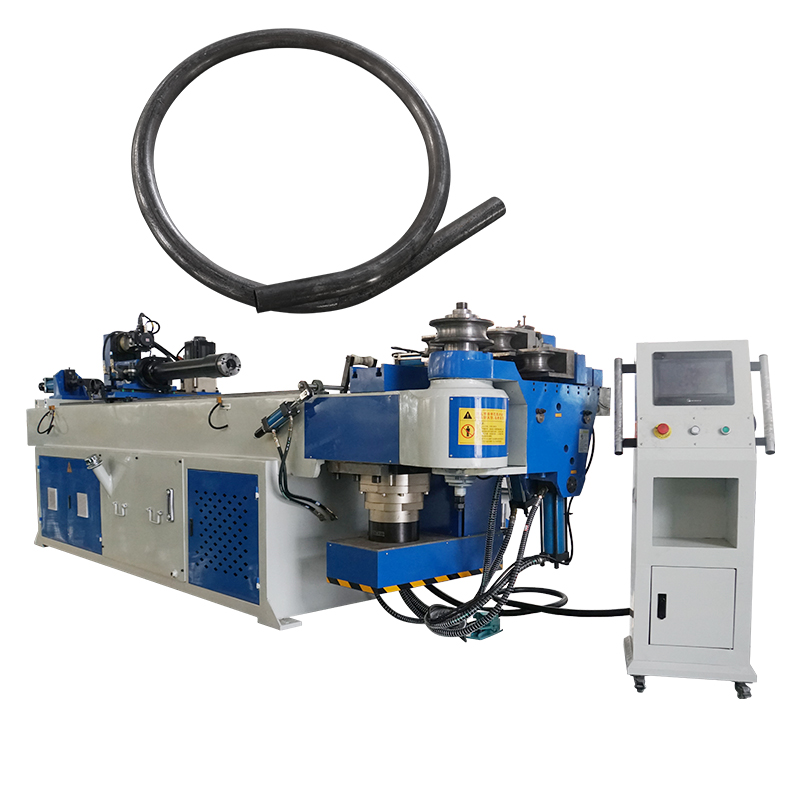

This is a fully automatic tube bending machine with PLC control system. And It has two servos for rotary and feeding. Its touch screen panel can display English language. You can make different bending degree prefabricate, different dialogue operation and choose manual, semi automatic or full automatic operation style through the PLC. The tube bending machine also has portable pedal switch with start and emergency stop funciton. And the multi axis works simultaneously.
2.Product Parameter:
Product name: HSB75cnc-2a-1s
Type: CNC tube bending machine
Max. applicable carbon steel pipe material:Φ76.2*3.0t
Max. bending radius:1800mm
Max. bending angle:185°
Number of bends:16
Accuracy:+_0.1
Motor power：7.5kw
Weight:3600kg
