Manufacturer Professional RM10 Power Electrical High Voltage Control Power Transformer with Leading Wire1
2 year ago
The PQ2620 transformer is a type of power transformer commonly used in electronic devices and power supply systems. It is designed to convert high-voltage alternating current (AC) to low-voltage AC or vice versa. The PQ2620 transformer has a specific design and construction, with a core made of laminated iron or other magnetic materials to efficiently transfer the electrical energy.
Input Voltage: AC 100---240V;50/60Hz to be customized
Output Power: 5VA -1000VA to be customized
Products Advantages:
1. Low loss
2. High Reliability
3. High Efficiency
4. Stable output
5. It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1. Photovoltaic
2. Household Appliance
3. Energy
4. Communications
5. High-power supply
6. Automotive electrics
Output Power: 5VA -1000VA to be customized
Products Advantages:
1. Low loss
2. High Reliability
3. High Efficiency
4. Stable output
5. It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1. Photovoltaic
2. Household Appliance
3. Energy
4. Communications
5. High-power supply
6. Automotive electrics

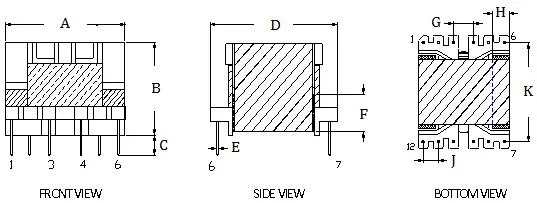

| Spec | Size(mm) | |||||||||
| A | B | C | D | E | F | G | H | J | K | |
| PQ2620 | 27.5 | 21.5 | 3.0 | 31.0 | 0.6 | 1.0 | 7.62 | 5.0 | 3.81 | 25.4 |
We can do OEM and ODM ,Below list are the common types of Transformer，inductor ,coil ,current sensor.
We enjoyed a high reputation and keep reliable cooperation with global valued customers such as Panasonic,Bel power, Honeywell, Jabil, Otis, GE,Resideo, ABB, Checkpoint, Eaton.
What we can build for you? Get in touch with us now ,we can help you.
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP07, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||
