100watt 10kHz 8ohm Ei Ee High Frequency Audio Transformers Line Matching Audio Transformers Speaker Amplifier Transformers1

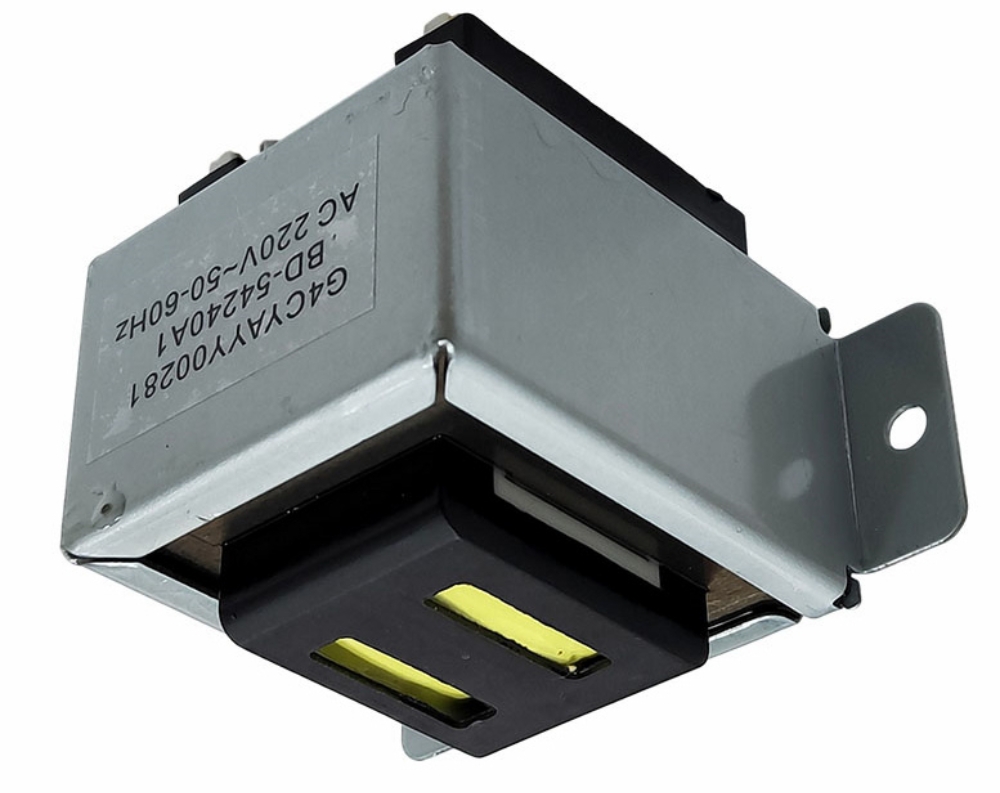

A shell-type low frequency transformer is a type of power transformers that is designed to operate at low frequencies, typically below 1 kHz. It is called a "shell-type" transformer because of its construction, which consists of two separate windings that are wound around a central magnetic core.

In a shell-type auido transformer, the primary and secondary windings are wound on separate sections of the core, with the primary winding usually placed closer to the core. This configuration helps to reduce leakage inductance and improve the overall efficiency of the transformer.

Input Voltage: AC 100V/110V/115V/120V/220V/230V/240V;50/60Hz to be customized

Output Power: 1.0VA -500VA to be customized

Products Advantages:

1. Low no-load loss

2. High Reliability

3. High Transmission Efficiency

4. Low-temperature Rise

5. Excellent Safety

6. UL Approved

7. High output power

8. Rohs fully compliance

9. It can be customized according to the requirements of customers and provide total design solutions to customer

Application:

1. Industrial application

2. Household Appliance

3. New Energy

4. Communications

5. Other Industrial application

We can do OEM and ODM service (Power Transformer,SMD transformer，power inductor ,air coil ,current transformer)
