Product details

14/12G-G Dredge Gravel Sand Pumps is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of G Gravel pump,GH gravel pump has achieved extra high head for special working conditions.

14/12G-G Dredge Gravel Sand Pumps Design Features:

• Horizontal,Cantilevered, Single casing, Centrifugal Gravel sand pump.
• The wetted parts are made of Ni-hard and Ultrahigh-chrome alloys with super strong abrasion resistance.
• The discharge direction of pump can be oriented in any angle of 360°.
• Packing seal, Expeller seal and Mechanical seal are available as per different application.
• Excellent NPSH performance.
• Simple and reliable construction, Easy to disassembly, assembly and maintain.

Application

• Dredging

• Gravel pumping
• Large particle solids transport
• Wet sand pumping
• Mill discharge
• Cyclone feed
• Sugar beet
• Sand reclamation
• Suction hopper dredging
• Slag granulation

• Barge loading

14/12G-G Dredge Gravel Sand Pumps Performance

Model	Flow(m3/h)	Head(m)	Speed(r/min)	Efficiency(%)	NPSHr/m	Max permissible particle size/mm
6/4NP-G	187-36	7-51	1400-600	30-58	1.5-3.7	82
8/6NP-G	576-133	10-48	1400-800	60-54	1.2-4.2	127
10/8NP-G	930-216	11-44	940-500	65-34	3-7	178
12/10NP-G	1512-360	11-58	850-400	70-50	1.5-6	220
14/12NP-G	3168-522	9.5-66	700-300	68-60	2-8.5	241
16/14NP-G	3024-900	14-45	500-300	70-50	3.5-6.5	254
10/8NP-GH	1091-324	19.2-56.5	800-500	72-60	1.5-5	180
12/10NGH	2232-612	28-77	700-450	73-60	1.5-8	210
18/16NP-G	3630-730	15-55	250-600	72-60	3-6.5	254
20/18NP-G	4300-1080	10-56	200-450	68-50	2-6	330

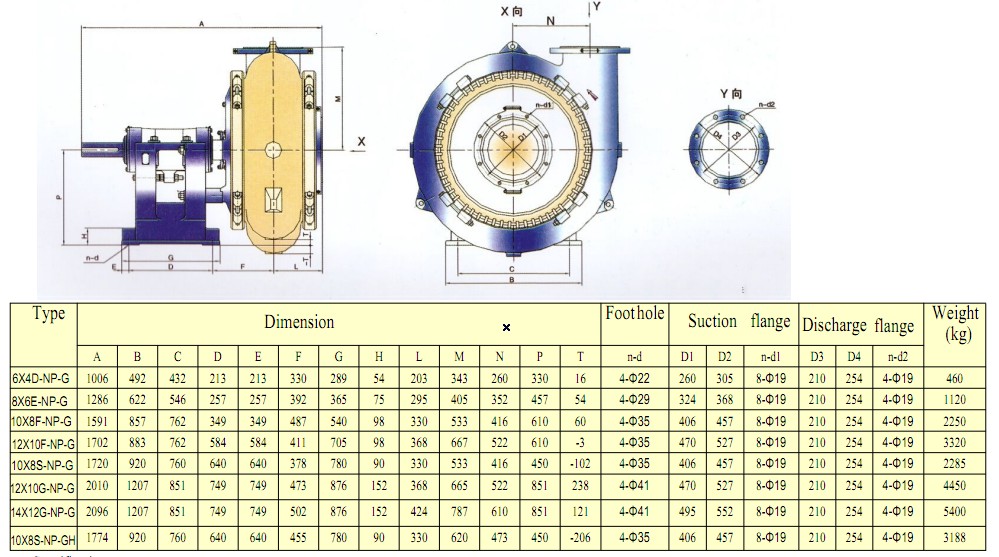

14/12G-G Dredge Gravel Sand Pumps Dimension Size

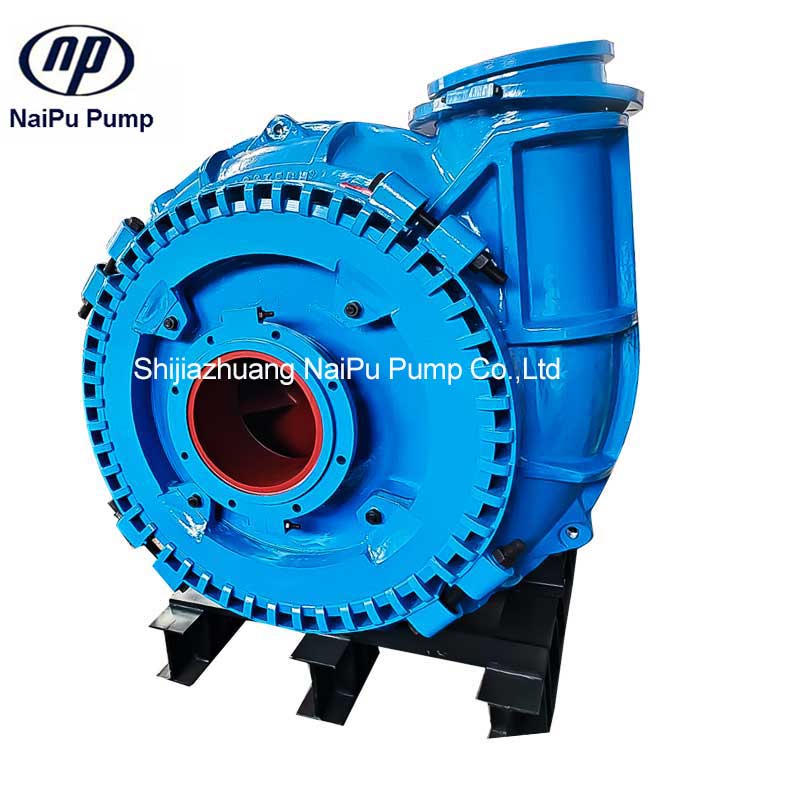

14-12-Sand-Pump-

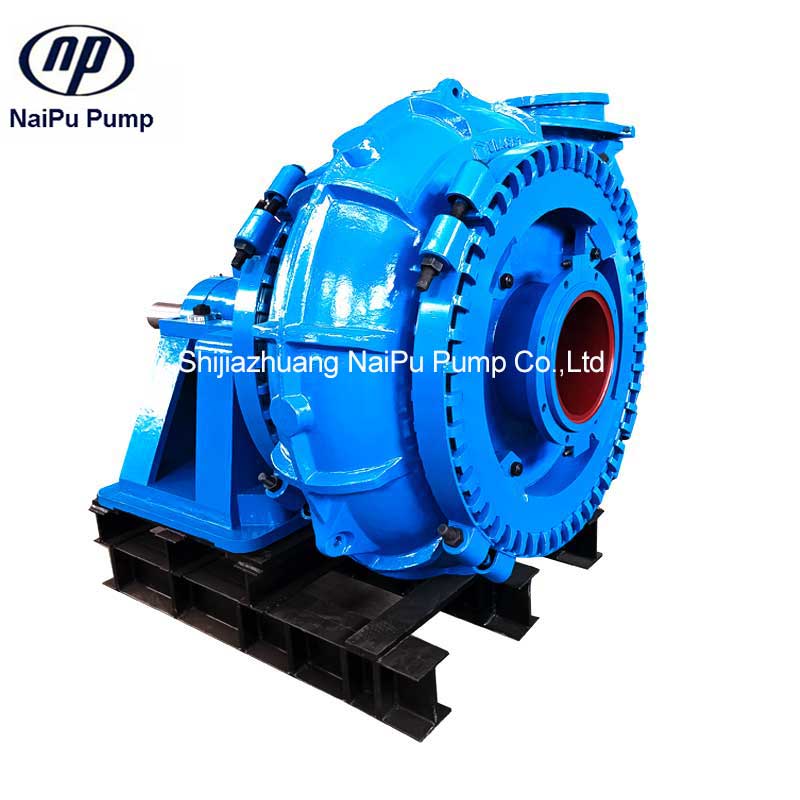

14-12-Sand-Pump-1

14-12-Sand-Pump-2

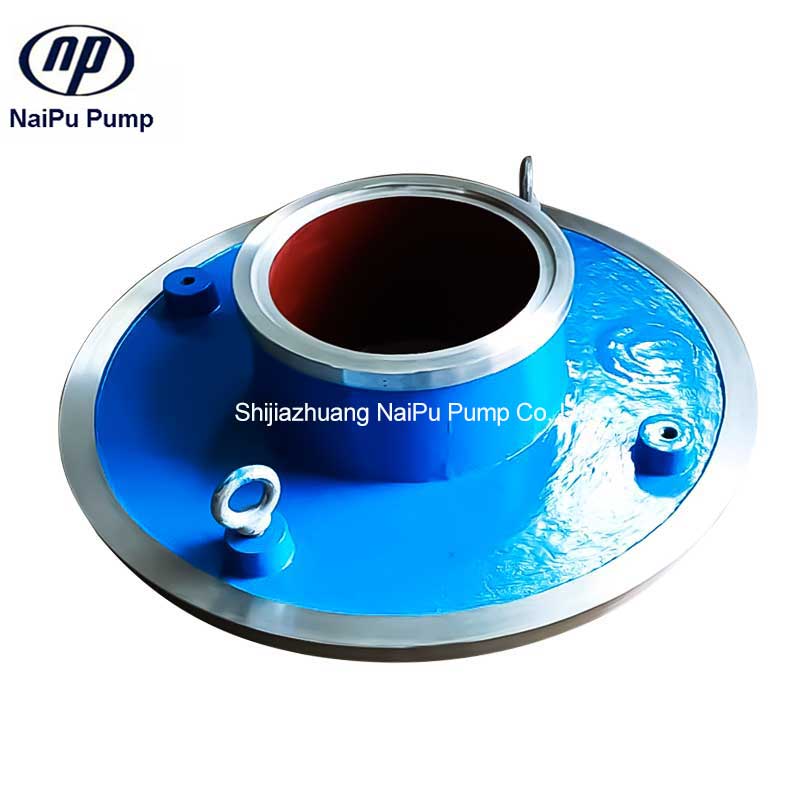

Stuffing-Box-

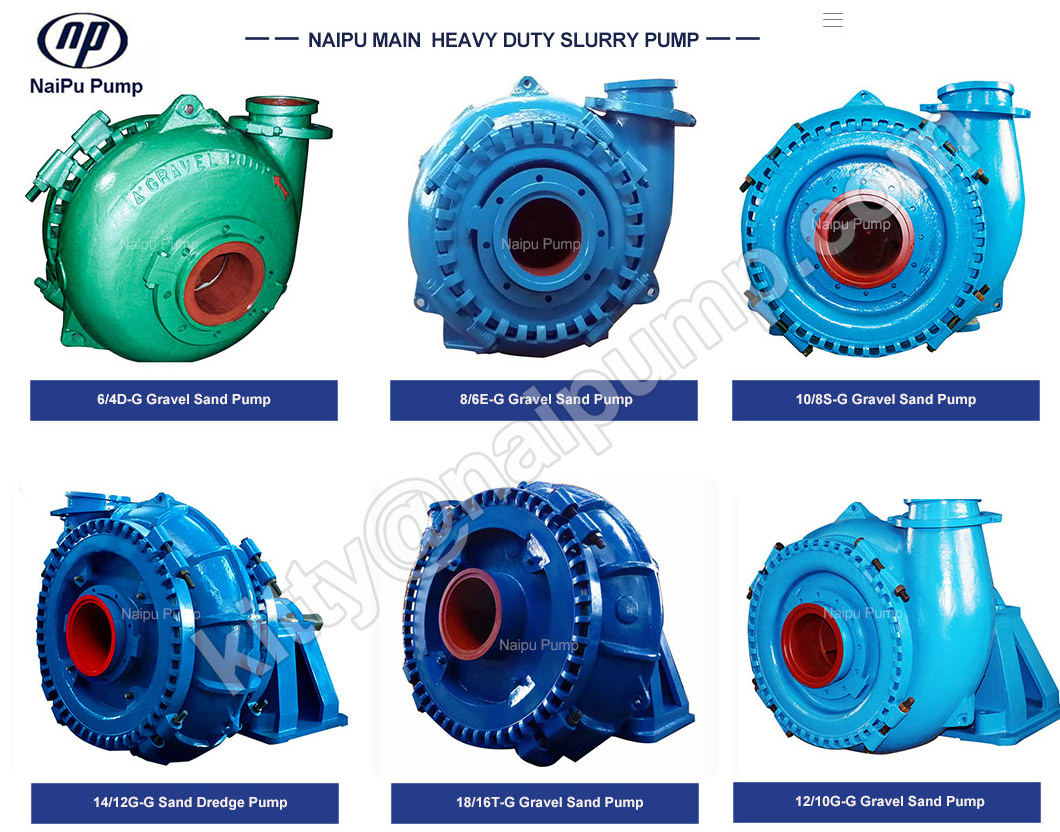

Naipu Main Gravel Dredge Gravel Sand Pumps

6/4D-G 8/6E-G 10/8F-G 10/8S-G 12/10F-G 12/10G-G 14/12G-G 14/12T-G 18/16 T-G 8/6F-GH 10/8S-GH 10/8F-GH 12/10G-GH 16/14G-GH

Gravel-Sand-Pump1

Welcome to contact me for more
