Product Description

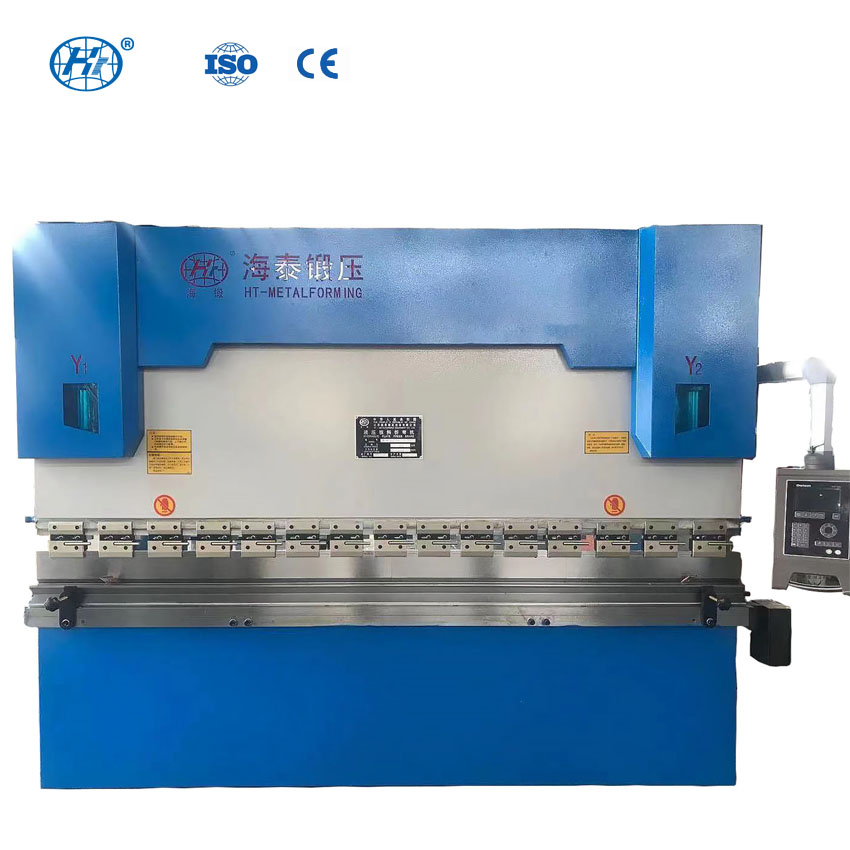

• Electro-hydraulic proportional servo synchronization ensures the accuracy of repeated operation.

• It can be controlled at any point in the stroke, the repetition accuracy is ± 0.01mm, and the parallelism is ± 0.02mm.

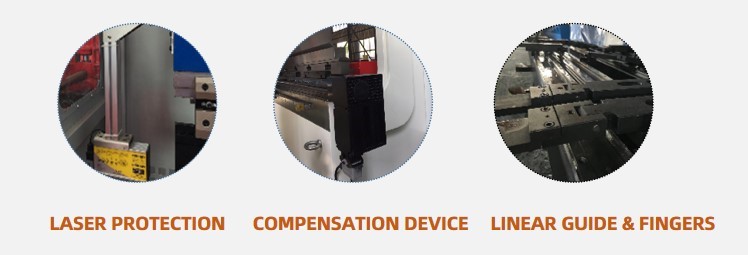

•  The lower worktable adopts deflection compensation or the upper die is equipped with deflection compensation mechanism.

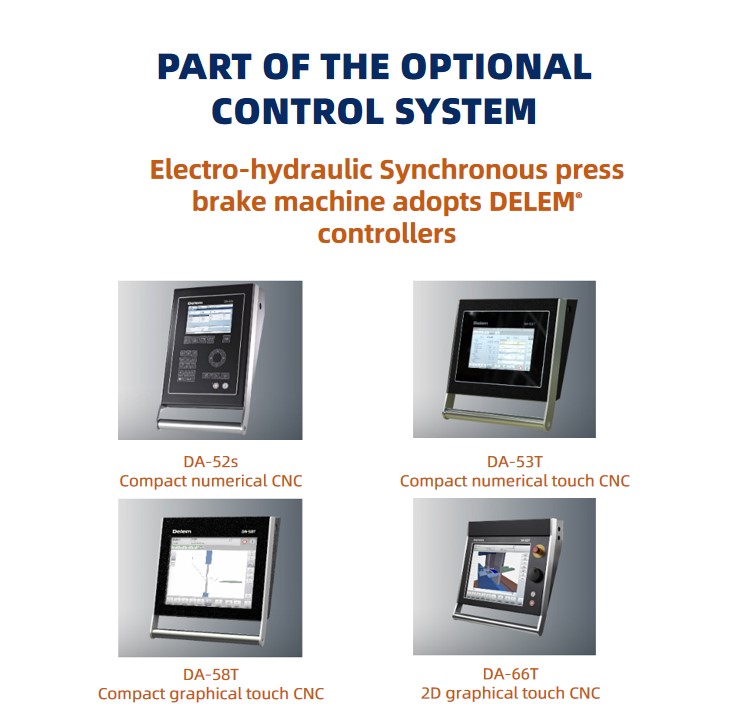

• Equipped with the Netherlands Delem^® CNC system or other famous brands.

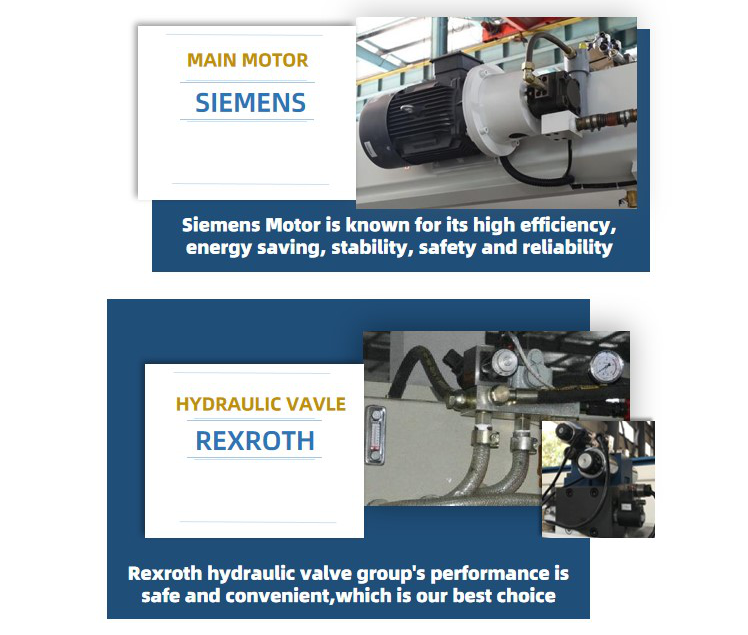

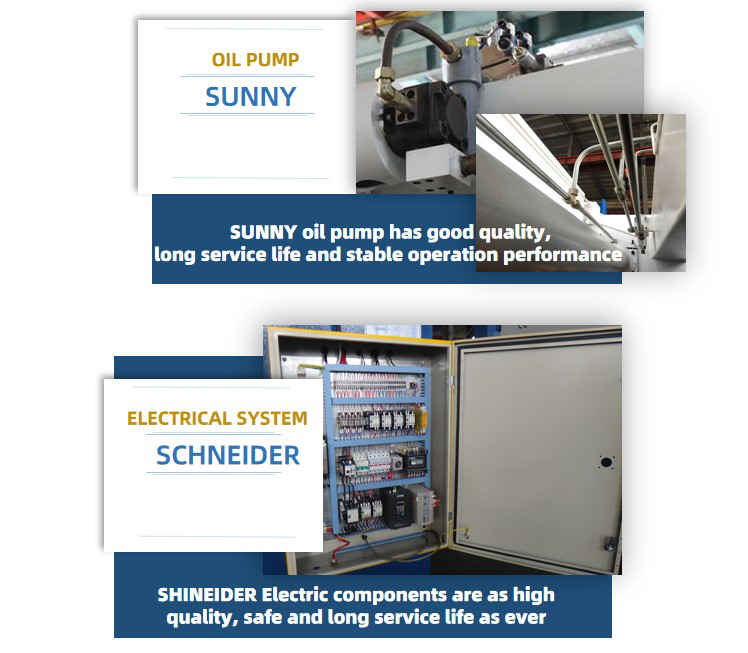

• well-known brand accessories such as grating ruler, Rexroth hydraulic system valve group,Siemens servo motor, Schneider electric units and other components with good performance.

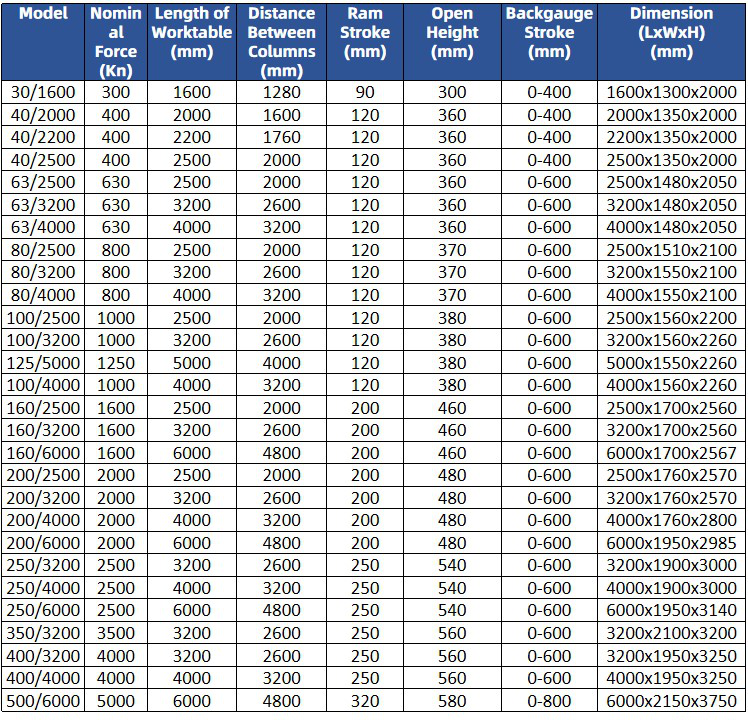

                          Part of the products' parameters are shown below. For more models, please contact us.

     *Because of the constantly updating, parameters shown in this chart are subject to change without prior notice.

Specification



Nominal Force	1350 kn
Length of worktable	3200 mm
length of walls	2600 mm
Ram stroke	120 mm
Throat depth	320mm
Opening height	380 mm
Distance of back gauge	600 mm
Approaching speed	80mm/s
Working speed	25mm/s
Returning speed	80mm/s
Dimension(LxWxH)	3200x1560x2260mm
Main power	11 kw
Net weight	6850kg
