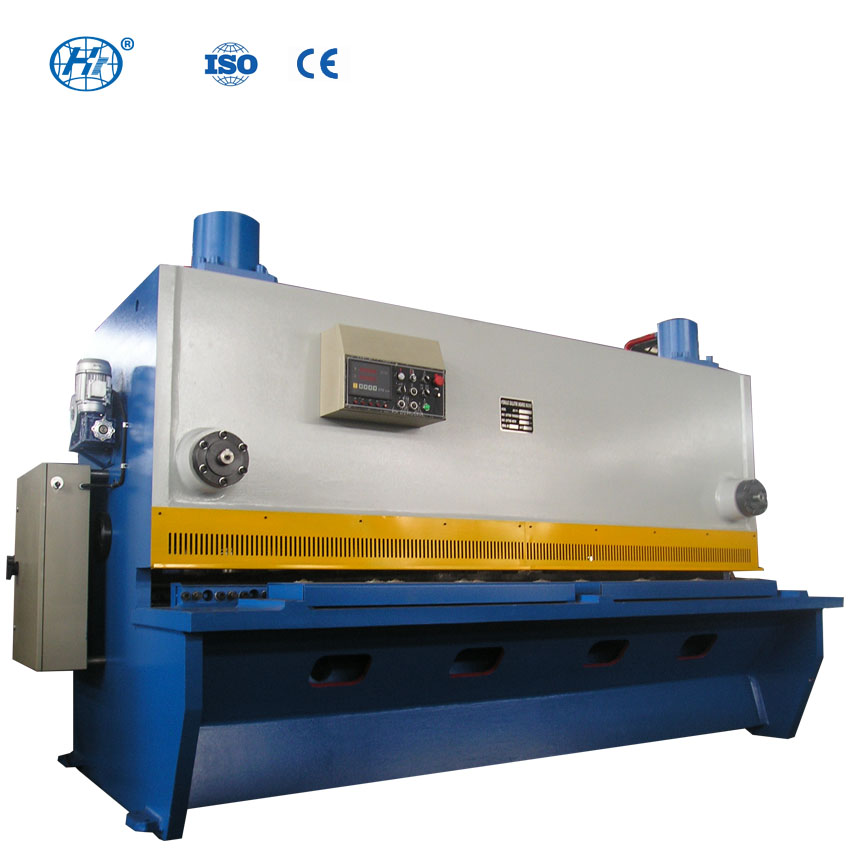

Hydraulic guillotine cutting machine QC11Y-25x2500

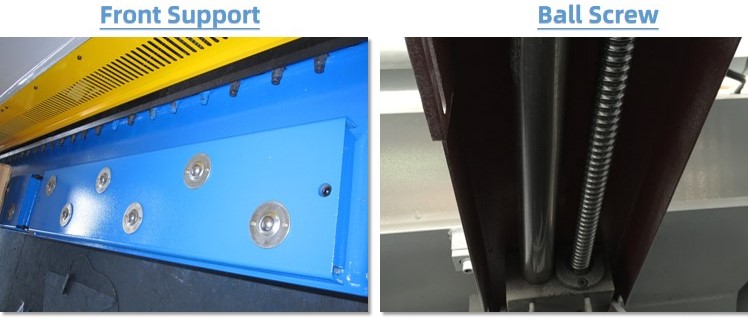

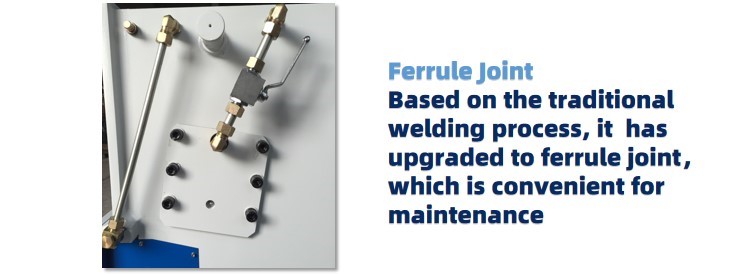

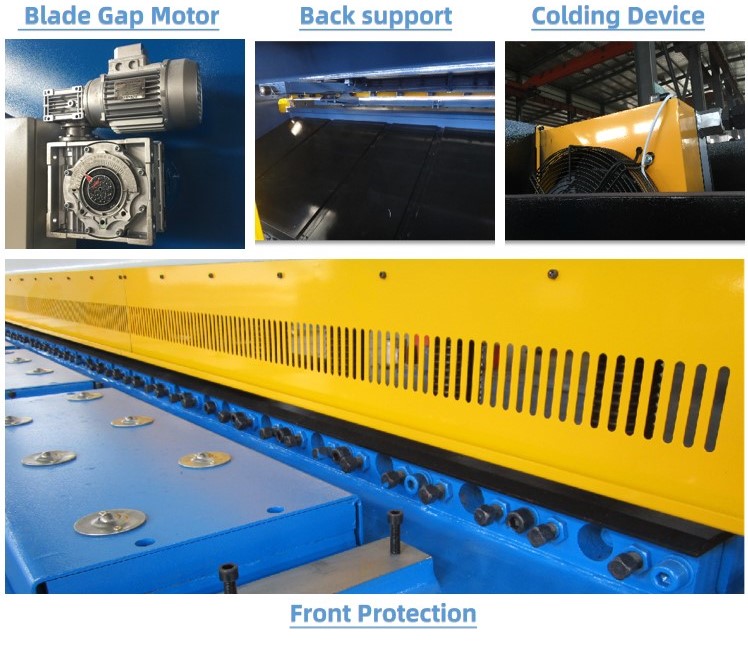

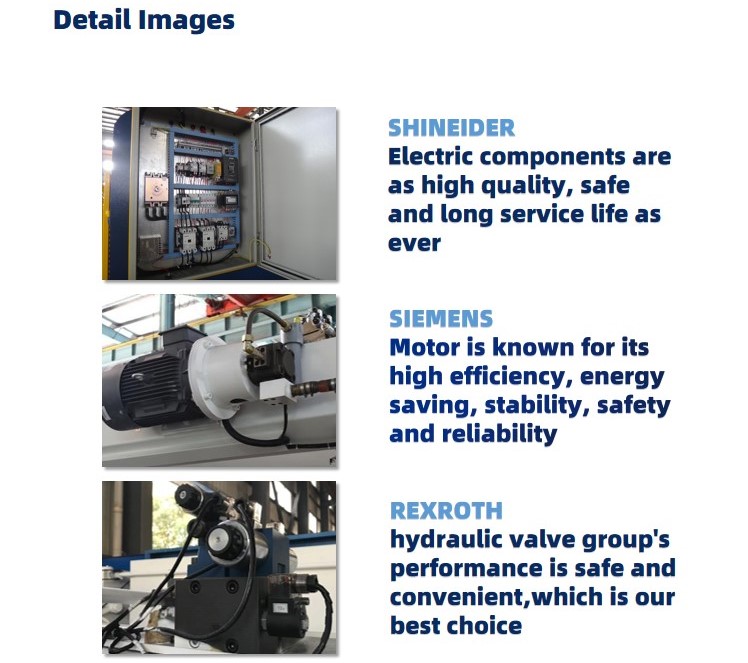

Product Description
Ø Steel welded structure，eliminating the interstress by vibration.
Ø Adjustable shear angle to minimize the distortion of sheet metal.
Ø The backguage stroke is adjustable,and the digital display can show its position.
Ø The four cutting edges of the blade can be used, which enhance the service life.
Ø torsion shaft design，which ensures the slider moves synchronously.

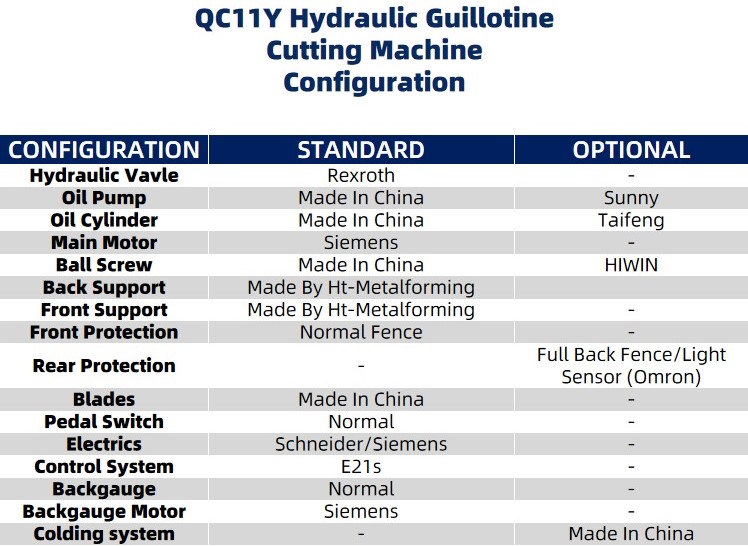

Product Specification|
Cut Max thickness and width |
MS plate 25mmx2500mm |
|
Cutting angle |
30′-3° |
|
Times of stroke |
6-8 times/min |
|
Length of blade |
2500mm |
|
Distance of back gauge |
0-800mm |
|
Height of worktable |
945mm |
|
Depth of throat |
180mm |
|
back gauge power |
0.55kw |
|
Dimension(LxWxH) |
3100x1900x2750mm |
|
Main power |
2x37kw |
|
Net weight |
16000kg |
Part of the products' parameters are shown below. For more models, please contact us.
|
Model |
Shearing Angle (°′) |
Stroke times（min） |
Shearing Width (mm) |
Backgauge Stroke (mm) |
Main Motor Power (KW) |
Depth of Throat（mm） |
Dimension (cm) |
|
4x2500 |
30′-1°30′ |
10-12 |
2500 |
0-500 |
5.5 |
120 |
305x145x185 |
|
4x3200 |
30′-1°30′ |
8-18 |
3200 |
0-500 |
5.5 |
120 |
370x160x190 |
|
4x4000 |
30′-1°30′ |
7-15 |
4000 |
0-500 |
5.5 |
120 |
450x160x200 |
|
4x6000 |
30′-1°30′ |
4-10 |
6000 |
0-500 |
5.5 |
120 |
680x175x231 |
|
6x2500 |
30′-1°30′ |
10-22 |
2500 |
0-600 |
7.5 |
120 |
310x145x190 |
|
6x3200 |
30′-1°30′ |
8-18 |
3200 |
0-600 |
7.5 |
120 |
370x160x197 |
|
6x4000 |
30′-1°30′ |
7-15 |
4000 |
0-600 |
7.5 |
120 |
450x160x203 |
|
6x6000 |
30′-1°30′ |
4-10 |
6000 |
0-600 |
7.5 |
120 |
665x170x235 |
|
8x2500 |
30′-1°30′ |
10-22 |
2500 |
0-600 |
11 |
120 |
300x145x195 |
|
8x3200 |
30′-1°30′ |
8-18 |
3200 |
0-600 |
11 |
120 |
370x165x205 |
|
8x4000 |
30′-1°30′ |
7-15 |
4000 |
0-600 |
11 |
120 |
450x152x218 |
|
8x6000 |
30′-1°30′ |
4-10 |
6000 |
0-600 |
11 |
120 |
670x175x240 |
|
10x2500 |
30′-1°30′ |
10-22 |
2500 |
0-600 |
15 |
120 |
310x165x220 |
|
10x3200 |
30′-1°30′ |
8-18 |
3200 |
0-600 |
15 |
120 |
320x170x225 |
|
10x4000 |
30′-1°30′ |
7-15 |
4000 |
0-600 |
15 |
120 |
460x180x232 |
|
10x6000 |
30′-1°30′ |
6-12 |
6000 |
0-600 |
15 |
120 |
670x200x275 |
|
12x2500 |
30′-2° |
8-18 |
2500 |
0-700 |
18.5 |
150 |
310x170x228 |
|
12x3200 |
30′-2° |
7-17 |
3200 |
0-700 |
18.5 |
150 |
380x175x240 |
|
12x4000 |
30′-2° |
6-15 |
4000 |
0-700 |
18.5 |
150 |
463x182x240 |
|
12x6000 |
30′-2° |
5-12 |
6000 |
0-700 |
18.5 |
150 |
670x205x280 |
|
16x2500 |
30′-2°30′ |
8-18 |
2500 |
0-700 |
22 |
150 |
310x175x238 |
|
16x3200 |
30′-2°30′ |
7-17 |
3200 |
0-700 |
22 |
150 |
385x178x245 |
|
16x4000 |
30′-2°30′ |
6-15 |
4000 |
0-700 |
22 |
150 |
465x185x263 |
|
16x6000 |
30′-2°30′ |
5-12 |
6000 |
0-700 |
22 |
150 |
670x213x295 |
|
20x2500 |
30′-2°30′ |
8-18 |
2500 |
0-800 |
30 |
150 |
310x185x255 |
|
20x3200 |
30′-2°30′ |
7-17 |
3200 |
0-800 |
30 |
150 |
385x190x260 |
|
20x4000 |
30′-2°30′ |
6-15 |
4000 |
0-800 |
30 |
150 |
465x200x275 |
|
20x6000 |
30′-2°30′ |
5-12 |
6000 |
0-800 |
37 |
150 |
670x228x305 |
|
25x2500 |
30′-3° |
7-15 |
2500 |
0-1000 |
37 |
180 |
310x190x275 |
|
25x3200 |
30′-3° |
6-14 |
3200 |
0-1000 |
37 |
180 |
385x200x295 |
|
25x4000 |
30′-3° |
5-12 |
4000 |
0-1000 |
37 |
180 |
470x225x305 |
|
25x6000 |
30′-3° |
4-10 |
6000 |
0-1000 |
45 |
180 |
465x210x310 |
*Because of the constantly updating, parameters shown in this chart are subject to change without prior notice.
CONTROL SYSTEM

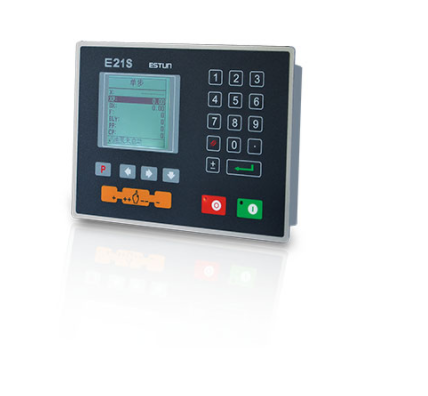

ESTUN® E21S
Ø Programming parameters display in one page，more convenient and efficient.
Ø Back stop material: intelligent positioning, manual adjustment is also available.
Ø Cutting angle adjustment: built-in cutting angle adjustment function, eliminating angle indicator and button.
Ø Blade clearance: feedback by encoder, display the blade clearance on the screen.
Ø It has parameter one-click backup and restore function, can restore parameter at any time.
