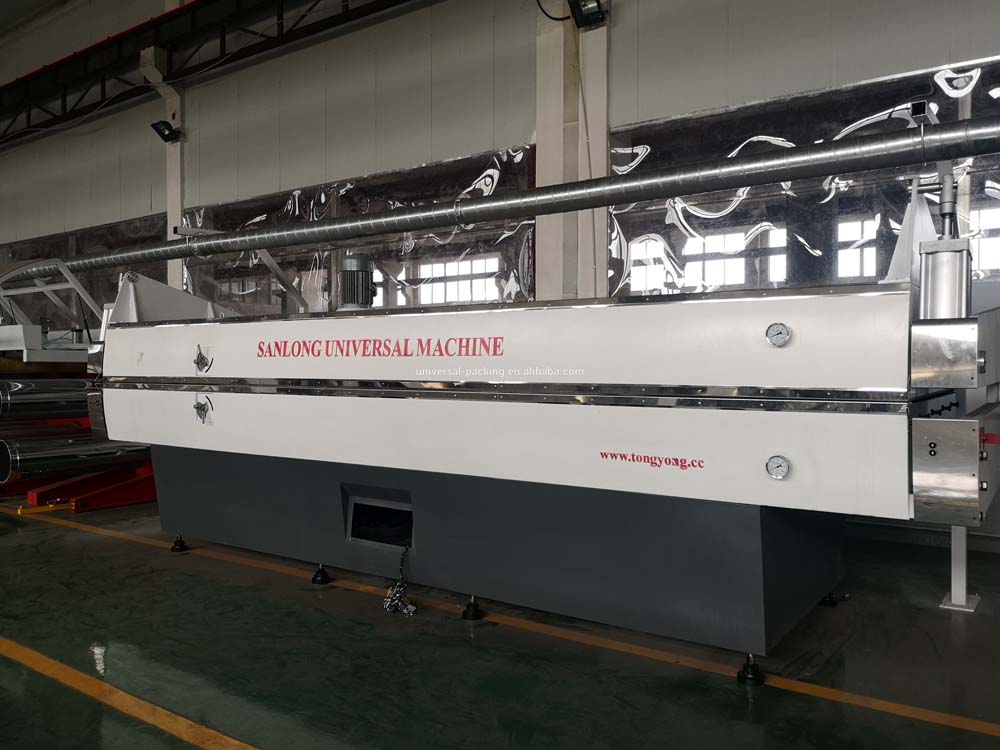

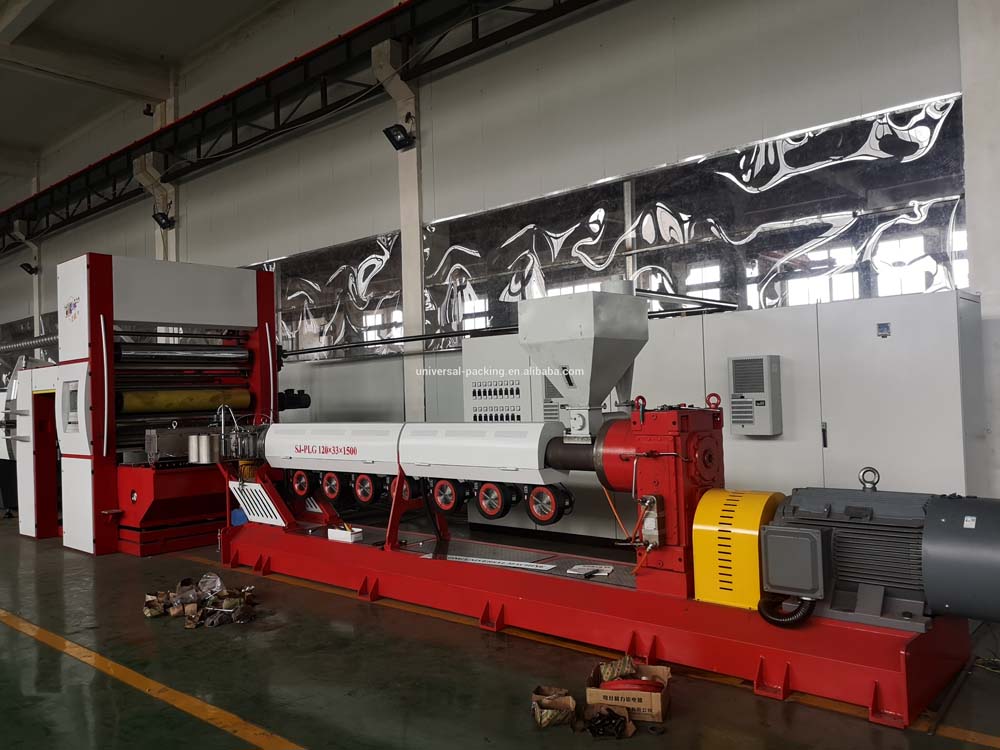

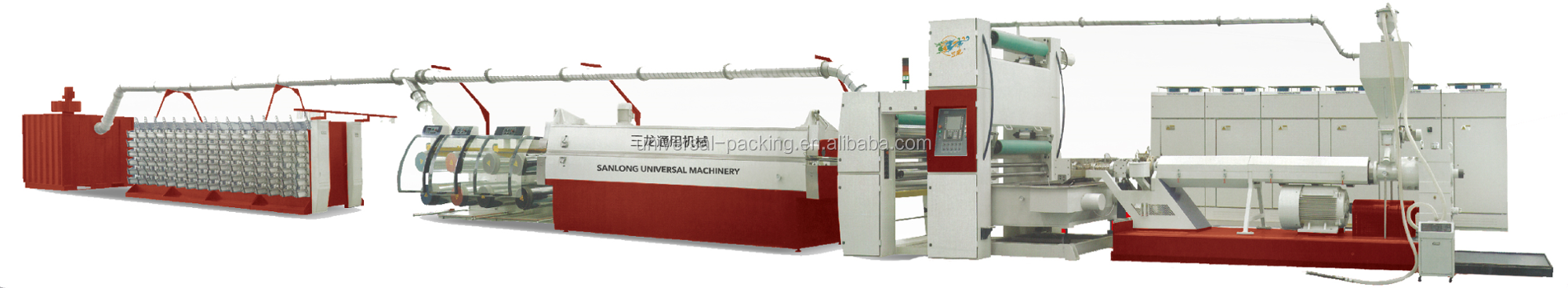

High speed flat film tape extruder
4 year agoHigh Speed Flat Film Tape Extruder
Performance And Characteristics:
High speed flat film tape extruder is designed and developed on the basis of foreign advanced technology, use computer control and monitoring to make operation more easy and improve the stability of machine operation. Tape cutting unit use new adjustable structure to extend the blade operation life. Updated film lifting and traction unit structure is more fit to high speed flat film tape extruder demands. The main electrical components adopt international brand products, international Federal Insurance. The main technical indicators of this machine have reached the international advanced level, with fast speed, high output, low energy consumption, good tapes quality, beautiful appearance, smooth running, sensitive and reliable control, excellent manufacturing technology, convenient operation, safety and reliability. This machine is suitable for producing various specifications of tapes by PP or PE.
Main Technical Data:
Type | SJ-PLG1000 | SJ-PLG1200 | SJ-PLG1500 | SJ-PLG1800 |
Max. Output of Extruder(kg/h) | 300 | 320 | 400 | 550 |
Screw Diameter (mm) | 100 | 105 | 120 | 135 |
Screw L/D Ratio | 33:1 | 33:1 | 33:1 | 33:1 |
Screw Rotational Speed(r/min) | 20-120 | 20-120 | 20-120 | 20-120 |
Die Length (mm) | 1000 | 1200 | 1500 | 1800 |
Plastic Tape Fiber Density(Tex) | 60-200 | 60-200 | 60-200 | 60-200 |
Max. Line Speed (m/min) | 400 | 400 | 400 | 400 |
Winders Numbers (spindles) | 180 | 216 | 252 | 324 |
Installation Dimensions LWH (mm) | 38000*4100*3200 | 40000*4100*3200 | 43000*4100*3200 | 48000*4100*3200 |
Note: the price on website is just only for reference, about the actual price, please feel free to contact us.
1. Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2. Warranty for one year, life long maintenance.
3. Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4. Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5. Undertake various non-standard machinery, solve the customers' requirements.
1.Are you a factory or trading company?
A: We are established in 1982, an actual factory and manufacturer in the line of plastic machinery.
2.Where is your factory located ? How can I visit there ?
A: Our factory is located in Aojiang Town, Wenzhou City, Zhejiang Province, China. About more than one hour by air from Shanghai. All our clients. From home or abroad, are warmly welcome to visit us!
3.What about the service after sale ?
A: You can call us or email us telling the machine problems and any questions about the machines. We will reply you within 12hours and help you to solve the problem.
4.How long will your engineer reach our factory ?
A: Our After-sales Specialist would contact with you, confirm the final scheduling according to your reasonable request.
5.How long is your machine’s warranty period ?
A: All our machine have one year guarantee, starting from finished installtion.
6.How could we do after one year warranty period ?
A: We also can do service for you, life long maintenance.
