tape winder
4 year ago

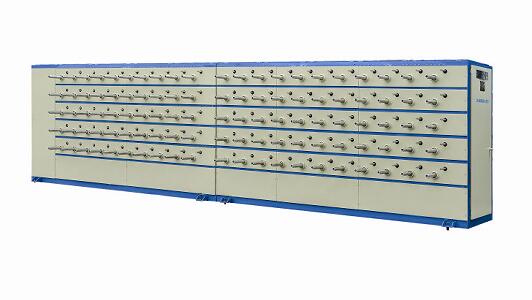

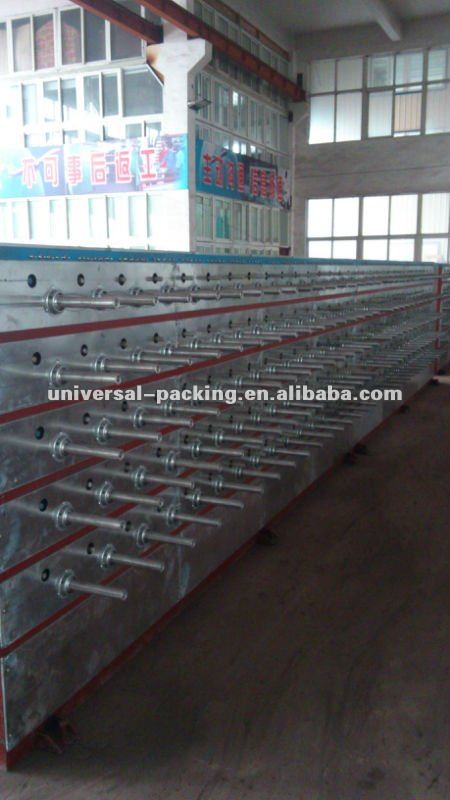

Tape Winder for pp woven sack
This machine is newly researched and designed by our factory based on the model of combined cam, it winds up the plastic tape by the back and forth movement of the swinging stem driven by the cam. It takes less effort and it runs more stable.
Main Technical Data:
| Item Type | Winder Layers | Spindle Number | Bobbin Winding Width (mm) | Winding Tape Diameter (mm) | Line Speed(r/min) | Main Motor Power (kw) | Gross Motor Power (kw) |
| SJ-ST200/5 | 5 | 200 | 200 | ≤100 | 50-160 | 2.2 | 14.2 |
| SJ-ST220/5 | 5 | 220 | 200 | ≤100 | 50-160 | 2.2 | 15.5 |
| SJ-ST240/5 | 5 | 240 | 200 | ≤100 | 50-160 | 2.2 | 16.6 |
| SJ-ST260/5 | 5 | 260 | 200 | ≤100 | 50-160 | 2.2 | 17.8 |
| SJ-ST300/5 | 5 | 300 | 200 | ≤100 | 50-160 | 2.2 | 20.2 |
| SJ-ST380/5 | 5 | 380 | 200 | ≤100 | 50-160 | 2.2 | 25 |
| SJ-ST420/5 | 5 | 420 | 200 | ≤100 | 50-160 | 2.2 | 27.4 |
| SJ-ST480/5 | 5 | 480 | 200 | ≤100 | 50-160 | 2.2 | 31 |
| SJ-ST520/5 | 5 | 520 | 200 | ≤100 | 50-160 | 4 | 35.2 |
