If you need double PE coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine. It can produce single PE coated paper cups and double PE coated paper cups.
|
Technical Specification
|
|
|
Type:
|
XL-DP09 Open Cam Single Plate paper cup machine
|
|
Cup size:
|
3- 9 oz(different size mold exchanged)
|
|
Suitable paper material:
|
180-350g/m2（single or double PE-coated paper)
|
|
Capacity:
|
70-90 pcs/min
|
|
Power source::
|
220V、380V 50HZ（please inform us your power in advanced）
|
|
Total power:
|
7.5KW
|
|
Weight:
|
N.W.: 1400 KGS G.W.:1500KGS
|
|
Machine size:
|
2000 x 900 x 1600 mm
|
|
Package size:
|
2100 x 1100 x 1700 mm
|
|
Power Source
|
50/60HZ, 380V/220V (better use 380v, 3 Phase)
|
|
Working Air Source:
|
Air pressure 0.4Mpa; Air out-put:0.6m³/min；
Need to buy air compressor by user |
|
Cup bottom heating
|
1 side PE paper by heating knurling
2 side PE paper by cool device (circle water)knurling |
|
Packing
|
Wooden cases
|
1. Spare parts guarantee for one year in machine arrival.
2. Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, and allowance of 100 USD per day).
3. We will provide the operation video and user documents. We also supply 24 hours online service.
4. We will provide the most professional suggestion to help you start and expand the business.
|
OEM (Original equipment manufacturer) is welcome in our factory
|
|
A： top diameter:
Min 45mm---Max 90mm
B： bottom diameter: Min 35mm---Max 55mm C： total height: Min 40mm---Max 90mm D： bottom knurling depth: Min 4mm---Max 10mm E： rim diameter: Usually Φ2.5---Φ3 |
|
Electric brands
|
||
|
Item No.
|
Item
|
Brand
|
|
1
|
PCL
|
Delta
|
|
2
|
Screen
|
Willon
|
|
3
|
Frequency converter
|
Delta/Kovo/Orui
|
|
4
|
Relay
|
Omron (Japan)
|
|
5
|
Stepper motor
|
Hangzhou MiG
|
|
6
|
Low-voltage electrical appliances
|
Chint
|
|
7
|
Button
|
Autonics (Korea)
|
|
8
|
Thermostat
|
Autonics (Korea)
|
|
9
|
Bearing
|
Japan NSK/Domestic
|
|
10
|
Hot air
|
Domestic
|
|
11
|
Solid State Relay
|
Autonics (Korea)
|
|
12
|
Photoelectric switch
|
Autonics (Korea)
|
|
13
|
Pneumatic components
|
SMC/Airtac/Taiwan Goldware
|
|
14
|
Motor
|
Shanghai (Taiwan) Zhibao Sino-foreign joint venture
|
|
15
|
Contactor
|
Chint
|
|
Cup Samples
|

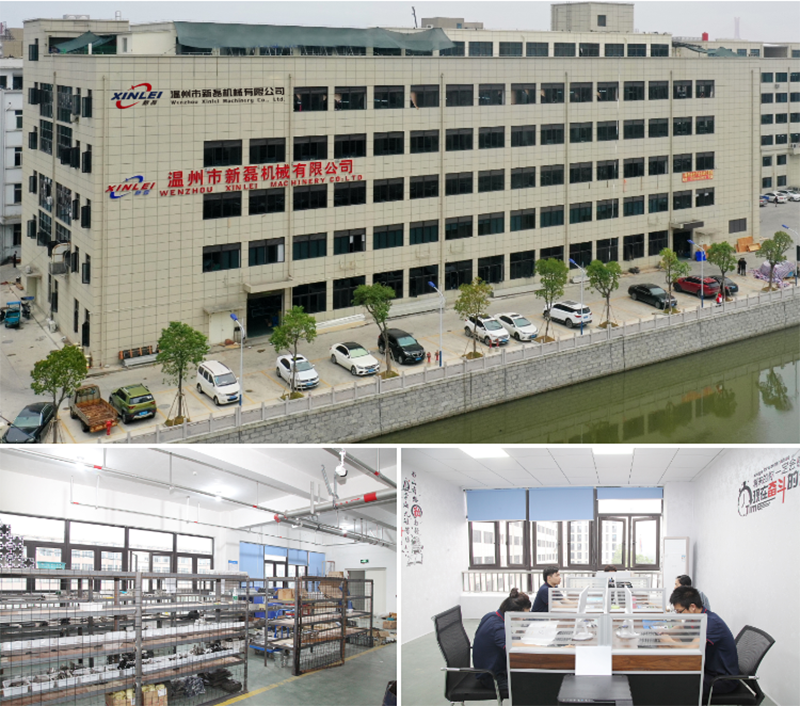

Province.The factory area is 2100 cubic meters. Wenzhou Xinlei Machinery Co., Ltd. is a collection of production, scientific
research,sales as one, specializing in the production of a series of mask machine, spot welding machine, mask packaging machine, paper straw packaging machine, paper cup packaging machine, wipes packaging machine and other machinery. Since its establishment, the company has developed its own scientific research team, debugging team and sales team with high technology and high quality as the starting point and independent innovation. We adhere to the principle of "quality first, customer satisfaction". We sincerely provide customers with high-quality mask machine and packaging equipment, technology, raw materials one-stop service, and responsible for equipment installation, commissioning and technical personnel training.
