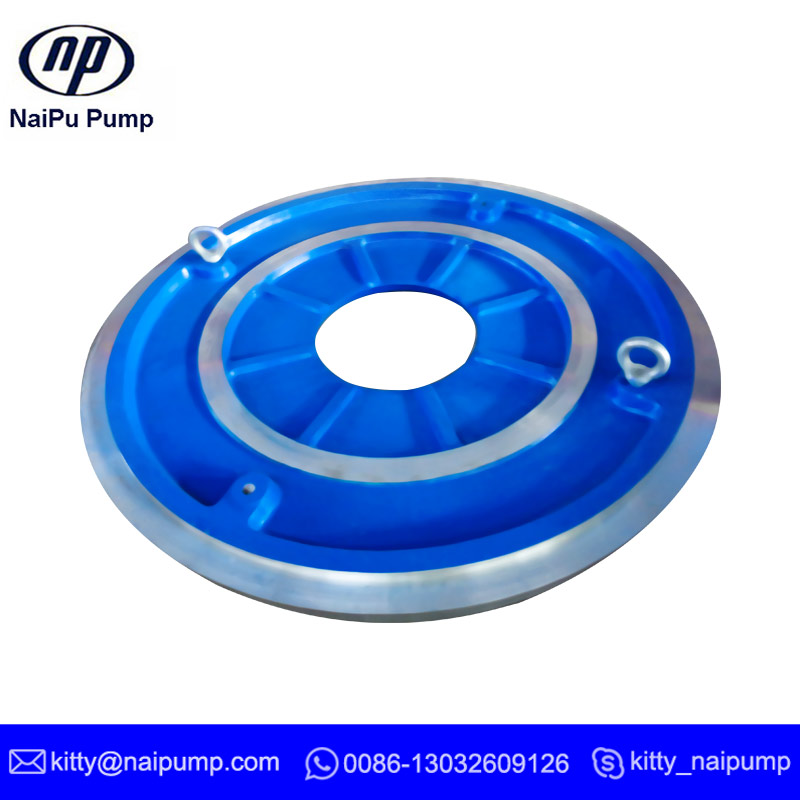

U18041TL1A05 FPL Insert Slurry Pump Wear Parts for 20/18 TU-NAH wear parts are designed to provide superior performance and durability in handling abrasive slurries.

The FPL Insert Slurry Pump Wear Parts are manufactured using high-quality materials that are resistant to wear and corrosion. They are specifically engineered to fit the 20/18 TU-NAH model, ensuring a perfect fit and optimal performance.

These wear parts include the following:

1. Impeller: The impeller is the main rotating component of the pump, responsible for generating the centrifugal force to transport the slurry. Our FPL Insert Slurry Pump Wear Parts come with a high-efficiency impeller that is designed to handle abrasive slurries without compromising performance.

2. Volute Liner: The volute liner is the casing surrounding the impeller and is responsible for directing the slurry flow. Our FPL Insert Slurry Pump Wear Parts feature a volute liner that is designed to minimize turbulence and maximize efficiency, resulting in improved performance and reduced wear.

3. Throatbush: The throatbush is located at the suction side of the pump and is responsible for guiding the slurry into the impeller. Our FPL Insert Slurry Pump Wear Parts come with a throatbush that is designed to handle abrasive slurries, providing excellent wear resistance and extended service life.

4. Frame Plate Liner Insert: The frame plate liner insert is located between the volute liner and the throatbush and is responsible for providing additional wear protection. Our FPL Insert Slurry Pump Wear Parts feature a frame plate liner insert that is designed to withstand the abrasive nature of slurries, ensuring long-lasting performance.

These FPL Insert Slurry Pump Wear Parts are available in various materials, such as high-chrome alloy, rubber, and polyurethane, depending on your specific application requirements. We can provide you with further details regarding material options and pricing upon request.

Main Slurry Pump Parts for 20/18 Pump

Pump model	Part name	Part code	Materials
20/18 AH	Volute liner	U18110TL1A05	A05, A05, A49, A51, A61
	Impeller 5 VCG	H18147A05	A05, A05, A49, A51, A61
	Impeller 3 VCG (optional)	H18137DPT2A05	A05, A05, A49, A51, A61
	Impeller	H18145WRT1A05	A05, A05, A49, A51, A61
	Frame plate liner insert	U18041TL1MA05	A05, A05, A49, A51, A61
	Throat bush	U18083DPT2MA05	A05, A05, A49, A51, A61
	Cover plate	U18013D21	D21,G01
	Frame plate	U18032D21	D21,G01
	Shaft Sleeve	HG075	4Cr13,J04
	Shaft Spacer	HG117	4Cr13
	Neck Ring	HG067	Stainless steel
	Lantern Restrictor	HG118	Stainless steel
	Lantern Ring	HG063	Stainless steel
	Bearing assembly	TU005M	D21,G01
	Bearing assembly (optional)	HG005M	D21,G01
	Frame (optional)	TU003M	D21,G01
	Frame (optional)	H003M	D21,G01

1 Jpg
