Gasket Plate Heat Exchanger Parts

Gasket Plate Heat Exchanger For Cooling Process Sanitary Food Plate Heat Exchangers

The plate heat exchanger adopts the corrugated plate as the positioning plane, one side adopts the method of comprehensively limiting the degree of freedom, and the other side adopts the method of non-comprehensively limiting the degree of freedom, which can be extended in the longitudinal direction.When the plate is heated and clamped, it can extend downward in the longitudinal direction, which can greatly reduce the leakage chance of the plate heat exchanger, the plate is not deformed, and the plate heat exchanger is positioned more accurately on the frame, and the disassembly and assembly are more convenient and quick.

The types of plate heat exchangers are mainly frame type (gasket plate heat exchanger) and brazed plate heat exchanger, and the plate form is mainly shaped corrugated plate, horizontal corrugated plate and nodular plate three.

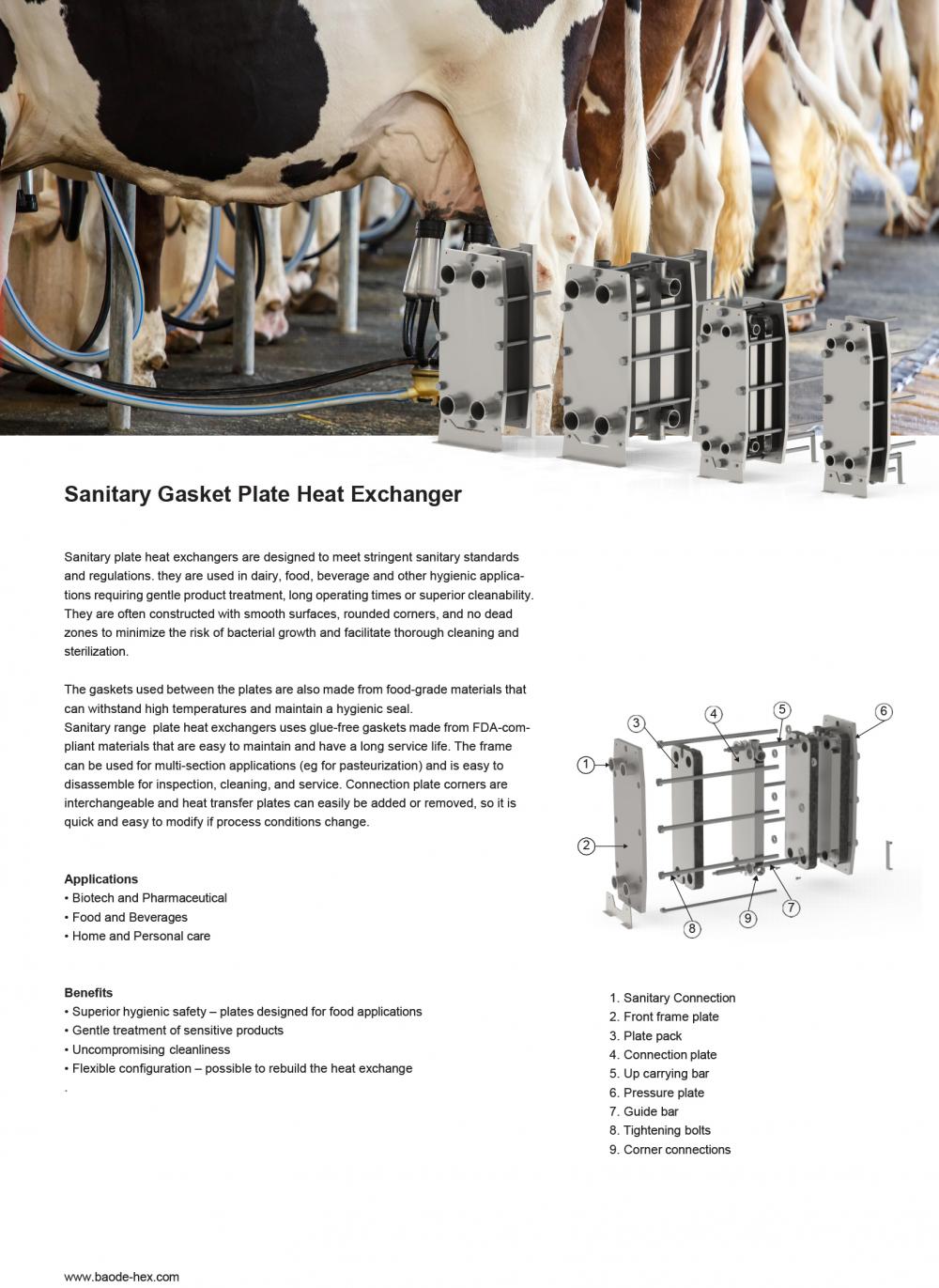

The gasket plate heat exchanger is composed of fixed clamping plate, movable clamping plate, upper and lower guide rod and clamping bolt, etc.
Plate heat exchanger is installed in the form of superimposed plates in the middle of the fixed compression plate and the movable compression plate, and then clamped by clamping bolts.
