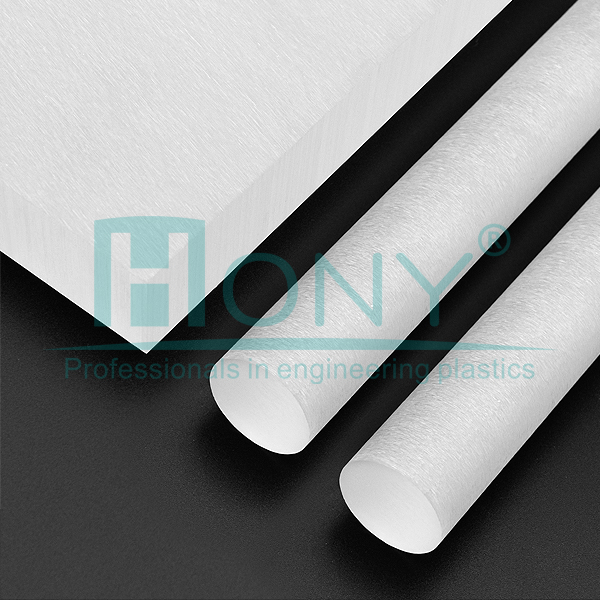

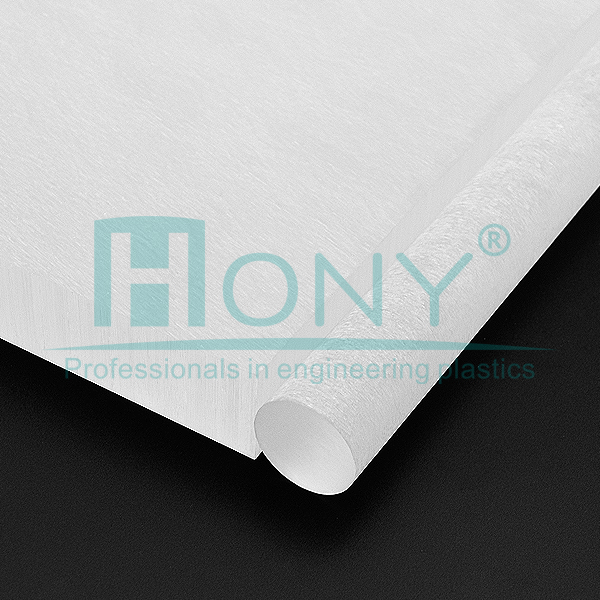

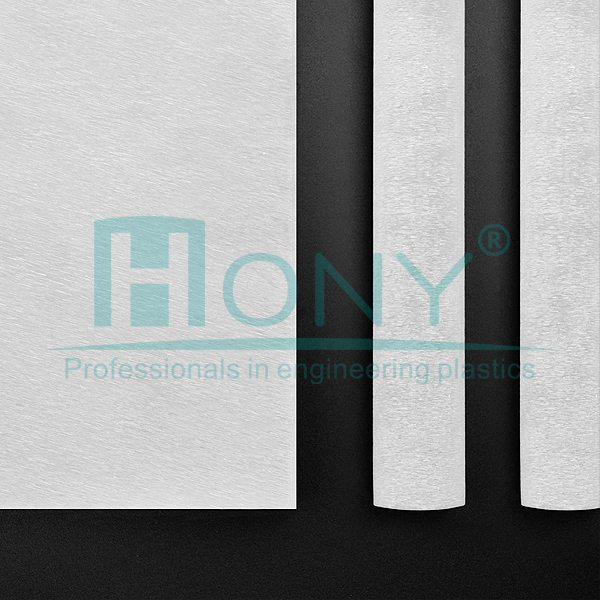

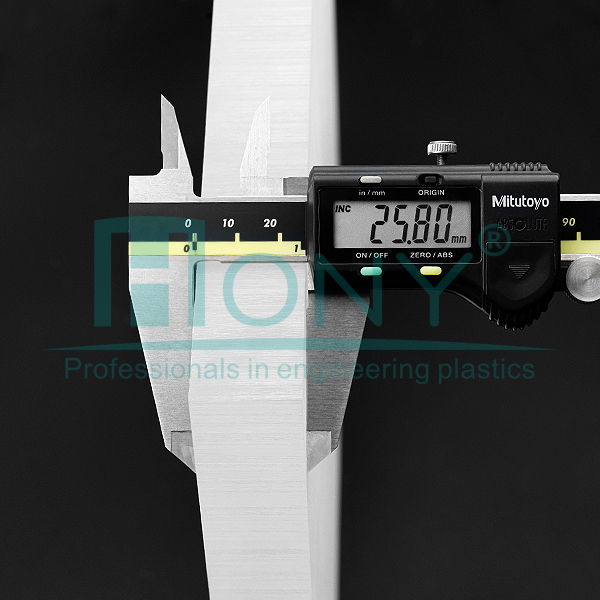

Rexolite 1422 Sheet Rod

GENERAL QUALITIES OF REXOLITE Rexolite® is a unique cross-linked polystyrene, microwave plastic.This material's most notable properties are it's stable electrical properties into the Giga-hertz frequency range. It is also optically clear, with a slight yellow cast, when polished (approximately the same as Acrylic), dimensionally stable, and has excellent sound transmission characteristics.As a result, Rexolite® is often used for high-frequency circuit substrates, microwave components, and lenses with acoustic, optical and radio-frequency applications.

▼ Outstanding Dielectric Properties

Dielectric constant of 2.53 (through 500GHz) with extremely low dissipation factors.

Valuable for microwave lenses, microwave circuitry, antennae, coaxial cable connectors, sound transducers, TV satellite dishes and sonar lenses.

Other uses include non-destructive material testing devices, surveillance equipment, radar windows, radomes and missile guidance system housings. One interesting application is for radar lenses which are used for mapping the earth’s surface from fast high-flying aircraft.

▼ High Voltage Insulators

Ability to withstand high voltage is important for producing gap switch houses, capacitors and other components. Rexolite® is proven superior over Acrylics, Epoxies, Urethanes and other plastics for dendriting resistance (failure caused by electron bombardment).

▼ Radiation Resistance

Superior to most plastics. Little change in dielectric loss over a wide range of exposures up to 1000M rads. It has superior resistance to mechanical deterioration by ionizing radiation.

▼ Rigidity and Dimensional Stability

Rexolite® exhibits no permanent deformation or plastic flow under loads of 10 psi to 2000 psi at temperatures of 20°C to 200°C. In addition, all castings are stress-free, not requiring any stress relieving prior to, during or after machining.

▼ Temperature Range

Recommended operating temperature is 100°C; Glass transition at 114°C; maintains excellent dielectric properties from -270°C to 176°C (no load-short time).

▼ Optical

Optical transmission approximately equals Acrylic – (87% visible light @ 1″ thick). Refraction index 1.59 @ 589 nanometers, 1.604 @ 486 nanometers and 1.585 @ 656 nanometers. Used in combination with acrylic lenses for color correction.

▼ Sound Transmitting

Excellent acoustic impedance close to water. Velocity 93×10³ inches per second. Ideal for sonar lenses.

▼ Out Gassing

Negligible at elevated temperatures.

ASTM-E-595 Total Mass Loss (TML) .04% Collected Volatile Condensable Materials (CVCM) .01%

▼ Water Absorption

Less than .08% Rexolite 1422 has been immersed in boiling water for 1000 hours without change in dielectric constant.

▼ Machinability

Handles well in all machining operations. Tool configuration is similar to those used on Acrylic. Because of it’s high resistance to cold flow and freedom from stress, it is easily machined by water jet or laser beam. Accuracy of .0001 can be obtained in grinding. Crazing can be avoided by using sharp tools and avoid excessive heat when polishing. Stress relieving of Rexolite is not required before, during or after machining. Always maintain sharp tooling.

▼ Chemical Resistance

Alkalies, Alcohols, Aliphatic Hydrocarbons and mineral acids have no effect. Contact with Aromatic hydrocarbons cause swelling and should be avoided.

▼ Light Weight

Specific gravity of 1.05. Approximately 15% lighter than Acrylic and less than half of PTFE .

▼ Sub-zero Properties

Maintains a Dielectric Constant of 2.55. At -270°C the dissipation factor is .00019.

▼ Flammability

Burn rate is less than 1 inch per minute.

▼ Adhesive

Rexolite® Adhesive #12517 has been developed especially for bonding Rexolite® to itself.

▼ Environmentally Friendly

Non-hazardous, contains no ingredients harmful to the environment.

▼ Military Specification

Rexolite® 1422 conforms to military specification LP-516A, type E2, formerly known as MIL-P-77C-E2.

▼ Standard Shapes and Sizes

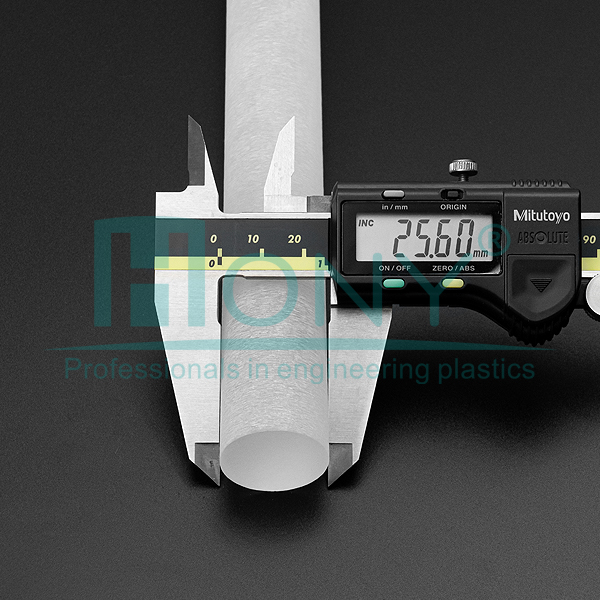

Rexolite® 1422 rod from 1/16″diameter to 9″diameter.

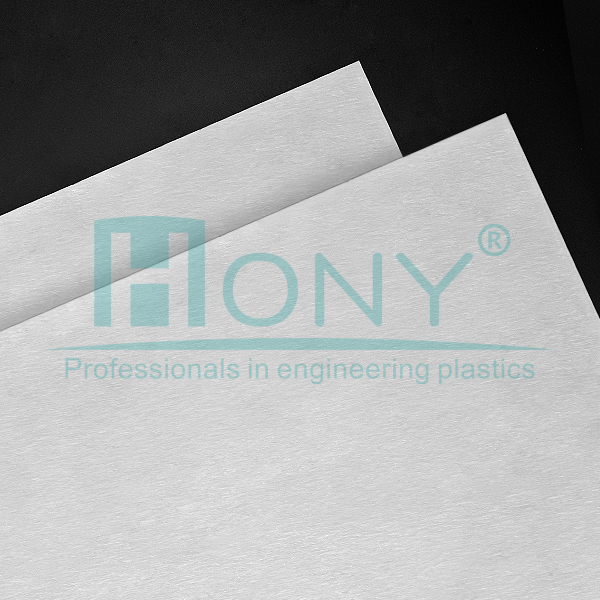

Rexolite® 1422 sheet from .010″ to 6″ thick.

Rexolite® Adhesive #12517 supplied in 2 – 1/2 pint containers.

REXOLITE – COMMON INDUSTRIES

Industries using Rexolite® include:

Aerospace

Military

Electronics

Science and Testing

REXOLITE APPLICATIONS

Typical Rexolite® applications include:

Microwave lenses

Microwave circuitry

Antennae

Coaxial cable connectors

Sound transducers

TV satellite dishes

Sonar lenses

Non-destructive material testing devices

Surveillance equipment

Radar windows

Radomes

Missile guidance system housings

REXOLITE SPECIFICATIONS

Rexolite® 1422

Rexolite® 1422 is chemically resistant, light weight, resists water absorption, and has negligible outgassing.

Military Specifications of Rexolite®

Rexolite® 1422 conforms to military specification LP-516A, type E2, formerly known as MIL-P-77C-E2.

Current:

Mil Spec LP-516A, type E2

Former:

Mil Spec MIL-P-77C-E2
