SCR BT151U-500C TO-251
2 year ago
P/N:YZPST-BT151U SCR
Hot selling TO-251 BT151U 12A SCR

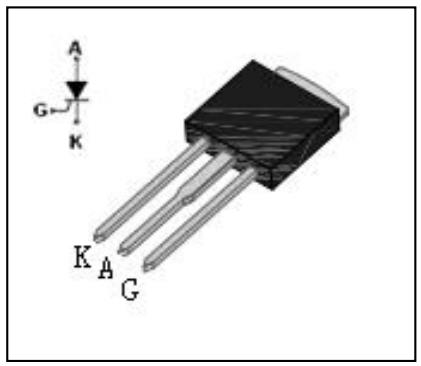

Package
TO-251
Main Feature (Tj=25℃)
| Symbol | Value | Unit |
| IT(RMS) | 12 | A |
| VDRM / VRRM | 600/800 | V |
| IGT | 2 to15 | mA |
Absolute ratings (Limiting Values)
| Symbol | Parameter | Value | Unit |
| IT(RMS) | RMS on-state current (180°conduction angle) | 12 | A |
| IT(AV) | AV on-state current (180°conduction angle) | 7.5 | A |
| ITSM | Non repetitive surge peak on-state | 100 | A |
| Current (tp=10ms) | |||
| I2t | (tp=10ms) | 50 | A2S |
| IGM | Peak gate current(tp=20us) | 2 | A |
| PGM | Peak gate power | 5 | W |
| PG(AV) | Average gate power | 0.5 | W |
| Tstg | Storage temperature | 110 | ℃ |
| Tj | Operating junction temperature | 85 |
Thermai Resistances
Symbol
Parameter
Value
Unit
Rth (j-c)
Junction to case
1.3
K/W
Rth (j-a)
Junction to ambient
60
K/W
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | |||
| Min | Type | Max | ||||
| IGT | VD=6V, RL=100Ω | 2 | 5 | 15 | mA | |
| VGT | VD=12V, RL=100Ω | ----- | 0.7 | 0.8 | V | |
| VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
| IH | IT=100mA Gate Open | ----- | 9 | 20 | mA | |
| dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | 200 | ----- | ----- | v/μs | |
| VTM | IT=16A,tp=380μs | ----- | ----- | 1.7 | V | |
| IDRM | VD=VDRM | Tj=25℃ | ----- | ----- | 10 | uA |
| IRRM | VR=VRRM | Tj=125℃ | ----- | ----- | 1 | mA |

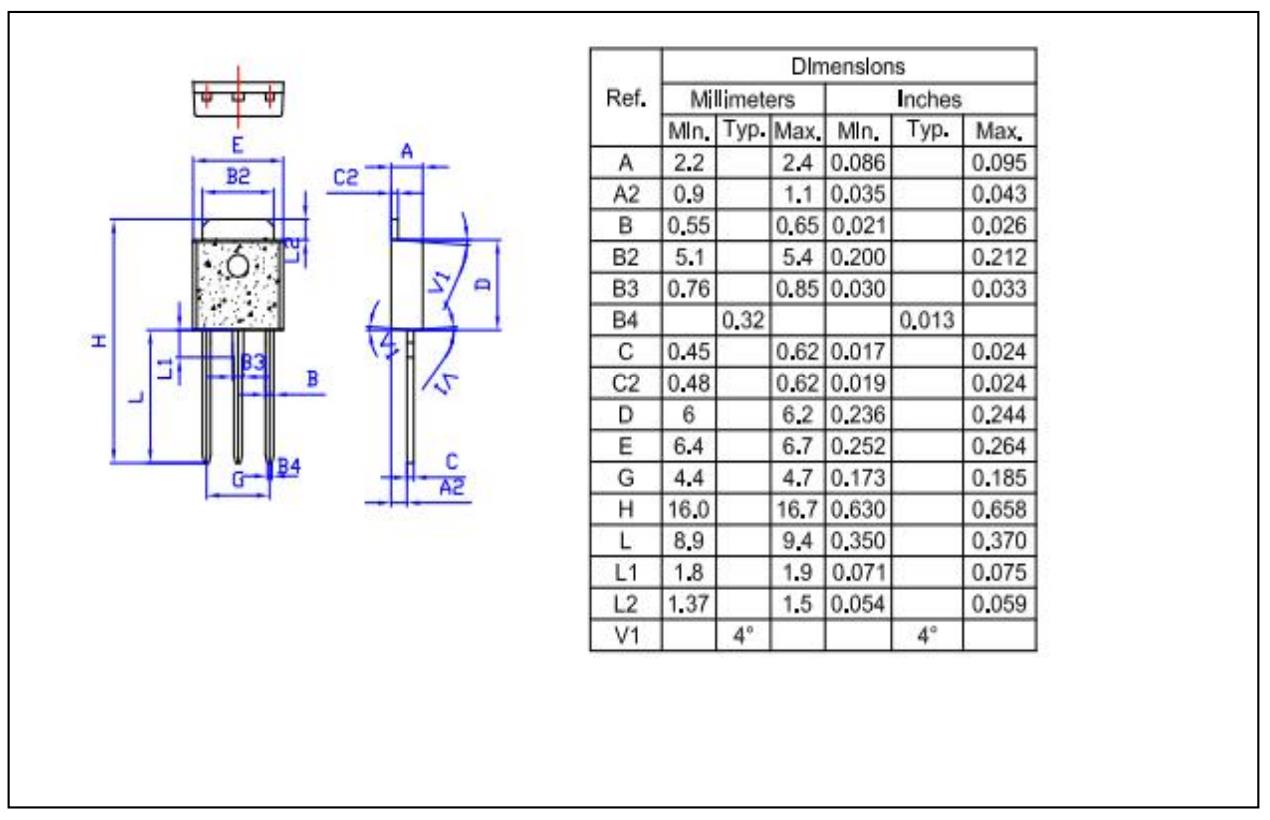

Measure of package(TO-251)
