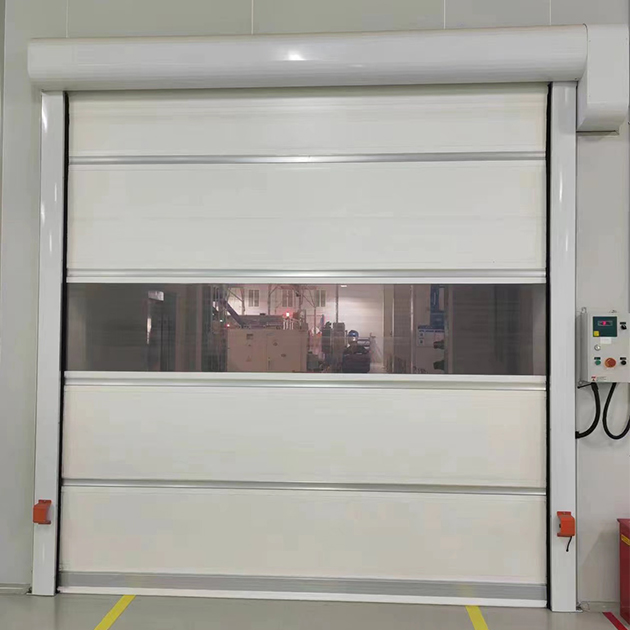

dust prevention rapid door fast rolling shutter door high speed door1

2 year ago

7 0 

NingBo AnSheng Door Industry Technology Co.,Ltd.

2 year

Product details

Envision a barrier that not only secures your premises but also maintains an immaculate environment, shielding against the intrusion of dust and dirt. This is where the Dust-Proof Rapid Door – High-Speed Fast-Rolling Shutter excels, offering an innovative approach to access control that combines efficiency with durability.
Engineered for environments that demand stringent cleanliness, such as food production, pharmaceutical labs, and HVAC installations, this door is a paragon of performance, ensuring that your operational space remains untainted by external pollutants. Its dust-proof seal is a formidable line of defense, containing airborne particles and preserving the integrity of your work environment.
Speed without compromise is the hallmark of this shutter. Capable of swiftly opening and closing, it facilitates a seamless flow of traffic, whether pedestrian or vehicular, in high-throughput settings like distribution centers, retail stores, or factories. Integration with automated access systems and remote operation capabilities further enhance its versatility, catering to the dynamic demands of modern facilities.
Built to endure the test of time, the Dust-Proof Rapid Door is constructed with materials and components selected for their resilience. It is designed to cope with the rigors of continuous use, ensuring that it remains a reliable fixture in your infrastructure for years to come.
Installation is designed to be user-friendly, and maintenance requirements are minimal, thereby reducing the overall cost of ownership and ensuring that your investment pays dividends over the long term. Its adaptability allows for installation in various configurations, indoors or out, making it a versatile solution for a broad array of architectural layouts.
In sum, the Dust-Proof Rapid Door – High-Speed Fast-Rolling Shutter is more than just a door; it's a comprehensive system that elevates the standards of access control and environmental hygiene. For facilities that prioritize operational excellence and the maintenance of sterile conditions, this door is an indispensable upgrade.

High Speed Door

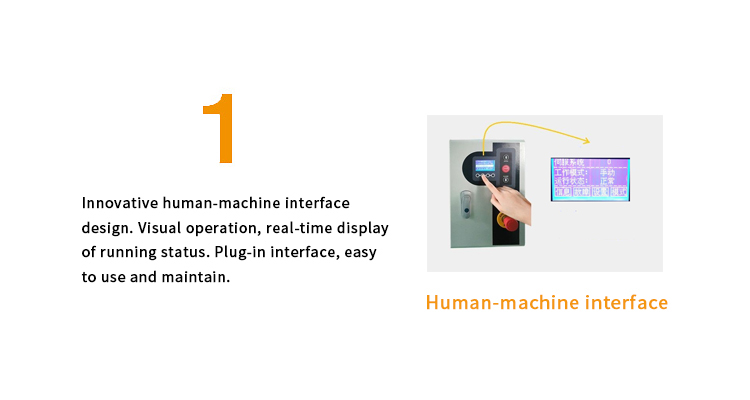

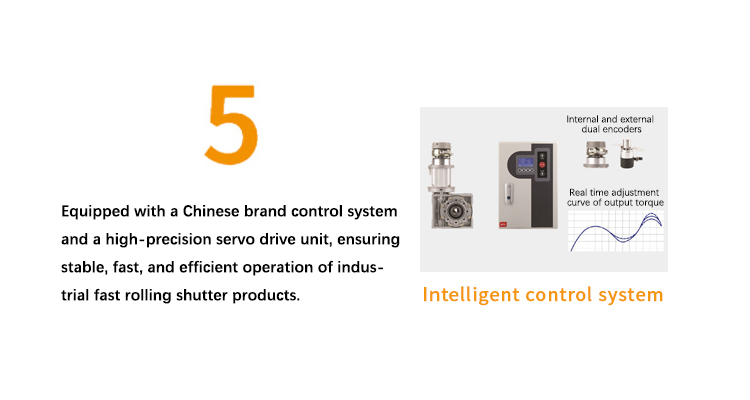

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

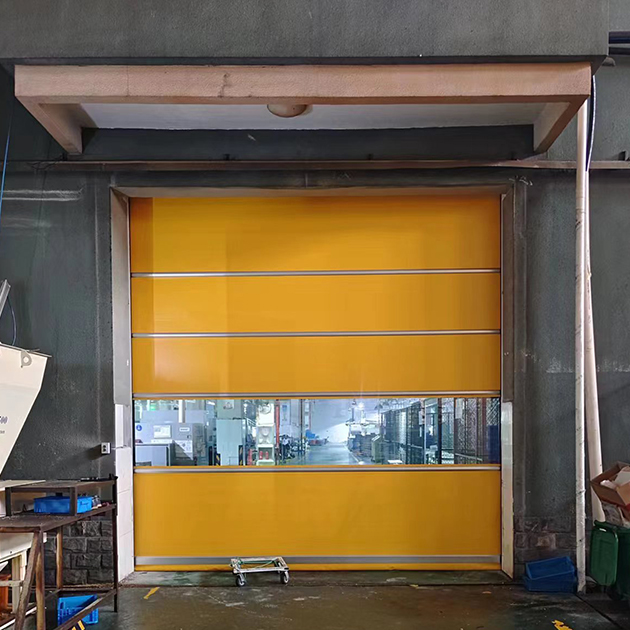

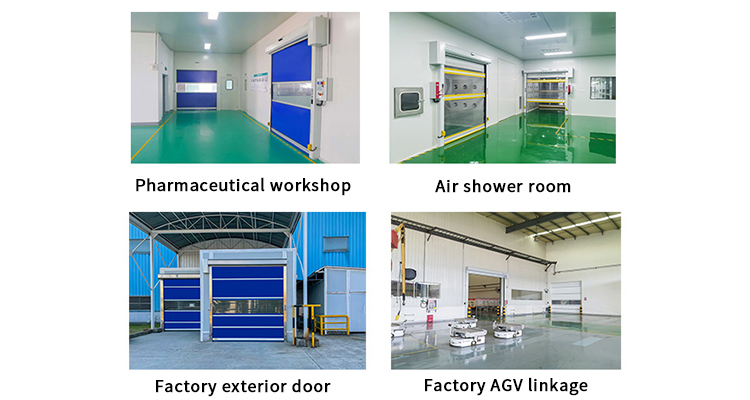

Installation Site

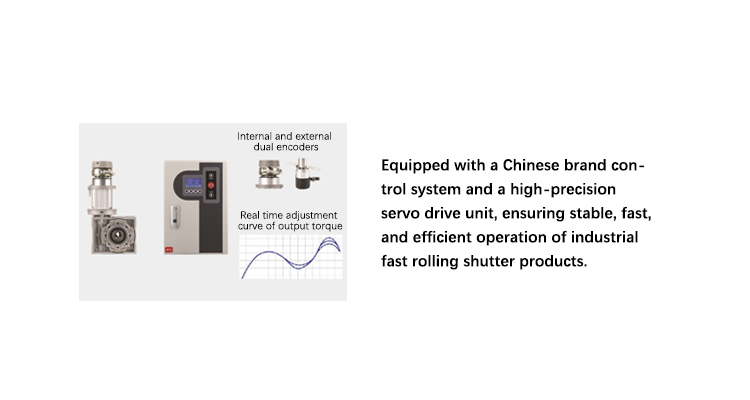

Innovative technology

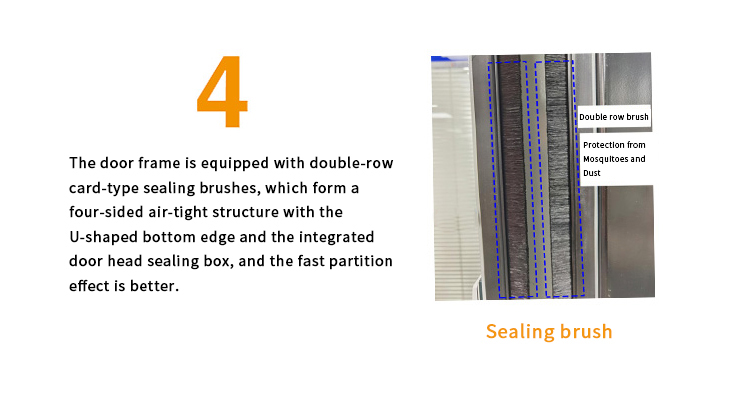

More functions

Various colors available

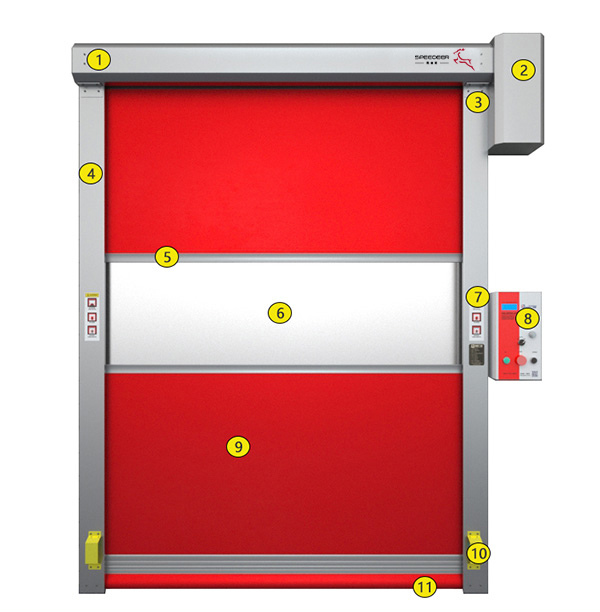

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

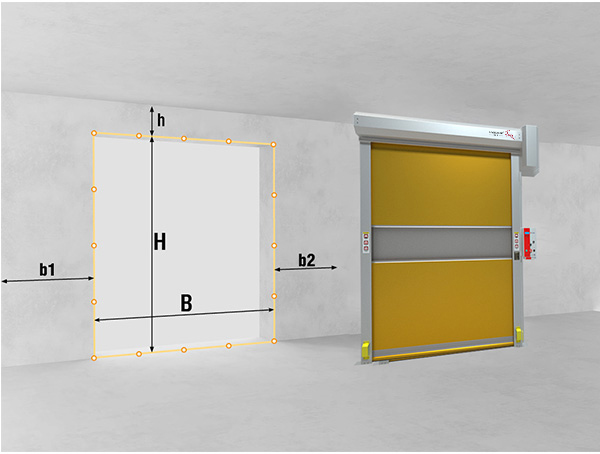

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

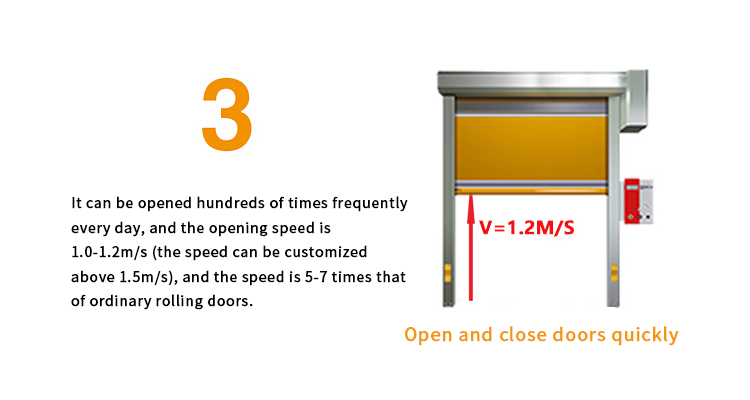

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

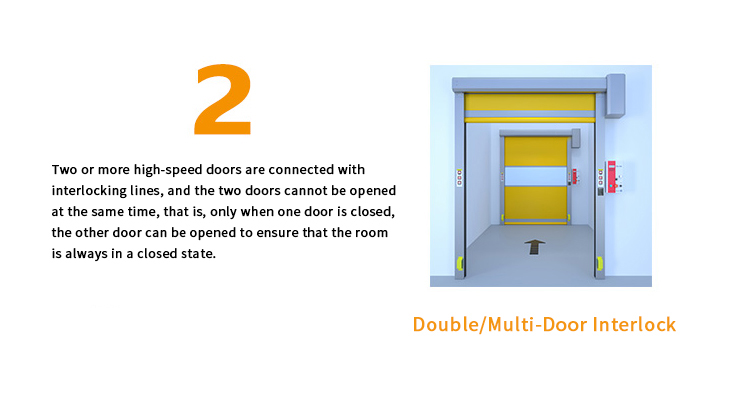

Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

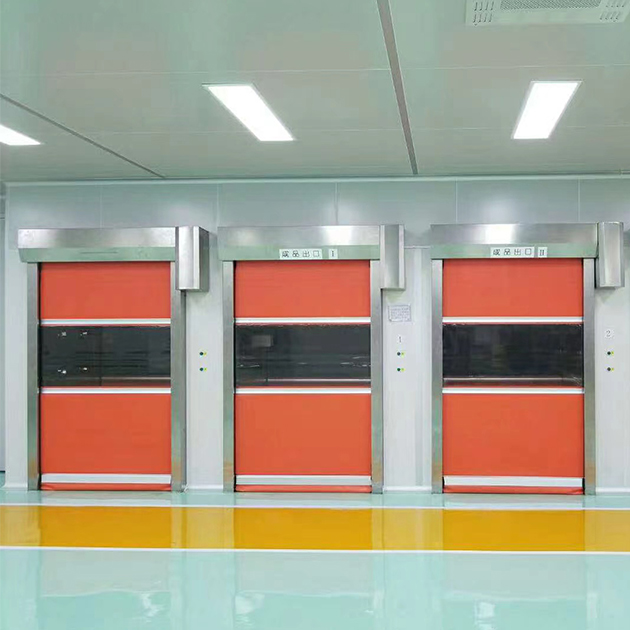

Air shower room transparent high speed door
