Product details

Take your access control to new heights with the introduction of our Waterproof PVC High-Quality Fast Door. Designed to revolutionize security and productivity across different environments, this door is a shining example of exceptional craftsmanship and material excellence.
At the core of its innovation is its unmatched waterproofing. Made from tough PVC, the door offers complete resistance to moisture, protecting your property from the harshest weather conditions. Ideal for damp environments such as warehouses, loading docks, or restaurants, this door ensures consistent performance regardless of the weather.
Combining speed with reliability, this fast-acting door opens and closes effortlessly, greatly improving traffic flow. Retail stores, manufacturing plants, and healthcare facilities alike will appreciate its ability to provide quick access while maintaining a high level of security. Remote operation and compatibility with existing access systems enhance its versatility, meeting the ever-changing needs of modern businesses.
Aesthetic enhancement is another notable feature of this door. Its modern design adds a touch of sophistication to any entrance, complementing a wide range of interior styles. The versatile PVC material allows for a clean and sleek appearance, making it a perfect fit for both commercial and residential applications.
Durability is at the forefront of its design. Engineered to withstand heavy foot traffic and regular use, the door is built to last, ensuring a solid return on investment for continued operation.
Maintenance is minimal, and installation is designed for ease, contributing to lower long-term ownership costs. Its versatility allows for flexible deployment in various settings, whether indoors or out.
In conclusion, the Waterproof PVC High-Quality Fast Door is a comprehensive solution for facilities seeking to enhance operational speed, security, and aesthetics. Its integration into any access point strengthens defenses against water ingress and elevates the entrance with a sleek and modern look. This door is an outstanding choice for organizations seeking a seamless integration of functionality and style.

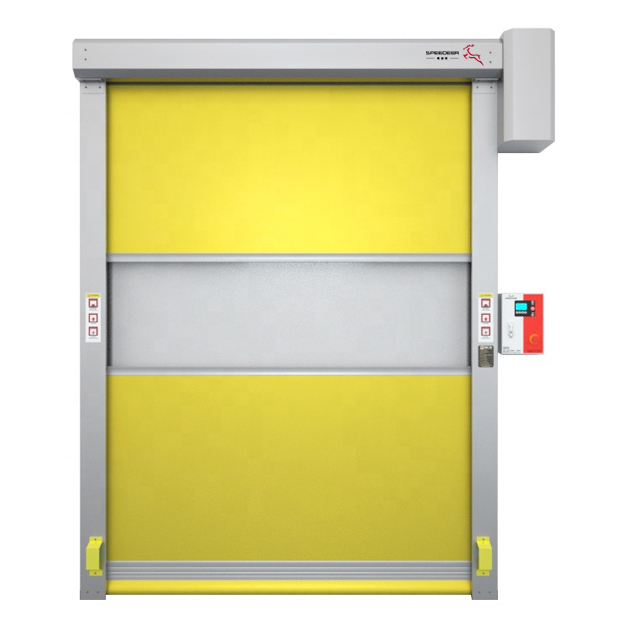

High Speed Door

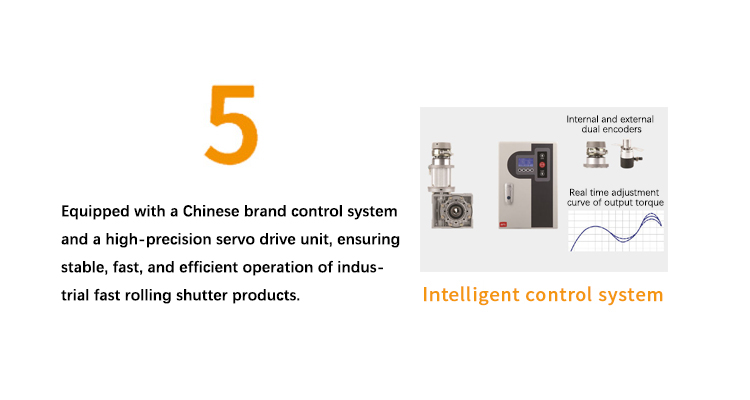

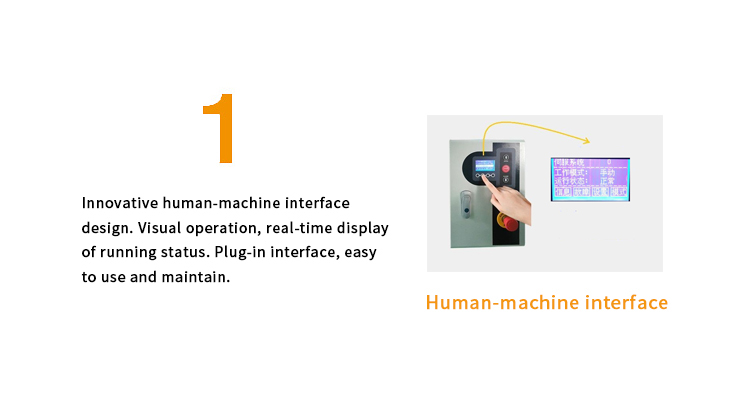

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

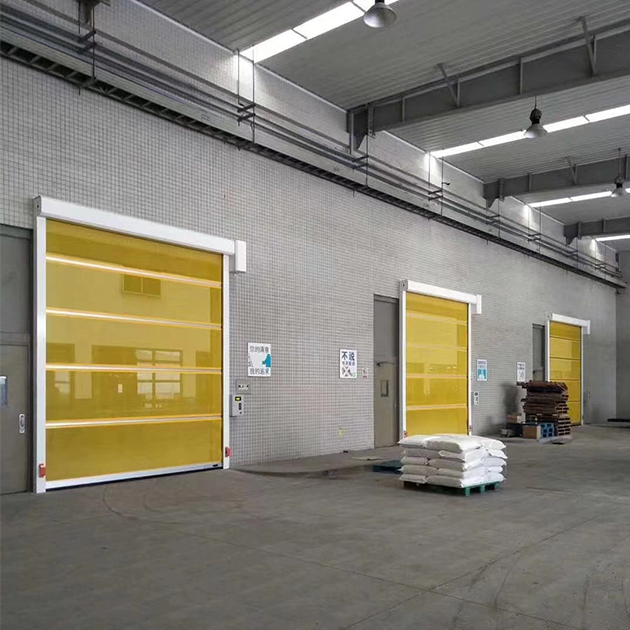

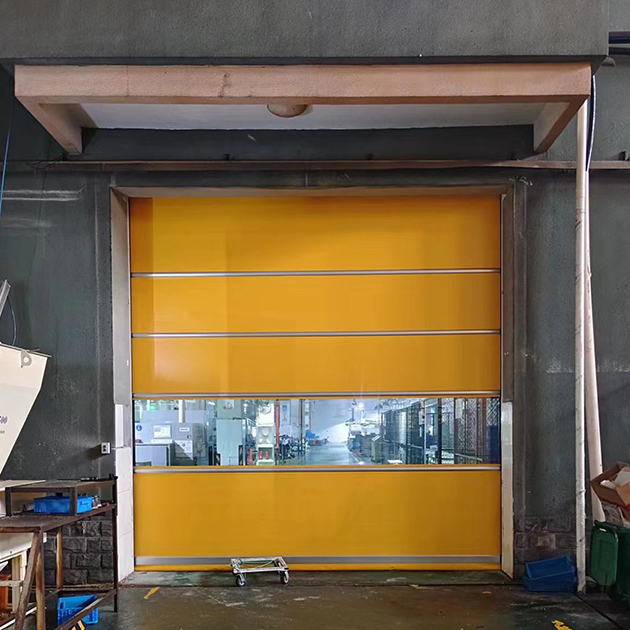

Installation Site

Innovative technology

More functions

Various colors available

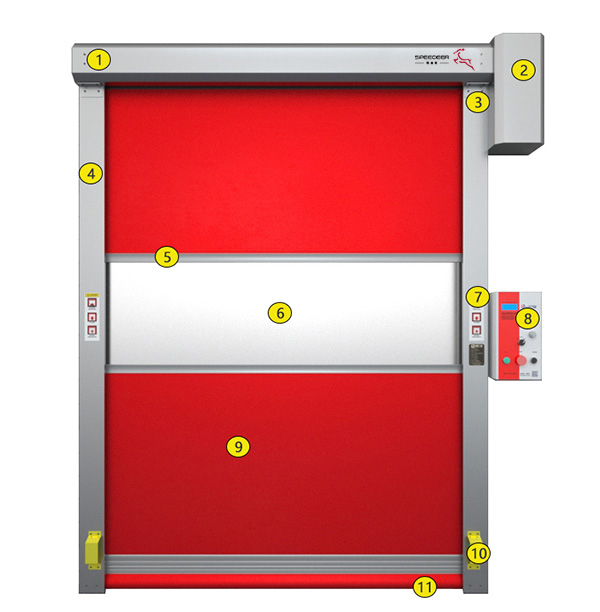

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

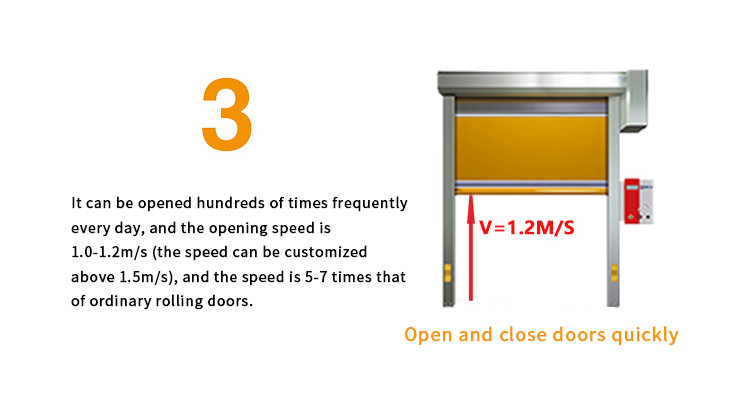

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

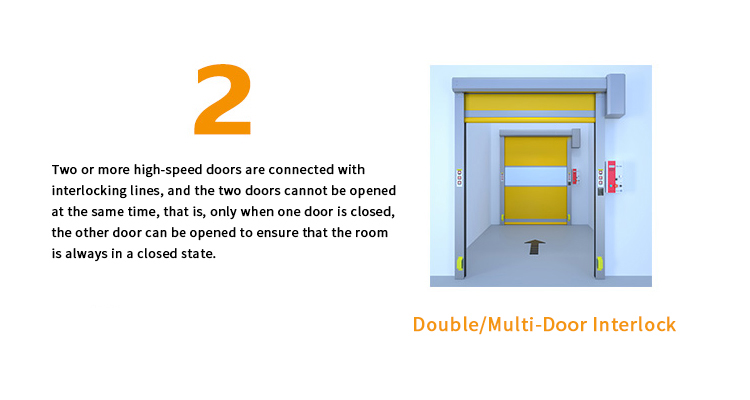

Interlock function	support

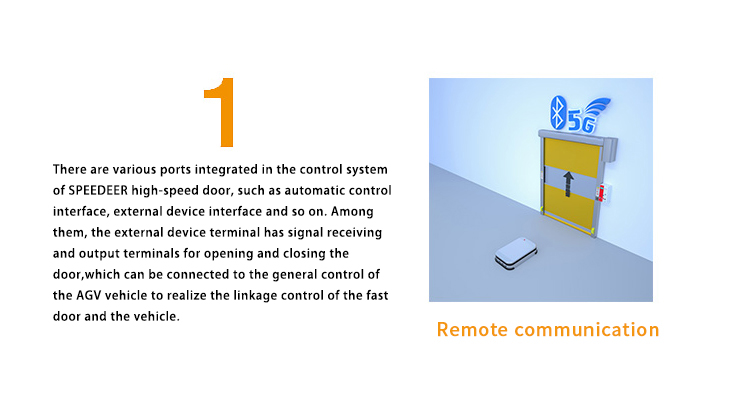

Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

Air shower room transparent high speed door
