SEPPES brand industrial door is suitable for warehousing and logistics workshops professional customized automatic high speed d1

2 year ago

6 0 

NingBo AnSheng Door Industry Technology Co.,Ltd.

2 year

Product details

Experience the epitome of professionalism and personalization with Brand Industrial Door, where we specialize in creating top-tier automatic doors designed to meet the rigorous demands of a variety of industrial and commercial settings.
Our doors are constructed with durability in mind, capable of withstanding even the most challenging industrial conditions. Whether you operate a warehouse, factory, or retail outlet, our extensive selection ensures you find a door that combines strength with dependability, tailored to your operational needs.
We focus on swiftness and efficiency. Our range includes high-speed shutter doors and rapid-action roller doors, engineered to open and close quickly, thereby streamlining traffic flow and minimizing delays. This results in enhanced productivity and an improved customer experience.
Safety is at the heart of our design philosophy. Each of our doors is equipped with innovative safety mechanisms to minimize the risk of accidents, providing peace of mind for both employees and visitors alike.
Recognizing the individuality of every business, we offer a wide array of customization choices. You have the flexibility to choose from various sizes, colors, and functional specifications to ensure that your chosen door aligns perfectly with your brand and operational requirements.
In essence, Brand Industrial Door is your go-to source for industrial and commercial door solutions. Our doors are synonymous with efficiency, robustness, safety, and personalization. There's no need to wait – contact us now to explore how we can redefine your door systems with Brand Industrial Door and exceed your expectations.

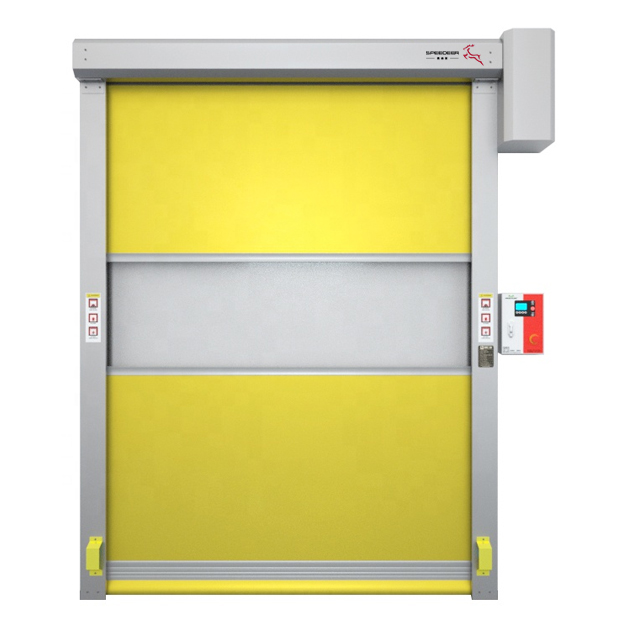

High Speed Door

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

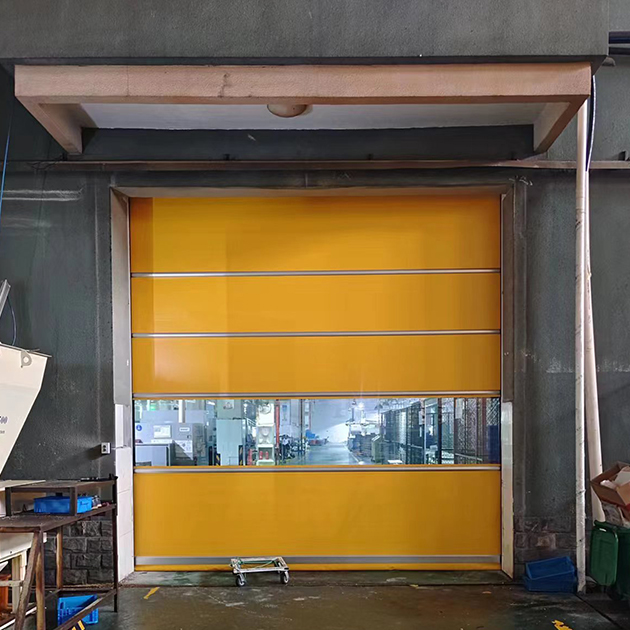

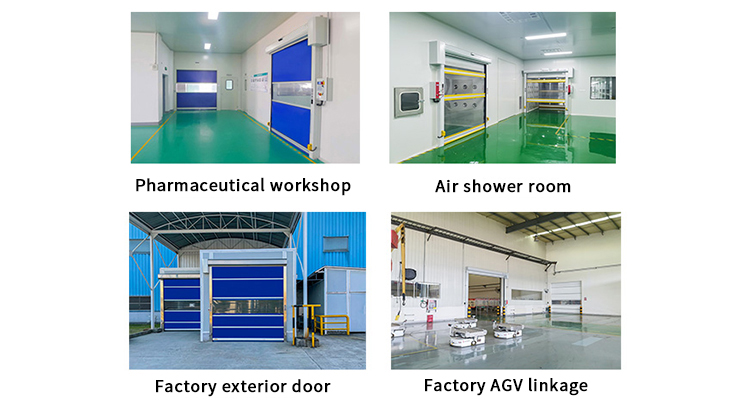

Installation Site

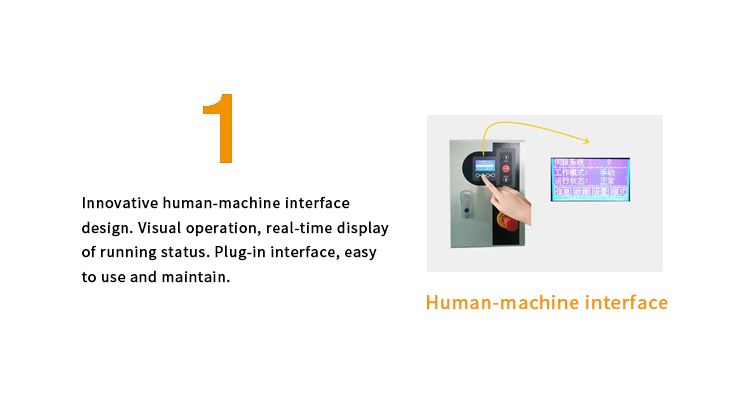

Innovative technology

More functions

Various colors available

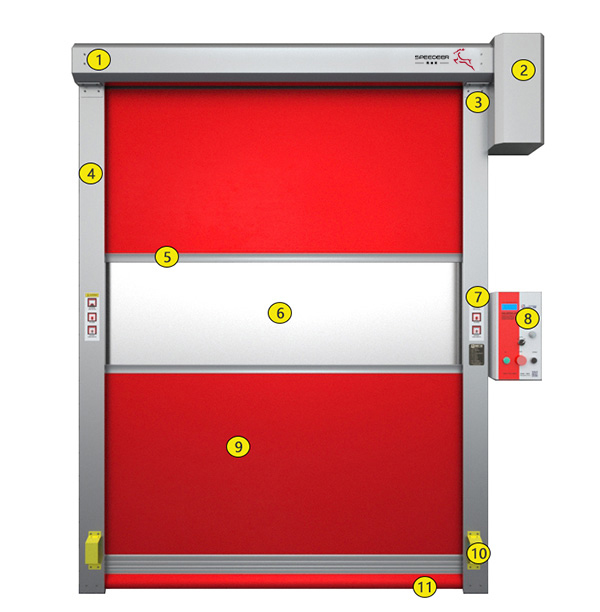

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

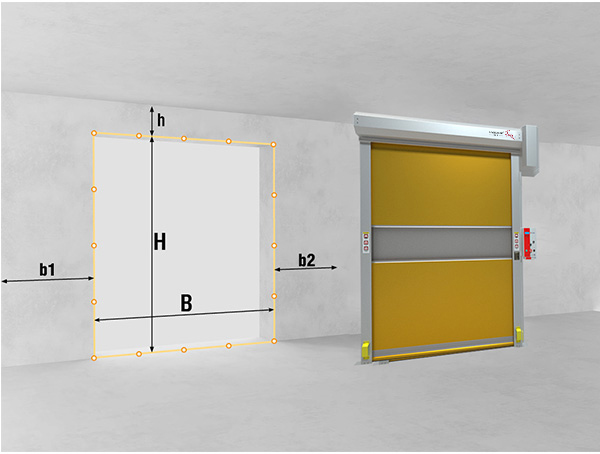

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

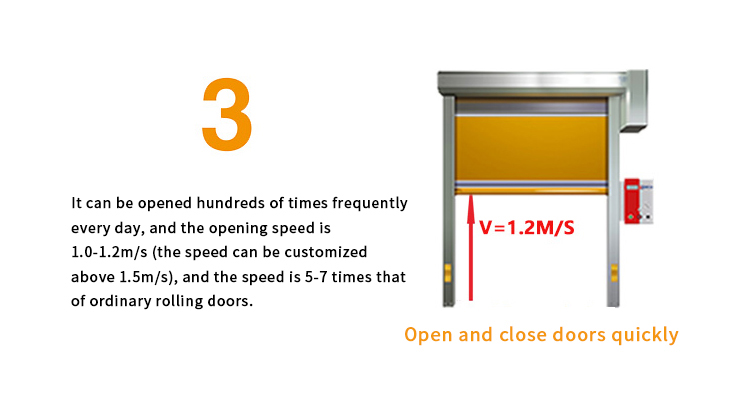

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ
Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

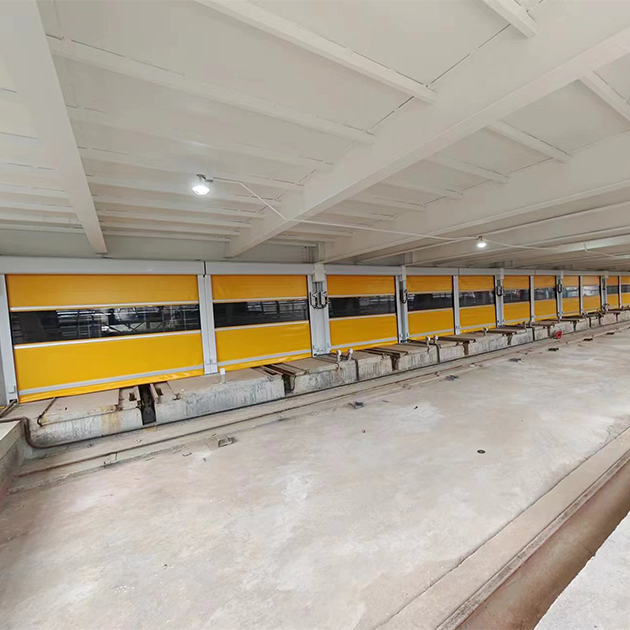

Automatic three-dimensional warehouse outlet

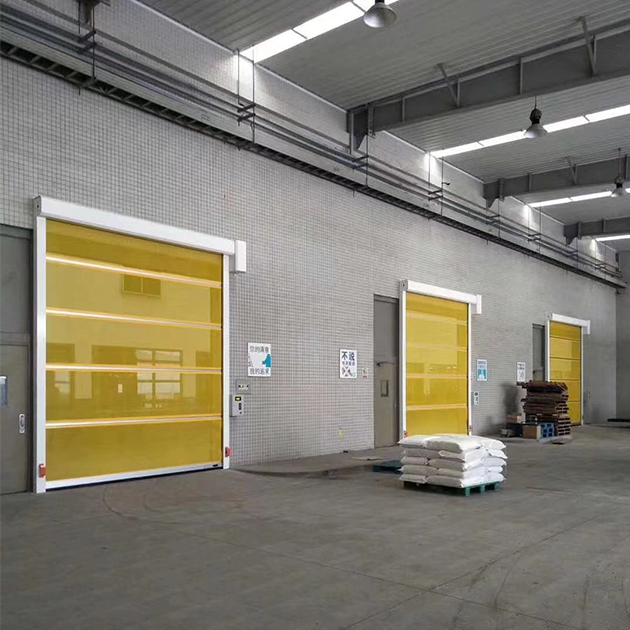

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

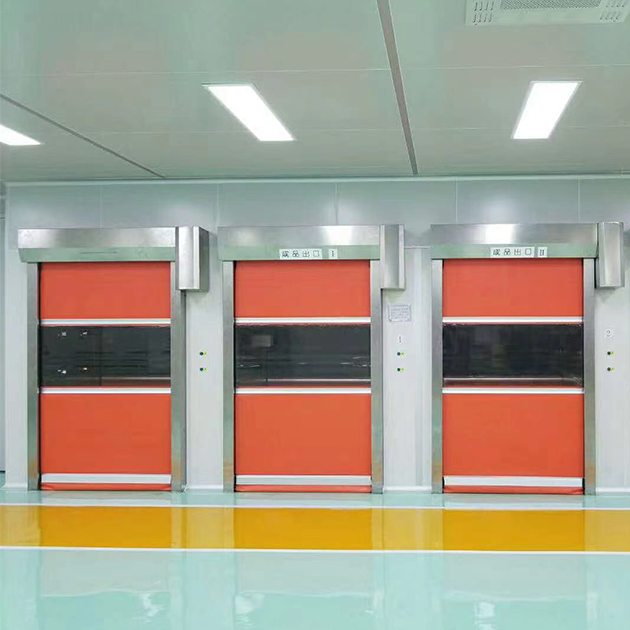

Air shower room transparent high speed door

Product Select

Thank you for taking the time to explore our extensive range of high-speed doors. Each product in our portfolio, including the Electric High Speed Door, Fast Roller Shutter Door, High Fast Rolling Door, and many others, has been thoughtfully designed and meticulously crafted to meet the specific needs of various industries.
Our doors are not just about speed; they are also about safety, durability, and energy efficiency. Whether you are looking for a door that can withstand the rigors of daily use in a busy warehouse or one that can provide a sterile environment in a food processing plant, we have the perfect solution for you.
Our commitment to quality and innovation drives us to continually push the boundaries of what is possible, resulting in doors that are not only faster and more reliable but also more aesthetically pleasing and easier to operate than ever before.
We invite you to experience the difference our high-speed doors can make in your operations. Contact us today to learn more about how we can help you achieve your goals with our top-performing products.
Remember, when it comes to high-speed doors, there's no better choice than ours. Thank you for considering our brand, and we look forward to serving you.

---
Please note: Some of the product names listed may be hypothetical or variations of existing products to illustrate the breadth of our offerings. If you require specific information about a particular product, please let me know, and I will be happy to provide it.
