PVC transparent fast door remote control switch,and card access control customized industrial high speed roll up door1

2 year ago

8 0 

NingBo AnSheng Door Industry Technology Co.,Ltd.

2 year

Product details

Unveil the cutting-edge PVC Transparent Fast Door with Remote Control – your ideal access solution for streamlined warehouse operations. Engineered for warehouses and industrial settings, this door system marries cutting-edge performance with robust construction.
Crafted from top-tier PVC, the PVC Transparent Fast Door with Remote Control promises unsurpassed durability and lifespan. Its transparent design adds a modern touch while ensuring clear visibility, thereby augmenting operational effectiveness. Whether you're outfitting a warehouse, factory, or any other industrial site, this door is the perfect fit. It thrives in outdoor settings thanks to its weather-resistant properties and sturdy build.
The PVC Transparent Fast Door with Remote Control is not merely a door; it's a fully integrated access management system. It encompasses features like high-speed warehouse doors, windproof rapid-opening shutters, industrial-standard doors, sectional doors for industrial use, and more, catering to the most demanding warehouse environments with ease.
Reliability and speed are at the core of this advanced door system, vital in warehouse settings where continuous operation is key. Its swift response time slashes wait times and bolsters overall workflow efficiency, making it an indispensable asset for any warehouse or industrial venture.
Beyond its rapid operation, the PVC Transparent Fast Door with Remote Control is packed with additional features that solidify its status as a complete access solution. It's equipped with robust locking systems for secure sealing and to deter unauthorized entry. The door's solid construction ensures superior strength and steadiness, guaranteeing consistent performance.
Ease of installation and user-friendliness define the PVC Transparent Fast Door with Remote Control. Maintenance is kept to a minimum, and it can be tailored to suit various configurations to align with your unique requirements. Whether you're equipping a new facility or revamping an existing one, this door offers a cost-effective investment that delivers sustained value.
In summary, the PVC Transparent Fast Door with Remote Control represents a new paradigm in access solutions. It's the go-to choice for warehouses and industrial facilities aiming to elevate access control, boost operational proficiency, and reinforce security. Don't hesitate – reach out now to discover how the PVC Transparent Fast Door with Remote Control can revolutionize your warehouse or industrial setting.

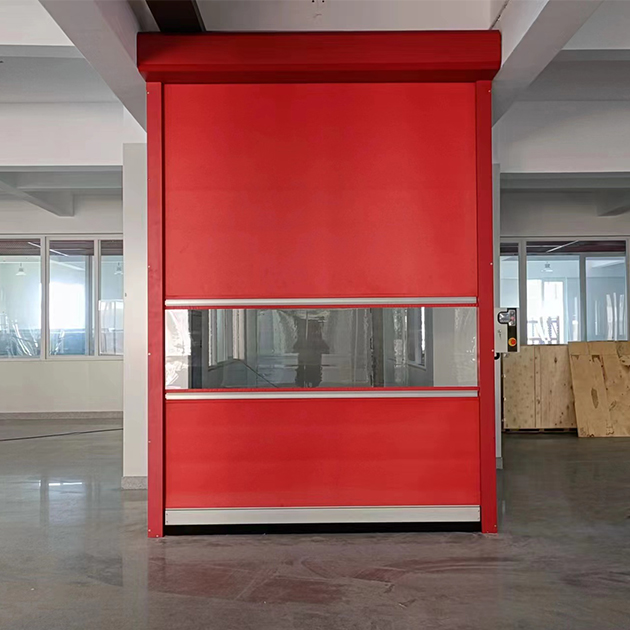

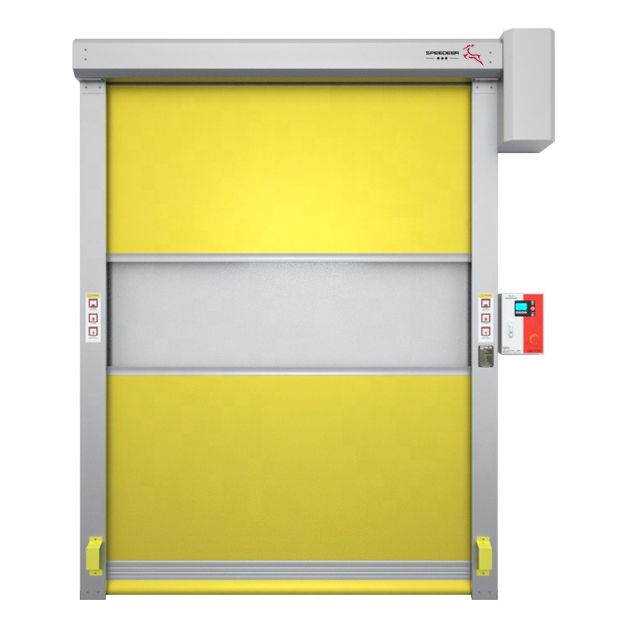

High Speed Door

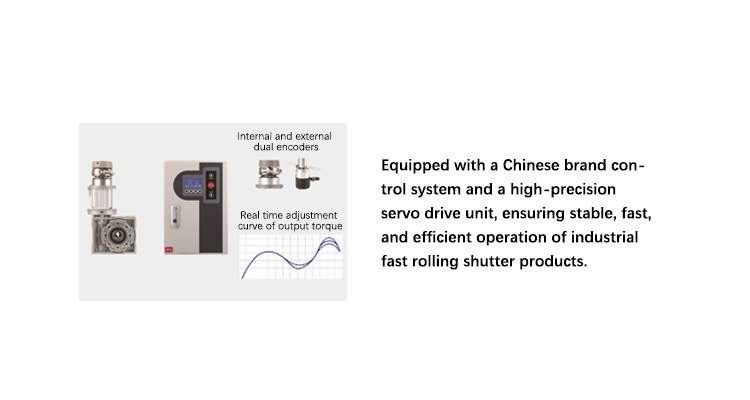

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

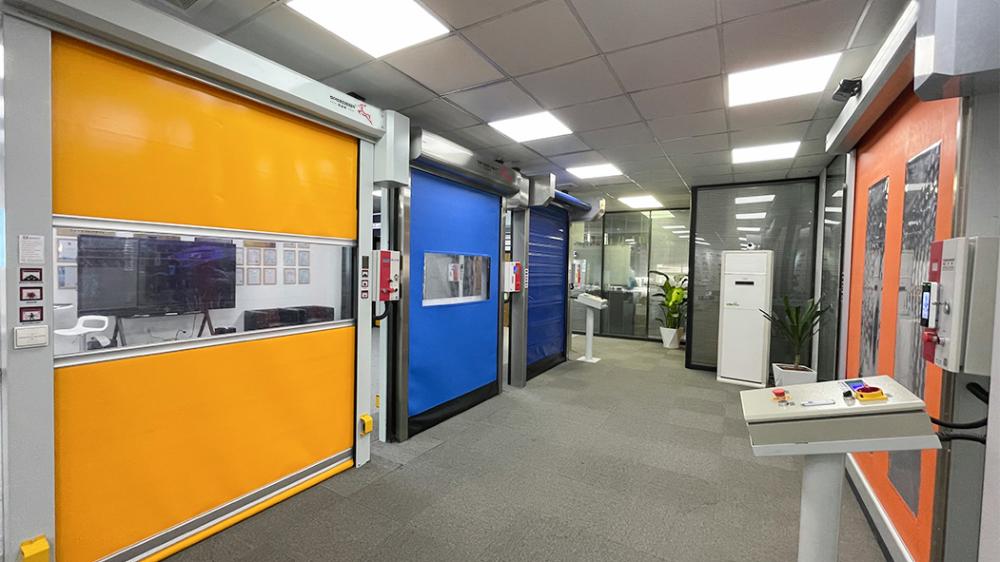

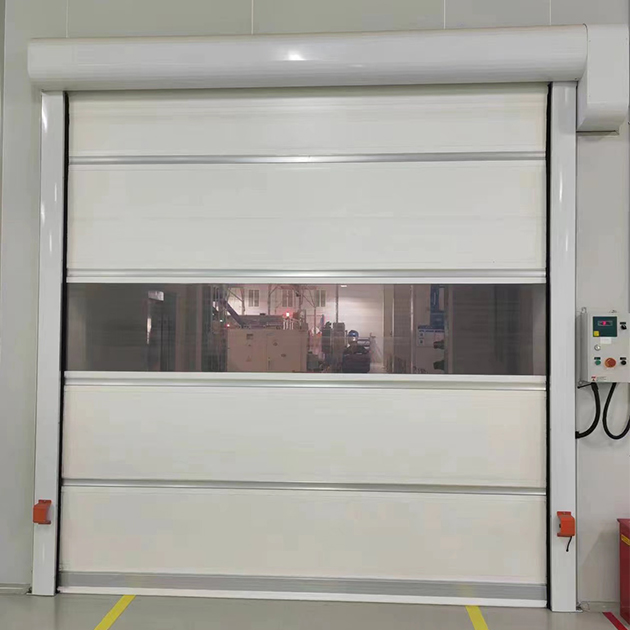

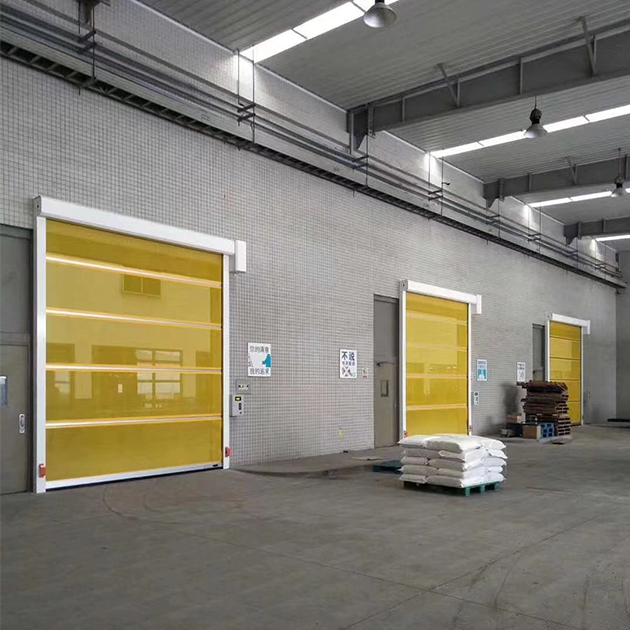

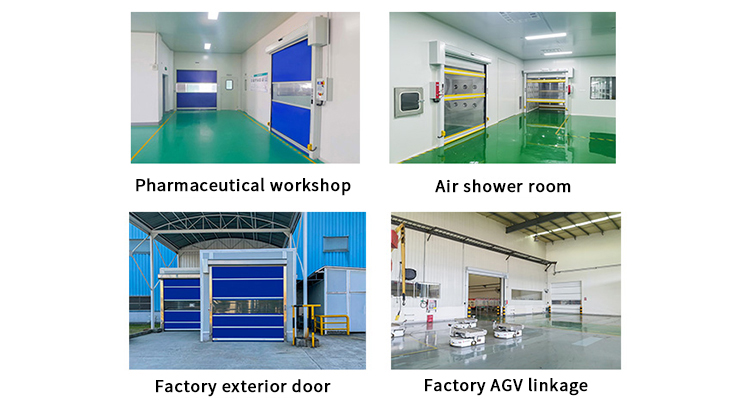

Installation Site

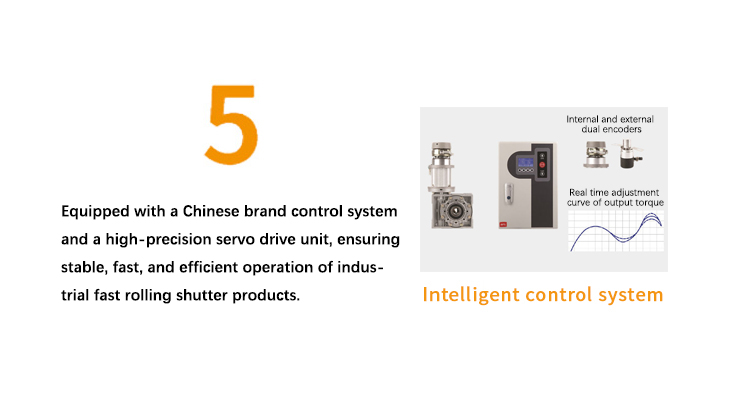

Innovative technology

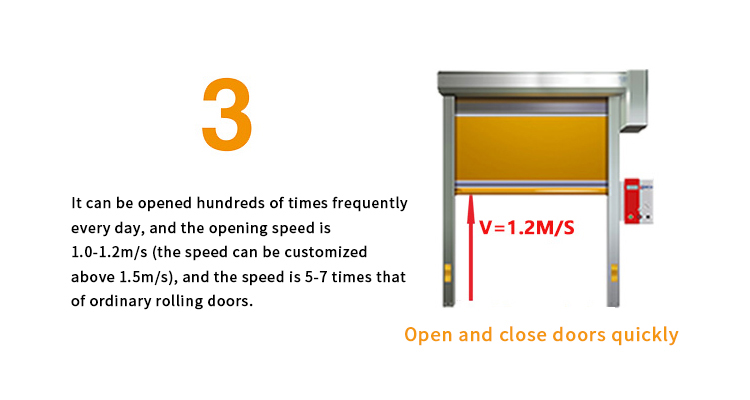

More functions

Various colors available

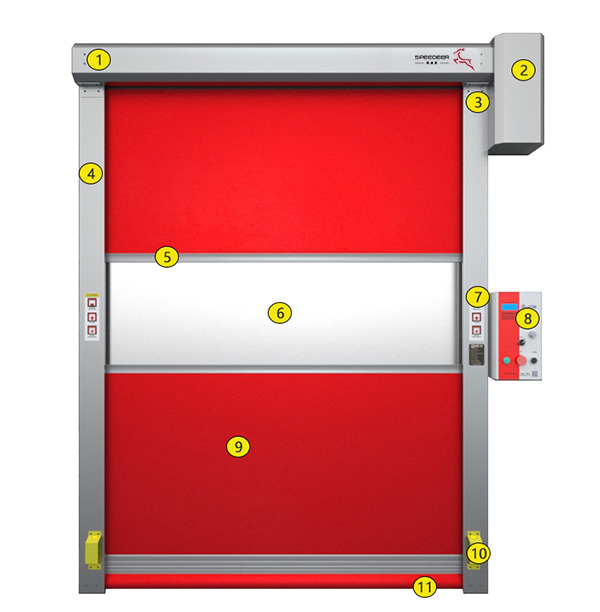

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

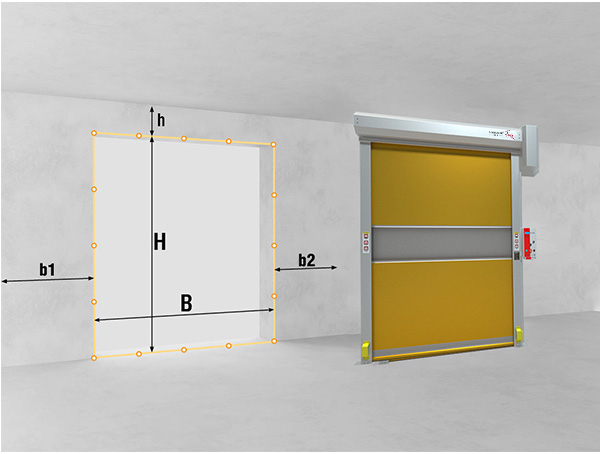

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)
Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

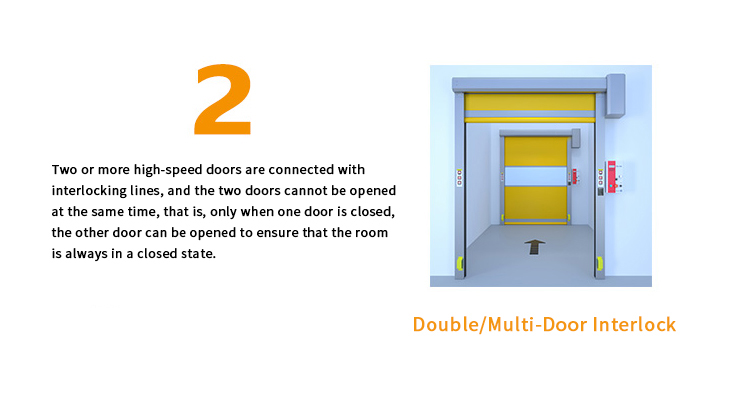

Interlock function	support

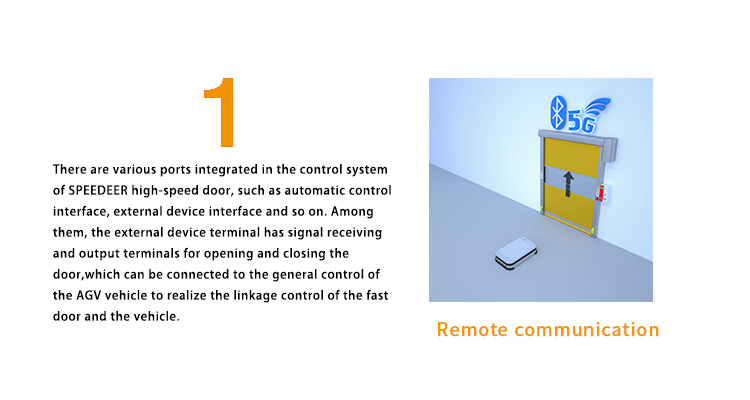

Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

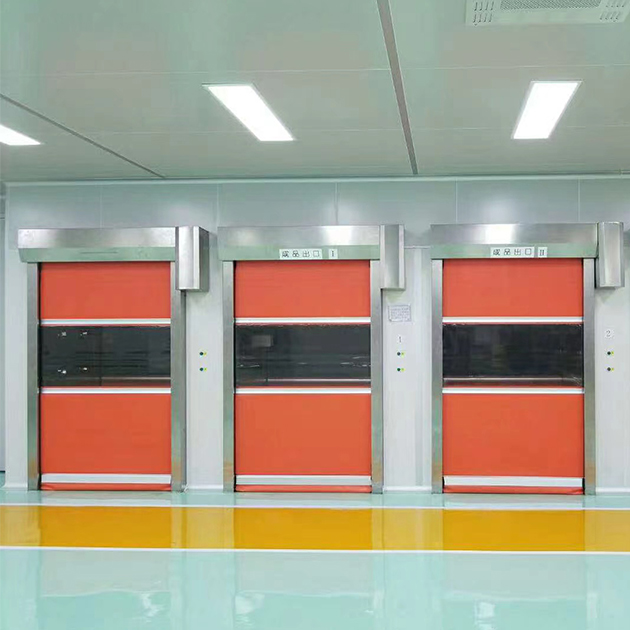

Air shower room transparent high speed door
