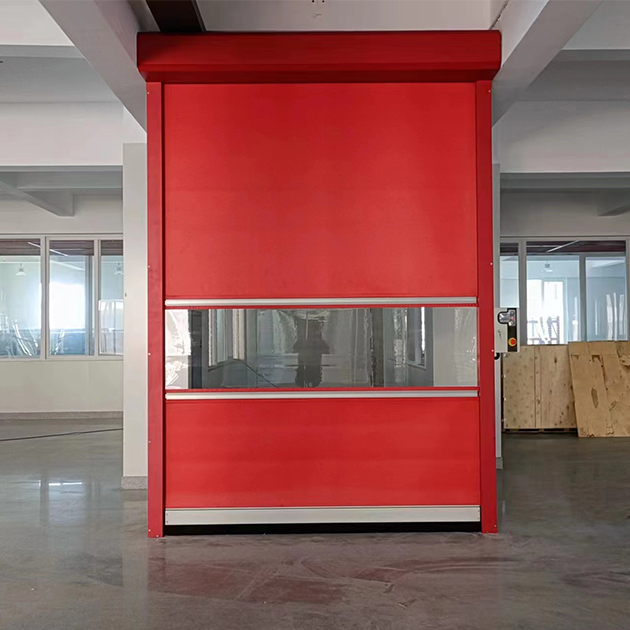

Customized fully transparent PVC door curtain standard configuration infrared safety photoelectric protection device industrial1

2 year ago

5 0 

NingBo AnSheng Door Industry Technology Co.,Ltd.

2 year

Product details

Redefining entryway management, the Customized Transparent PVC Door Curtain presents an avant-garde approach to access control. Tailored to accommodate diverse environments, this innovative product marries practicality with sophistication, serving as a versatile addition to any setting.
Equipped with an electric motor for rapid operation, the door curtain ensures swift and uncomplicated regulation of access points. Businesses ranging from bustling shops to high-traffic offices benefit from its ease of use, which facilitates a smooth transition between an inviting open stance and a secure closed mode.
The cornerstone of the Customized Transparent PVC Door Curtain is its robust roller shutter mechanism, crafted from premium grade PVC. This material choice lends itself to durability and resilience, ensuring that the door maintains its functionality even through frequent opening and closing cycles.
Adaptability is a hallmark of this product, allowing for customization to suit individual space requirements and design visions. Whether a space calls for a chic, contemporary flair or a more classic ambiance, the transparent PVC door curtain can be custom-fitted to complement and enhance the existing architecture.
Safety is never compromised in the design of the Customized Transparent PVC Door Curtain. Integrated sensors and an automatic reversal feature guard against potential mishaps, prioritizing the protection of both staff and visitors.
Its high-speed operation also contributes to superior wind resistance and insulation properties, making it a fitting option for businesses exposed to the elements. This door curtain stands as an ideal solution for establishments seeking to balance functionality with weatherproofing.
In essence, the Customized Transparent PVC Door Curtain exemplifies a harmonious blend of utility, longevity, and adaptability, establishing a new benchmark in access control solutions. With its swift electric operation, robust construction, advanced safety attributes, and customizable design, it caters to the evolving needs of businesses globally.

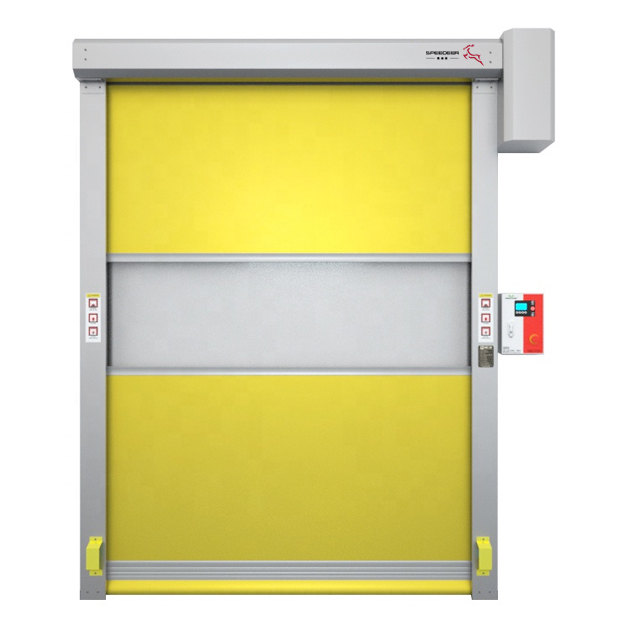

High Speed Door

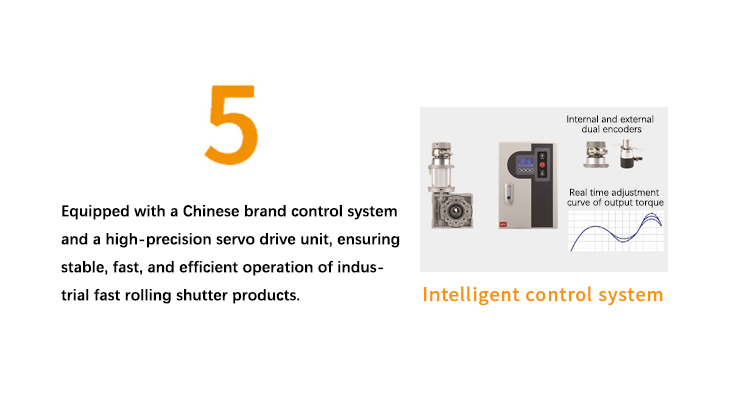

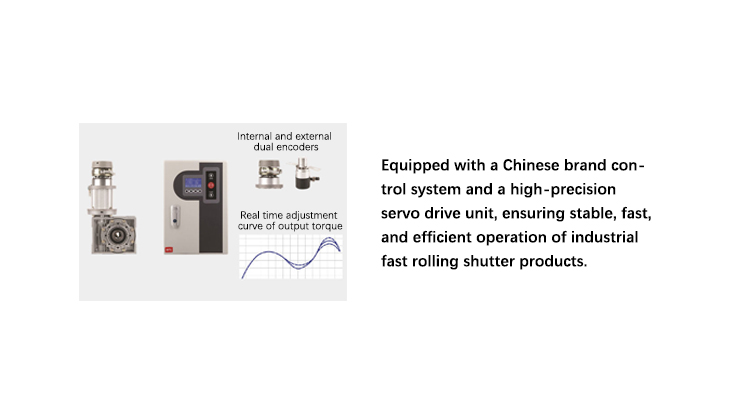

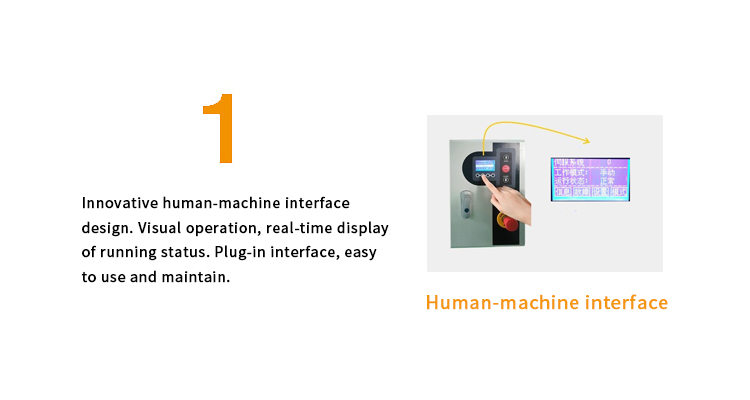

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

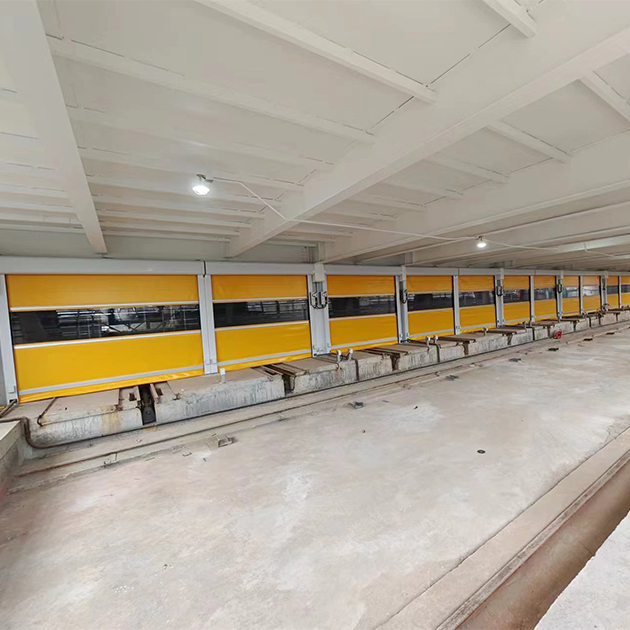

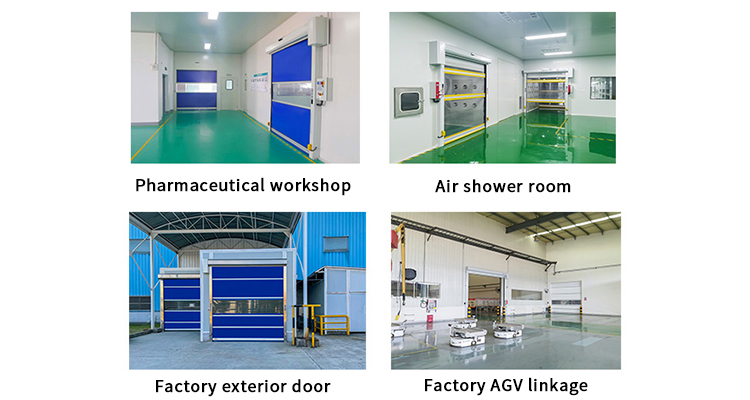

Installation Site

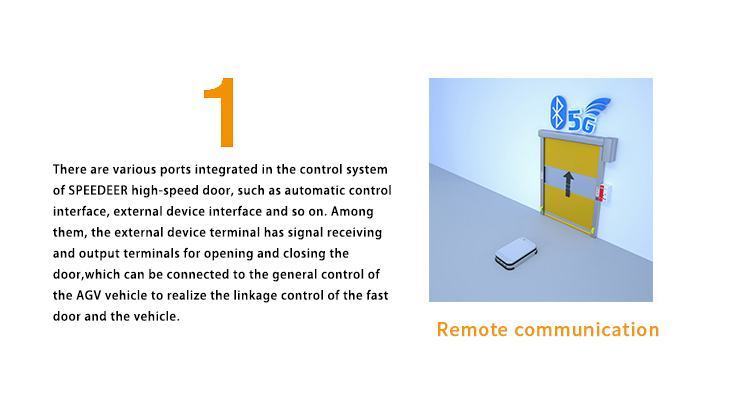

Innovative technology

More functions

Various colors available

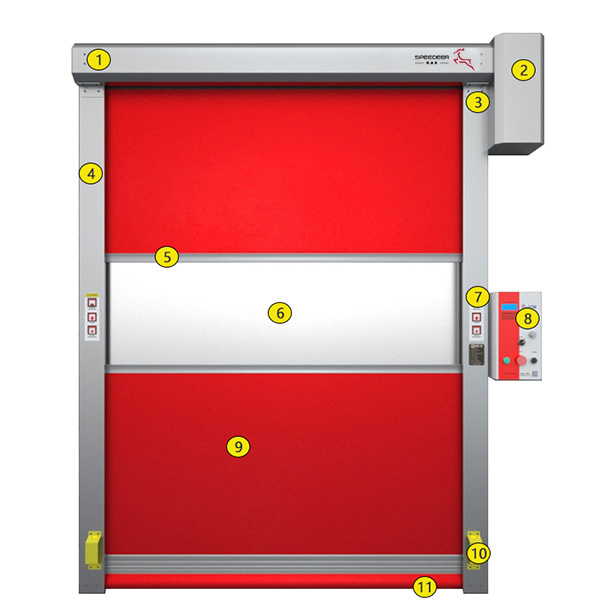

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

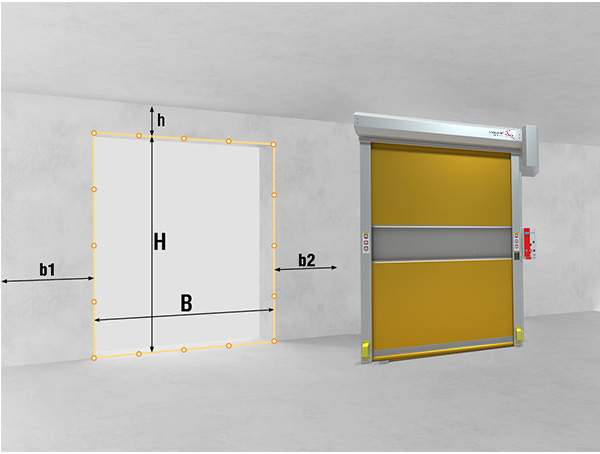

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

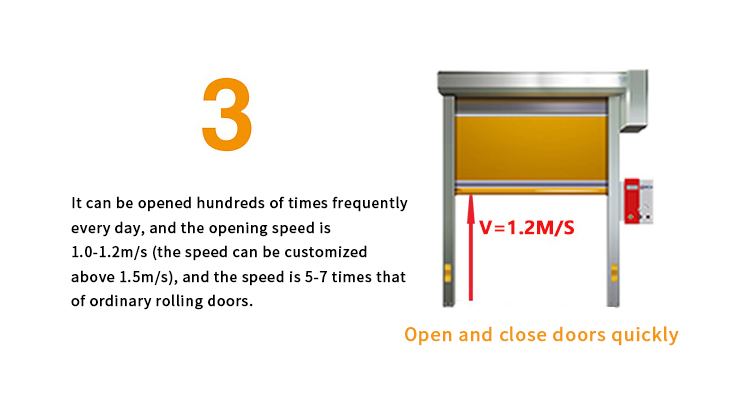

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

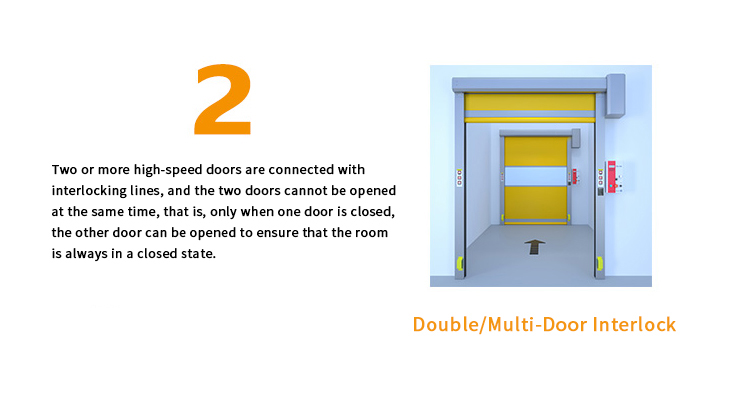

Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

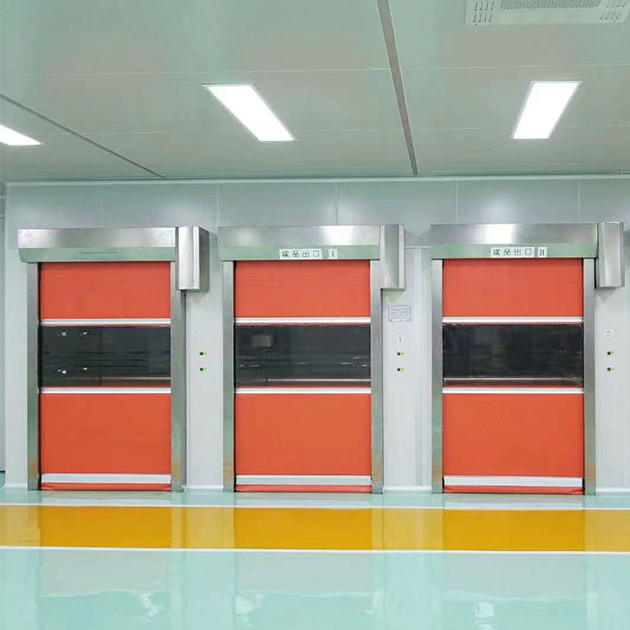

Air shower room transparent high speed door
