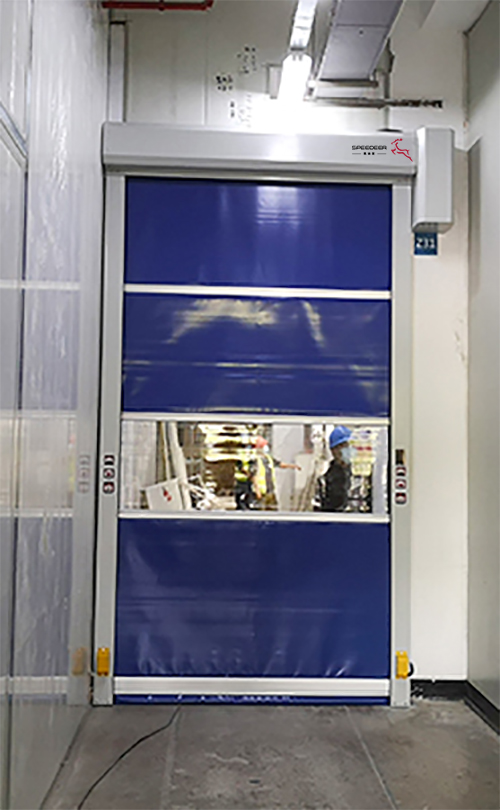

Factory soft electric fast rolling door customized automatic induction forklift open and close geomagnetic fast pvc roll door1

2 year ago
6 0
Product details



 The Customized Soft Electric Fast Rolling Door stands as a paragon of advanced access control technology, expertly crafted to fulfill the distinctive requirements of various business environments. This door, with its suite of innovative capabilities, ensures unmatched operational excellence across an array of uses.
Underpinning its functionality is an electric motor that drives the door at high speeds, guaranteeing quick and efficient access management. Be it in a bustling warehouse, a high-tech manufacturing plant, or any other industrial scenario, this door facilitates smooth transitions, enhancing productivity and convenience.
The door's fast-acting roller mechanism is constructed from superior materials, ensuring both agility and endurance. These materials are selected for their ability to withstand repeated usage and harsh conditions without degrading, thereby ensuring a sustained level of service and reliability over time.
A notable aspect of the Customized Soft Electric Fast Rolling Door is its capacity for personalization. It can be tailored to complement specific spatial constraints and design themes, offering a bespoke solution that not only serves functional purposes but also elevates the visual appeal of the surrounding area. Whether a clean, contemporary style is desired or a more classic and subdued aesthetic, this door can be adapted to integrate harmoniously.
Safety is a pivotal element, and the door is equipped with a host of safety-oriented features. These include sensors that detect obstructions and trigger an automatic reversal to avert potential incidents, as well as other mechanisms designed to protect both individuals and property.
In outdoor settings, where exposure to the elements is a concern, the door's design excels in wind resistance and thermal insulation. This makes the Customized Soft Electric Fast Rolling Door an ideal selection for industrial locales that are subject to harsh weather, ensuring that the interior remains protected and comfortable.
In summation, the Customized Soft Electric Fast Rolling Door is a testament to the synthesis of cutting-edge performance, resilience, and adaptability. With its swift operation, robust construction, state-of-the-art safety attributes, and versatile customization possibilities, it redefines the benchmark for adaptive access control systems in the modern industrial landscape.






Pvc Quick Rolling Shutter Door 5
Zipper Door4
High Speed Door

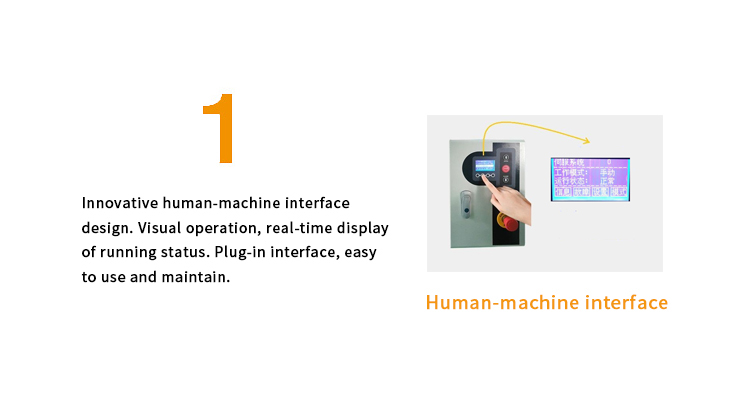

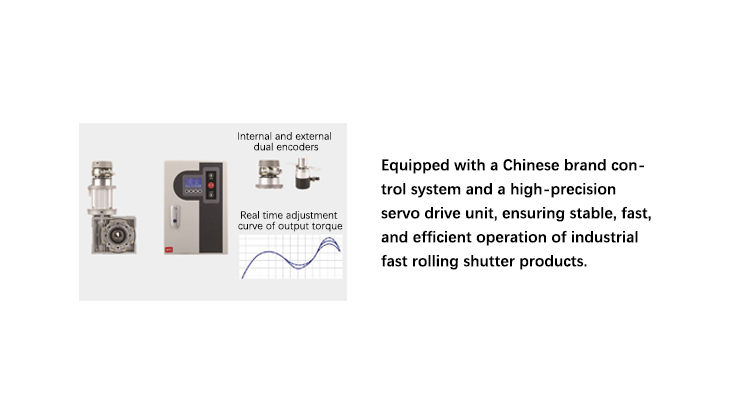

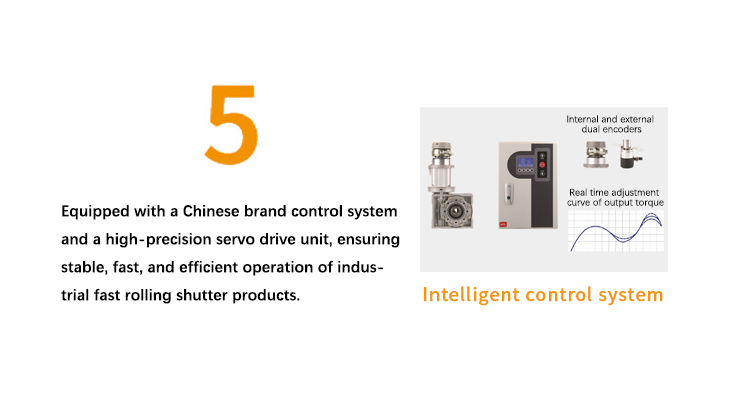

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

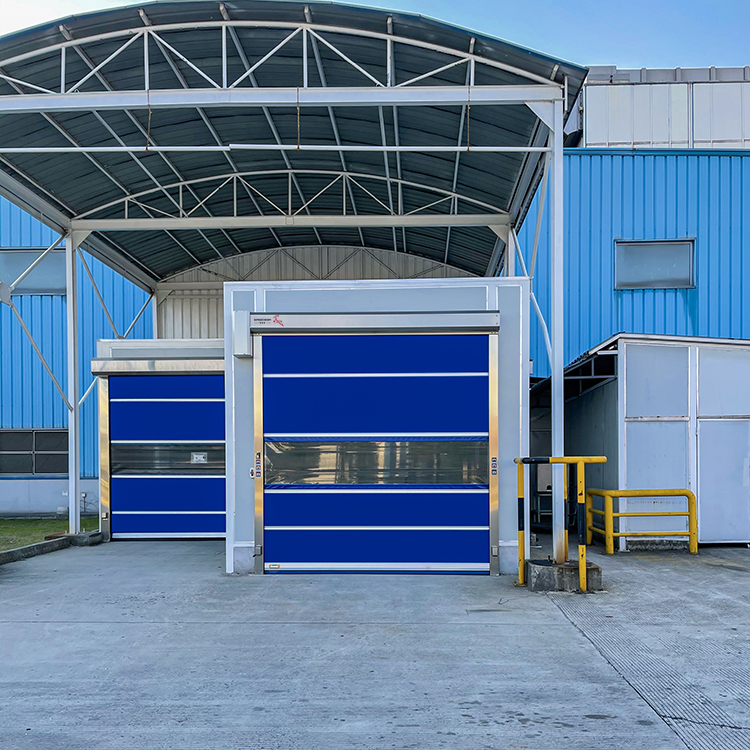

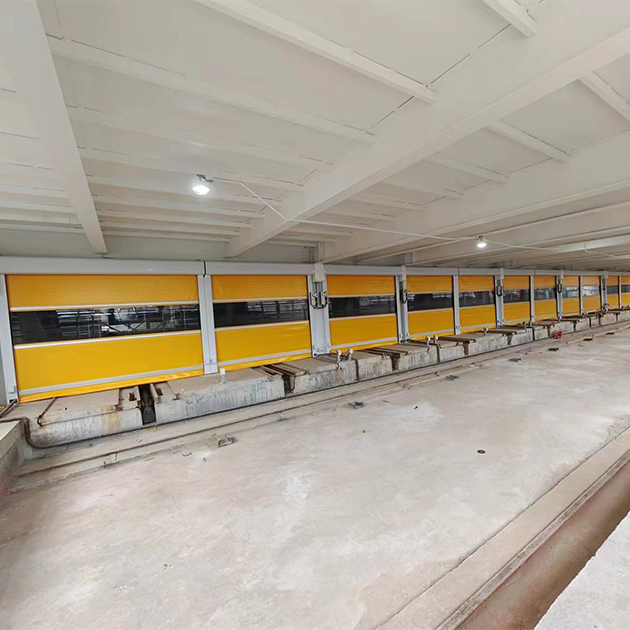

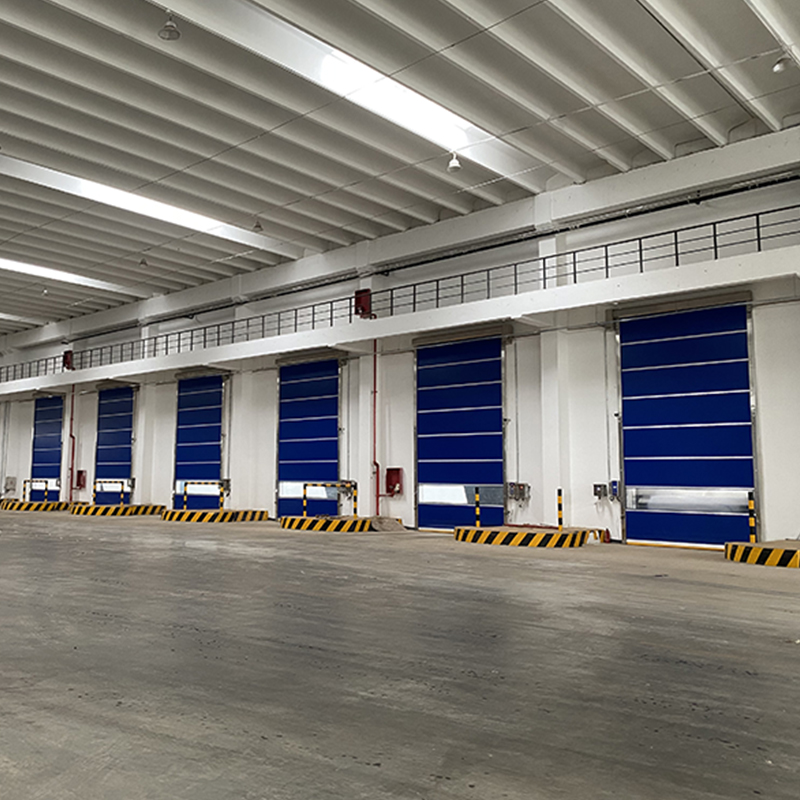

Installation Site

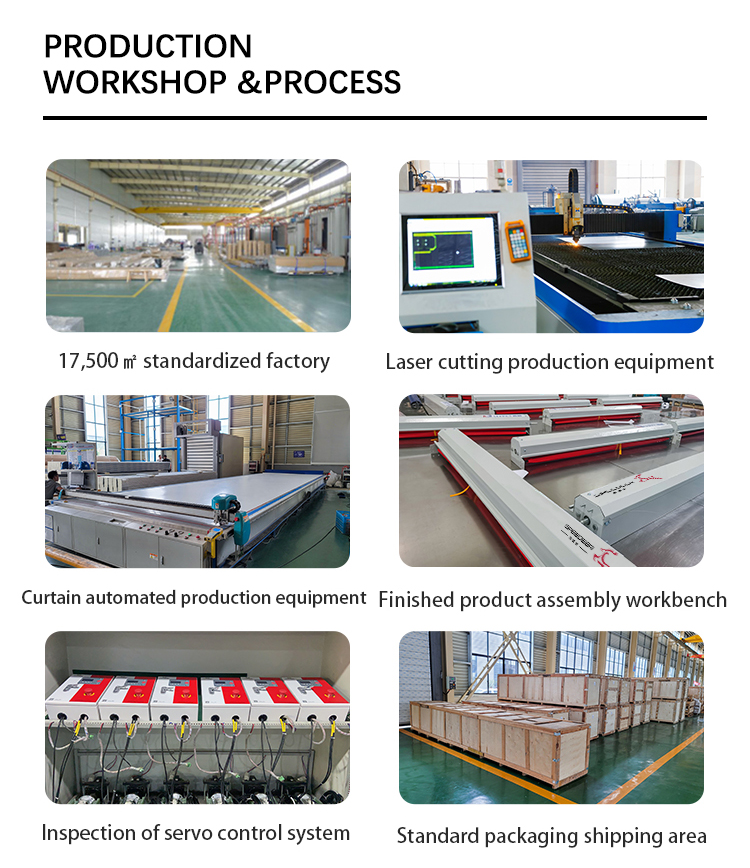

Workshop Process
Innovative technology
Control
High13
Control4
Control2
More functions
High10High11
Various colors available

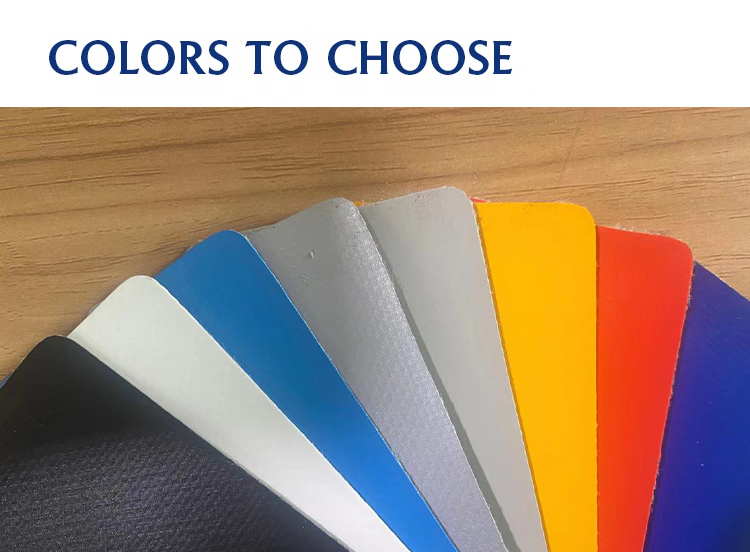

Colors To Choose

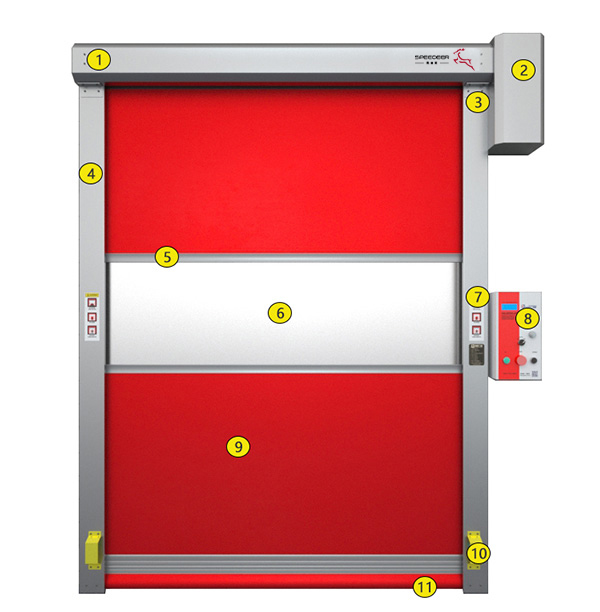

More Details
High12


① The front box
Motor
Fixed angle iron
Track
Aluminum profile wind-resistant ribs
Transparent window
Identification nameplate
Control box
PVC door curtain
Infrared safety photoelectric
⑪ U-shaped bottom edge






Installation Instructions

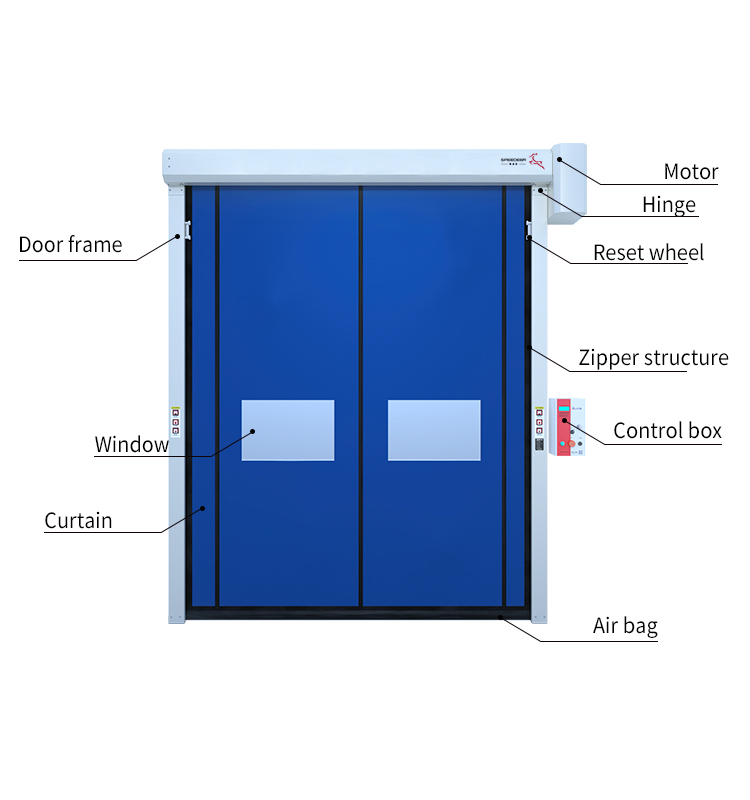

Zipper
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size
Basic configuration
Control3
Technical parameter
Maximum size
5800*6000mm(W*H)
Wind pressure
6-8 wind (refer to the size of the door)

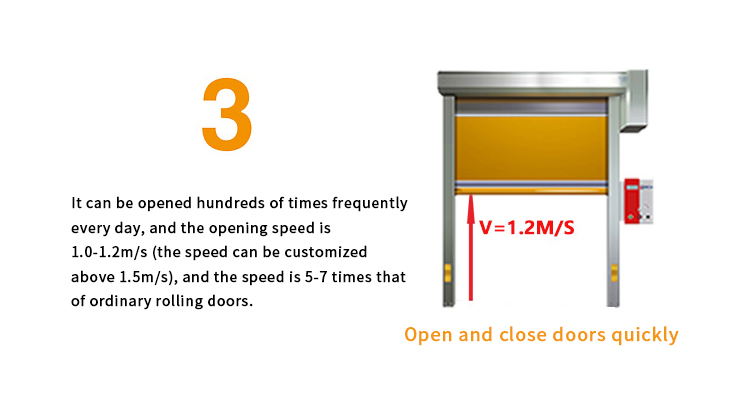

Opening speed
1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed
0.8 m/s (speed adjustable)
Operating temperature
-5 to 60°C
PVC base cloth thickness
0.8-1.2mm
Base fabric color
Blue, gray, white and other colors are optional
Frame material
cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage
220V/50HZ

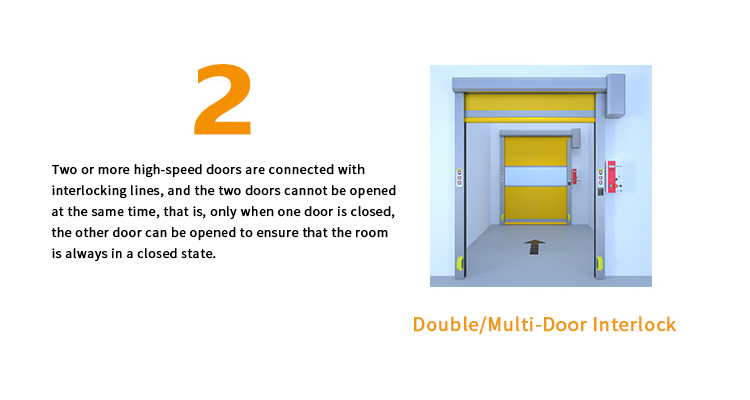

Interlock function
support
Linkage function

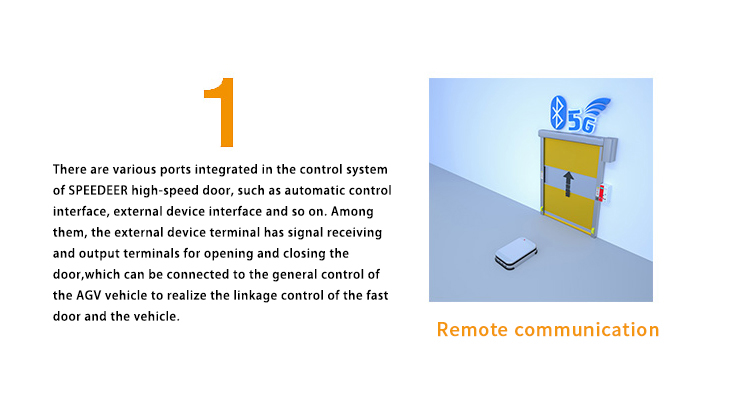

support (can provide door-open in-position, door-close in-position signal)
Induction mode
Radar, geomagnetic, photoelectric, rope, remote control
Safety protection
photoelectric (standard), safety bottom edge (optional)
Pvc8
Automatic three-dimensional warehouse outlet

High1
Fast rolling shutter door + aluminum alloy rolling shutter door

Pvc Door Blue
Nongfu Spring Company Project

Pvc Quick Rolling Shutter Door 5
Air shower room transparent high speed door

Product Select


 Thank you for taking the time to explore our extensive range of high-speed doors. Each product in our portfolio, including the Electric High Speed Door, Fast Roller Shutter Door, High Fast Rolling Door, and many others, has been thoughtfully designed and meticulously crafted to meet the specific needs of various industries.
Our doors are not just about speed; they are also about safety, durability, and energy efficiency. Whether you are looking for a door that can withstand the rigors of daily use in a busy warehouse or one that can provide a sterile environment in a food processing plant, we have the perfect solution for you.
Our commitment to quality and innovation drives us to continually push the boundaries of what is possible, resulting in doors that are not only faster and more reliable but also more aesthetically pleasing and easier to operate than ever before.
We invite you to experience the difference our high-speed doors can make in your operations. Contact us today to learn more about how we can help you achieve your goals with our top-performing products.
Remember, when it comes to high-speed doors, there's no better choice than ours. Thank you for considering our brand, and we look forward to serving you.


---
Please note: Some of the product names listed may be hypothetical or variations of existing products to illustrate the breadth of our offerings. If you require specific information about a particular product, please let me know, and I will be happy to provide it.
