Product details

Redefine your access control systems with the introduction of the cutting-edge Intelligent Automatic PVC High-Speed Door. Engineered to meet the diverse demands of modern businesses, this door is equipped with innovative features that ensure unsurpassed efficiency and security.
At the very heart of its design is an electrically driven high-speed mechanism, which enables the swift and smooth opening and closing of the door, optimizing the flow of traffic in any given environment. Ideal for use in warehouses, production sites, and other industrial environments, the door's responsive operation facilitates a seamless transition between open and closed states, thereby streamlining operations.
Constructed from top-grade PVC, the door's fast-rolling mechanism is both rapid and reliable. This material choice ensures that the door can withstand intensive use and adverse weather conditions, while still maintaining its structural integrity and performance over time.
The Intelligent Automatic PVC High-Speed Door excels in versatility. It can be expertly customized to align with specific spatial requirements and design preferences, making it an ideal choice for adding a touch of sophistication to any industrial space. From contemporary to classic, this door can be adapted to complement any aesthetic vision.
Safety is paramount in the design of the Intelligent Automatic PVC High-Speed Door. It is equipped with an array of safety features, including sensitive sensors and an automatic reverse function, which work together to prevent collisions and protect individuals approaching the door.
In terms of performance, the door's high-speed rolling nature provides excellent resistance to wind and offers effective thermal insulation. This makes it particularly well-suited for use in external settings, where exposure to the elements is a concern, thus safeguarding the interior of industrial facilities from inclement weather.
In summary, the Intelligent Automatic PVC High-Speed Door represents a convergence of advanced technology, exceptional performance, and customizable design. This door is poised to set a new paradigm for access control in industrial settings, offering a harmonious blend of functionality and aesthetics to meet the evolving needs of businesses worldwide.

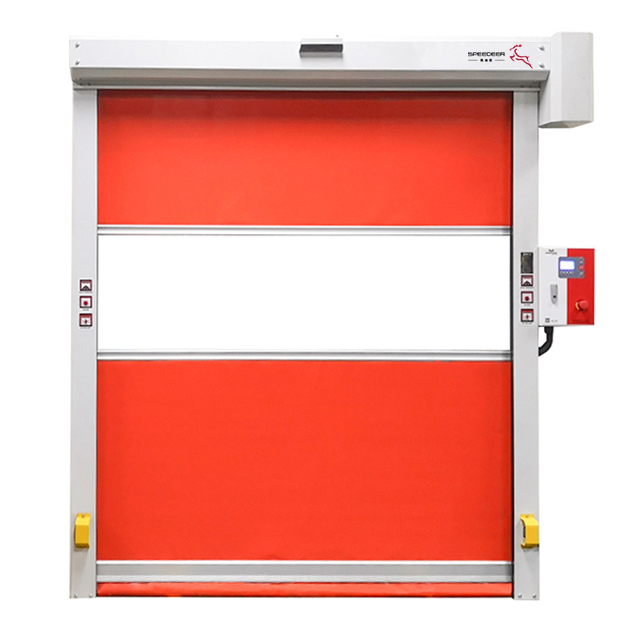

High Speed Door

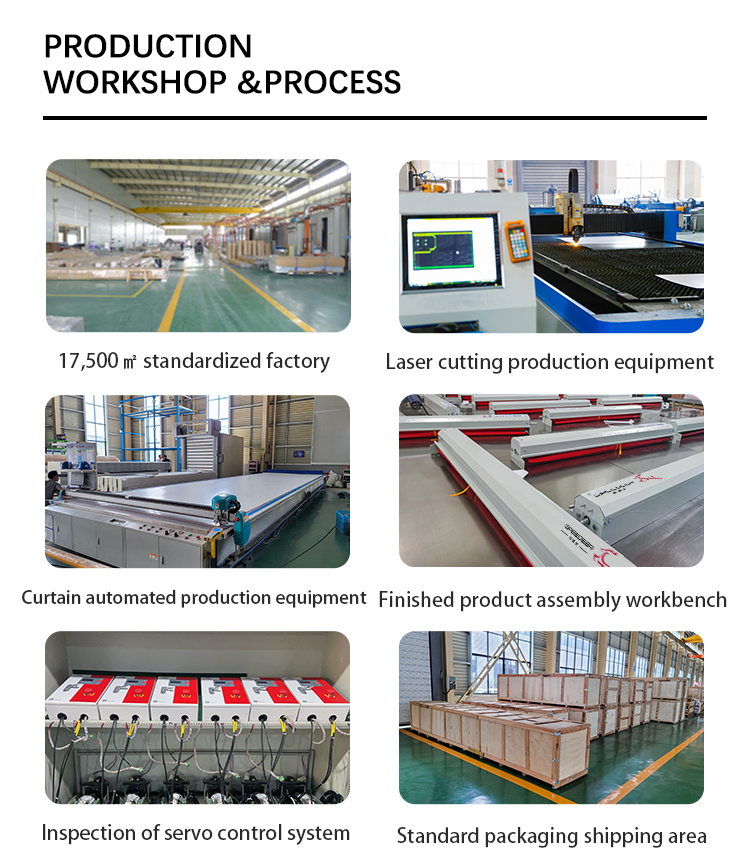

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

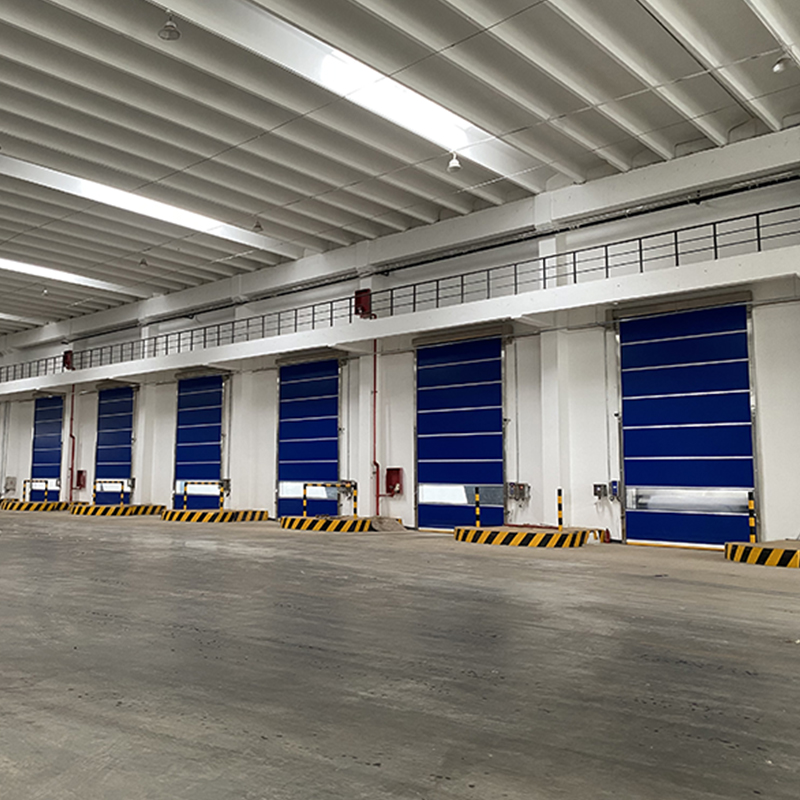

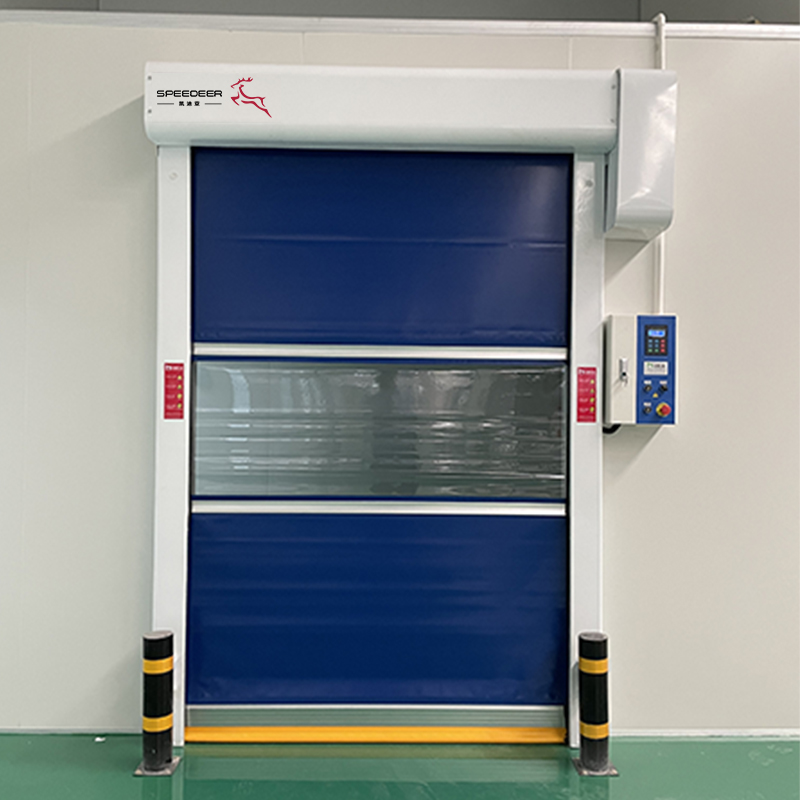

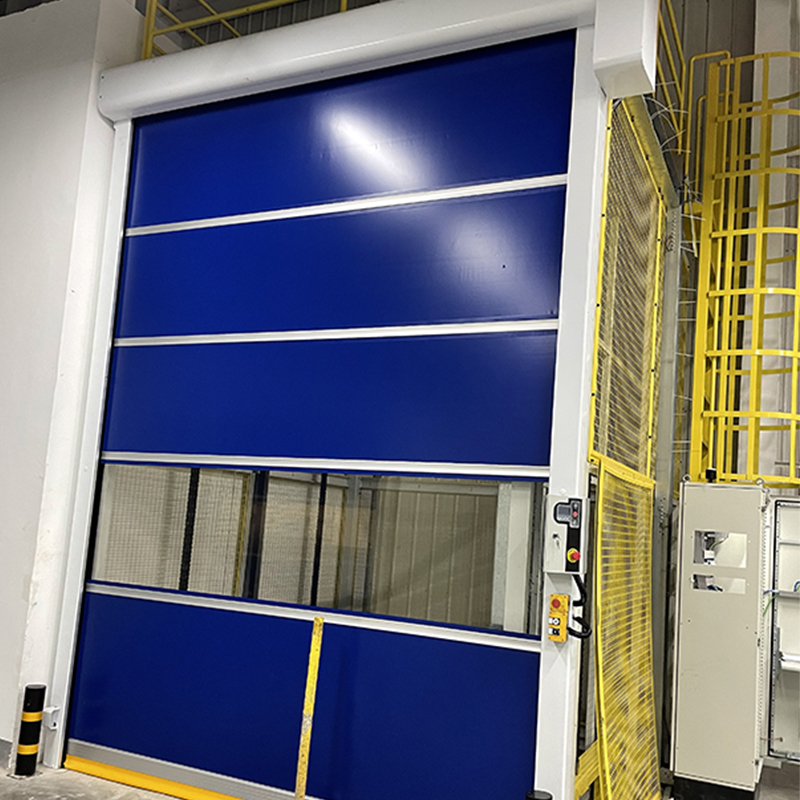

Installation Site

Innovative technology

More functions

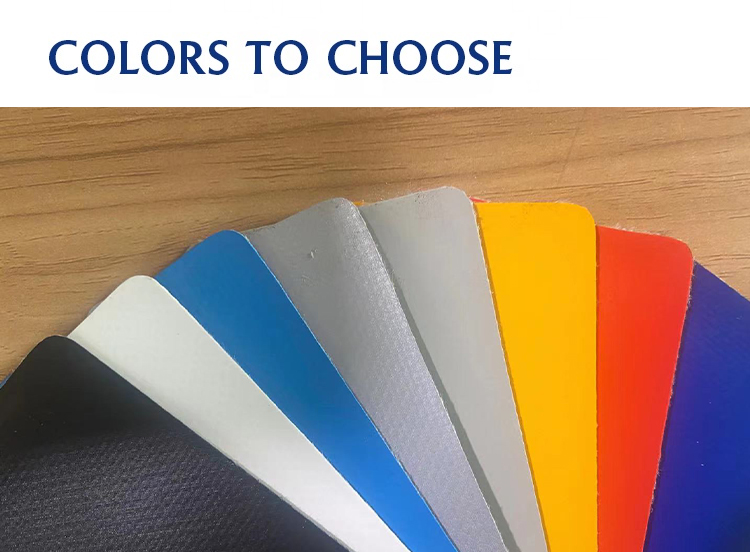

Various colors available

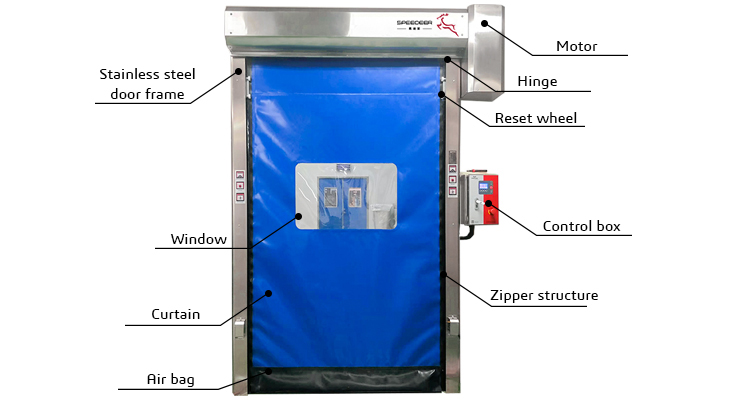

More Details

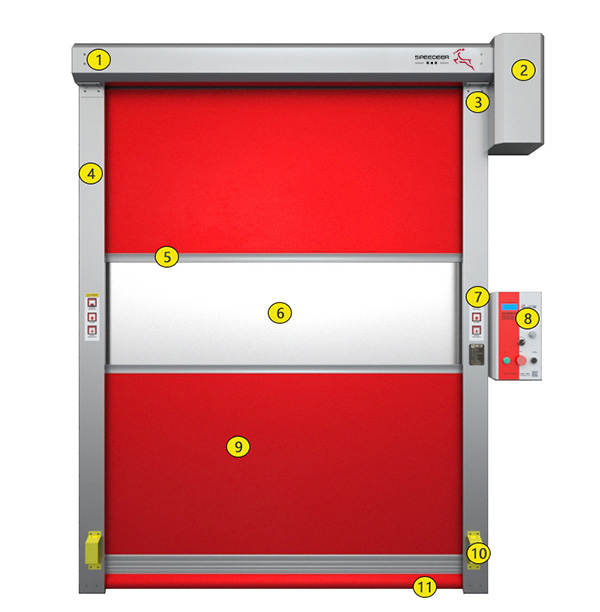

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

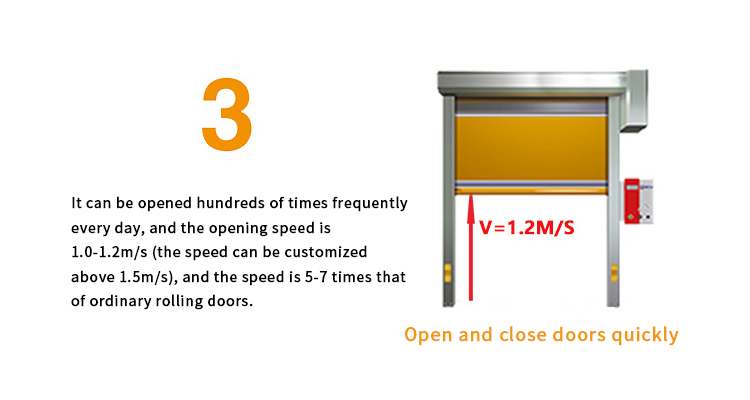

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ
Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

Air shower room transparent high speed door
