SEPPES Suzhou industrial fast roll door high quality fast door factory painting steel pvc workshop door1

2 year ago

4 0 

NingBo AnSheng Door Industry Technology Co.,Ltd.

2 year

Product details

Redefine your facility's access control with the introduction of the Industrial High-Quality Fast Roll Door in Painted Steel. This door is engineered to meet the highest standards of performance, reliability, and customization, perfectly suited to the dynamic needs of industrial environments.
Boasting an electric high-speed operation, the door ensures swift and seamless access control, enabling efficient transitions between open and closed states. Ideal for use in warehouses, factories, and logistics centers, this door enhances operational efficiency and security.
Crafted from high-quality painted steel, the door's fast roller shutter mechanism combines speed with strength. Its robust construction ensures optimal durability, even in demanding industrial conditions, providing long-lasting performance and reliability.
The Industrial High-Quality Fast Roll Door in Painted Steel excels in adaptability. Customizable to suit specific spatial requirements and architectural styles, it offers a versatile solution for enhancing both functionality and aesthetics. Whether a modern or traditional design is desired, this door can be tailored to complement the existing environment.
Safety is a key consideration, and this door is equipped with advanced safety features. Sensors and automatic reversal mechanisms are integrated to prevent accidents, ensuring the safety of personnel and equipment.
In terms of weather resistance and insulation, the high-speed rolling door design performs exceptionally well. Suitable for both indoor and outdoor applications, it provides excellent protection against the elements, making it ideal for facilities exposed to harsh weather conditions.
In conclusion, the Industrial High-Quality Fast Roll Door in Painted Steel offers an unparalleled combination of functionality, durability, and adaptability, setting a new benchmark in access control solutions for industrial applications. With its electric high-speed operation, sturdy construction, advanced safety features, and customizable design options, it is the ultimate choice for businesses seeking to enhance their access control systems.

High Speed Door

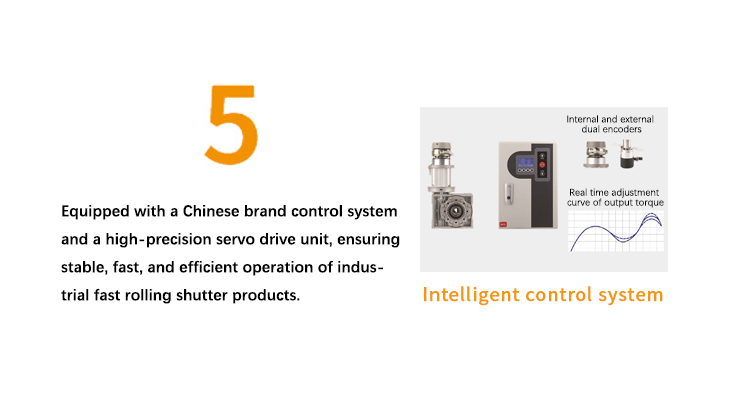

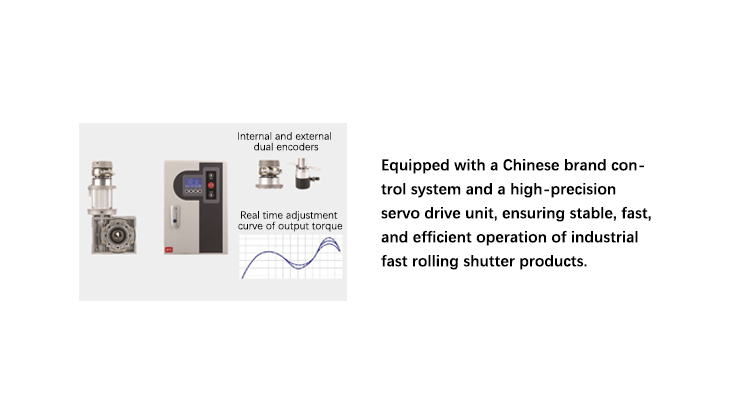

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

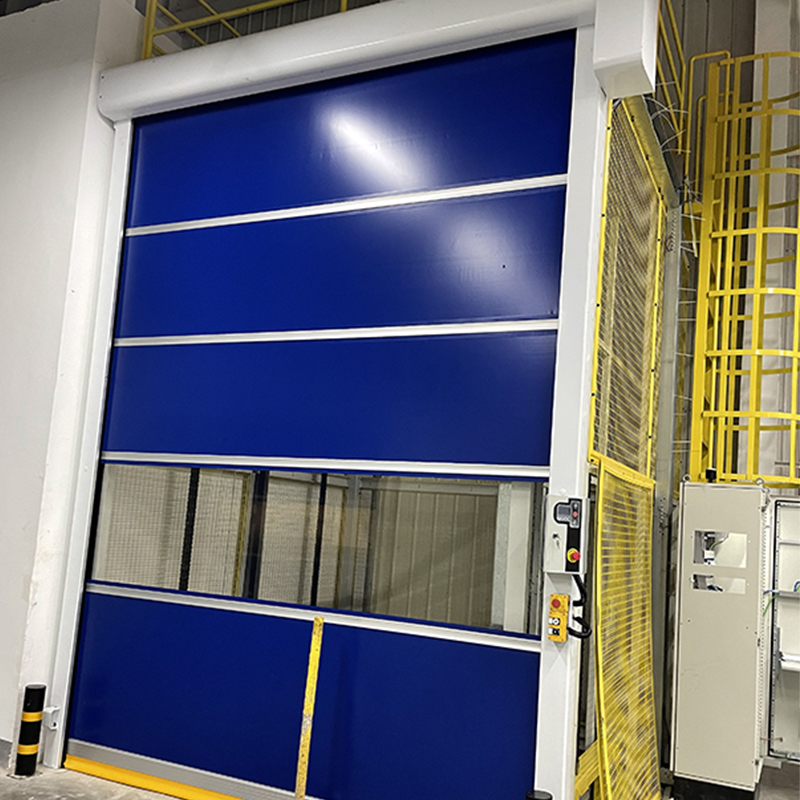

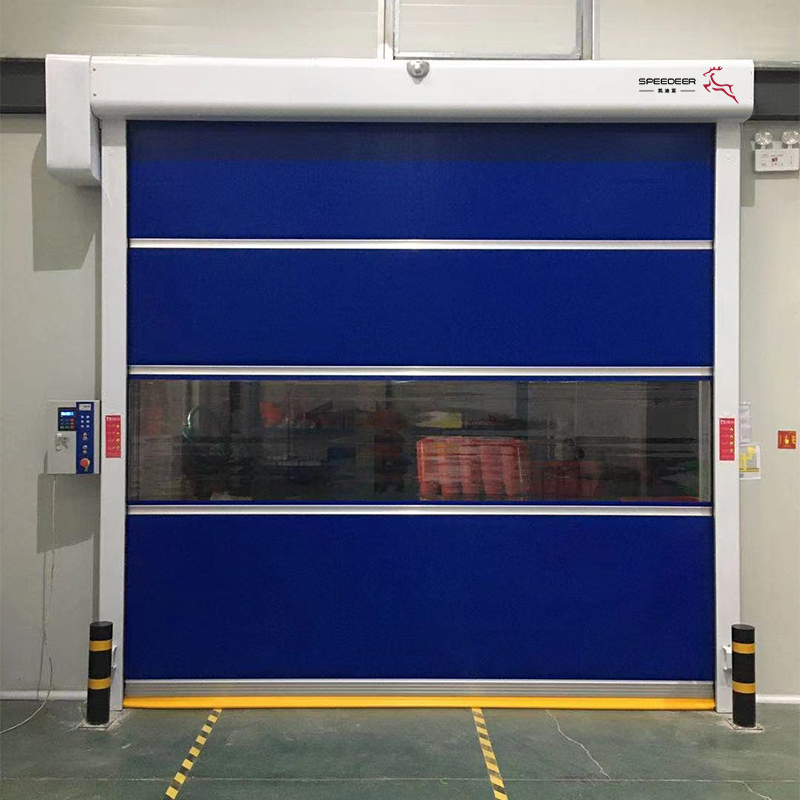

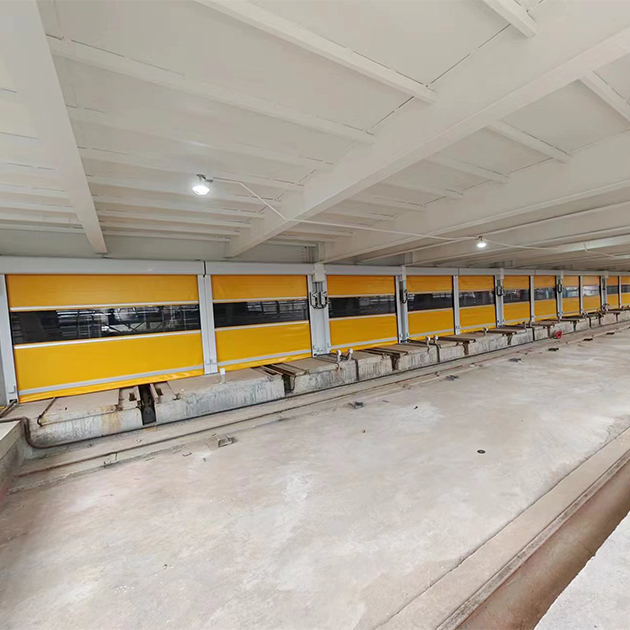

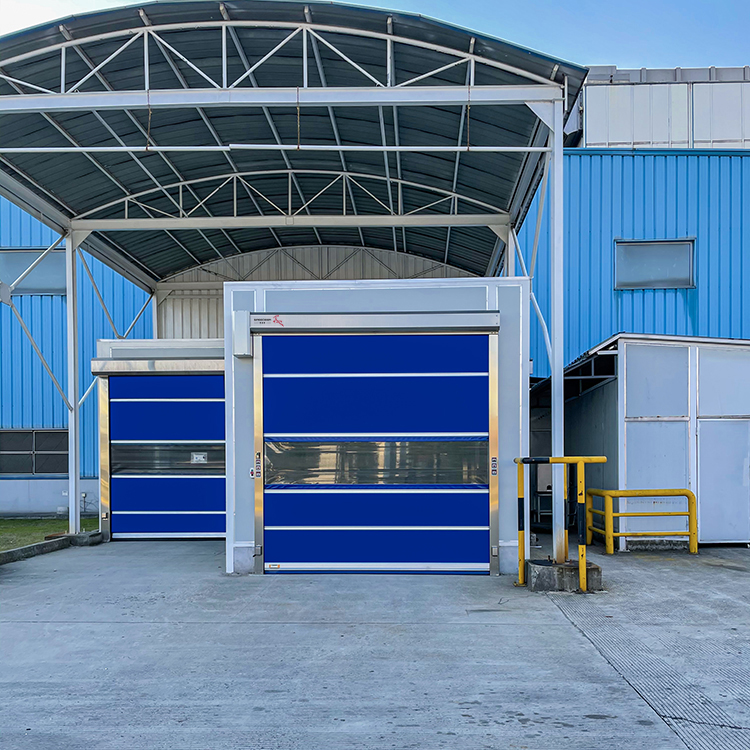

Installation Site

Innovative technology

More functions

Various colors available

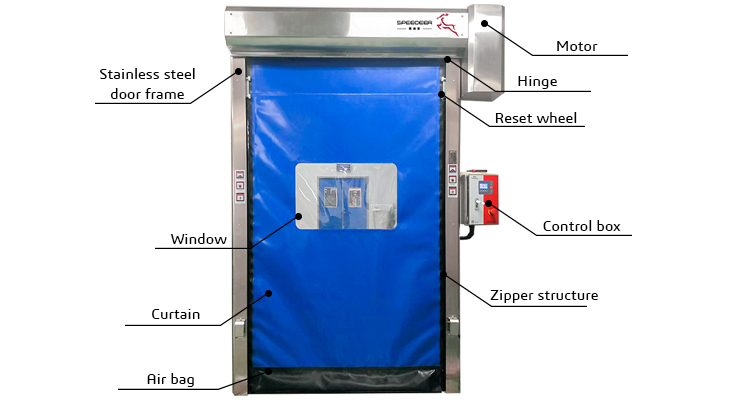

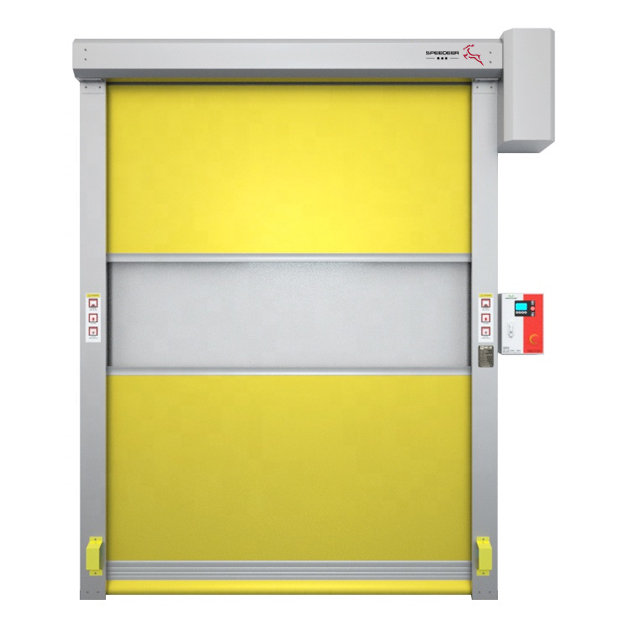

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

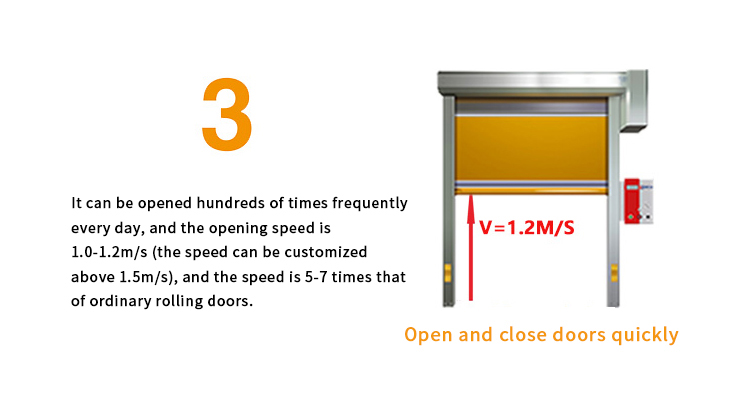

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

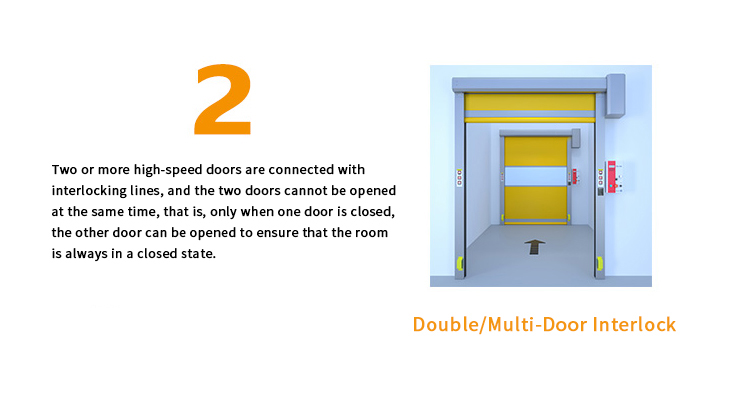

Interlock function	support
Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

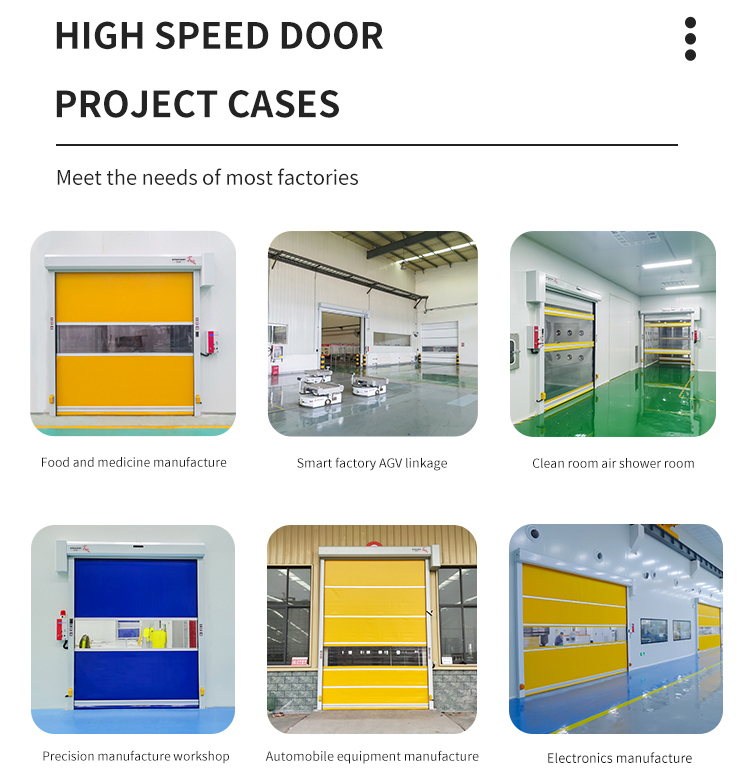

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

Air shower room transparent high speed door
