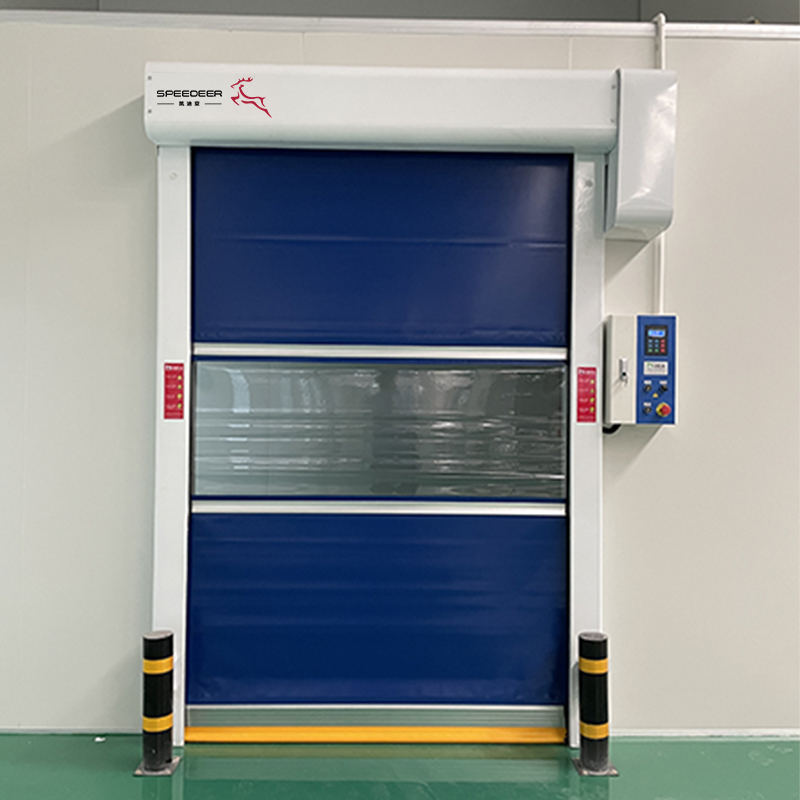

Experience a new era in access control with the High-Efficiency PVC Rapid Roll Door featuring Inner Cleanliness. This door represents a fusion of cutting-edge technology and bespoke solutions to cater to the individual needs of your enterprise.
At the heart of this innovation is an electrically powered high-speed operation, which ensures swift and uncomplicated management of your access points. Whether you operate a warehouse, a manufacturing plant, or any other industrial environment, this door delivers unmatched convenience, facilitating a smooth transition between open and closed states.
Crafted from premium PVC material, the door's fast roller shutter mechanism is synonymous with speed and dependability. Its robust construction is engineered to endure the rigors of frequent use, promising a prolonged lifespan and maintaining peak performance even amidst the harshest conditions.
Adaptability is one of the hallmarks of this door. It can be custom-tailored to suit a variety of spatial constraints and architectural visions, making it an agile choice for augmenting the ambiance of any industrial setting. Regardless of your desired aesthetic—be it a cutting-edge modern profile or a timeless classic appeal—this door can be configured to harmonize with its surroundings.
Safety is never compromised with the High-Efficiency PVC Rapid Roll Door. It is equipped with sophisticated safety measures, including sensors and an automatic reverse function, to guard against potential accidents and protect your staff.
Designed to withstand the elements, this door's high-speed rolling feature provides exceptional resistance to wind pressure and offers superb thermal insulation. Ideal for external use in areas prone to severe weather, it stands as an exemplary selection for industrial sites exposed to harsh climatic conditions.
In essence, the High-Efficiency PVC Rapid Roll Door with Inner Cleanliness encapsulates a harmonious blend of performance, longevity, and adaptability, establishing a new benchmark in adaptive access control for industrial settings globally. Its electric high-speed operation, robust roller shutter mechanism, advanced safety attributes, and customizable design options combine to redefine the standard of flexible access solutions for today's businesses.

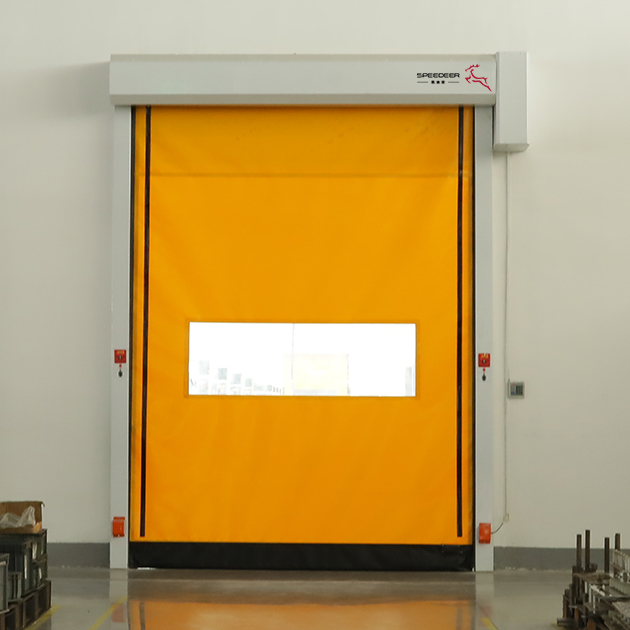

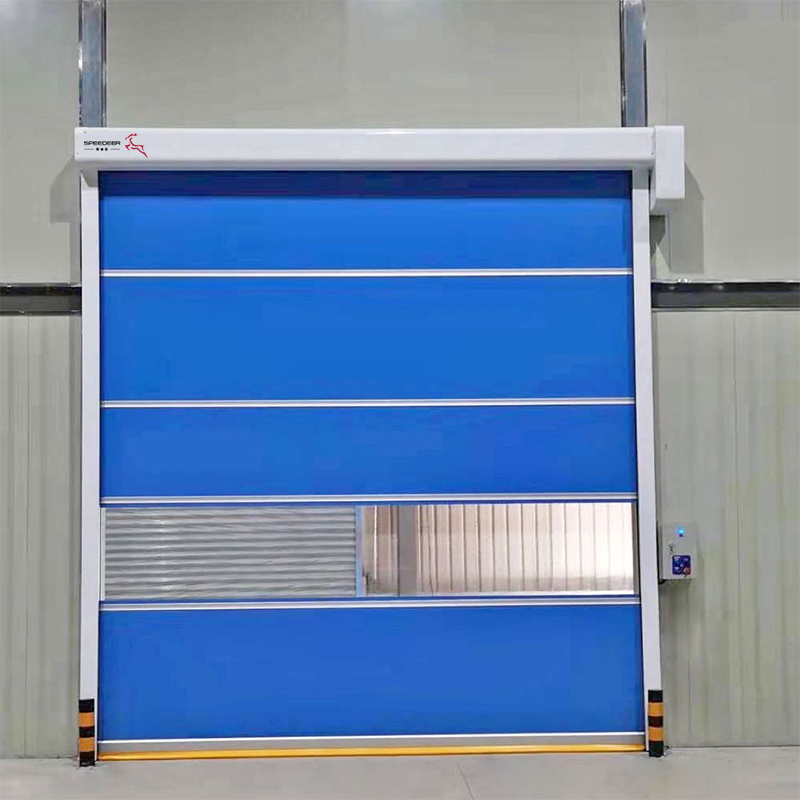

High Speed Door

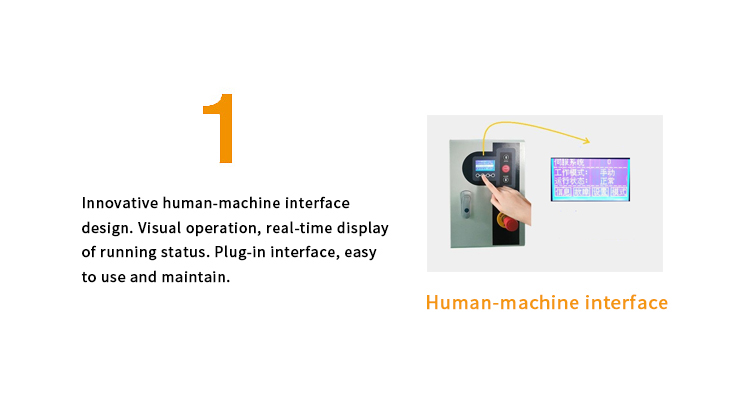

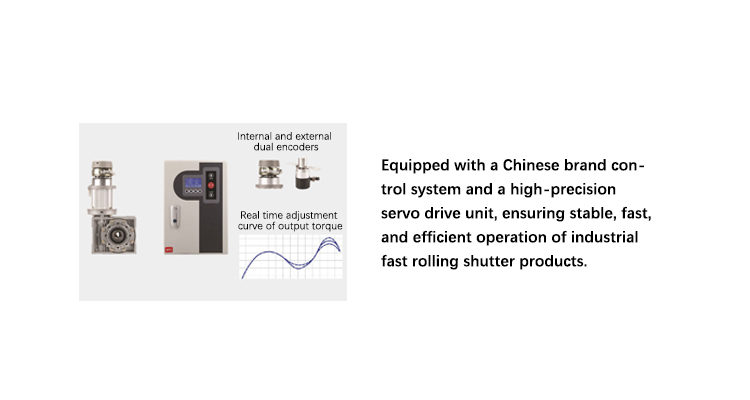

SPEEDEER high speed door, Adopt German brand integrated integrated intelligent control system, servo high-precision drive unit, with patented safety protection technology, with safe, stable, fast and efficient professional performance. Innovative visual man-machine interface design, man-machine communication, real-time display of running status and fault codes. At the same time, the concept of industrial aesthetics is introduced into the structural process design, combined with automatic laser fine cutting and precision components to create high-performance products.

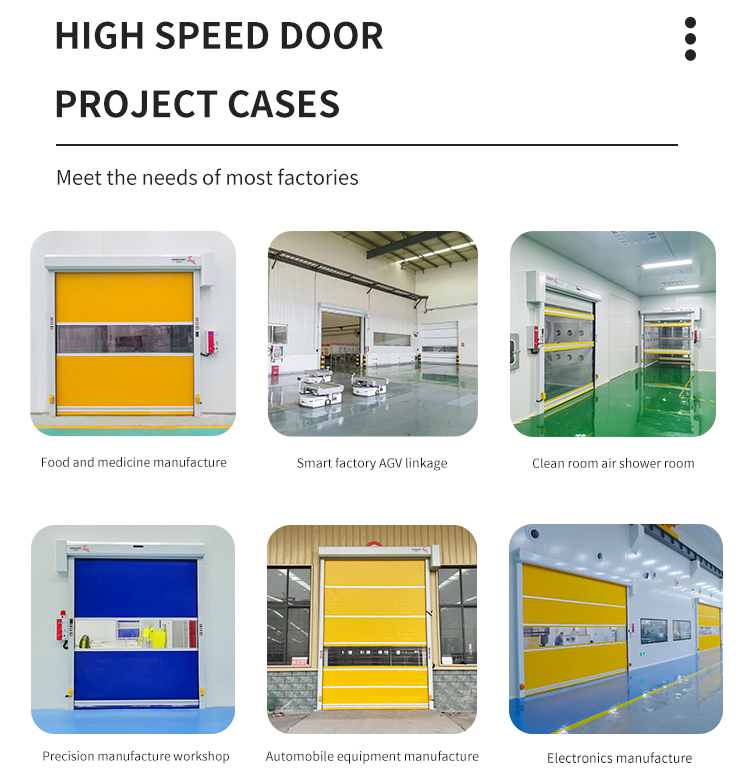

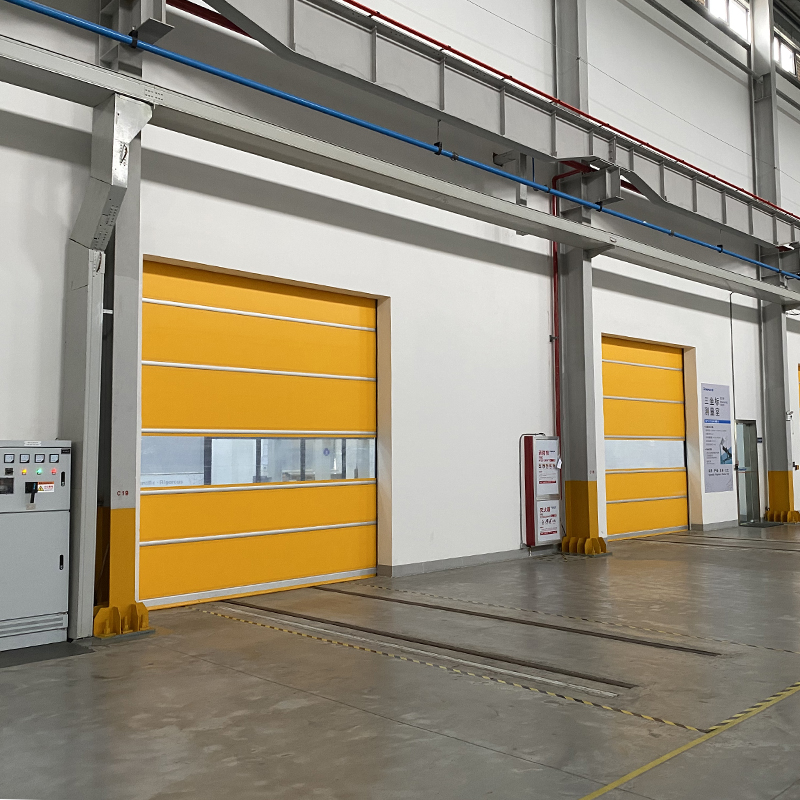

Installation Site

Innovative technology

More functions

Various colors available

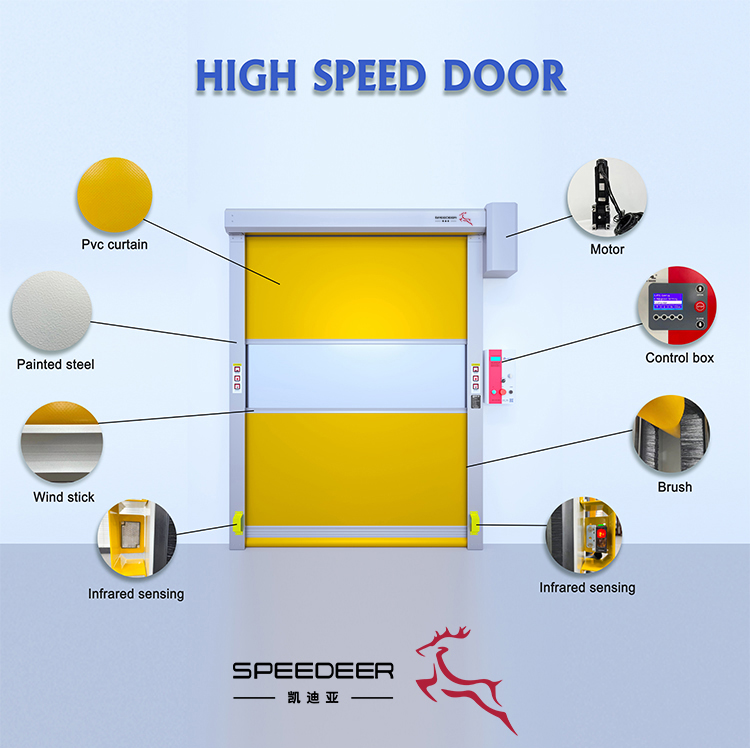

More Details

_{① The front box}

_{② Motor}

_{③ Fixed angle iron}

_{④ Track}

_{⑤ Aluminum profile wind-resistant ribs}

_{⑥ Transparent window}

_{⑦ Identification nameplate}

_{⑧ Control box}

_{⑨ PVC door curtain}

_{⑩ Infrared safety photoelectric}

_{⑪ U-shaped bottom edge}

Installation Instructions

All measurements are made indoors and each value must be measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of the doorway) B--the width of the door opening (the distance from the left edge of the door opening to the right edge) h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor: When measuring H and B, take the maximum value as the final dimension When measuring h b1 b2, take the smallest value as the final size

Basic configuration

Technical parameter

Maximum size	58006000mm(WH)
Wind pressure	6-8 wind (refer to the size of the door)

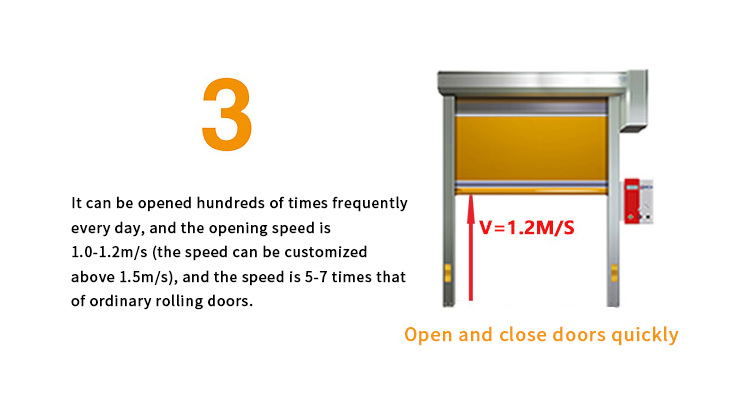

Opening speed	1.0-2.0 m/s (speed adjustable, refer to the size of the door)
Closing speed	0.8 m/s (speed adjustable)
Operating temperature	-5 to 60°C
PVC base cloth thickness	0.8-1.2mm
Base fabric color	Blue, gray, white and other colors are optional
Frame material	cold-rolled steel plate with paint, 304 stainless steel, aluminum alloy
Voltage	220V/50HZ

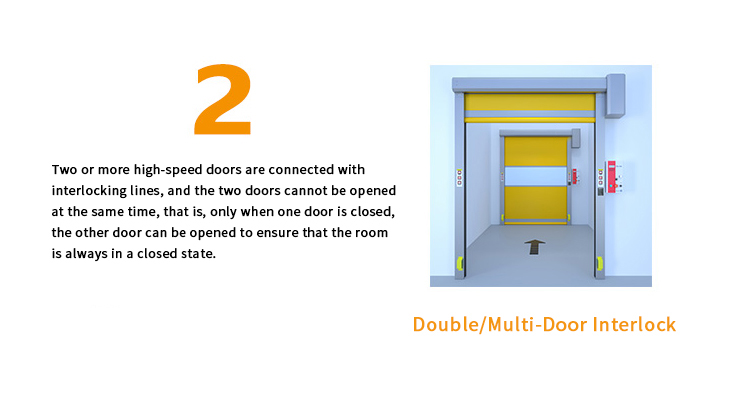

Interlock function	support

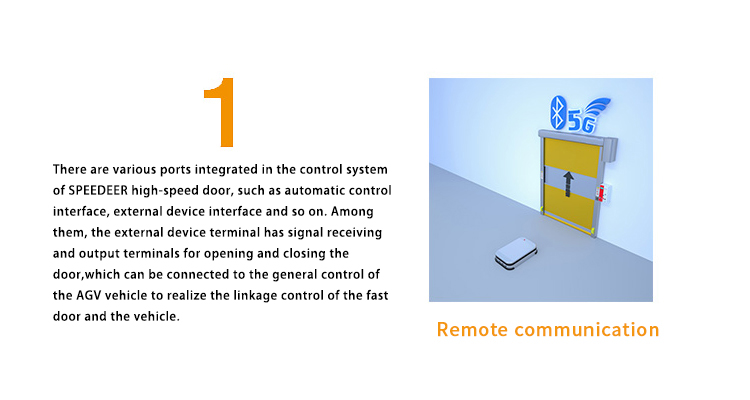

Linkage function	support (can provide door-open in-position, door-close in-position signal)
Induction mode	Radar, geomagnetic, photoelectric, rope, remote control
Safety protection	photoelectric (standard), safety bottom edge (optional)

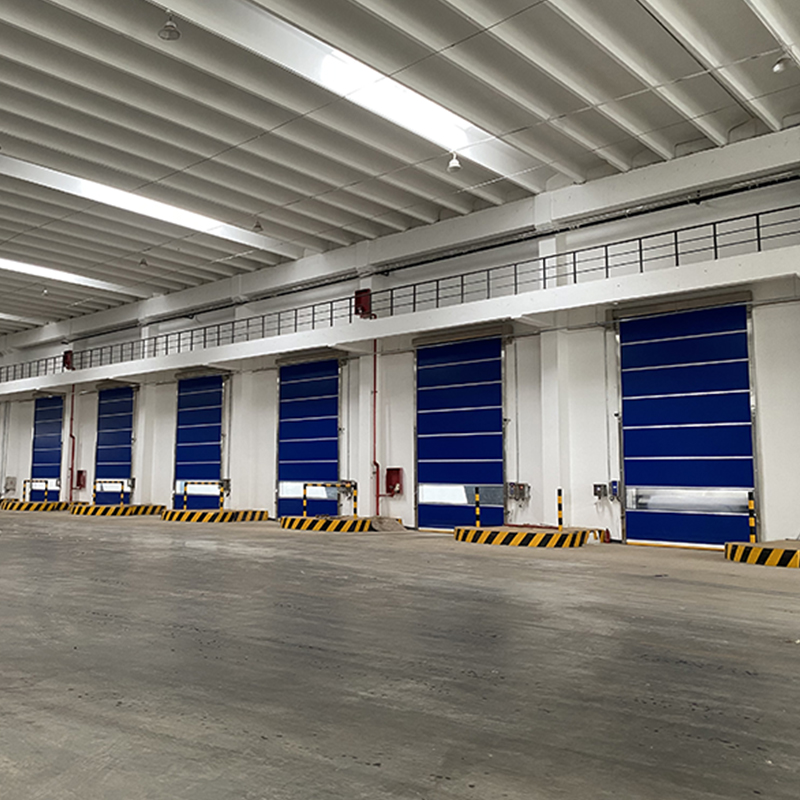

Automatic three-dimensional warehouse outlet

Fast rolling shutter door + aluminum alloy rolling shutter door

Nongfu Spring Company Project

Air shower room transparent high speed door
