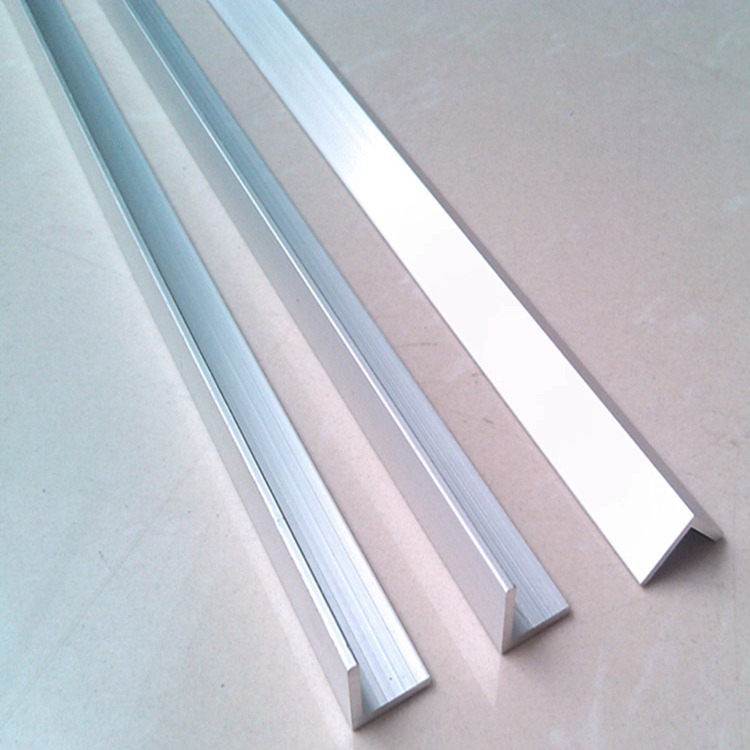

Anodized aluminium angle
2 year ago
Product name: Powder coated aluminium angle
Thickness:1.0mm
Surface treatment: Powder coating
Our factory open mould according to your technical drawings.
We provide high quality and fast delivery
we can expedite prodution according to your needs in peak season.
Powder coated aluminium angles are a specially treated aluminum material. Powder coated is a surface treatment method. This treatment method involves placing the Aluminum Extrusion profile in a special powder equipment and spraying the special coating evenly on the surface of the profile through high-pressure spraying, forming a layer of uniform, smooth, and beautiful coating. This coating can not only improve the corrosion resistance and wear resistance of Standard Aluminum Extrusion Shapes, but also enhance their surface decoration. The powder coated standard aluminium extrusion shapes can meet different environmental and design needs, and have good weather resistance, making them have a longer service life when used outdoor.
ALUMINIUM ANGLE
| No. | A(mm) | B(mm) | T(mm) | Kg/m |
| YF-J37X37X3.7-S | 37 | 37 | 3.7 | 0.705 |
| YF-4830-L | 37.5 | 46.5 | 7.6 | 1.574 |
| YF-8749-L | 38 | 38 | 4 | 0.780 |
| J38X38X3.0 | 38 | 38 | 3 | 0.593 |
| YT-J38X38X6.0-L | 38 | 38 | 6 | 1.138 |
| YF-2118-S | 40 | 40 | 1.4 | 0.298 |
| YF-6466-L | 40 | 40 | 2 | 0.423 |
| J40X40X1.4-S | 40 | 40 | 1.4 | 0.298 |
| J40X40X1.6-S | 40 | 40 | 1.6 | 0.340 |
| J40X40X3.0-L | 40 | 40 | 3 | 0.626 |
| YT-J42X30X5-L | 42 | 30 | 5 | 0.908 |
| YT-J43X38.2X3.1-L | 43 | 38.2 | 3.1 | 0.656 |
| YT-J50X25X3.0-X | 50 | 25 | 3 | 0.585 |
| J50X50X3.0-L | 50 | 50 | 3 | 0.789 |
| J50X50X6.0-R | 50 | 50 | 6 | 1.528 |
| J100X50X6.0-R | 50 | 100 | 6 | 2.341 |
| YF-8439-L | 50.8 | 20.8 | 6.35 | 1.123 |
| YF-8693-L | 51 | 38 | 6.5 | 1.453 |
| YF-8865-L | 56 | 46 | 7 | 1.802 |
| YF-8679-L | 63 | 27.5 | 4 | 0.938 |
| YF-8650-L | 70 | 40 | 1.5 | 0.441 |
| J75X50X5.0-R | 75 | 50 | 5 | 1.626 |
| YF-5707-L | 80 | 89 | 6 | 2.650 |
| YF-4701-L | 100 | 80 | 8 | 3.729 |
| YF-5706-L | 120 | 60 | 16 | 7.111 |
