Product details

Product description

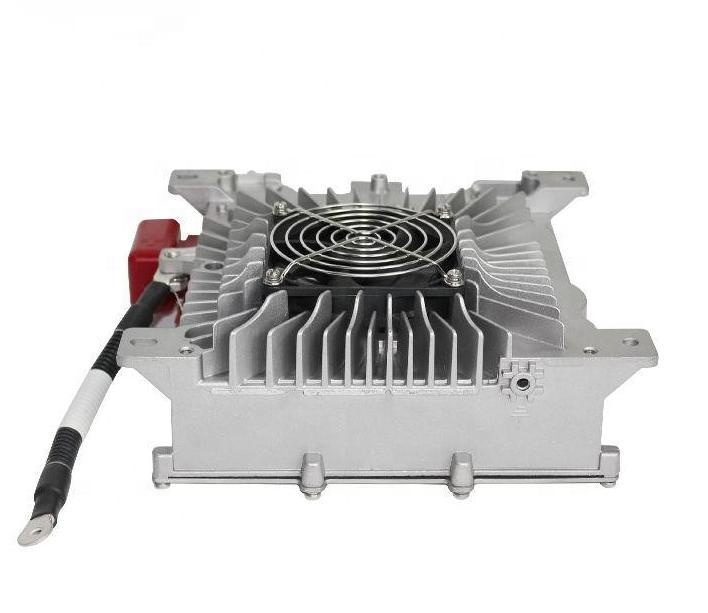

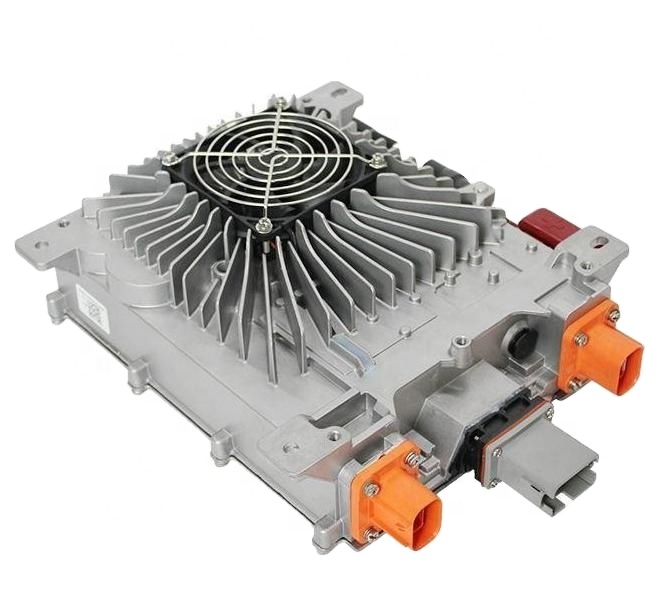

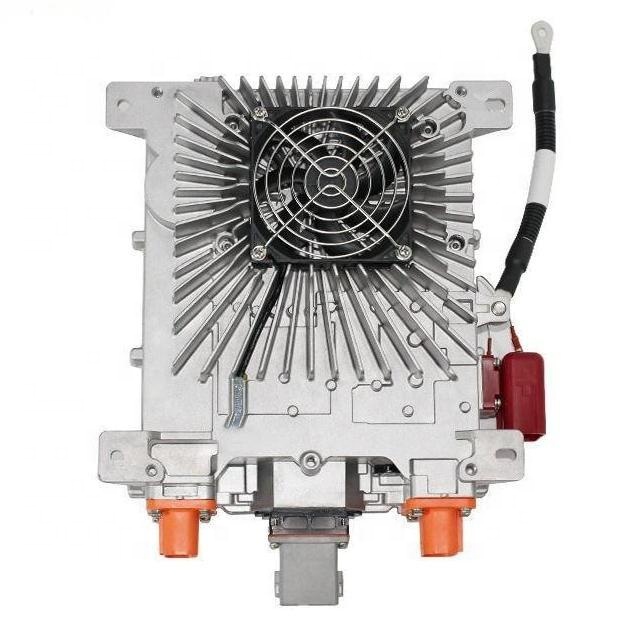

Accessories - EV Charger:CD-MFH01

TECHNOLOGY PARAMETERS

●AC Input Voltage Range: 90-264VAC；45-65Hz ●AC Input Max Current:23A @144VAC； 10.0A @312VAC ●Power Factor:≥0.99 ●Efficiency:≥94.0% ●Noise:≤65dB

PRODUCT CHARACTERISTICS

SAFETY Active PFC and LLC technique is used for a rapid response on a fault; Quick active software and passive hardware protection on voltage¤t;Advanced charging strategy is applied as safeguard for the battery. RELIABILITY The shell is shaped by integrated die casting technique and filled with special glue. This series of chargers had been operated in all kinds of industrial environment (Wet, Hot, Cold, high altitude) for more than ten years to pass verification. FUNCTIONS CAN BUS Interface; Triple Colors Indicator; Vehicle Charging Lock System; Auxiliary power supply for 12V ;

SIZE AND WEIGHT&TEMPERATURE

●Net Weight:5.8kg ●Operating Temperature:-30℃-65℃ ●Storage Temperature:-40℃-95℃

PROTECTION FEATURES

●Burnout Protection: If temperature of charger exceeds the limitation, the charger will low down the power load. If environment temperature exceeds 65℃, the charger will stop charging and switch itself to standby mode until the temperature goes down. ●Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down when the batteries are connected reversely. ●NO-load Protection:There is no output when the battery is not connected. ●Short Circuit Protection: The circuit inside the charger will shut down when output is short-circuited. ●Automatic shutdown when fully charged:The charger automatically turns off after the battery is fully charged.

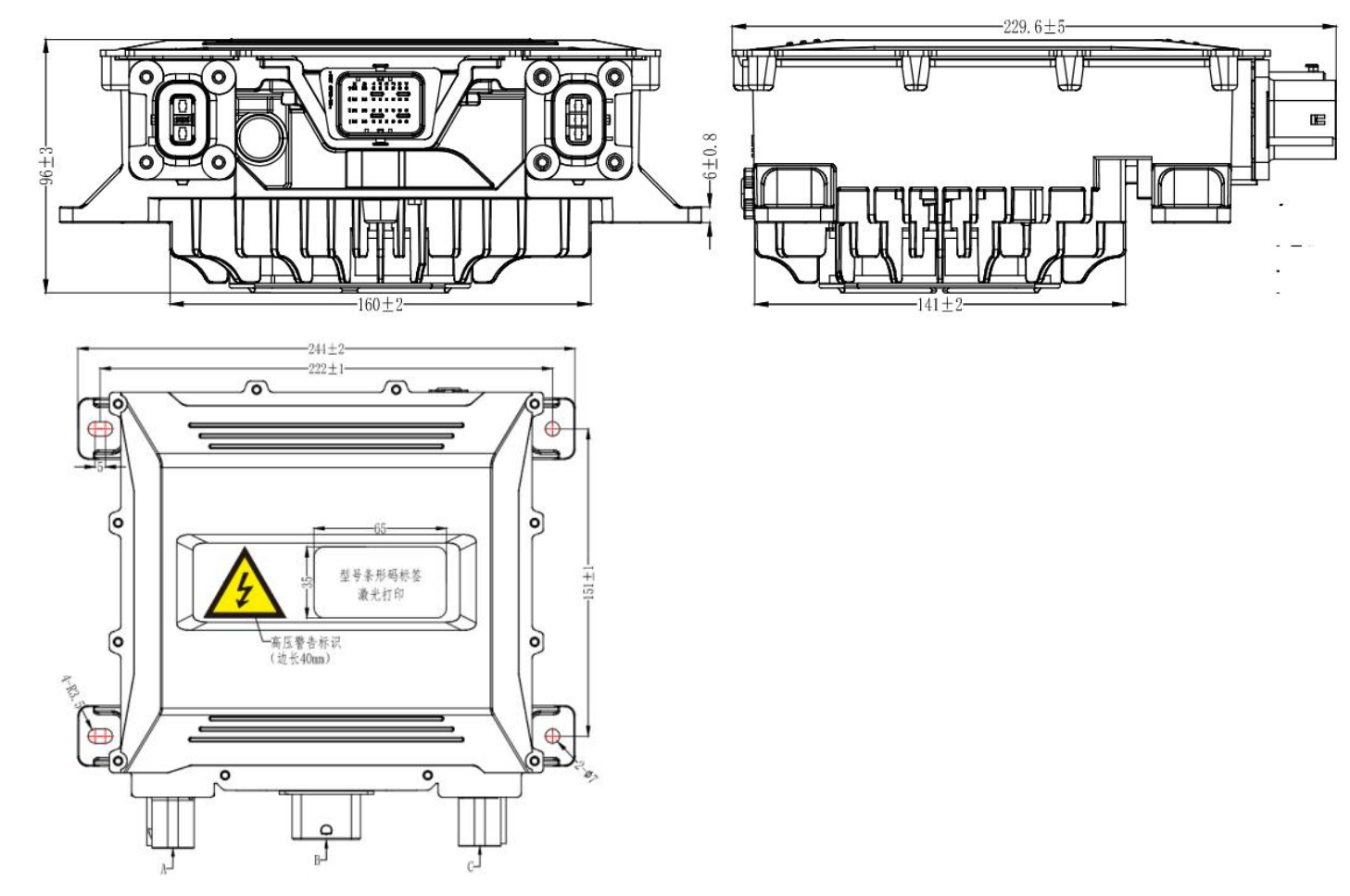

On-Board Dimension

Dimension for reference. Dimensions are subject to the real product.

Purchase please confirm with us.

Model Available

ITEM	MODLES	OUT PUT POWER	COOLING METHOD
OBC	HK-M	3.3KW	WIND/LIQUID
OBC	HK-M	6.6KW	WIND/LIQUID
DC/DC	TDC-IY	1.0KW	NATURAL COOLING
DC/DC	TDC-JY	1.5KW	WIND
DC/DC	EV1800PB48D12D-000	1.5KW	WIND
DC/DC	TCD UN5000202	2.0KW	LIQUID
OBC+DC/DC	CD-M	3.3KW+1KW	WIND/LIQUID
OBC+DC/DC	CD-MWH	3.3KW+1.5KW	WIND/LIQUID
OBC+DC/DC	CD-LF/CD-LW	6.6KW+1.5KW	WIND/LIQUID
OBC+DC/DC	CD-LFK/CD=LWK	6.6KW+1.5KW	WIND/LIQUID

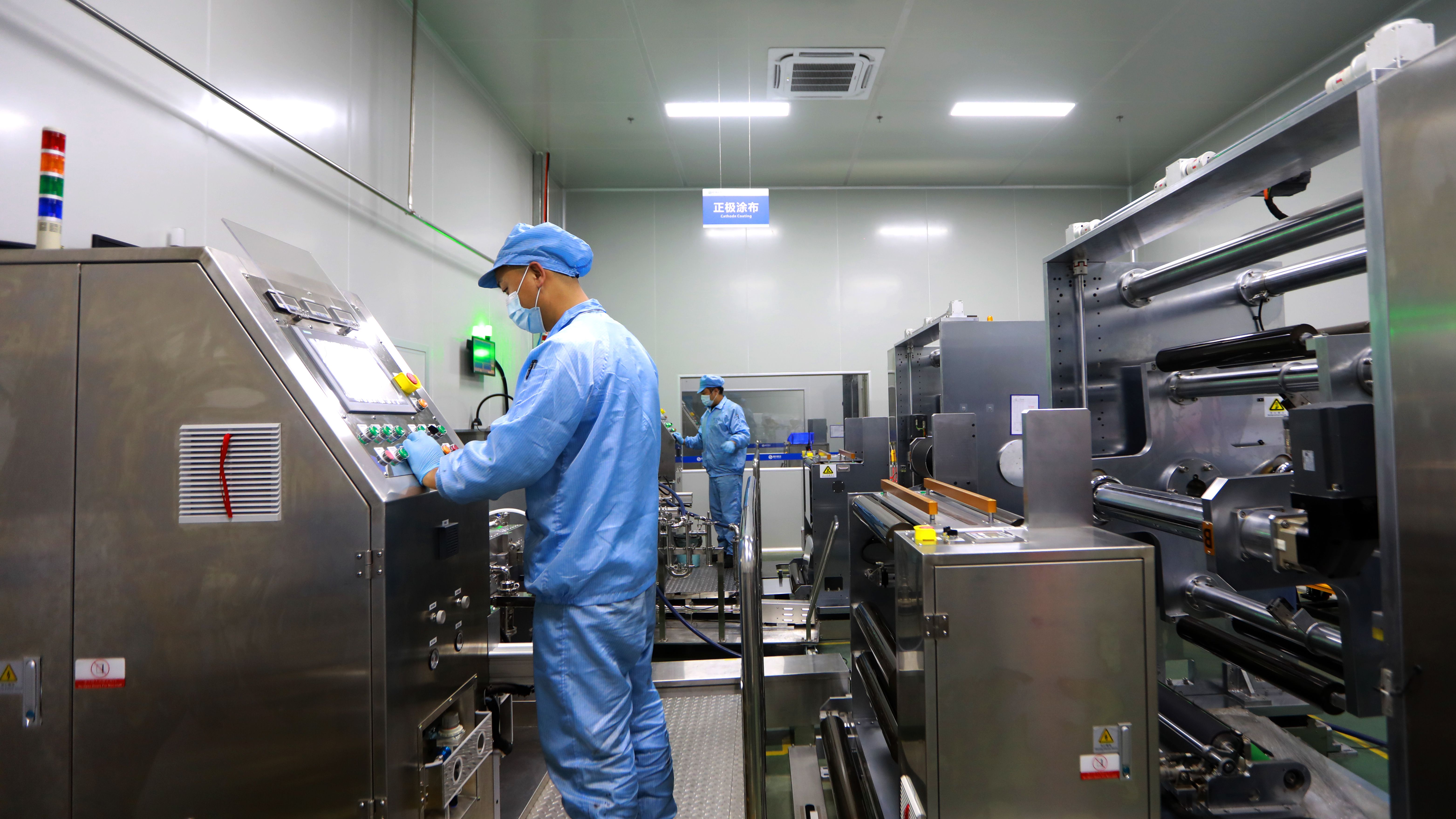

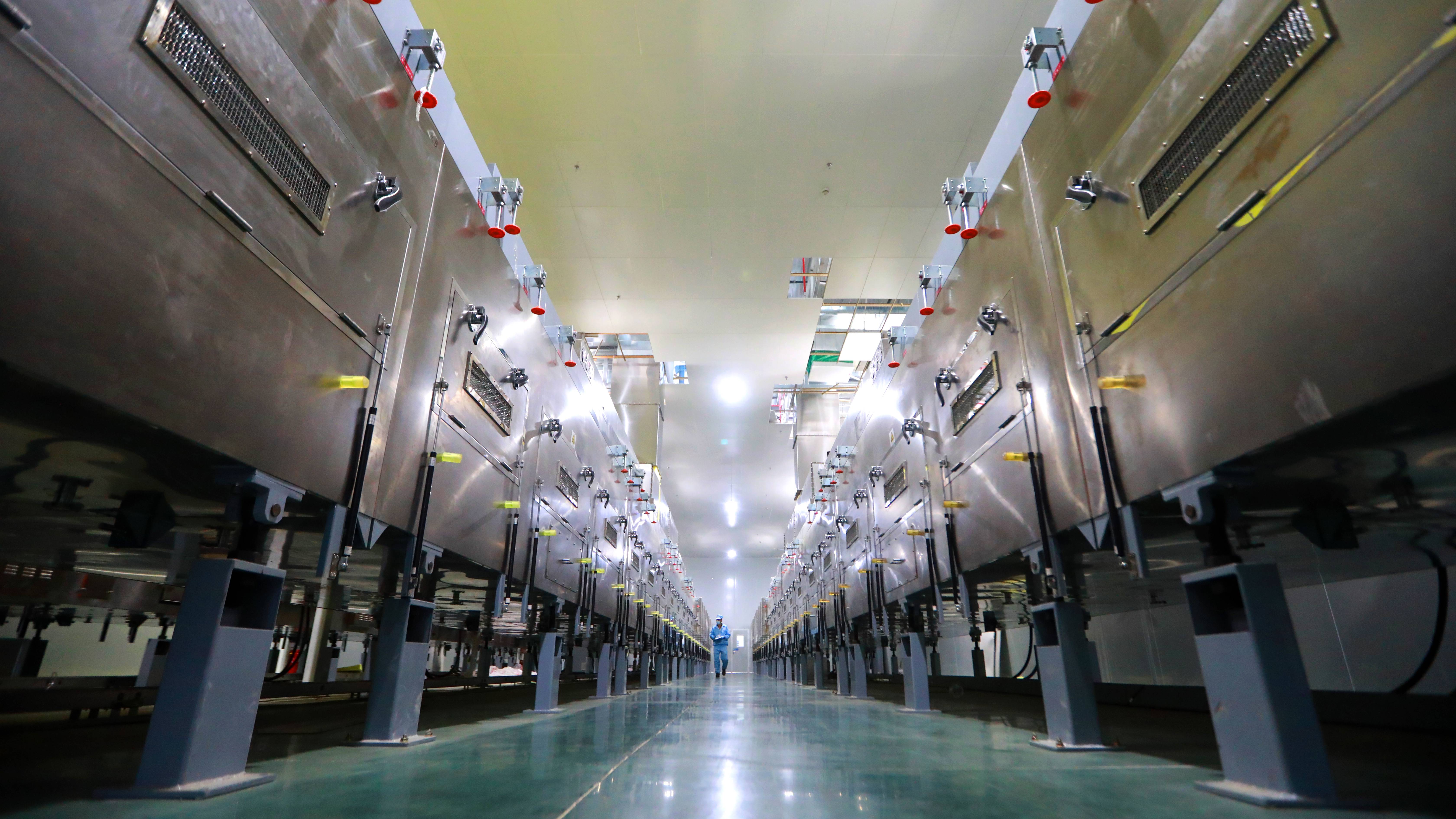

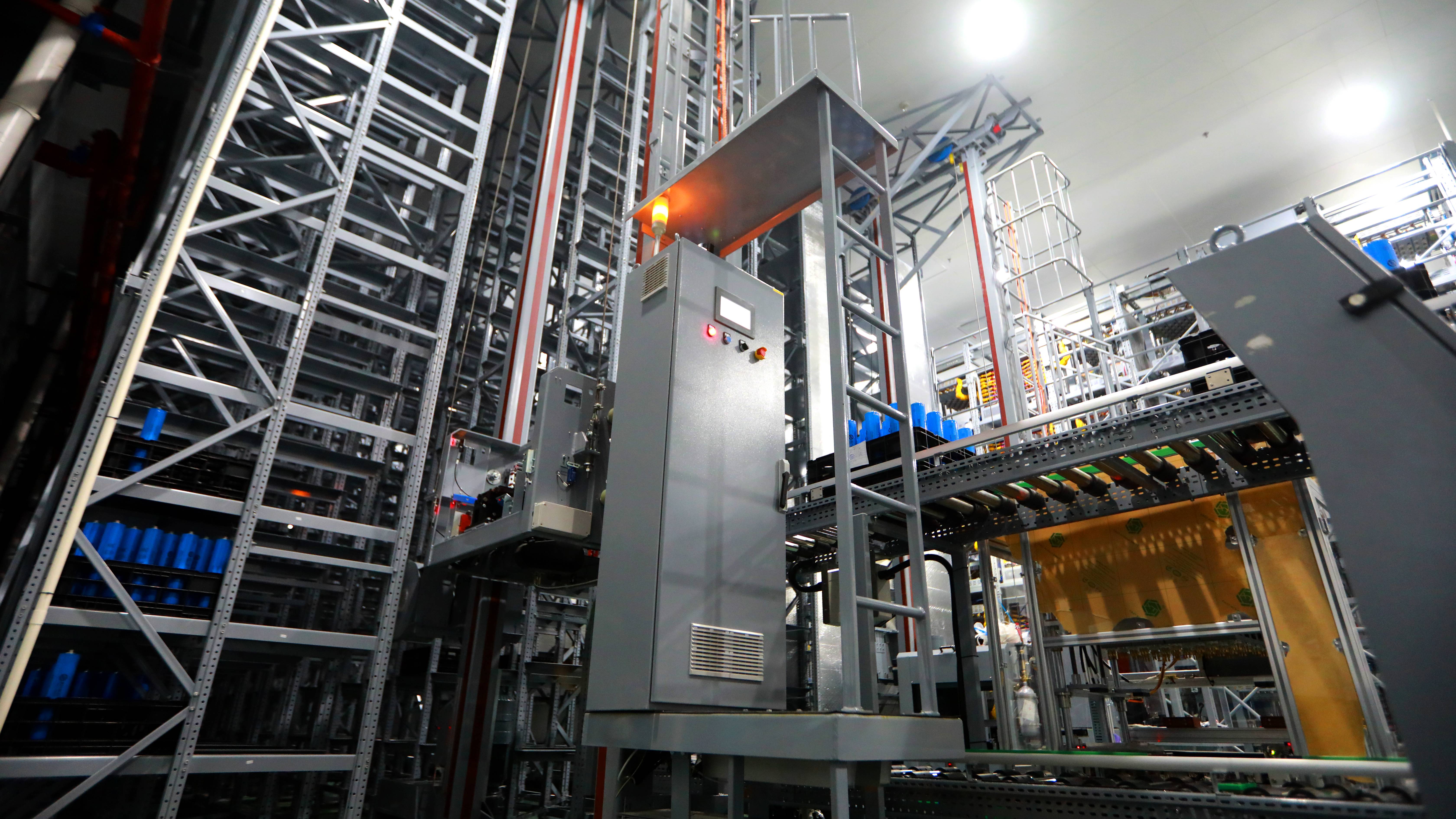

Manufacturing Technique

Company Profile

Beian New Energy Co., Ltd.

We are high-tech green energy enterprise that focus on customized solution and products of lithium battery, our products are widely used on Energy Storage, EV, Scooter, Forklift, Marine and Golf Carts etc.
BEIAN has formed strategic partnerships with many well-known enterprises both home and abroad.
More than 10 years experience in battery filed, we always provide high quality products and professional solution of lithium battery.

FAQ

Q1. Can we put different lithium battery pack in parallel or series by ourselves?
> Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself, It may damage the battery or reduce the cycle life of battery.

Q2. Can we put different LiFePO4 battery pack in series by ourselves?
> You can buy big voltage packs directly from us.We don’t suggest to connect them in series by yourself, this may damage the battery or reduce the cycle life of the pack.

Q3. Is BMS included in the battery pack?
> Yes, our battery pack includes BMS.

Q4. What is your warranty?
> We offer 1~5 years warranty depend on different products.

Q5:What is your terms of payment?
> T/T recommended, Paypal and Western Union acceptable.
1> Sample order: Full payment made when PI received.
2> Mass production order:30% down payment when PI received, 70% before shipment.

Q6. How do you ship the lithium battery packs?
> For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can be shipped by air or by sea, by sea is cheaper.
