Product details
Product Description

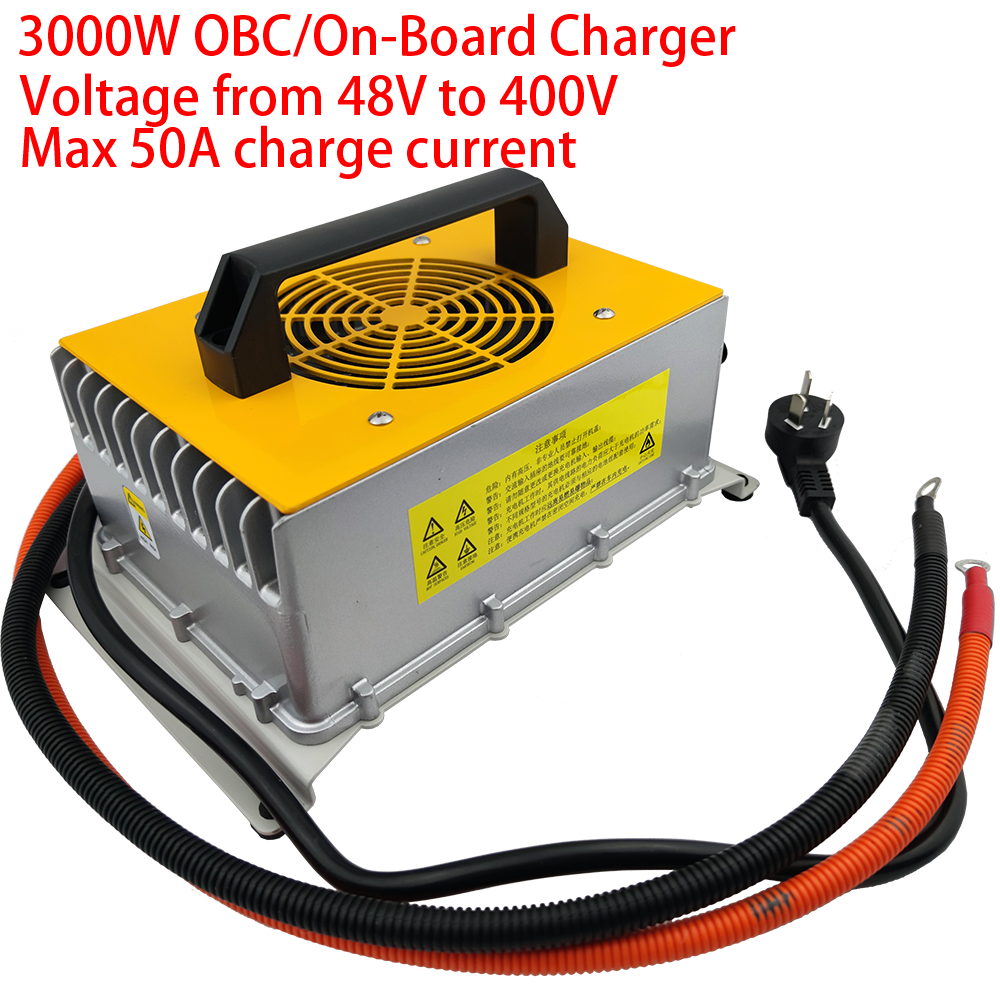

Accessories-EV Charger:WT3300W lithium battery on board charger EV
TECHNOLOGY PARAMETERS
●AC Input Voltage Range: 185-270VAC；45-65Hz
●AC Input Max Current:13.5A @100VAC； 15.0A @220VAC
●Power Factor:≥0.99
●Efficiency:≥94.0%
●Noise:≤45dB
PRODUCT CHARACTERISTICS

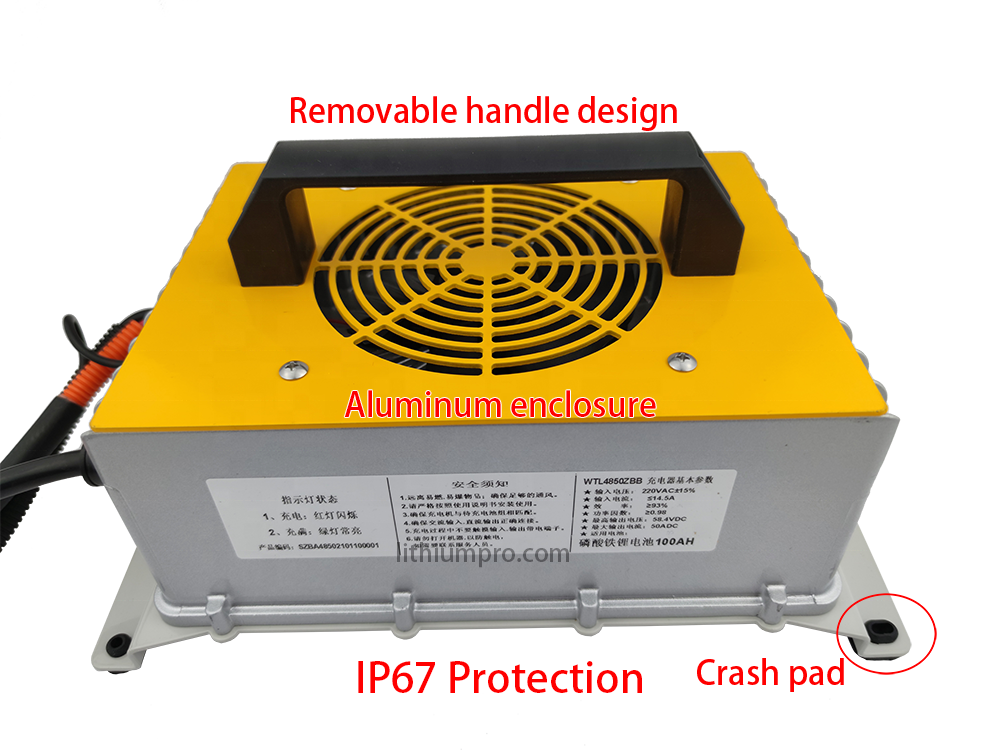

SAFETY Active PFC and LLC technique is used for a rapid response on a fault; Quick active software and passive hardware protection on voltage¤t;Advanced charging strategy is applied as safe guard for the battery . RELIABILITY The shell is shaped by integrated die casting technique and filled with special glue. This series of chargers had been operated in all kinds of industrial environment (Wet, Hot, Cold, high altitude) for more than ten years to pass verification. FUNCTIONS CAN BUS Interface;
Triple Colors Indicator;
Vehicle Charging Lock System;
Auxiliary power supply for 12V ;
SIZE AND WEIGHT&TEMPERATURE
●Net Weight:5.8kg
●Operating Temperature:-30℃-65℃
●Storage Temperature:-40℃-95℃
PROTECTION FEATURES
●Burnout Protection: If temperature of charger exceeds the limitation, the charger will low down the power load. If environment temperature exceeds 65℃, the charger will stop charging and switch itself to standby mode until the temperature goes down.
●Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down when the batteries are connected reversely.
●NO-load Protection:There is no output when the battery is not connected.
●Short Circuit Protection: The circuit inside the charger will shut down when output is short-circuited.
●Automatic shutdown when fully charged:The charger automatically turns off after the battery is fully charged.

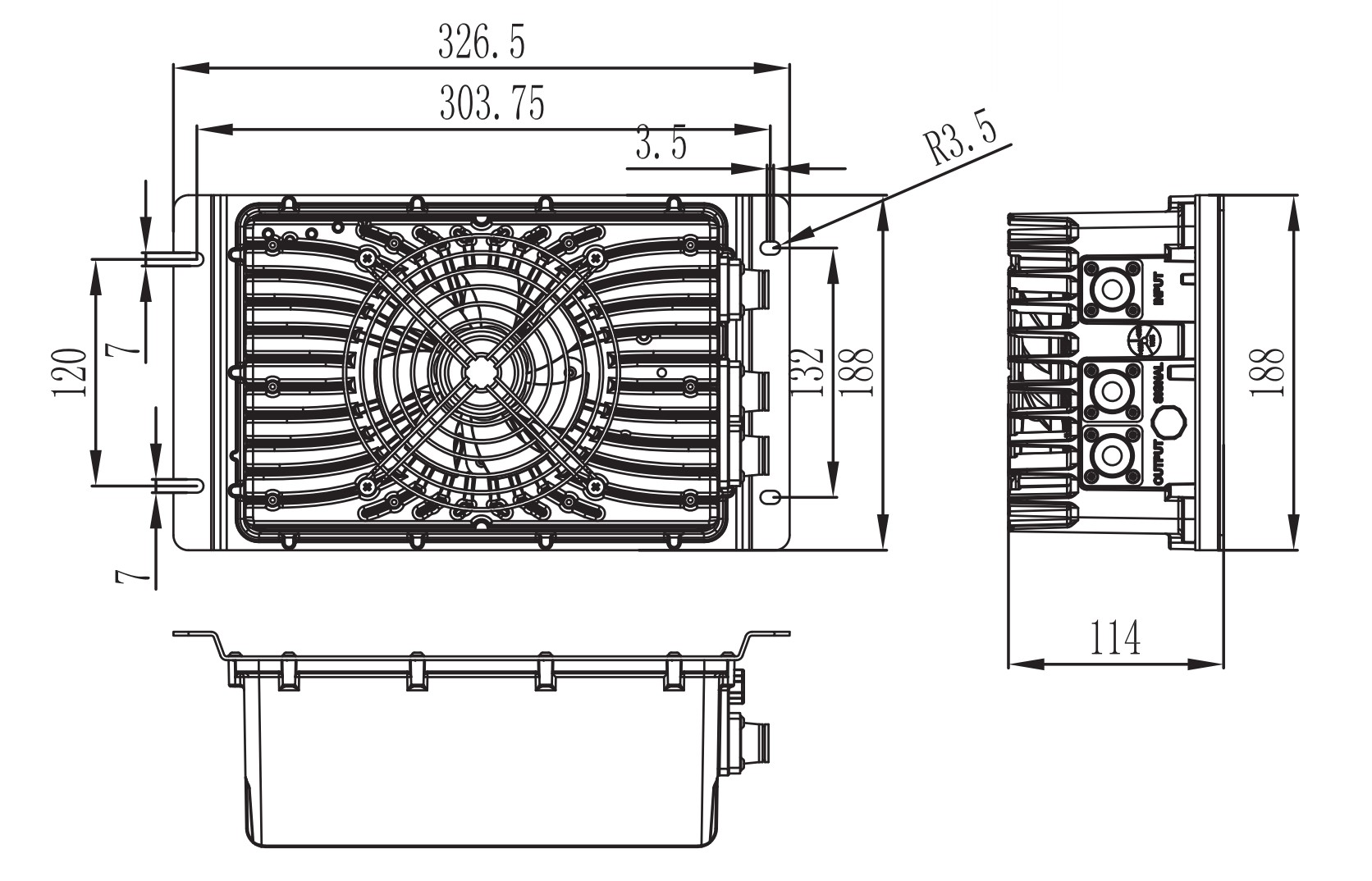

On-Board Dimension
Dimension for reference. Dimensions are subject to the real product.
Model Available
|
Models
|
Rated Voltage for battery pack
|
Max Output Voltage
|
Max Output Current
|
|
WT48XX
|
48V
|
68V
|
50A
|
|
WT60XX
|
60V
|
85V
|
35A
|
|
WT72XX
|
72V
|
102V
|
35A
|
|
WT144XX
|
144V
|
168V
|
20A
|
|
WT320XX
|
320V
|
400V
|
10A
|
