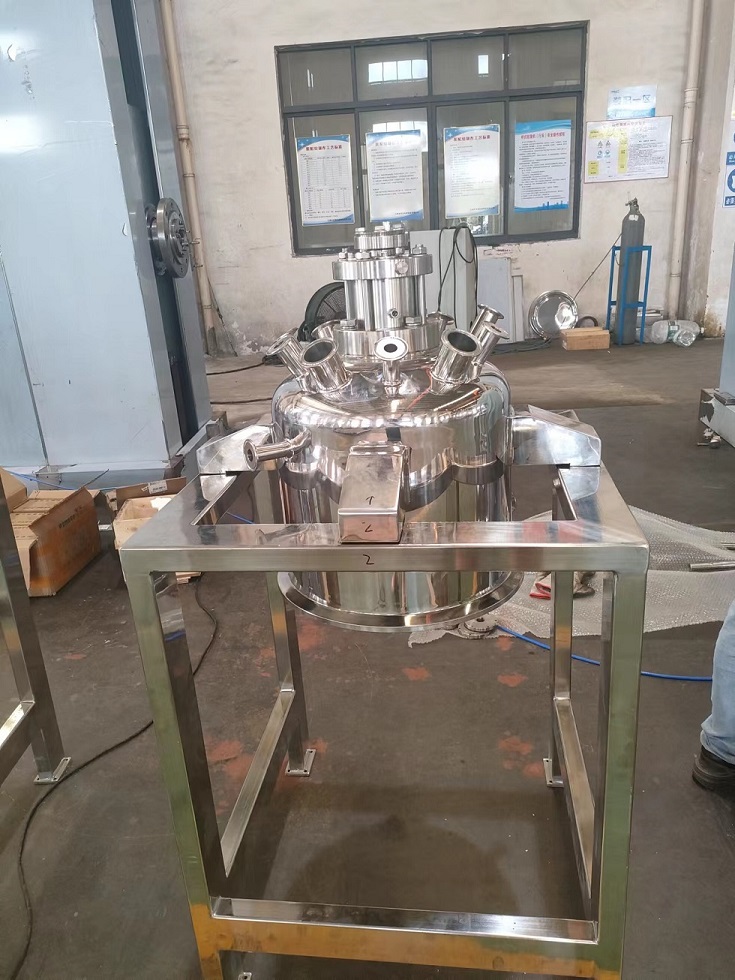

3 in 1 filter dryer

Filtering Washing Drying Equipment can separate solid and liquid, it can also washing and drying material. This Powder dryer Machine is widely used in chemical, fine chemical and pharmaceutical process industries. The upper head and a detachable or fixed flanged flat bottom, the flat bottom is used to support the filter screen, and the top is equipped with a stirring drive device that can be lifted up and down. The filter interior often operates under pressure or vacuum, with a heated jacket and heated agitation, and a side discharge valve.

Important Advantages:

The side discharge valve adopts metal-metal hard seal or FEP sealing ring soft seal.

In order to ensure the sealing of the side discharge vale, an automatic or manual sealing surface cleaning device is installed.

Two or three or four stirring blades can be installed to improve stirring and drying efficiency and discharge speed.

Can be used in combination with airflow drying to improve high drying efficiency.

Quick-open automatic locking device or C-shaped snap ring blots to fix the main flange.

The filter medium is metal multi-layer sintered mesh, single-layer metal or non-metal filter cloth.

Double-end wet, dry or non-contact mechanical seals are suitable for chemical or aseptic processes.

Complete CIP and SIP system.

Manual or automatic tailings discharge device.

Compliant with GMP and FDA.

Main operation process:
