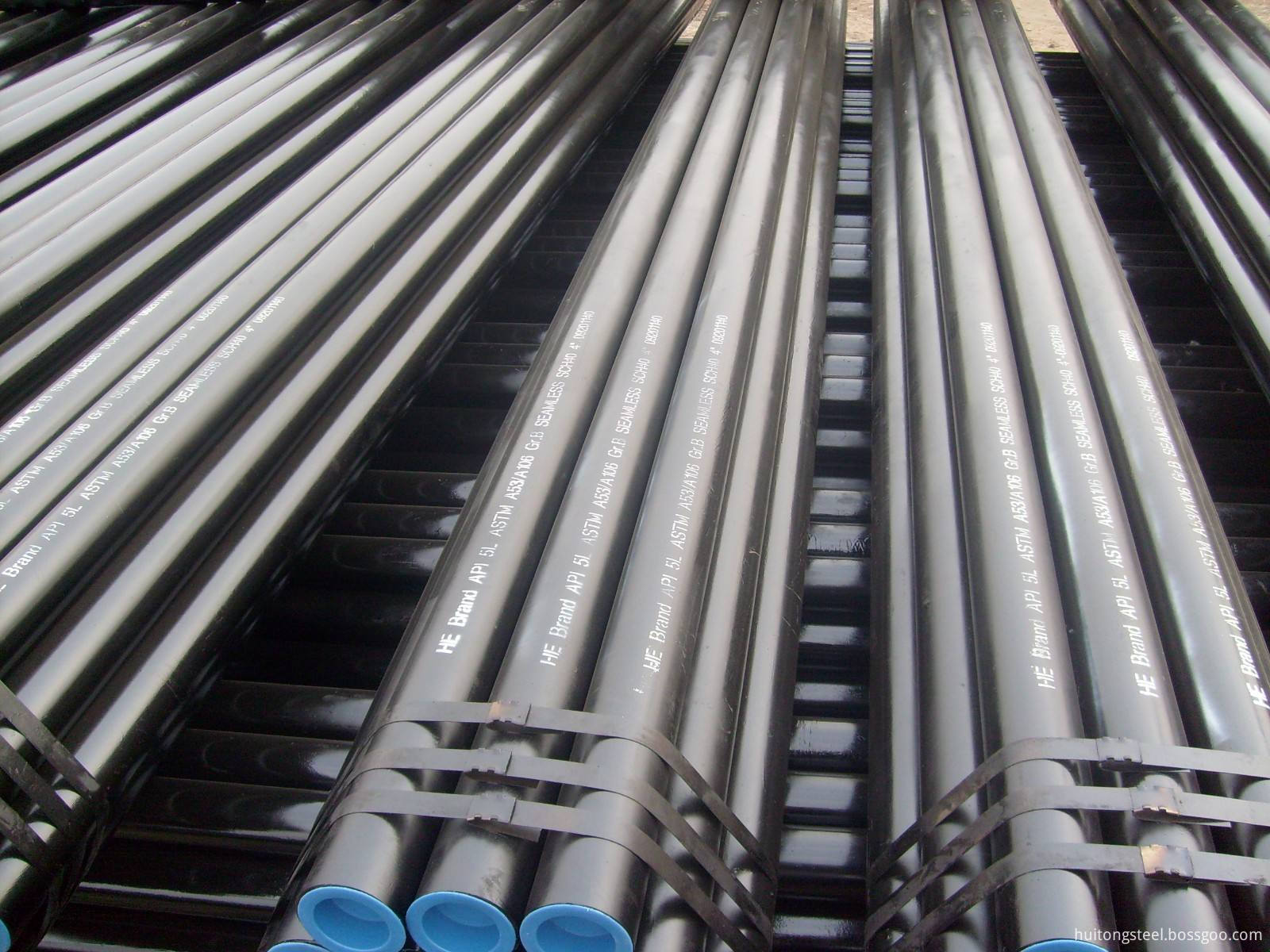

ASTM 5L A106 Hot Rolled Seamless Carbon Steel Pipe

2 year ago

5 0 

4 year

Product details

The fluid pipeline is a steel pipe with hollow section and no weld from beginning to end. Steel pipe has hollow section and is used as a pipeline for transporting a large amount of oil, natural gas, natural gas, water and some solid materials. Compared with solid steel (such as round steel), when the bending and torsional strength are the same, the weight of steel pipe is lighter. It is a kind of economical section steel, which is widely used to manufacture structural parts and mechanical parts such as oil drill pipe, automobile transmission shaft, bicycle and so on. Scaffolds and steel scaffolds used in construction. China Steel Pipe,Erw Steel Pipe,Carbon Seamless Steel Pipe Manufacturer，Carbon Seamless Steel Pipe，China leading manufacturers and suppliers of Steel Pipe,Erw Steel Pipe, and we are specialize in Carbon Seamless Steel Pipe,Cold Rolled Precision Steel Pipe, etc.(for example, API 5L hot rolled steel pipe, API 5L grade B Sch 40 80 160, API 5lx52 seamless steel pipe, API 5lx52 seamless)
requirement;
When the welded pipe is used as a fluid transmission pipe, it has different requirements from the ordinary steel pipe:
1. No leakage is allowed for welds. For welded pipes required by API, ultrasonic flaw detection and hydrostatic test are also required for the weld of each welded pipe;
2. For the transportation of corrosive chemical solution, all steel pipes must be subject to inner wall anti-corrosion treatment;
3. All fluid pipes need to remove internal burrs to reduce fluid transmission resistance.
Length;
1. Hot rolled (extruded and expanded) steel pipe is 3-12m
2. Cold drawn (rolled) steel pipe is 3-10.5m
Curvature;
1. When the wall thickness is ≤ 15mm, it shall not be greater than 1.5mm/m
2. When the wall thickness is > 15mm, it shall not be greater than 2.0mm/m
3. When the outer diameter ≥ 351mm, it shall not be greater than 3.0mm/m
(outer diameter wall thickness) * wall thickness * 0.02466 = kg / M (weight per meter)

Product Name	API 5L X46 PSL1/PSL2 Seamless & Erw Pipe
Standard	Api 5lx46
Material	Api 5lx46

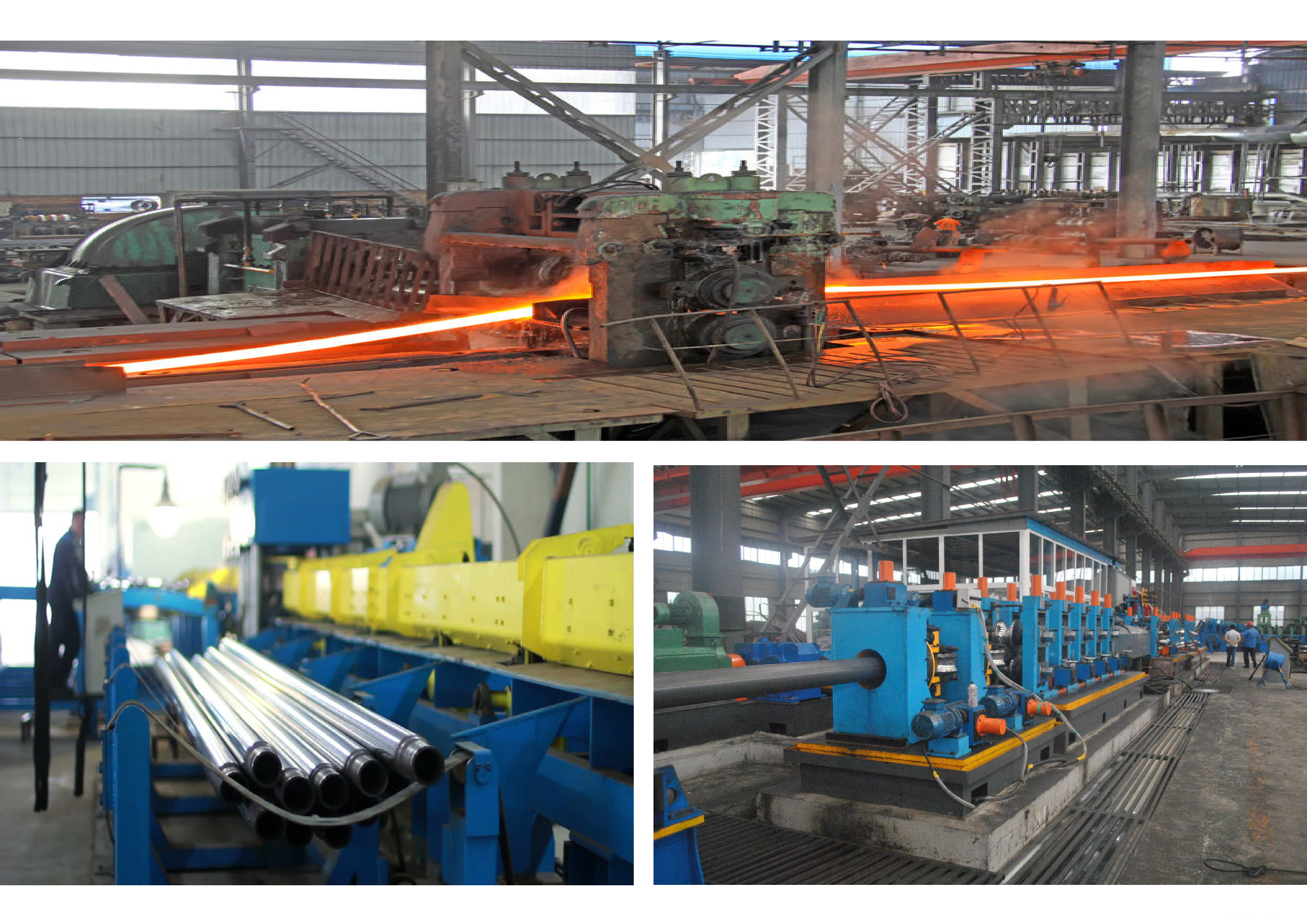

Production Process	Hot Rolled, Cold Rolled, Cold Drawn
Tolerance	OD :+/-1%
Length	3-12m or as per customers' requirements
Surface	Black Painting or According to customer Requirement
Ends	Plain ends or Bevelled ends with Plastice covers
Payment Terms	EXW, FOB, CIF, CFR etc.
Trade Terms	TT, LC,OA,DP etc.
Delivery Time	Within 14 days after Receiving 30% TT Advanced or LC at Sight Original
Application	Mainly used to Manufacture Water wall Pipes, Boiling water Pipes, Superheated Steam Pipes, Superheated Steam Pipes for locomotive Boilers, Large and Small Smoke Pipes and Arch Brick Pipes, etc. General Seamless Steel Pipe used to Transport water, oil, gas and other Fluids.

API 5L line pipe (Seamless and welded pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.

PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.

PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.

API 5L PSL1 steel line pipe not required to do the impact test.

For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0ºC. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.

For API 5L Grade X80 PSL2 line pipe, at 0ºC for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.

For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.

Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.

API 5L PSL 1 / PSL 2 Chemical Composition:

Standard	Product specification category	Steel Grade	Chemical Composite
Standard	Product specification category	Steel Grade	C	Mn	P	S	Si	V	Nb	Ti	CEpcm
API 5L	PSL 1	L210 or A	≤0.22	≤0.90	≤0.030	≤0.030					≤0.25
		L245 or B	≤0.28	≤1.20	≤0.030	≤0.030					≤0.25
		L290 or X42	≤0.28	≤1.30	≤0.030	≤0.030					≤0.25
		L320 or X46	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L360 or X52	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L390 or X56	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
		L415 or X60	≤0.28	≤1.40	≤0.030	≤0.030					≤0.25
	PSL 2	L245R or BR	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290R or X42R	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L245N or BN	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	C	C	≤0.04	≤0.25
		L290N or X42N	≤0.24	≤1.20	≤0.025	≤0.015	≤0.40	≤0.06	≤0.05	≤0.04	≤0.25
		L320N or X46N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.40	≤0.07	≤0.05	≤0.04	≤0.25
		L360N or X52N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L390N or X56N	≤0.24	≤1.40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	≤0.25
		L415N or X60N	≤0.24	≤1,40	≤0.025	≤0.015	≤0.45	≤0.10	≤0.05	≤0.04	Negotiate

API 5L PSL 1 / PSL 2 Mechanical Properties:

Standard	Product specification category	Steel Grade	Yield Strength	Tensile Strength
API 5L	PSL 1	L210 or A	210	335
		L245 or B	245	415
		L290 or x42	290	415
		L320 or X46	320	435
		L360 or X52	360	460
		L390 or X56	390	490
		L415 or X60	415	520
	PSL 2	L245R or BR	245~450	415~760
		L290R or X42R	290~495	415~760
		L245N or BN	245~450	415~760
		L290N or X42N	290~495	415~760
		L320N or X46N	320~525	435~760
		L360N or X52N	360~530	460~760
		L390N or X56N	390~545	490~760
		L415N or X60N	415~565	520~760

API 5L Pipeline Seamless Steel Pipe

Steel pipe nominal outer diameter range	Steel pipe outer diameter	Coating category	Coating	Coating thickness
DN100~600	114.3~609.6	3PE (three-layer polyethylene)	First layer: epoxy powder (green)	2.0~4.5mm
			Intermediate layer: adhesive (white)
			Outermost layer: polyethylene (black)
		2PE (two layers of polyethylene)	First layer: adhesive	2.0~4.5mm
			Outermost layer: polyethylene
DN80~600	88.9~609.6	Epoxy powder	Epoxy powder	200~400um
		2FBE (Double layer epoxy powder)	First layer: epoxy powder (green)	400~800um
			Outermost layer: reinforced epoxy powder (gray green)
DN100~600	114.3~609.6	3PP (three layers of polypropylene)	First layer: epoxy powder (green)	2.5~3mm
			Intermediate layer: adhesive (white)
			Outermost layer: polypropylene (white)

INCH	OD	API 5L ASTM A53 A106 Standard Wall Thickness
	(MM)	SCH 10	SCH 20	SCH 40	SCH 60	SCH 80	SCH 100	SCH 160
	(MM)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
1/4”	13.7			2.24		3.02
3/8”	17.1			2.31		3.2
1/2”	21.3	2.11		2.77		3.73		4.78
3/4"	26.7	2.11		2.87		3.91		5.56
1"	33.4	2.77		3.38		4.55		6.35
1-1/4"	42.2	2.77		3.56		4.85		6.35
1-1/2"	48.3	2.77		3.68		5.08		7.14
2"	60.3	2.77		3.91		5.54		8.74
2-1/2"	73	3.05		5.16		7.01		9.53
3"	88.9	3.05		5.49		7.62		11.13
3-1/2"	101.6	3.05		5.74		8.08
4"	114.3	3.05	4.50	6.02		8.56		13.49
5"	141.3	3.4		6.55		9.53		15.88
6"	168.3	3.4		7.11		10.97		18.26
8"	219.1	3.76	6.35	8.18	10.31	12.70	15.09	23.01
10"	273	4.19	6.35	9.27	12.7	15.09	18.26	28.58
12"	323.8	4.57	6.35	10.31	14.27	17.48	21.44	33.32
14"	355	6.35	7.92	11.13	15.09	19.05	23.83	36.71
16"	406	6.35	7.92	12.70	16.66	21.44	26.19	40.49
18"	457	6.35	7.92	14.27	19.05	23.83	29.36	46.24
20"	508	6.35	9.53	15.09	20.62	26.19	32.54	50.01
22"	559	6.35	9.53		22.23	28.58	34.93	54.98
24"	610	6.35	9.53	17.48	24.61	30.96	38.89	59.54
26"	660	7.92	12.7

We can produce different sizes, thicknesses, widths and materials according to your requirements
