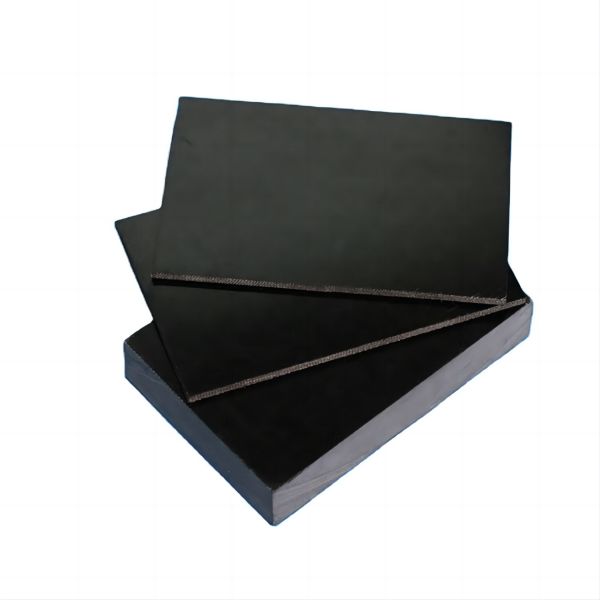

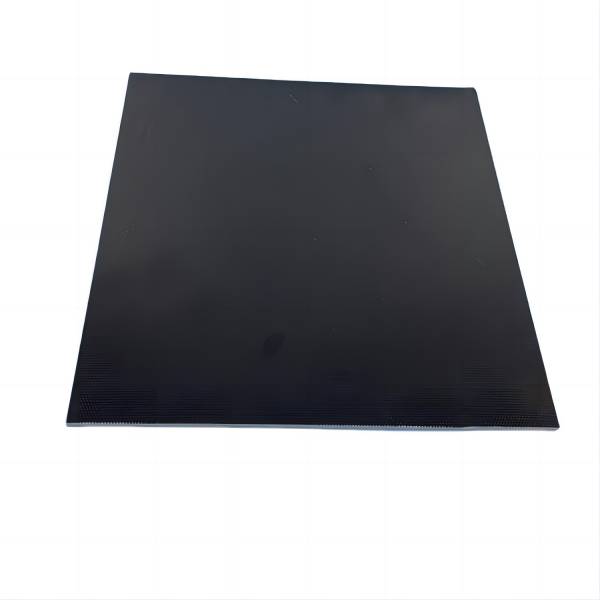

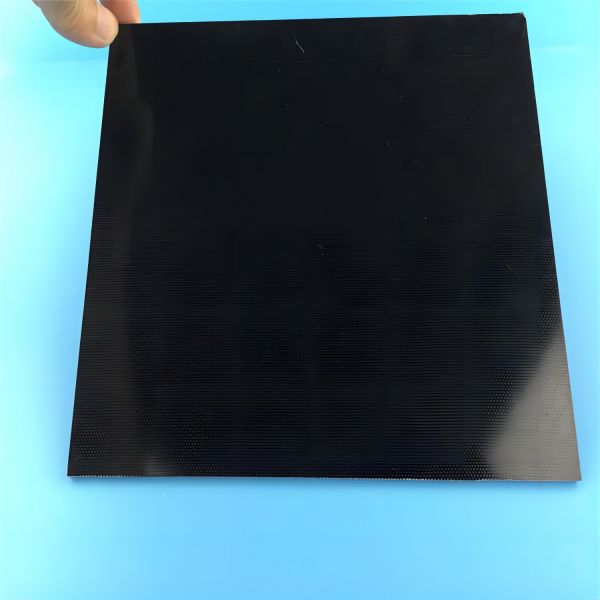

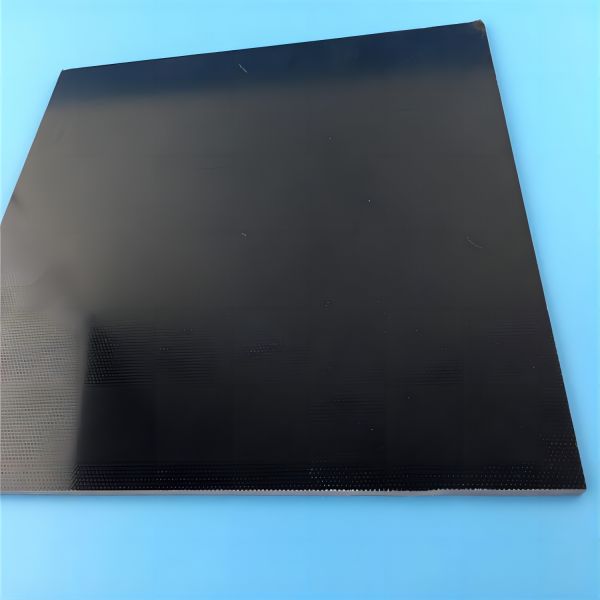

ESD Antistatic Epoxy Resin Sheet Fr4 Board

Anti-static fiberglass panel is a composite material made of glass fiber as the main material, adding resin, antistatic agent and other ingredients. Among them, glass fiber is an inorganic non-metallic material made of glass as raw material and processed through many procedures, which has excellent physical and chemical properties and mechanical properties, as well as excellent anticorrosion, insulation, high temperature resistance, flame retardant and other characteristics.

Anti-static fiberglass panel is a kind of composite material with glass fiber, resin and antistatic agent as the main components. It has good antistatic performance, corrosion resistance and processing performance, and is widely used in electronic industry, communication industry, chemical industry, medicine, aerospace, electric power and other fields.

Resin is another important part of the anti-static fiberglass board, usually using polymer materials such as epoxy resin, polyimide, etc., these materials have better processing performance and mechanical properties. At the same time, in order to make the anti-static glass fiber board has good anti-static properties, manufacturers will also add a certain proportion of anti-static agent, these agents are usually the use of carbon powder, metal powder, etc. will be the conductive properties and the performance of the fiberglass board itself for the fusion of each other, the formation of a composite material with good anti-static properties.

Advantage of HONYESD®antistatic glass fiber board

1. Good anti-static performance, can effectively prevent the accumulation of static electricity;

2. Excellent corrosion resistance, strong resistance to acid and alkali, oil and heat;

3. High surface flatness, good mechanical strength and rigidity, which can prevent the surface from ripples and paint loss and other phenomena;

4. Good processability, can be cut, drilled, hot bending and other processing according to the need;

5. Long service life, durable.

With excellent anti-static efficacy, divided into (single-side anti-static and double-sided anti-static / overall anti-static three)

Single-sided anti-static fiberglass board:

One side is black anti-static, one side is green insulating, and can withstand high temperature.

Double-sided anti-static fiberglass board:

Inside is water-green fiberglass, black surface with anti-static surface.

Overall anti-static fiberglass panel:

Any one part has the same anti-static value.

Antistatic performance value (resistance value):

Surface Resistance Value:10^6-10^9 Ω

Specific gravity

1.9-2.0

Operating Temperature/Performance

Temperature resistance up to 180°C, flame retardant ( 94-V 0 ),.

Specification

3-25mm*1020*1220 mm More thickness can be customized.

Color

Black or green, aqua green

Application:

Precision test panels, electrical (electrical) equipment insulation boards, insulation pads, transformer insulation boards, motor insulation parts, computer drilling pads, mold fixtures, etc. (PCB test racks).

Q1 .why choose us?

High quality & competitive price & good quality & high performance& nice surface & standard tolerance

Q2. What's your main markets?

Europe,America, Korea, etc.

Q3 . What is the delivery date for a sample?

Usually about 1-3 days

Q4 . How do you control the quality?

We control the product quality by IQC, three tests on production lines, and 100% aging testing before packaging.

Q5. What's MOQ?

MOQ is 1 PCS.

Q6 . Can you give us a favorable discount?

We will offer a favorable discount if the quantity is sizable.

Q7 . How do you ship the goods and how long does it take?

We usually ship by DHL, UPS, FEDEX, TNT, and it usually takes 4-5 days to arrive. It is also acceptable by air and by sea.
