Product details

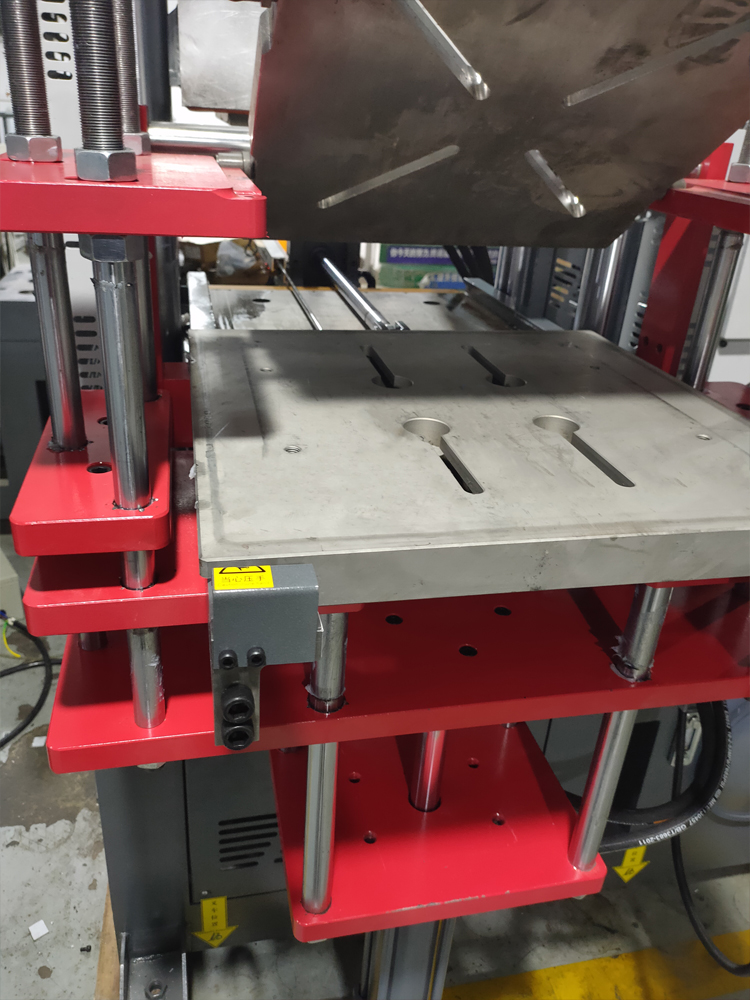

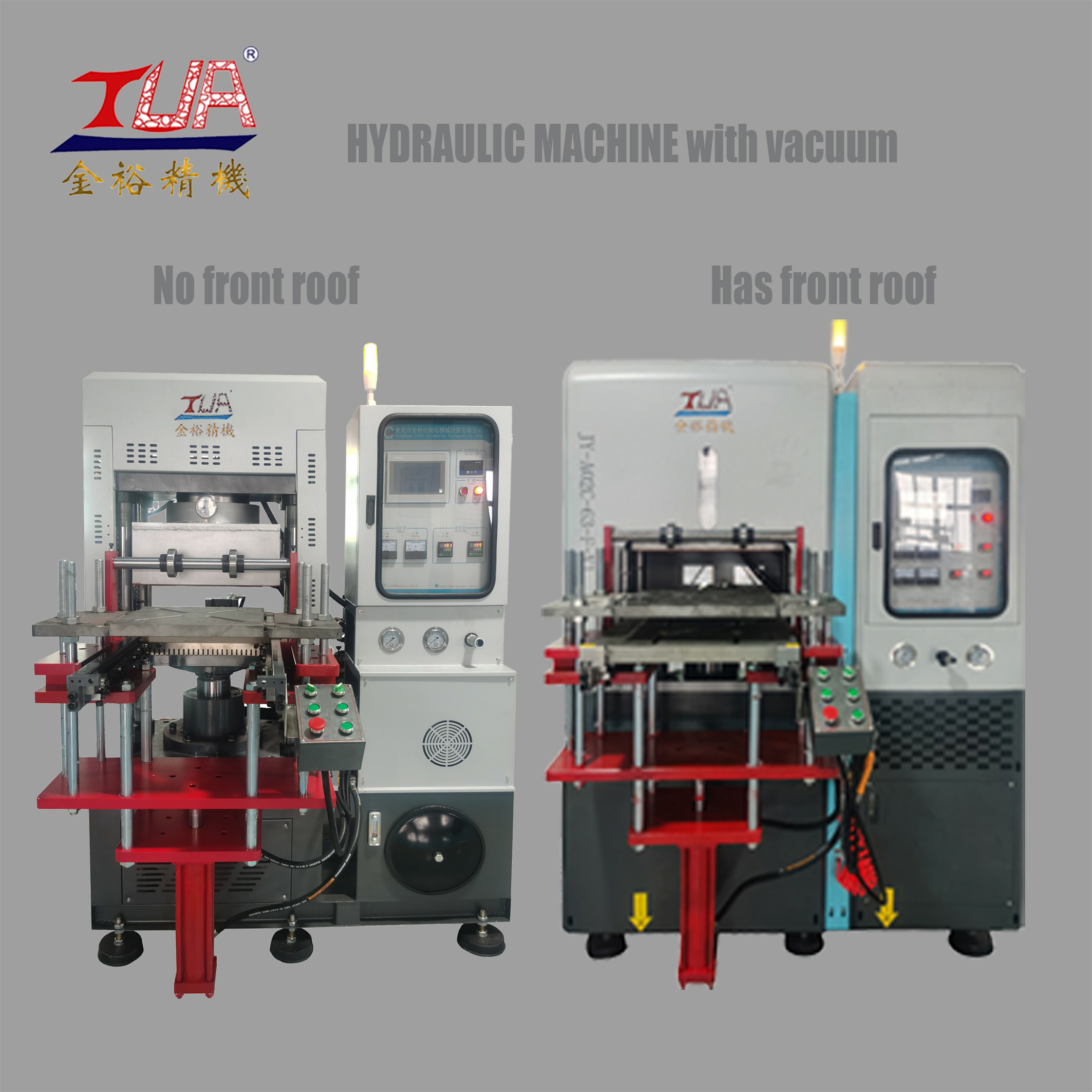

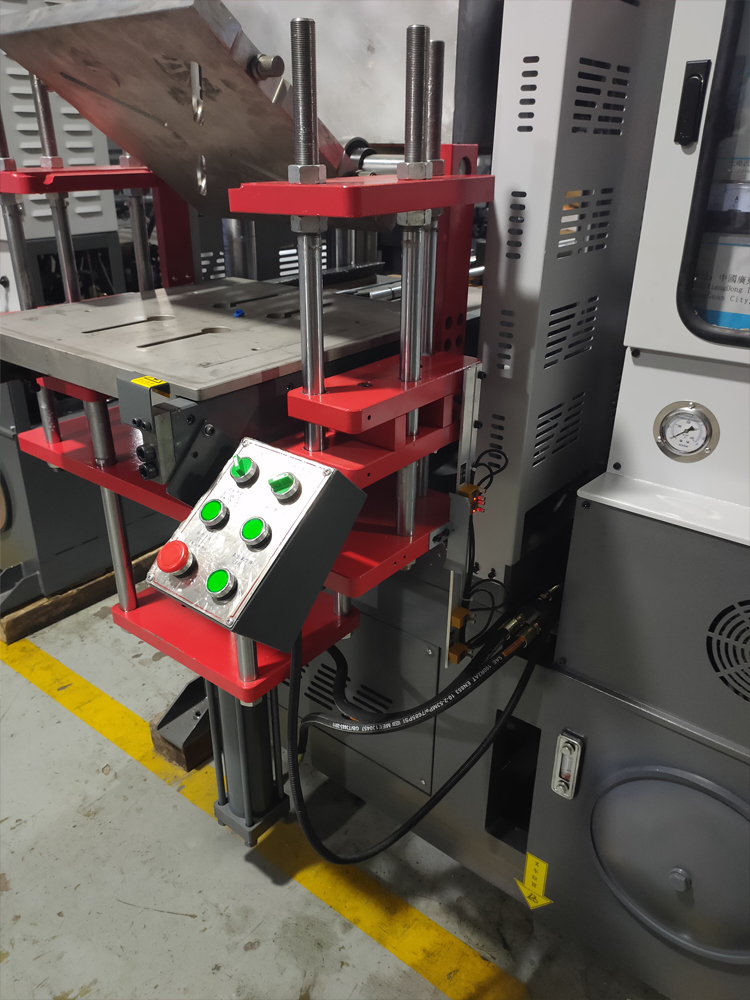

Frame type press rubber vulcanizer

The frame type rubber vulcanizing press is a hydraulic press used for the vulcanization of various types of rubber and plastic products. The hydraulic machine vulcanizer of Jinyu Machinery is specialing in making silcione products. Such as silicone trade mark gift, silicone labels, silicone phone case, silicone tableware, silicone toy, silicone key case, silicone bracelet, vbarious silicone velectronic accessories, etc.

The features of Jinyu Hyraulic mahcine:

1. Jinyu has a special automatic mold opening function, the movable platen is quickly opened and closed, and slowly locked.

2. The oil injection channel is reliable, and the pump will automatically stop to replenish pressure during molding.

3. There are manual or automatic working methods, which can be used flexibly, and the time and frequency of deflation as well as the molding temperature and time can be set.

4. Design electronic ruler, which can be adjusted automatically, saving time.

4. We can also provide molds, silicone materials and a complete set of silicone machines.

5. One-stop service, one whole production line, one-stop solution allows you to run projects easily.

hydraulic machine

Name 30T single head hydraulic machine 50T single head hydraulic machine 63T single head hydraulic machine 100T single head hydraulic machine
Model JY-A02V JY-A02V JY-A02V JY-A02V
Voltage 380V 380V 380V 380V
Max working pressure 30 50 63 100
Wore area 300*300mm 350*350mm 400*400mm 450*450mm
Power 3.7kw 5.5kw 5.5kw 5.5kw
Heating Power 10.8kw 10.8kw 10.8kw 10.8kw
Total Power 16kw 17.8kw 20.3kw 20.3kw
Max temp 400℃ 400℃ 400℃ 400℃
Main cylinder diameter 150mm 180mm 200mm 250mm
Main cylinder stroke 160mm 160mm 250mm 250mm
Vacuum pump power 1.5kw 1.5kw 4kw 4kw
Cylinder stroke of vacuum hood 100mm 100mm 200mm 200mm
Size 1250*1530*1550mm 1350*1650*1650mm 1560*2020*2060mm 1570*2150*2060mm
Weight 1200kg 1500kg 2500kg 3000kg

hydraulic machineImg20201124180829

With more than 20 years of independent research and development, we have a senior and specialized group. Our company have set up a good reputation within the industry and become the earliest production base of PVC products making machine, silicone products making machine and other related machines all over the world. There are silicone heat transfer label machine, silicone label embossing machine, PVC patches machine, silicone injection molding machine, PVC intelligent oven, etc.
