20 liter paint bucket making machine
2 year ago
China wholesale custom design paint can production line
Main technical parameters:

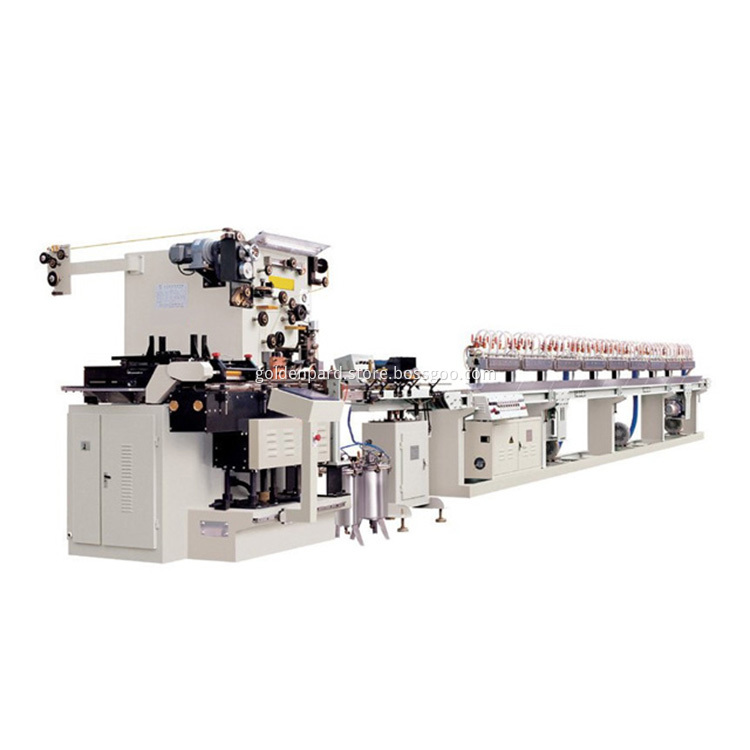

| Name | Automatic Ketchup Tin Can Seam Welding Machine |
| Usage | It's used for can body roll forming & seam welding. |
| Welding Speed | 6-18m/min |
| Capacity | Max.150 cans/min |
| Can Diameter | Φ52-Φ153mm |
| Can Height | 60-240mm |
| verlap | 0.4mm |
| Sheet Thickness | 0.16-0.3mm |
| Can Material | Tinplate, Steel-based |
| Tin Coating | 5#(1.12g/m2) -- 100#(2.24g/m2) |
| Temper | T2.5 -- DR8 |
| Copper Wire Diameter | Φ1.38mm, Φ1.5mm |
| Cooling Water | 0.4-0.5Mpa, 12-18°C 10L/min |
| Power | 380V, 50Hz, 30KW |
| Compressed Air | 600L/min |
| Weight | 1800kg |
| Dimension | 2200*1900*1400mm |

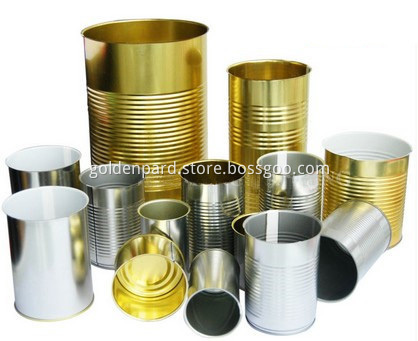

Products Produced by Equipment:
