300-400epm basic shell line
2 year ago
EOE Line Metal Can Lid Making Machine

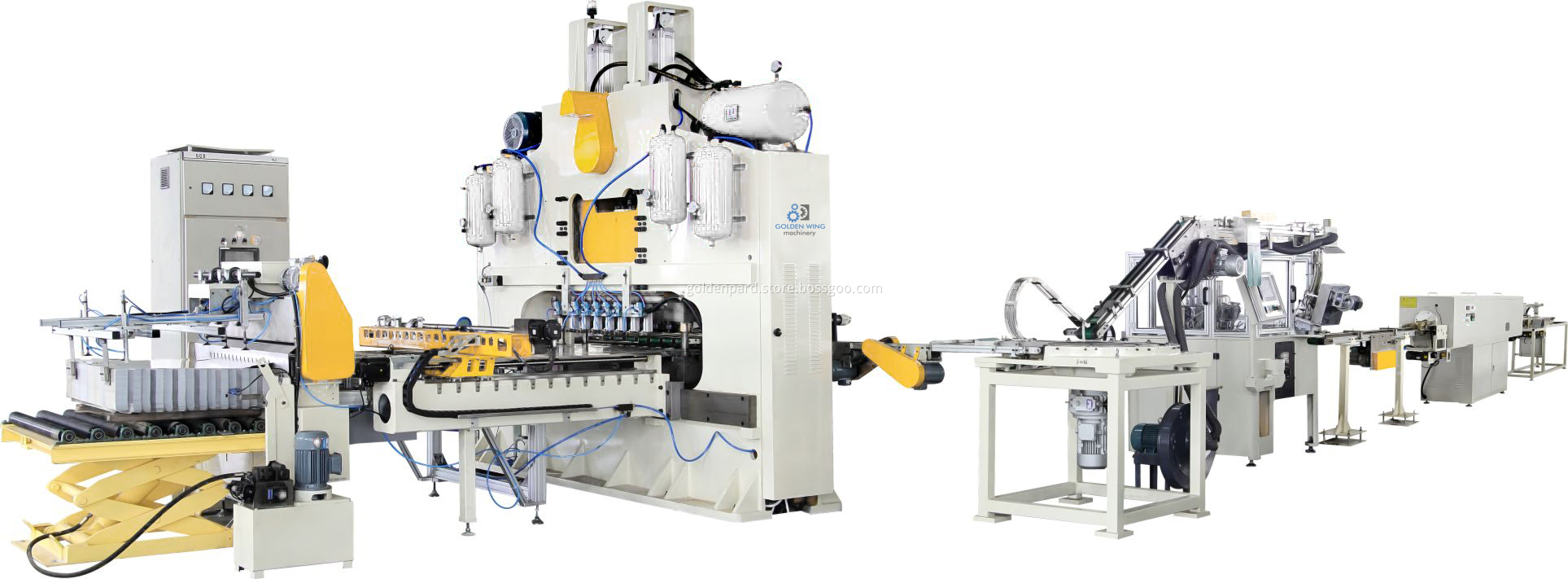

High Speed Basic Shell Production Line
High Speed Basic Shell Production Line
Details of the machines
Main technical parameter:
|
Name |
Automatic Easy Open End (EOE) Making Line |
|
Model |
1#/2# |
|
Usage |

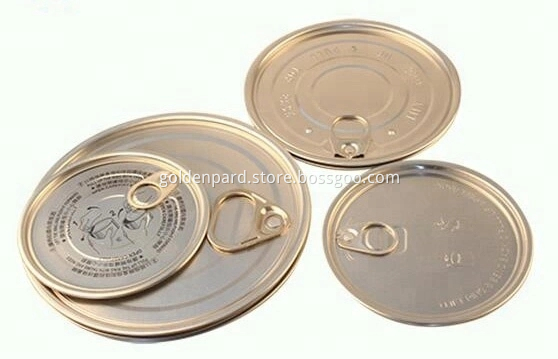

It's used for punching basic lid of easy open end |
|
Nominal Pressure |
60T / 120T |
|
Slide Block Stroke |
105mm / 120mm |
|
Stroke |
Max.200 strokes/min (Ø52-99mm); Max.150 strokes/min (Ø99-153mm) |
|
Max. Die Number on 60T |
Max. 2 dies (Ø52-99mm) & 1 die (Ø99-153mm) |
|
Max. Die Number |
Max. 7 dies (Ø52-99mm) & 2 dies (Ø99-153mm) |
|
Power |
25KW / 35KW |
|
Dimension |
4500*2800*3000mm / 5500*3200*3200mm |
|
Weight |
6.5T / 12T |
