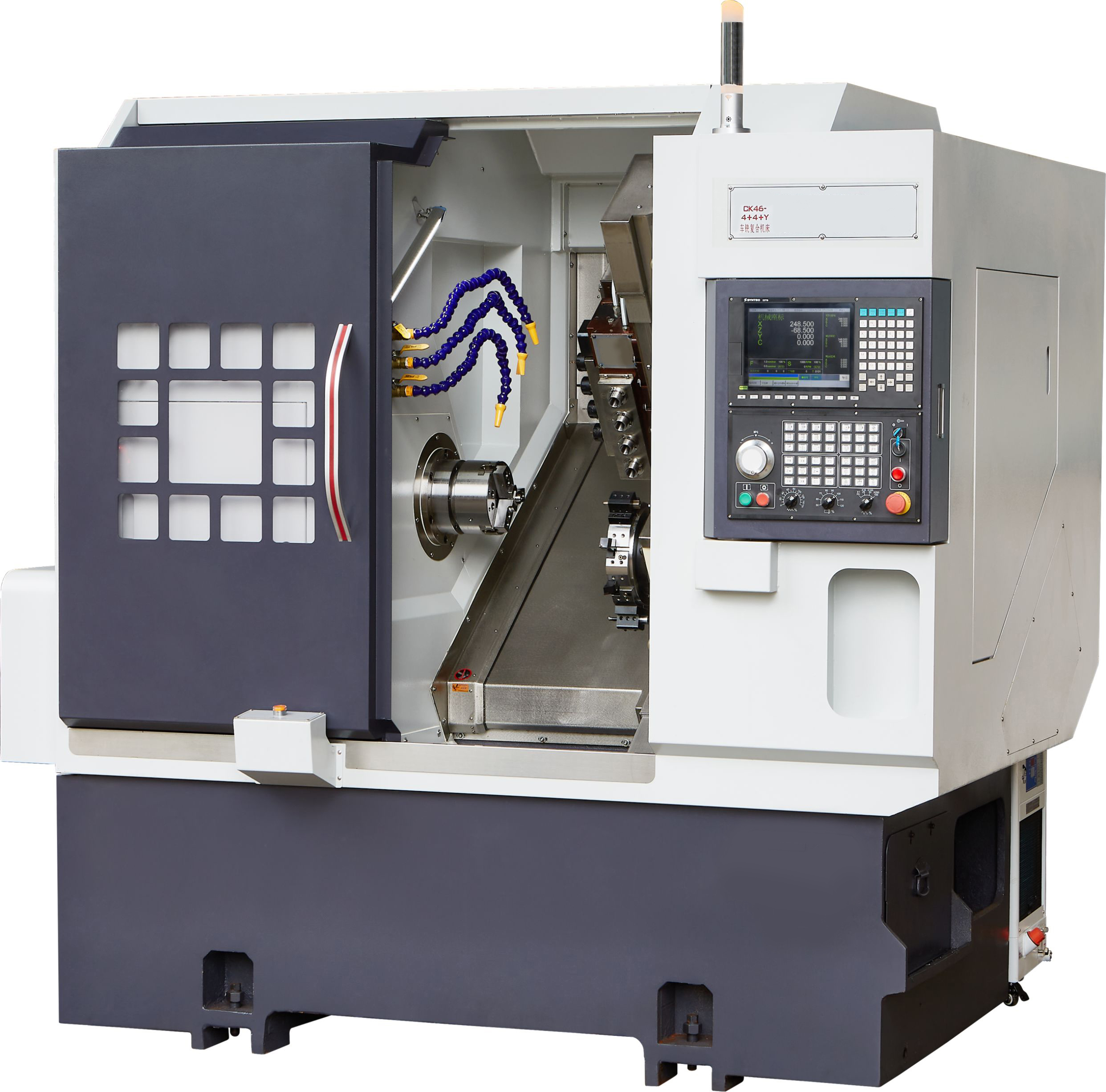

CK46-4+4+Y Turning and Milling Machines

Purpose of CNC Auto Lathe machine tool design: High-stability, high-speed and mirror highlight ) and cutter cutter grinds find and smooth, reaching the state of no grain which is invisible with the naked eyes. The stability of machine tool enables the cutter to become obviously durable, and the damage to the cutting edge slows down. The machine tool is designed with the principle of imported Automatic Lathe machine tool; it can be used only by changing part of vulnerable parts and will not be strapped other several decades.

4+4+Y(2)

Specification:

ITEM SPECIFICATIONS UNIT CK46-4+4+Y
Capacity  Max.swing  mm Ø500
Swing over cross slide  mm Ø200
 Max. turning diameter mm Ø200
Max. turning length mm 200
Bar capacity mm Ø45
Spindle  Type of spindle nose / A2-5
 Through spindle hole diameter mm Ø56
 Chuck  / 46
Spindle speed range rpm 6000
 Spindle motor type rpm 14500
Spindle resolution 1/n 1024/32768
Feedrate X-axis travel mm 1000
Z-axis travel mm 470
Y-axis travel mm 260
Goo-G m/min 24
Goo-G m/min 16/18
Goo-G m/min 15
Goo-G m/min 8
Guide way mm 32X8
Guide way mm 35
Guide way mm 25X5
Guide way mm 25
Turret Number of tool stations PCS 8+X
Shank height for square tool mm 20X20
Shank diameter for boring bar mm Ø20/25
Power Unit Power head tool plus form / ER25
Power head tool PCS Z 4+X 4
Spindle speed range rpm 6000
 Spindle motor type rpm 4000
Drilling mm Ø16
Tapping mm M8
Distance mm 65
Spindle Motor  (30min/cont) KW(HP) Power of main motor KW 7.5
Const torque NM 47.75NM(2000 r/min)
X/Z/Y-axis feed motor KW 1.3
Max. spindle torque NM 8.39
Power KW 1.7
Torsion NM 8
Speed range rpm 5000
Spindle speeds r/min 2000/6000
Spindle motor resolution 1/n 1024/32768
Pump motor KW 0.3
Miscellaneous CNC control axis number PCS 6
Spindle positioning brake device / /
Angle / 35°
Floor space 1.8X1.1=1.98
Table size (LxW) mm 700X290
Machine dimensions(L.W.H) m 2.1X1.58X1.9
Mass of machine KG 3430
Power supply kw 13
Mean power consumption kw/h 2
Repeatability (PS) X Y Z   X-axis mm 0.003
 Z-axis mm 0.003
Y-axis mm 0.003




Main Parts Brand:

Product Place of origin Brand
System TAIWAN SYNTEC 21TB CNC controller
Magnet Ring Encoder TAIWAN SYNTEC
Spindle Bearing Japan  NSK
Tool Turret TAIWAN SWIFT
Ball Screw TAIWAN HIWIN/PMI
Ball Screw Bearing TAIWAN HIWIN/PMI
Linear Guideway TAIWAN HIWIN/PMI
Hydraulic Parts TAIWAN ZHANG PIN
Main Electricity Parts FRANCE Schneider
