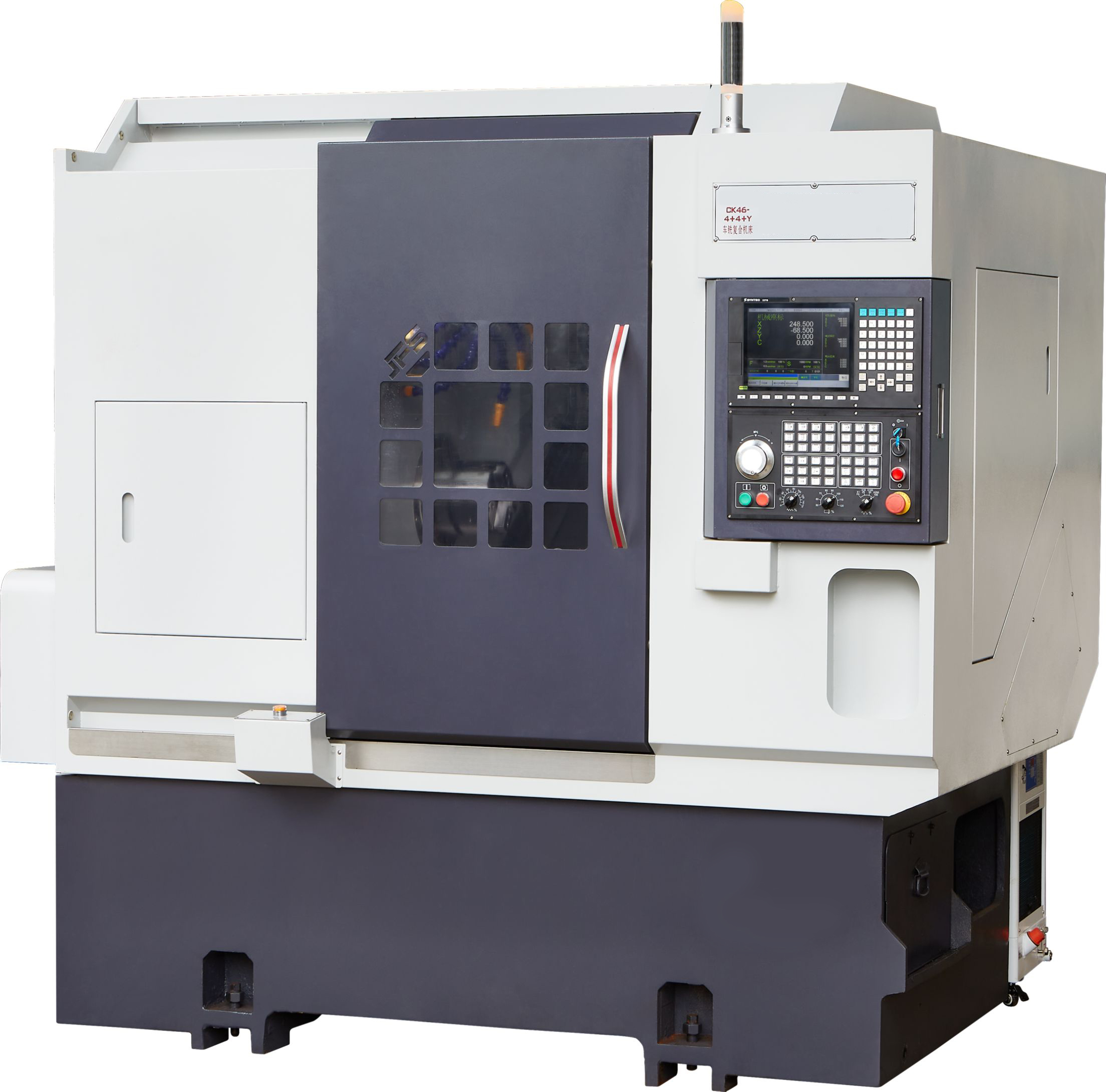

CK46-4+4+Y Automatic Cnc Turning and Milling Machine
Purpose of Automatic Turning Machine machine tool design: High-stability, high-speed and high-standard Automatic Lathe machine tool is the only purpose, and turning producing surface has mirror highlight (turning mirror lighting)and cutter grinds find and smooth, reaching the state of no grain which is invisible with the naked eyes. The stability of machine tool enables the cutter to become obviously durable, and the damage to the cutting edge slows down. The Auto Lathe Machine tool is designed with the principle of imported machine tool; it can be used only by changing part of vulnerable parts and will not be strapped other several decades.
Specification：
| ITEM | SPECIFICATIONS | UNIT | CK46-4+4+Y |
| Capacity | Max.swing | mm | Ø500 |
| Swing over cross slide | mm | Ø200 | |
| Max. turning diameter | mm | Ø200 | |
| Max. turning length | mm | 200 | |
| Bar capacity | mm | Ø45 | |
| Spindle | Type of spindle nose | / | A2-5 |
| Through spindle hole diameter | mm | Ø56 | |
| Chuck | / | 46 | |
| Spindle speed range | rpm | 6000 | |
| Spindle motor type | rpm | 1～4500 | |
| Spindle resolution | 1/n | 1024/32768 | |
| Feedrate | X-axis travel | mm | 1000 |
| Z-axis travel | mm | 470 | |
| Y-axis travel | mm | 260 | |
| Goo-G | m/min | 24 | |
| Goo-G | m/min | 16/18 | |
| Goo-G | m/min | 15 | |
| Goo-G | m/min | 8 | |
| Guide way | mm | 32X8 | |
| Guide way | mm | 35 | |
| Guide way | mm | 25X5 | |
| Guide way | mm | 25 | |
| Turret | Number of tool stations | PCS | 8+X |
| Shank height for square tool | mm | 20X20 | |
| Shank diameter for boring bar | mm | Ø20/25 | |
| Power Unit | Power head tool plus form | / | ER25 |
| Power head tool | PCS | Z 4+X 4 | |
| Spindle speed range | rpm | 6000 | |
| Spindle motor type | rpm | 4000 | |
| Drilling | mm | Ø16 | |
| Tapping | mm | M8 | |
| Distance | mm | 65 | |
| Spindle MXotor (30min/cont) KW(HP) | Power of main motor | KW | 7.5 |
| Const torque | NM | 47.75NM(2000 r/min) | |
| X/Z/Y-axis feed motor | KW | 1.3 | |
| Max. spindle torque | NM | 8.39 | |
| Power | KW | 1.7 | |
| Torsion | NM | 8 | |
| Speed range | rpm | 5000 | |
| Spindle speeds | r/min | 2000/6000 | |
| Spindle motor resolution | 1/n | 1024/32768 | |
| Pump motor | KW | 0.3 | |
| Miscellaneous | CNC control axis number | PCS | 6 |
| Spindle positioning brake device | / | / | |
| Angle | / | 35° | |
| Floor space | ㎡ | 1.8X1.1=1.98 | |
| Table size (LxW) | mm | 700X290 | |
| Machine dimensions(L.W.H) | m | 2.1X1.58X1.9 | |
| Mass of machine | KG | 3430 | |
| Power supply | kw | 13 | |
| Mean power consumption | kw/h | 2 | |
| Repeatability (PS) X 、Y 、Z | X-axis | mm | 0.003 |
| Z-axis | mm | 0.003 | |
| Y-axis | mm | 0.003 |
Main parts brand:
| Product | Place of Origin | Brand |
| System | TAIWAN | SYNTEC 21TB CNC controller |
| Magnet Ring Encoder | TAIWAN | SYNTEC |
| Spindle Bearing | Japan | NSK |
| Tool Turret | TAIWAN | SWIFT |
| Ball Screw | TAIWAN | HIWIN/PMI |
| Ball Screw Bearing | TAIWAN | HIWIN/PMI |
| Linear Guideway | TAIWAN | HIWIN/PMI |
| Hydraulic Parts | TAIWAN | ZHANG PIN |
| Main Electricity parts | FRANCE | Schneider |
| Optional Configuration: |
| - Automatic Chip Conveyor |
| - Automatic Bar Feeder |
