HT-High Temperature Sample Dyeing Machine

Characteristic

Laboratory high temperature sample dyeing machine suitable for general laboratory purpose such as sample dyeing and wash fastness test,etc.

1.    Adopt Taiwan advanced technology and design,the machine is of pretty outlook and easy operation.

2.    Computer automatic control process for precision simulating actual production.

3.    Special designed stainless steel dye pot after chemical treatment which is non rust and easy cleaning, also without any air leakage.

4.    Stainless steel coiled cooler of fast cooling speed and high efficiency.

5.    Varied capacity dye pots as 150cc,250cc,300cc and 450cc which suitable for different liquid ratio and fabric materials.

6.    Special designed washing basin with dyepot open and clip tools for easy operation.

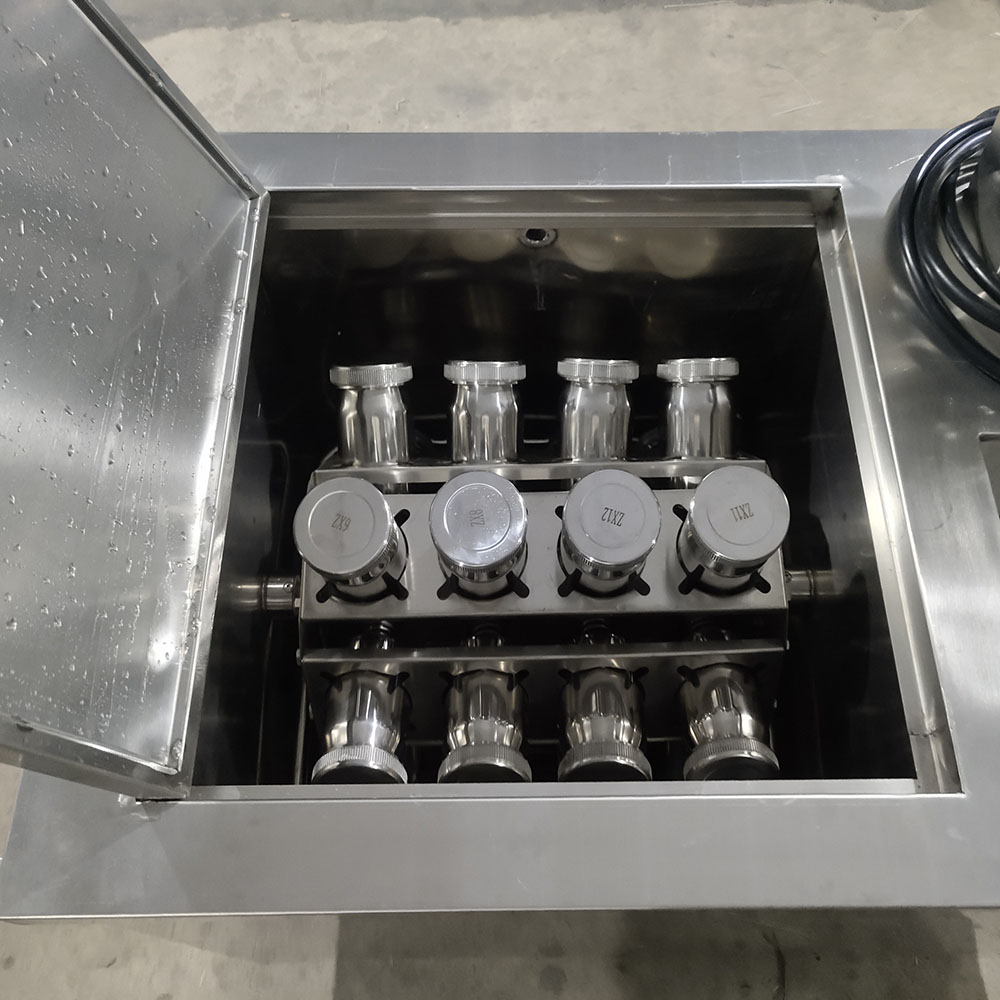

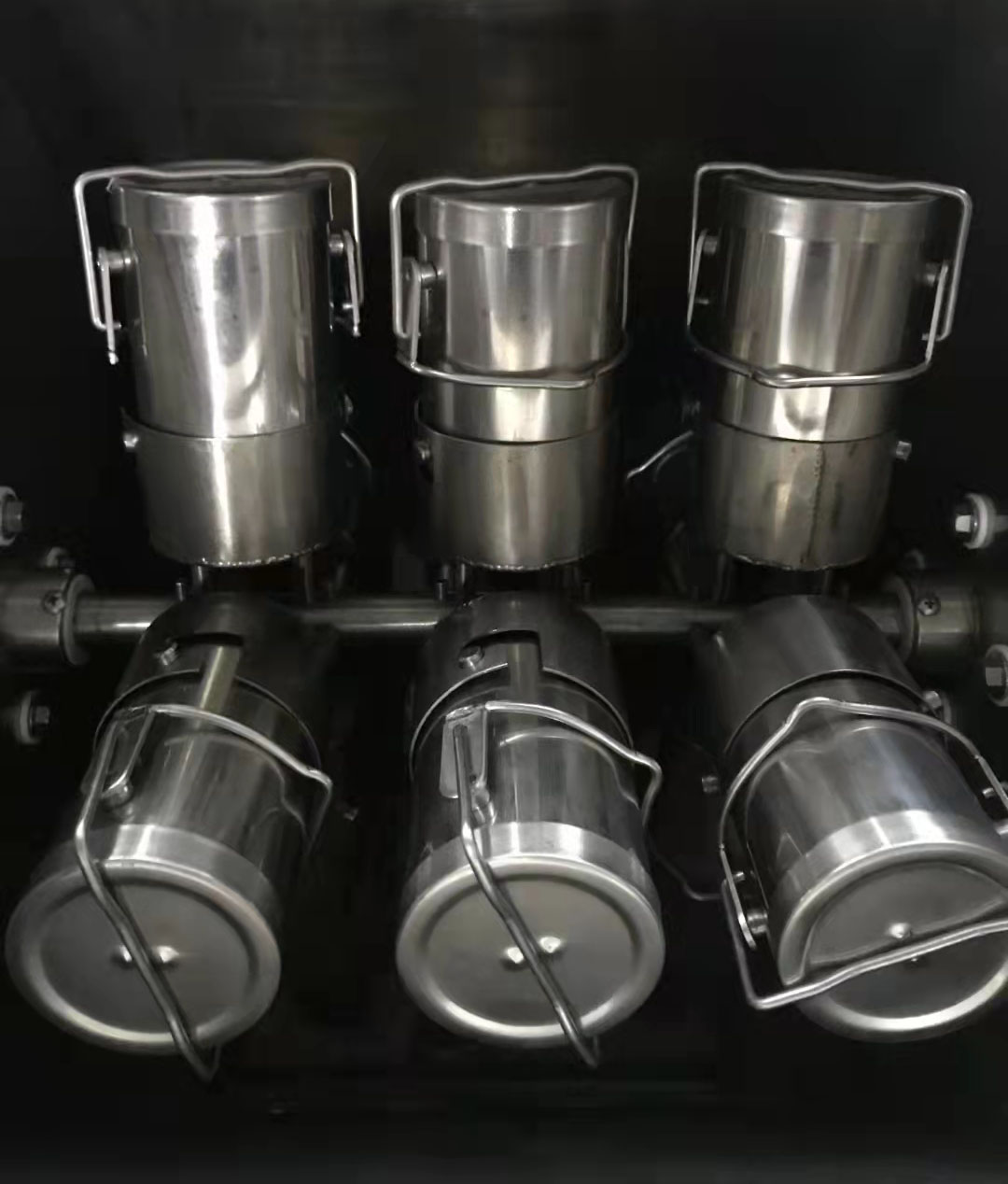

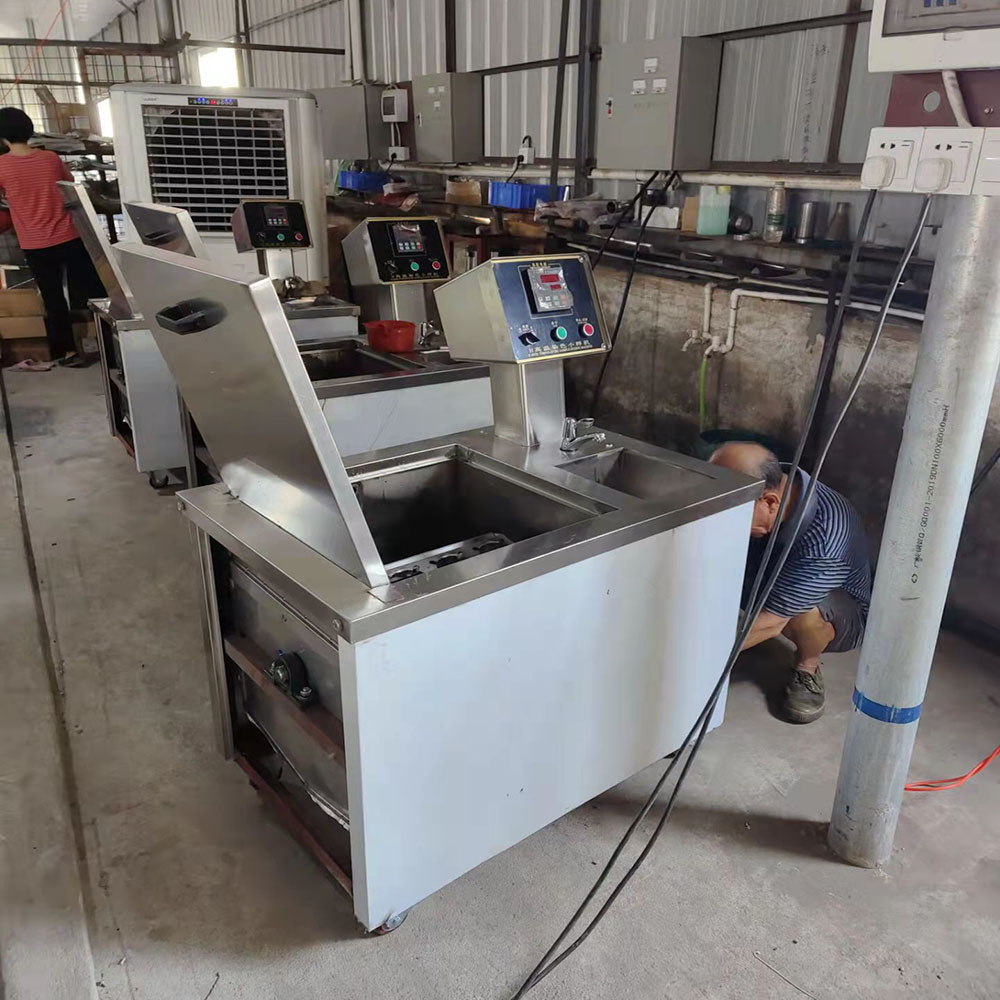

Product images

Specification

Model	Pot No.	Power Consumption(kw)	Revolution speed	Heating medium consumption(L)	Weight(kg)	Dimension(L*W*H)（mm）
HT-12	12	6	42	50	155	820*560*1040
HT-24	24	9	42	65	180	915*610*1040
