5 cells in parallel connection to 500Ah then 4 in series to 12.8V
275023172548
2 year ago
Beiamp New Energy Co., Ltd.
2 year
Product details
Product Description
The products are widely used in Electric Scooter, Household energy storage, Solar energy storage, UPS, electric forklift, marine,
etc.
Lithium Iron Phosphate (LiFePO4) battery, also known as LFP battery, is a type of rechargeable battery that uses lithium-ion technology. It is a relatively new type of battery that has gained popularity due to its high energy density, long lifespan, and safety features.
LiFePO4 batteries are made up of lithium iron phosphate as the cathode material, graphite as the anode material, and an electrolyte that facilitates the flow of ions between the two electrodes. They have a higher energy density than lead-acid batteries, which makes them ideal for use in electric vehicles, solar energy storage systems, and other high-performance applications.
One of the key advantages of LiFePO4 batteries is their long lifespan. They can last up to 10 years or more, which is significantly longer than other types of rechargeable batteries. Additionally, they are safe and do not pose a risk of overheating or explosion, unlike other lithium-ion batteries.
Overall, LiFePO4 batteries offer a reliable and efficient energy storage solution for a wide range of applications.
Specification
|
No.
|
Item
|
F603200C-100Ah
|
|
1
|
Nominal Capacity
|
100Ah ,0.5 C discharging（25±2℃）
|
|
2
|
Nominal Voltage
|
3.2V
|
|
3
|
Charge Ending Voltage
|
3.65V
|
|
4
|
Discharge Ending Voltage
|
2.5V（≥0℃）
2.0V（< 0℃） |
|
5
|
Standard Charging Method
|
25±2℃ 0.5C constant current charge to 3.65V,
then constant voltage 3.65V charge till charged current declines to ≤ 0.05C |
|
6
|
Standard Discharging Method
|
25±2℃ 0.5C constant current discharge to 2.5V
|
|
7
|
Max. Pulse Charging Current
|
1.5C (15℃～45℃, 50%SOC) ≤30S
|
|
8
|
Max. Pulse Discharging Current
|
3C (15℃～45℃, 50%SOC) ≤30S
|
|
9
|
Operating environment
|
Charging: -0℃-55℃, max.90%RH
Discharging: -20℃-55℃, max.90%RH |
|
10
|
Impedance
|
＜0.6mΩ
|
|
11
|
Size
|
Diameter:60±1mm
Cell Height:320±1mmCell Total Height with Poles:338±1mm |
|
12
|
Cell Weight
(Not include PCB) |
1.78kg±0.2kg
|
|
13
|
Mass Energy Density
|
180Wh/Kg
|
|
14 |
Cycle Life |
Not less than 80% initial capacity after 2000 Cycles.
Test condition: 25±2℃ Charge：1C to 3.65V, then constant voltage 3.65V charge till charged current declines to ≤ 0.05C Discharge：1C to 2.5V When the discharge capacity reduced to 80% of rated capacity, Stop testing. |
|
15 |
Cycle Life |
Not less than 80% initial capacity after 2000 Cycles.
Test condition: 25±2℃ Charge：1C to 3.65V, then constant voltage 3.65V charge till charged current declines to ≤ 0.05C Discharge：1C to 2.5V When the discharge capacity reduced to 80% of rated capacity, Stop testing. |
BIS Certificate is Ready
Module Show
12.8V500Ah module

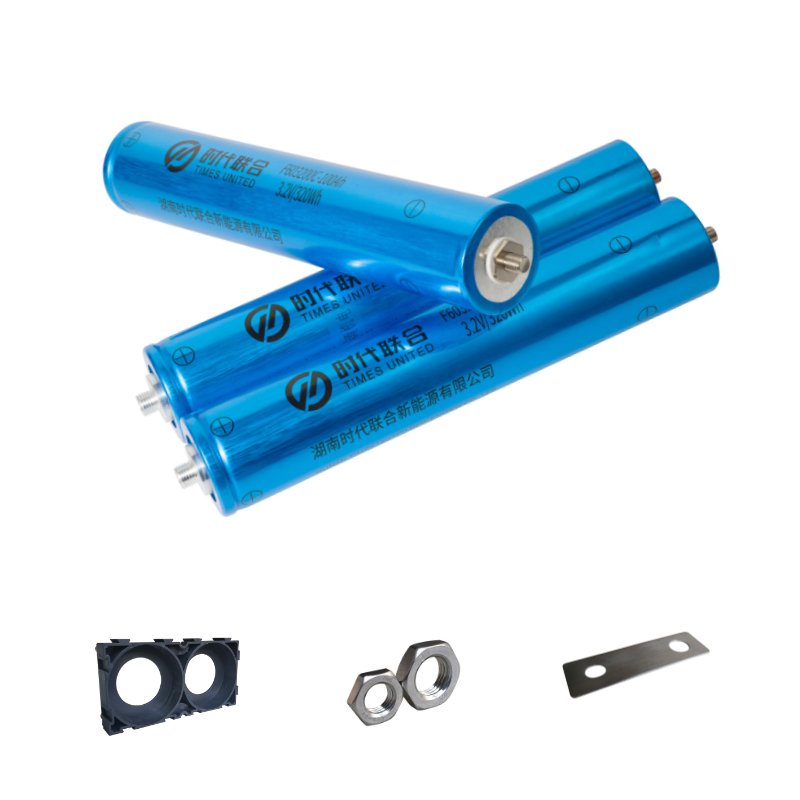

Assembly material Flexible assembly
Drawing of cell
3.2V 100Ah Cylindr rechargeable lifepo4 battery cell size
|
Item
|
Name
|
Technical parameters
|
|
A
|
Cell Diameter
|
60±1mm
|
|
B
|
Cell Height1
|
311±1mm
|
|
C
|
Cell Height2
|
320±1mm
|
|
D
|
Cell Total Height
|
338±1mm
|
|
E
|
Positive Pole
|
M14×1.5
|
|
F
|
Negative Pole
|
M10×1
|
|
G
|
Positive Pole Length
|
9.8±0.2mm
|
|
H
|
Negative Pole Length
|
8.3±0.2mm
|
|
I
|
Cell Height3
|
4.5±0.2mm
|
|
J
|
Cell Height4
|
4.5±0.2mm
|
Company Profie
BEIAN is a high-tech green energy enterprise that provides customized solutions and products for lithium batteries, energy storage
lithium batteries and lithium battery power systems for global users.
At present, BEIAN has formed strategic partnerships with many well-known enterprises at home and abroad.
etc.
