Factory Made Quick Installation Compatible Ballast 600mm 2FT Glass T5 Lamp1

2 year ago

15 0 

Foshan Yichu electronic lighting Co., LTD

1 min

Product details

Product description

Product Description

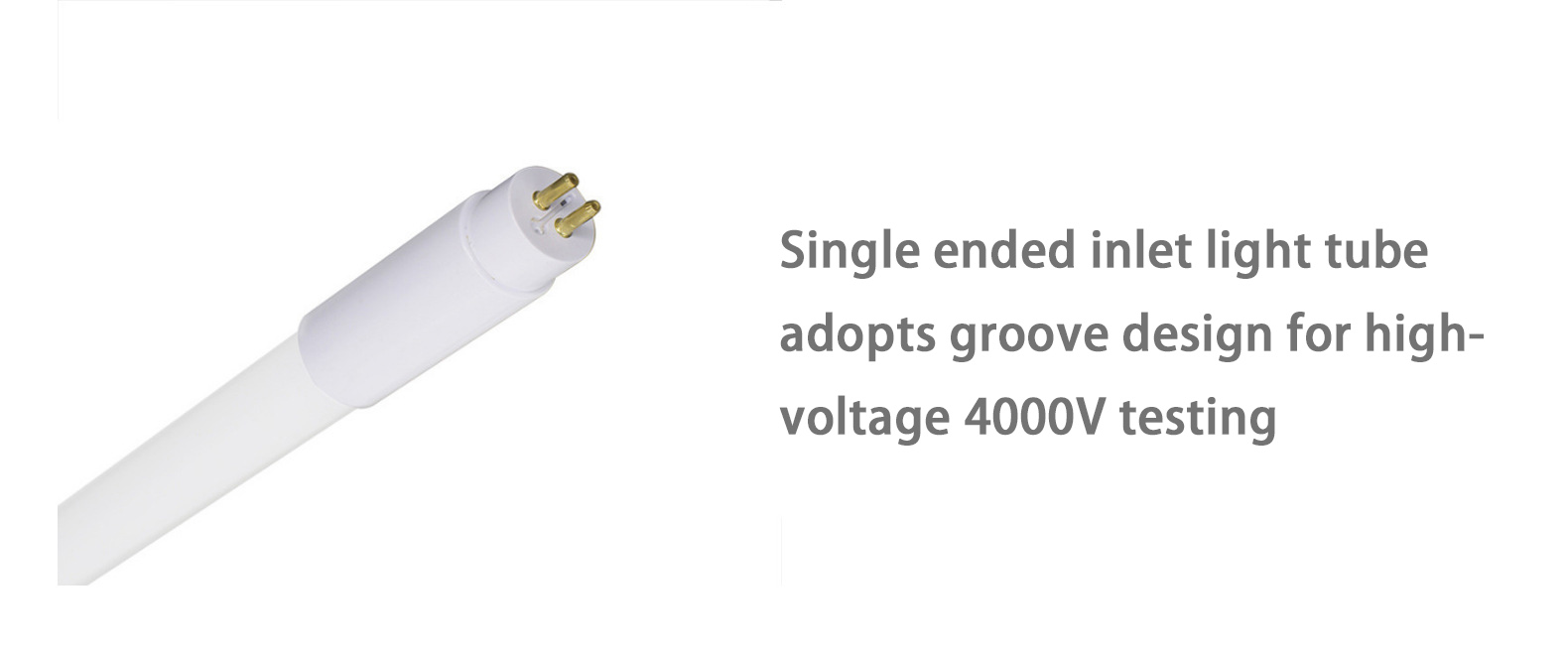

The Ballast Compatible t5 led Tube Light can pass IEC62772 certification. Only the two ends of the lamp are not energized, they can only be turned on with ballasts, and the whole ballast is compatible with the lamp

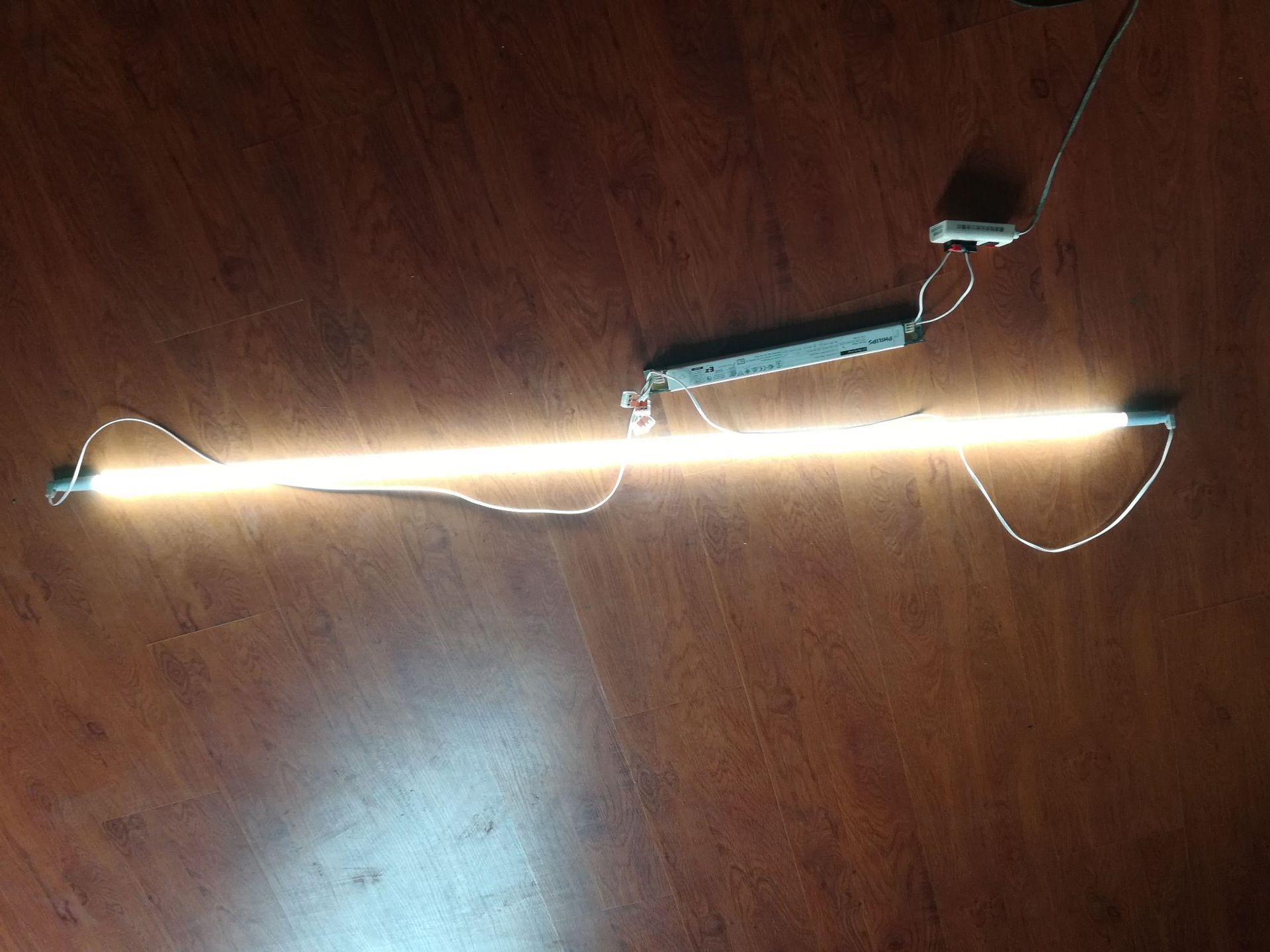

The compatible lamp of the plastic plug is more expensive, because the T5 LED Light Tube can pass the IEC62776 standard, that is to say, when one end of the lamp is energized, the other end will not be energized, only with electronic ballast can open the lamp, which requires the test lamp and aging to use a large number of ballasts, the Ballast Compatible t5 Light can also be made into compatible HE type ballast, can be compatible with any ballast in Hong Kong, can debug the power 1-4W before leaving the factory.

Настраиваемые стили	T5 совместим с балластом Регулируемая мощность (+- 2вт)	T5 совместимый HO балласт Регулируемая мощность (+- 2вт)	T8 совместимый тип A+B Регулируемая мощность (+- 2вт)
	0.6M Совместимость с системой HE-14W	0.6M Совместимость с системой HO-24W	0.6M -18W
	0.9M Совместимость с системой HE-21W	0.9M Совместимость с системой HO-39W	1.2M -36W
	1.2M Совместимость с системой HE-28W	1.2M Совместимость с системой HO-54W	1.5M -58W
	1.5M Совместимость с системой HE-38W	1.5M Совместимость с системой HO-49W

Customizable styles	T5 compatible HE ballast Adjustable power (+-2W)	T5 compatible HO ballast Adjustable power(+-2W)	T8 compatible TYPE A+B Adjustable power(+-2W)
	0.6M Compatible HE-14W	0.6M Compatible HO-24W	0.6M -18W
	0.9M Compatible HE-21W	0.9M Compatible HO-39W	1.2M -36W
	1.2M Compatible HE-28W	1.2M Compatible HO-54W	1.5M -58W
	1.5M Compatible HE-38W	1.5M Compatible HO-49W

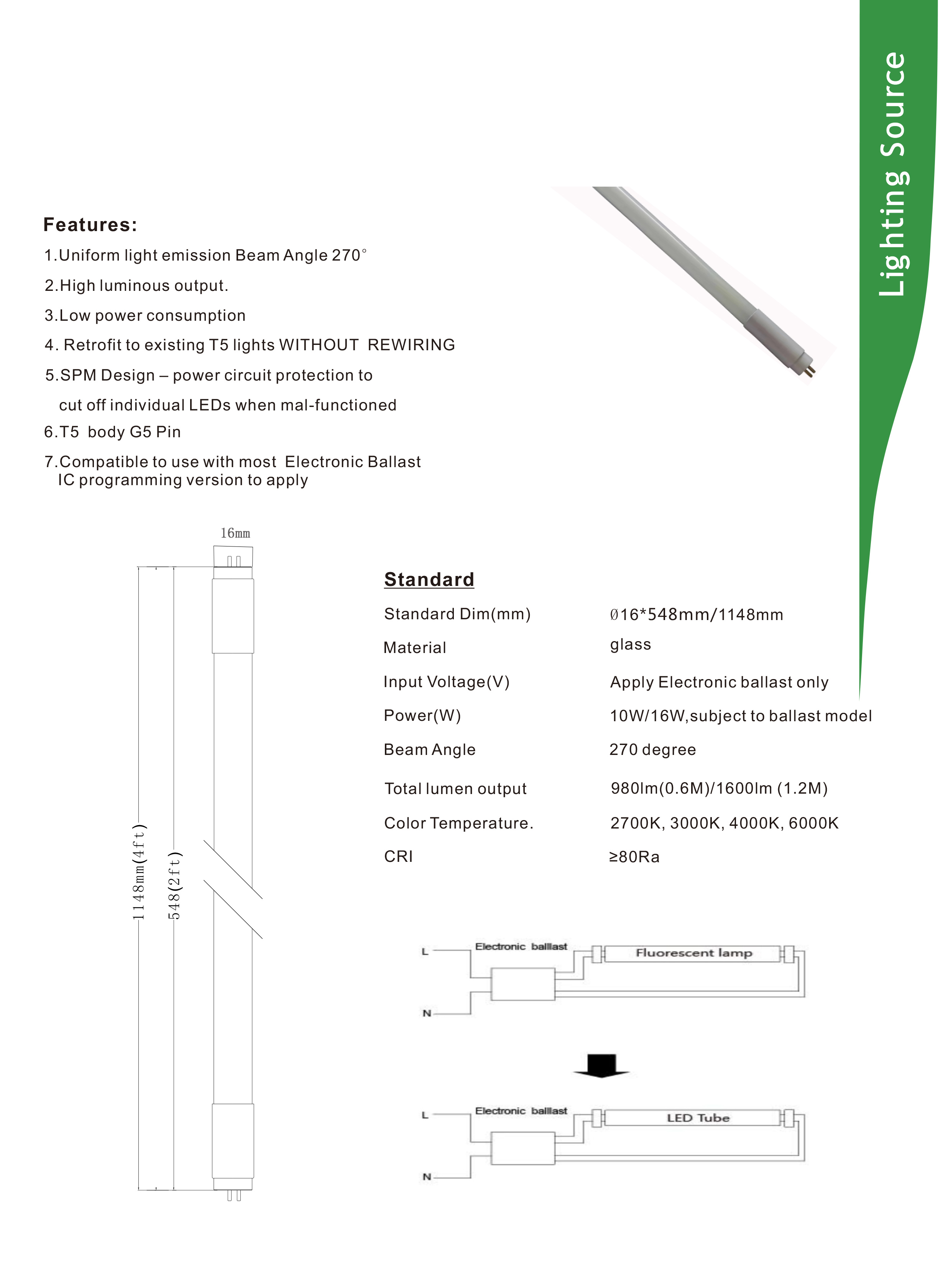

Customization Specifications Compatible Various Ballast Glass T5 LED 3FT Lamps

Lamp Holder/Base

LED Type

SMD 2835

Shell Type

Fluorescence

Lifespan

30000H

Warranty

3 Years

Certification

CE, EMC

Input Voltage

85-265V

LED Chips

Epistar

Luminous Flux

3500lm

Beam Angle

300 (Degrees)

Color Rendering Index

Factor

0.9

Weight

135g

Series

T5 Compatible Electronic Ballast LED Glass Tube

Single Lamp Bead Lumens

33-36lm

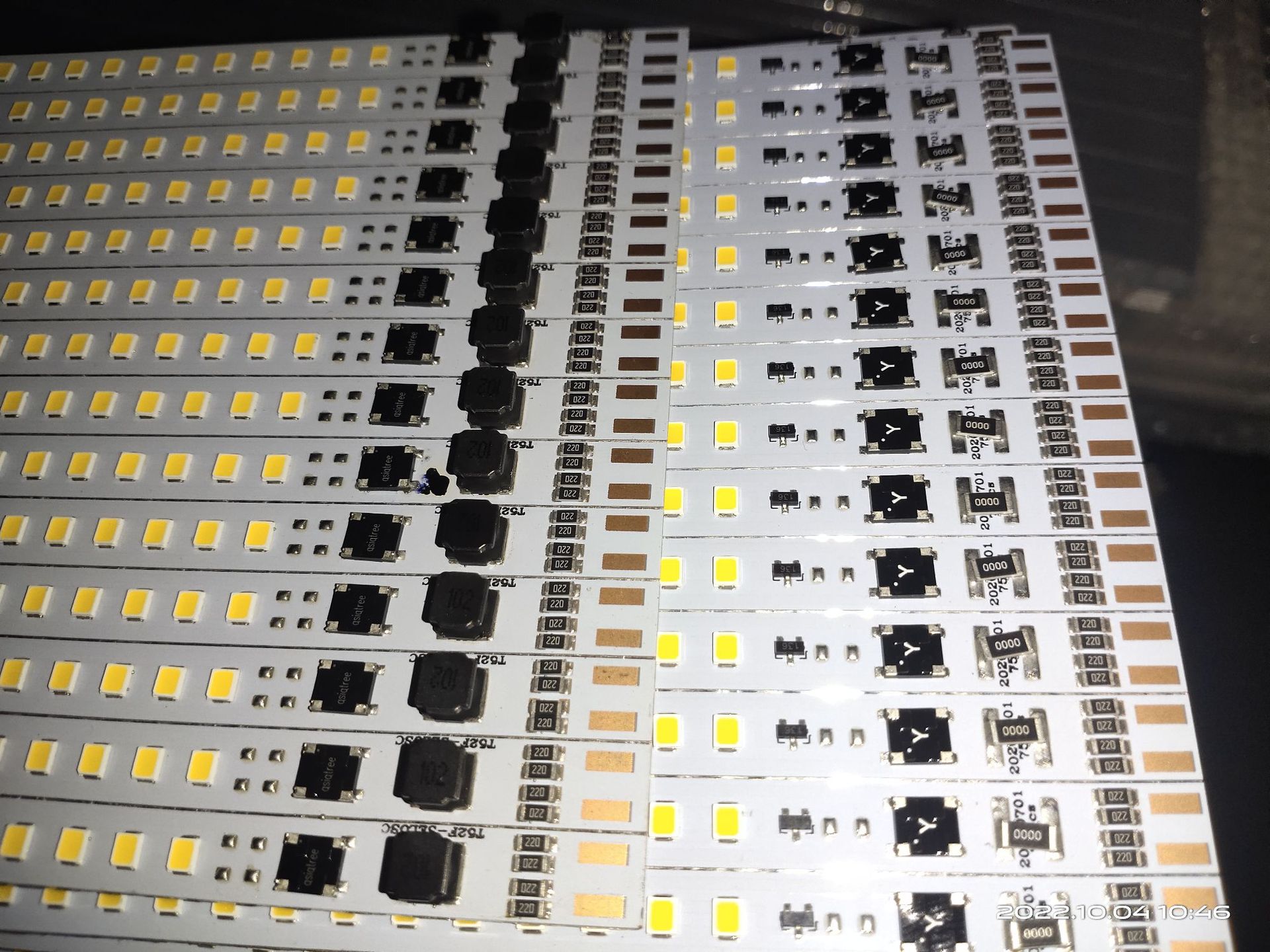

PCB Material

High Conductivity Aluminum

Type of Patent

Utility Model Patents

Patent Number

Zl 2013 2 0788619.4

Transport Package

Carton

Specification

0.9m

Trademark

EONE

Origin

China

Production Capacity

10000
