3600W PORTABLE POWER STATION OUTDOOR SHOW

Portable power station for out door and home energy storage

SPECIFICATION:

Product specifications：3600W/3072Wh

Cell: lithium iron phosphate
Capacity: 3072WH (main engine) /4608Wh (Extended battery pack)
Ac output power: 3600W (peak 7200W)
Frequency: 50/60Hz

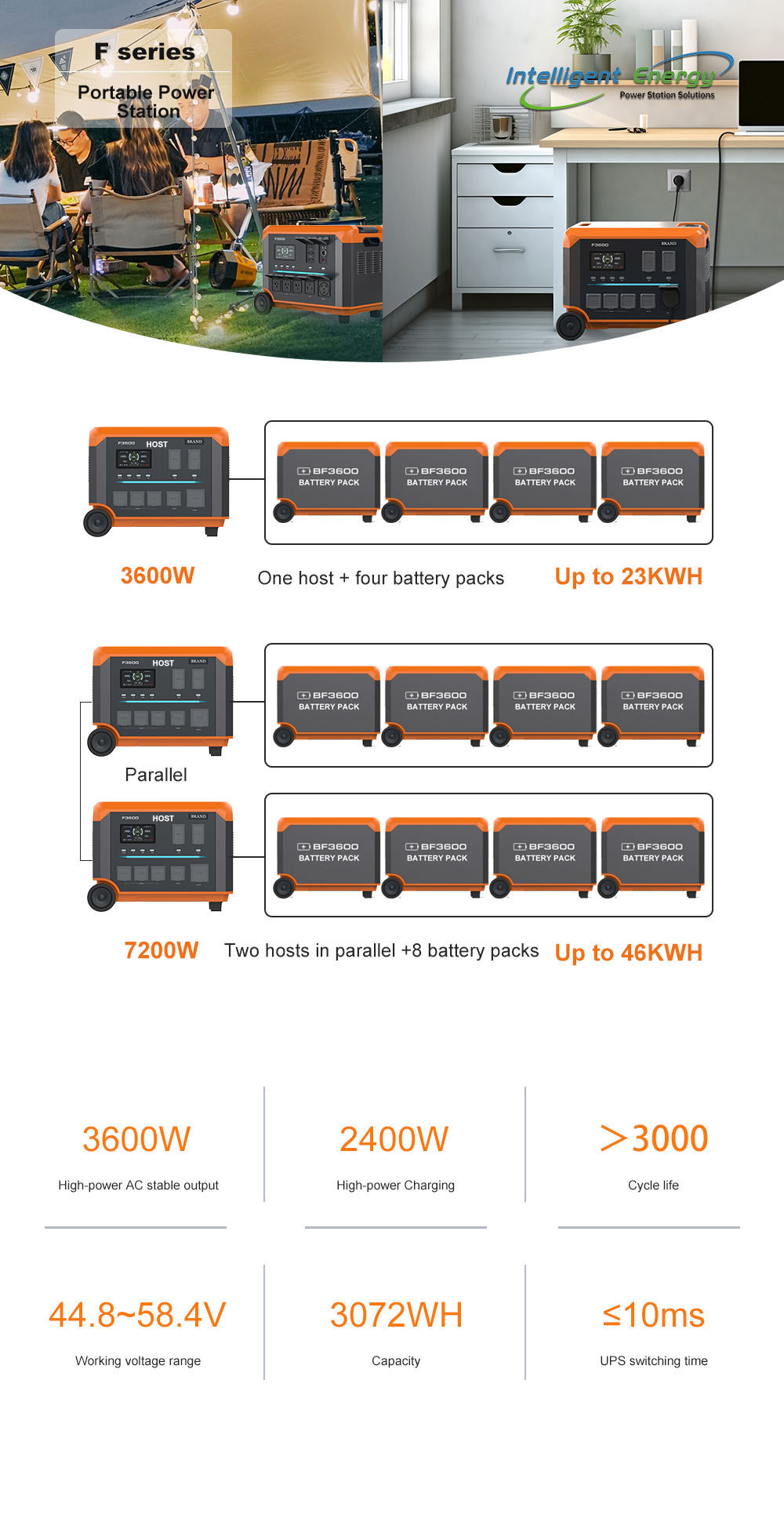

Intelligent parallel mode: US/Japanese standard: two hosts through the intelligent parallel HUB or intelligent distribution box to form a 120V/240V system, power doubled, capacity doubled
European/Australian regulation: three hosts through intelligent parallel HUB or intelligent distribution box composed of 230V/400V (three-phase) system, three times the power, three times the capacity
Intelligent power mode: a host + extended power package (1-4) to achieve increased capacity and increased battery life
Microgrid mode: US/daily: two hosts + expansion packs (0-8) composed of 120V/240V system, maximum AC output power 7.2KW, maximum power 45KWH
European/Australian regulation: three hosts + expansion packs (0-12) composed of 230V/400V system (three-phase), maximum AC output power 10.8KW, maximum power 67KWH
USB-A: 4 x 18W
USB-C: 2 x 100W
Wireless charge: 10W
DC output: 5521*2+ Cigarette lighter 120W
RV output: 360W
EV charging: 3600W
Ac charging: Japan: 1500W, US: 1800W, Europe/Australia: 2200W
Car charging: 192W
Solar charging: 2400W
UPS switchover time: 10ms
WIFI/APP: Optional support, APP needs to be customized development
Safety protection mechanism: high and low temperature charge overvoltage, overcurrent protection, high and low temperature discharge undervoltage, overcurrent protection, input overvoltage, overload, reverse protection, output overload, short circuit protection, system overtemperature, lightning protection, anti-surge protection
Safety certification: L/FCC/CE/PSE/CP65 / ROHS/UN38.3
Operating temperature: -10 ~ 40℃
Storage temperature: -20 ~ 45℃
Net weight: About 45kg
Size (length, width and height) : 561*368*406mm
