CNC Milling and Boring Machines
2 year ago

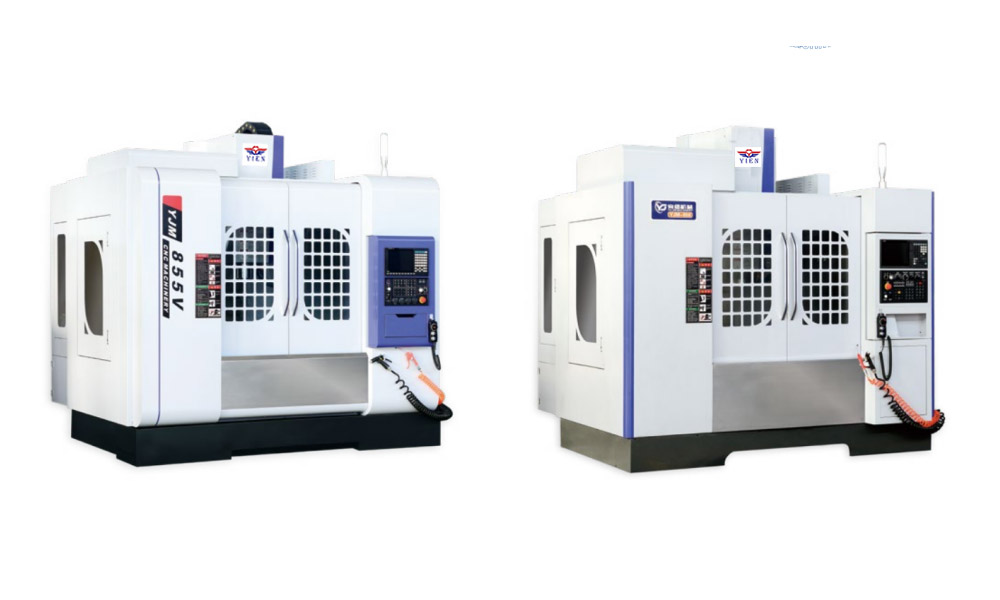

CNC Milling Machine YJM850, with the function of Vertical Machining Lathes, is a CNC lathe that combines the functions of lathe and milling machine. compared with ordinary CNC lathe and CNC milling machine, CNC Milling Machine has higher machining capability and flexibility. It can complete a variety of machining operations such as turning, milling, drilling, tapping, etc. It is suitable for complex shapes and high precision machining. For example, in the aerospace field, it is widely used for machining difficult-to-machine materials, such as titanium alloy and high-temperature alloy. It can complete the processing of complex blades, turbines and other parts to improve machining accuracy and production efficiency, and guarantee the safety and reliability of aerospace products.
| ◎ Specification | |||||
| I T E M | UNIT | YJM850 | YJM855V | YJM856 | |
| TABLE(LxW) | mm | 1000x500 | 1000x550 | 1000x550 | |
| T-SLOT | mm | 5-18x90 | 5-18x90 | 5-18x90 | |
| X/Y/Z TRAVEL | mm | 800x500x500 | 800×550x550 | 820x550x600 | |
| SPINDLE SPEED | rpm | Belt 8000 /10000/ Direct 12000 | |||
| SPINDLE TAPER | / | BT40 | BT40 | BT40 | |
| GUIDEWAY(Rolle) | / | 35/35/35 | 35/45/45 | 45/45/45 | |
| TOOL STORAGE CAPACITY | 24 | 24 | 24 | ||
| TYPE OF TOOL | / | Disk type | Disk type | Disk type | |
| SPINDLE NOSE TO TABLE SURFACE | mm | 150-650 | 120-670 | 130-730 | |
| SPINDLE CENTER TO SOLID COLUMN SURFACE | mm | 570 | 550 | 610 | |
| RAPID | m/min | 48/48/48 | 36/36/36 | 36/36/36 | |
| POSITIONING | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | |
| REPEATABILITY | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | |
| MIN. SETTING UNIT | mm | 0.001 | 0.001 | 0.001 | |
| MAX LOADING | Kg | 500 | 600 | 600 | |
| CONTROLLER | / |
Optional SYNTEC / MITSUBISHI/ FANUC |
Optional SYNTEC / MITSUBISHI/ FANUC |
Optional SYNTEC / MITSUBISHI/ FANUC |
|
| MOTOR | kw | 7.5/11 | 7.5/11/15 | 7.5/11/15 | |
| TOOL SELECTION METHOD | / | Pneumatic | 气动Pneumatic | Pneumatic | |
| AIR REQUIRED | Kg/cm² | ≥6 | ≥6 | ≥6 | |
| POWER REQUIRED | kVA | 20 | 20 | 20 | |
| MACHINE WEIGHT | Kg | 5000 | 5500 | 5800 | |
|
MACHINE DIMENSIONS(Lx WxH) |
mm | 2500x2400x2600 | 2600×2500x2700 | 2600x2500x2700 | |
| Note: Our company reserves the right to change the specification without advance notice. | |||||
