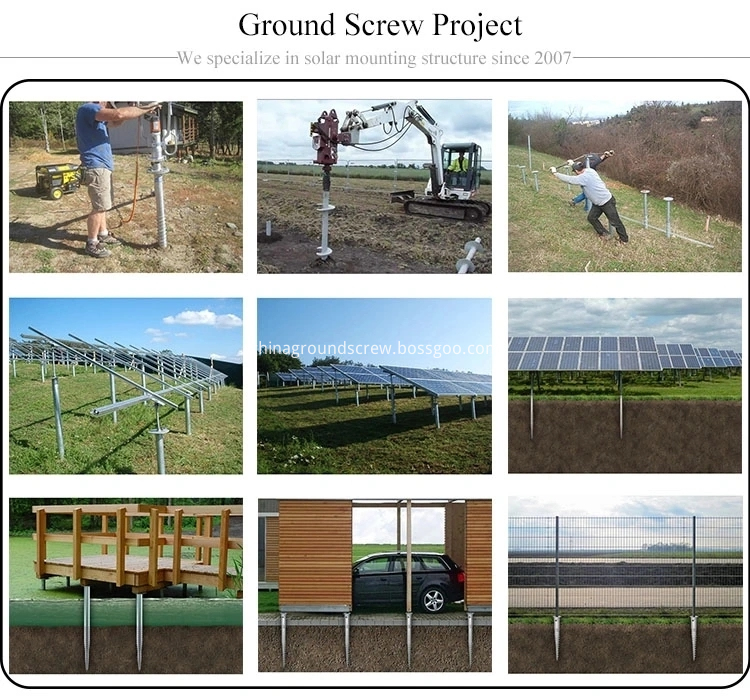

Ground Screw Pile as the foundation of projects have a widely use,the production process of the Ground Screw is to understand it together: designed Ground Screws and make drawings for Ground screws,cutting steel pipe,shrank tip of tube according to Ground Screw Pile's design,welding blade and flange,acid pickling,hot dip galvanized treatment,polish zinc drips ,packing.

Material of Ground Pile:S 235 carbon steel.

Size of flange:200*8 mm,220*8 mm or 160*8 mm.

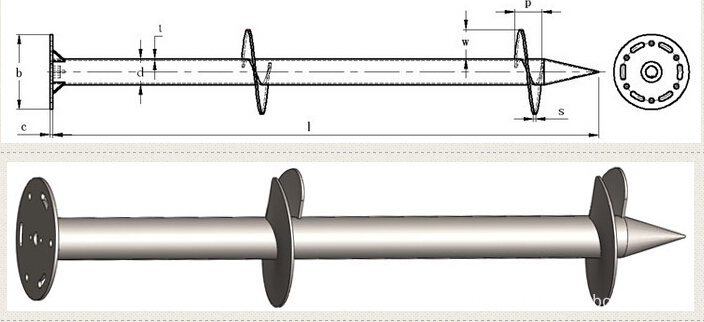

Diameter of Helix Ground Screw:76 mm,89 mm,102 mm,114 mm.

Shape of flange: round,hexagon,triangle,square,rectangle & ,according to clients' need.

Common size of Screw Pile:

76*3*1200 mm

76*3*1400 mm

76*3*1500 mm

76*3*1800 mm

76*3*2000 mm

89*3.75*1500 mm

89*3.75*2000 mm

102*4*1800 mm

102*4*2000 mm

Feature of Ground screw:

·  No dig, No concrete pouring,wet trades,or landfill requirements.

·  Anti-rust, corrosion resistant so that it can be used for a very long time and makes it effective.

·  Significant reduction in installation time compared to concrete foundation

·  Safe and easy – speed and ease of installation, removal, and relocation – with minimum impact to the landscape.

·  Consistent and reliable foundation performance

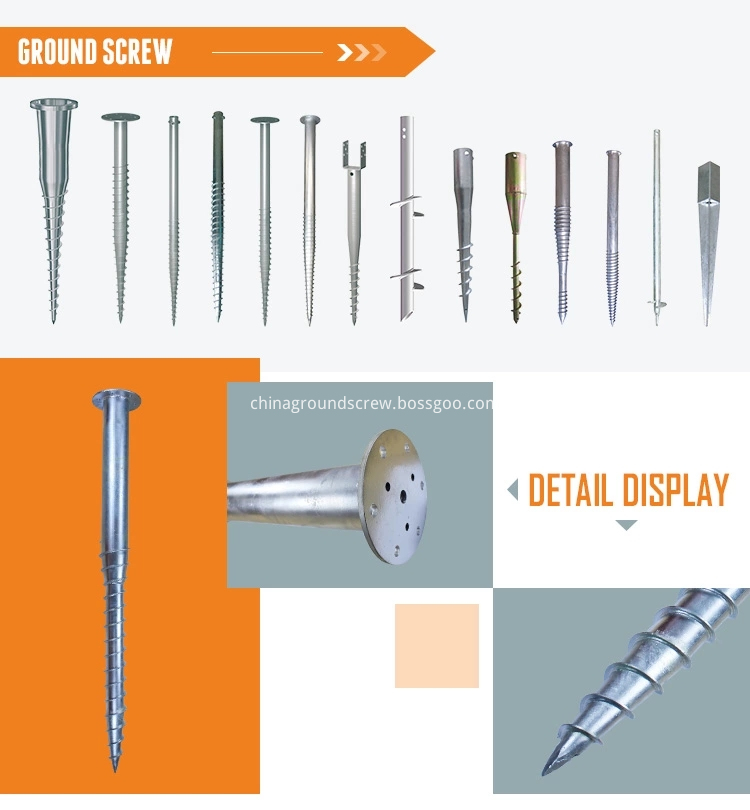

·  Different ground screw heads to accommodate various post form.

·  Reduced vibration and noise during installation.

·  Ground screw made from fine carbon steel, and full welding on the connecting part.

·  Immediately loadable
