System Description -Polypropylene Heat Shrinkable Sleeves

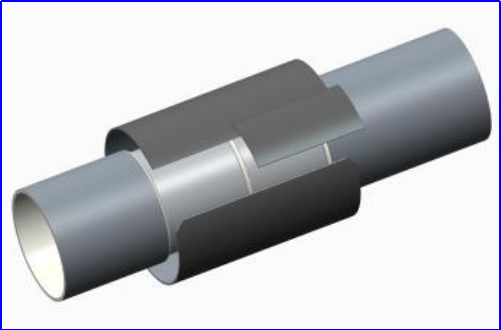

The pipeline 3 LPP 120C heat shrink coating system designed for 3LPP corrosion protection of high temperature of straight pipes, fittings, bends, elbows and other irregular configurations, designed for three layer field joint coating system for polypropylene coated pipeline and a three layer bend coating.
The shrink sleeves consist of a heat shrinkable polypropylene material pre-coated internally with an adhesive. The closure patch is coated with a heat activated, high shear adhesive .

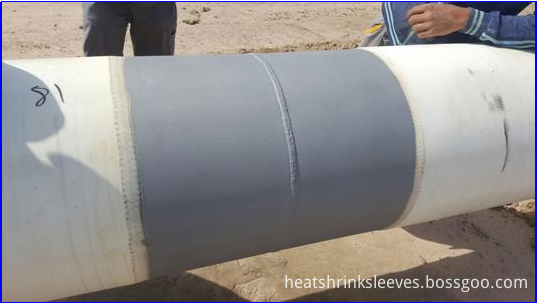

When heated the backing layer shrinks and the adhesive flows and forms a reliable corrosion protection seal onto metal and adjacent coating surfaces.
Epoxy primer is a specially formulated 100% solid two components is applied to all exposed metal surfaces without leaving holidays, runs or sags. The prime is applied in a uniform coat by brush or roller to obtain a dry film thickness in accordance with the instructions.We have high temperature Epoxy primer for high temperature for Three Polypropylene Heat Shrinkable Sleeves
Sichuan Forever main products has heat Shrinkable Sleeves, Pipe Repair Material,Liquid Epoxy Coatings,Visco-Elastic Coating Materials,Cold-Applied Polymeric Tape and other Wrapping materials application tooling.
Product Features Polypropylene Heat Shrinkable Sleeves
3LPP is comprised of the same materials as, and offers equivalent performance to, the 3LPP factory-applied coating as follows:
3LPP sleeve offers the hardness, mechanical protection and resistance to moisture absorption required on critical higher temperature, and often deepwater, pipelines.
High Temperature Epoxy on the Steel provides resistance to corrosion and to cathodic disbandment while allowing relatively low installation temperatures.
PP Adhesive bonds the polypropylene sleeve to the epoxy layer and fuses to the 3LPP factory-applied coating where the joint coating overlaps to eliminate the possibility of moisture ingress.
Technical Data----3LPP sleeves
|
Property |
Test temp. |
Unit |
Standard |
Value |
Test Method |
|
Thickness |
— |
mm |
≥ 2.5mm |
＞2.5mm |
Annex B ISO21809-3 |
|
Holiday detection at 5 kV/mm + 5 kV |
— |
— |
no holiday |
no holiday |
Annex C ISO21809-3 |
|
Impact resistance (holiday detection at 5 kV/mm+5 kV) |
20℃ |
J/mm |
≧ 10 |
10.2 |
Annex D ISO21809-3 |
|
Indentation resistance Pressure Residual thickness |
110℃ |
N/mm2 |
10.0 |
10 |
Annex E ISO21809-3 |
|
— |
mm |
≧ 0.6 |
1.0 |
||
|
Cathodic disbondment at 28 days |
23℃ |
mm |
≦ 5.0 |
4.2 |
Annex G ISO21809-3 |
|
95℃ |
mm |
≦ 10 |
9.3 |
||
|
Peel strength at 10 mm/min to pipe surface and to polyolefin coating plant coating |
23℃ |
N/mm |
≧ 4.0 |
14 |
Annex H. 1 ISO21809-3 |
|
110℃ |
N/mm |
≧ 2.0 |
3.2 |
||
|
Peel strength at 10 mm/min to pipe surface and to polyolefin plant coating after 100days hot-water immersion test at Tmax limited as per Annex I |
23℃ |
N/mm |
≧0.75 |
0.8 |
Annex I and H ISO21809-3 |
|
Lap shear strength at 10 mm/min |
23℃ |
N/mm2 |
≧5.0 |
5.4 |
Annex J ISO21809-3 |
|
110℃ |
N/mm2 |
≧ 1.0 |
1.2 |
||
|
Thermal ageing resistance (aged at Tmax + 20 °C) – Elongation at break (E100/E0) – Peel strength to pipe surface (P100/P100) |
23℃ |
E100/E70 |
≧ 0.75 |
0.91 |
Annex M ISO21809-3 |
|
23℃ |
P100/P70 |
≧ 0.75 |
0.83 |
||
|
Oxidation Induction time on the backing at 220°C (intercept in the tangent method) |
|
min |
≧ 15 |
25 |
ISO 11357-6 |
|
Thermal stability at 130°C for 50 weeks, installed system |
110℃ |
Visual |
No Cracks |
No Cracks |
Annex N ISO21809-3 |
Technical Data---- Epoxy primer
|
Properties |
Standard |
Value |
|
Specific Gravity @ 23℃-A -B |
Min 1.5 g/cm3 Min1.0 g/cm3
|
1.50 g/cm3 1.06 g/cm3 |
|
Solid content |
Min98% |
99.80% |
|
Touch Drying time(23℃）H |
Max 2 H |
1 |
|
Hard Drying time(23℃）H |
Max 24 H |
4 |
|
Hardness, Shore D |
Min 80 |
85 |
|
Adhesion to steel |
Min 10 MPA |
19.20 |
|
Cathodic disbondment 28 days, 23°C |
2 mm max radius |
1.1 |
|
Cathodic disbondment 28 days, 95°C |
10 mm max radius |
8.0 |
|
Impact Resistance |
Min 1.5 J at -30°C Min 8 J at 23°C |
Pass Pass |
Technical Data---- Closure Patch
|
No. |
Test items |
Test standard |
Unit |
Value |
|
1 |
Total thickness |
ASTM D1000 |
mm |
≥1.5 |
|
2 |
Shrinkage rate |
Actual measurement |
% |
0 |
|
3 |
Closure Patch slippage displacement |
Actual measurement |
mm |
0 |
|
4 |
Closure Patch Lap shear @100℃ |
EN12068 |
N/cm2 |
≥35 |
